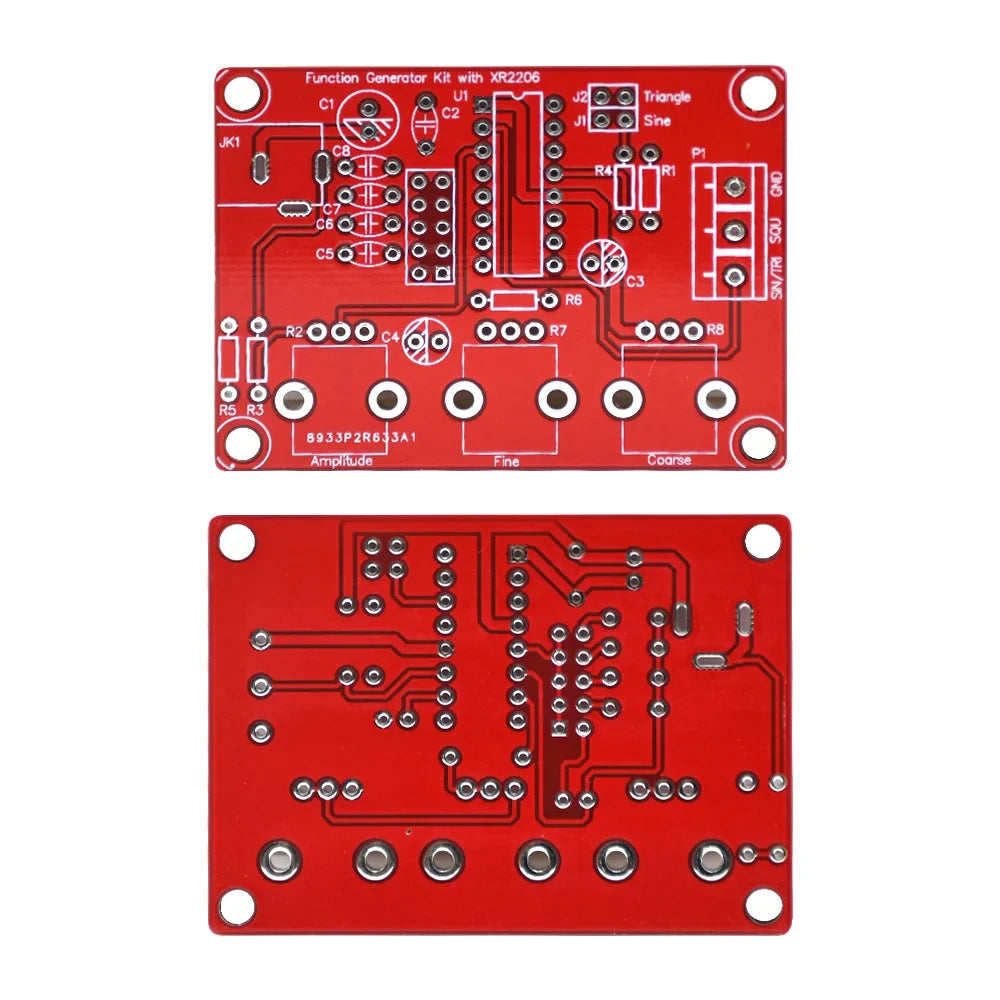

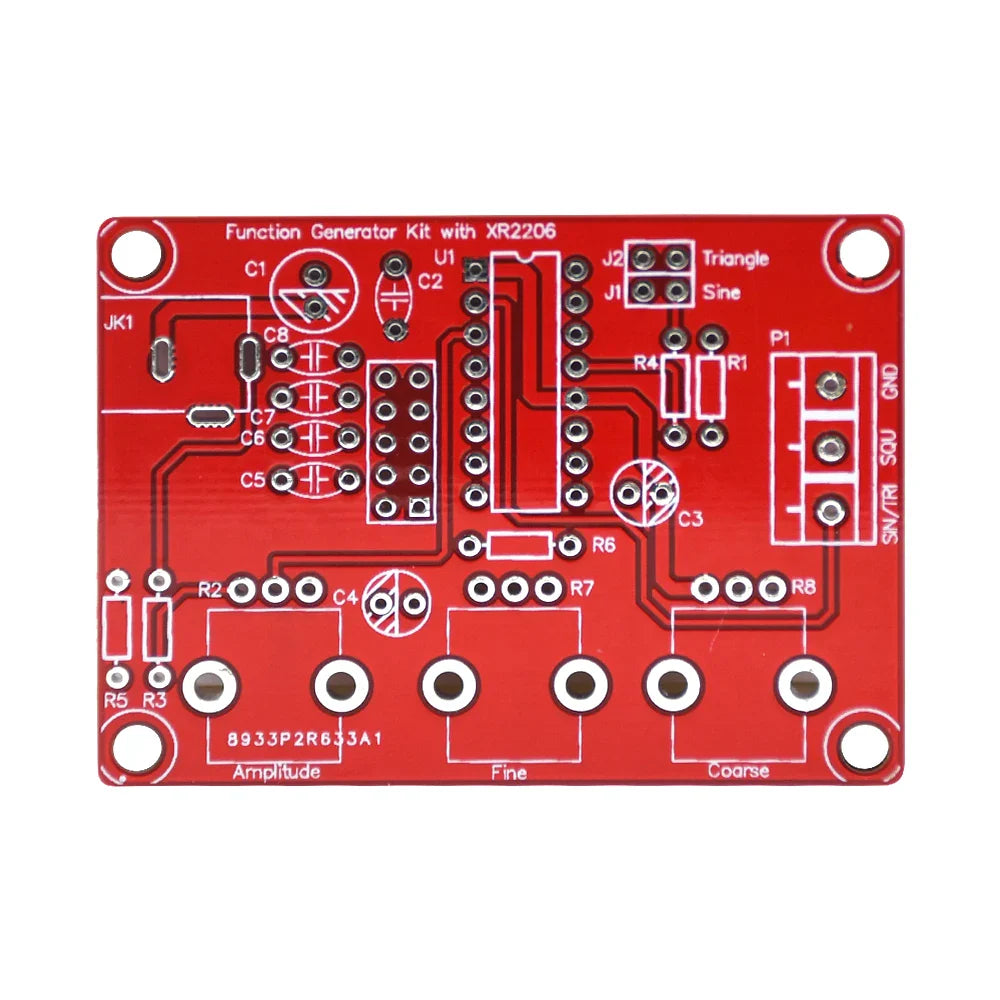

XR2206 Signal Generator DIY Kit – High Precision Sine, Triangle, Square Wave Output (1Hz–1MHz Adjustable)

Whether you're a budding electronics enthusiast, a DIY hobbyist, or an engineer in the lab, the XR2206 High Precision Signal Generator Kit by Voktta is your perfect project companion! This hands-on kit lets you generate sine, square, and triangle waveforms across a wide 1Hz–1MHz frequency range, making it ideal for testing, prototyping, and learning signal behavior from the inside out.

Packed with performance and designed for tinkerers, this generator comes with a protective acrylic case, easy-to-assemble components, and fully adjustable output. It’s not just a circuit—it's a hands-on adventure into the world of signal generation!

🔍 Key Features:

• 🔄 Three Waveforms in One Kit
  Generate clean Sine, Square, and Triangle waves — perfect for testing and experimenting across electronics projects.

• 📡 Adjustable Frequency Range (1Hz – 1MHz)
  Tweak and tune to your needs with high precision across a broad frequency spectrum.

• 🎯 Low Distortion & High Linearity

  • Sine Wave: <1% distortion @ 1kHz

  • Triangle Wave: <1% linearity error up to 100kHz

  • Square Wave: Fast rise (<50ns) and fall (<30ns) times

• 🔋 Efficient & Low Power
  Runs on a simple 9–12V DC input, making it portable and bench-friendly.

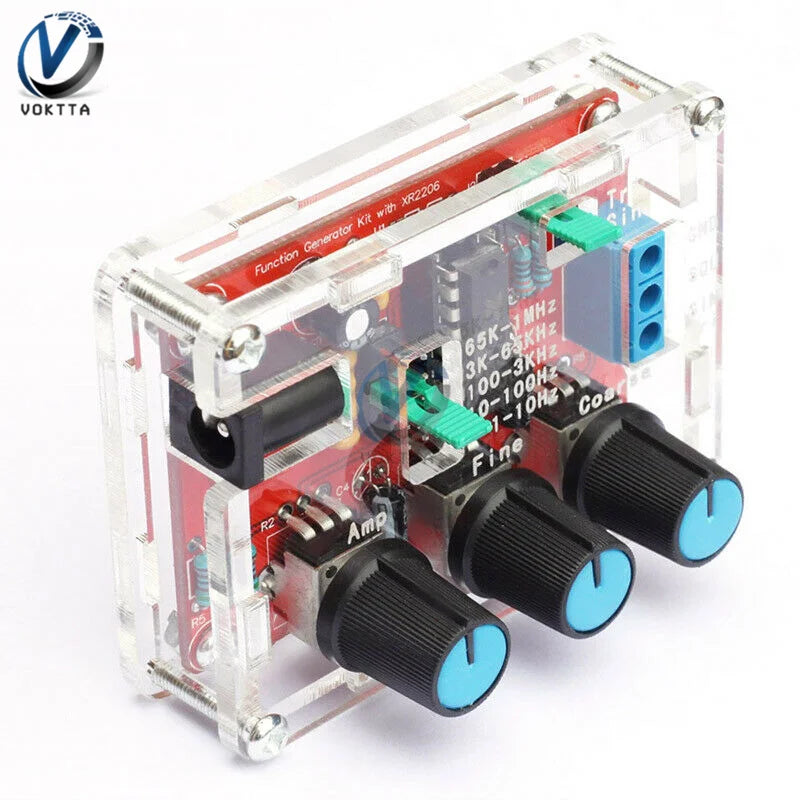

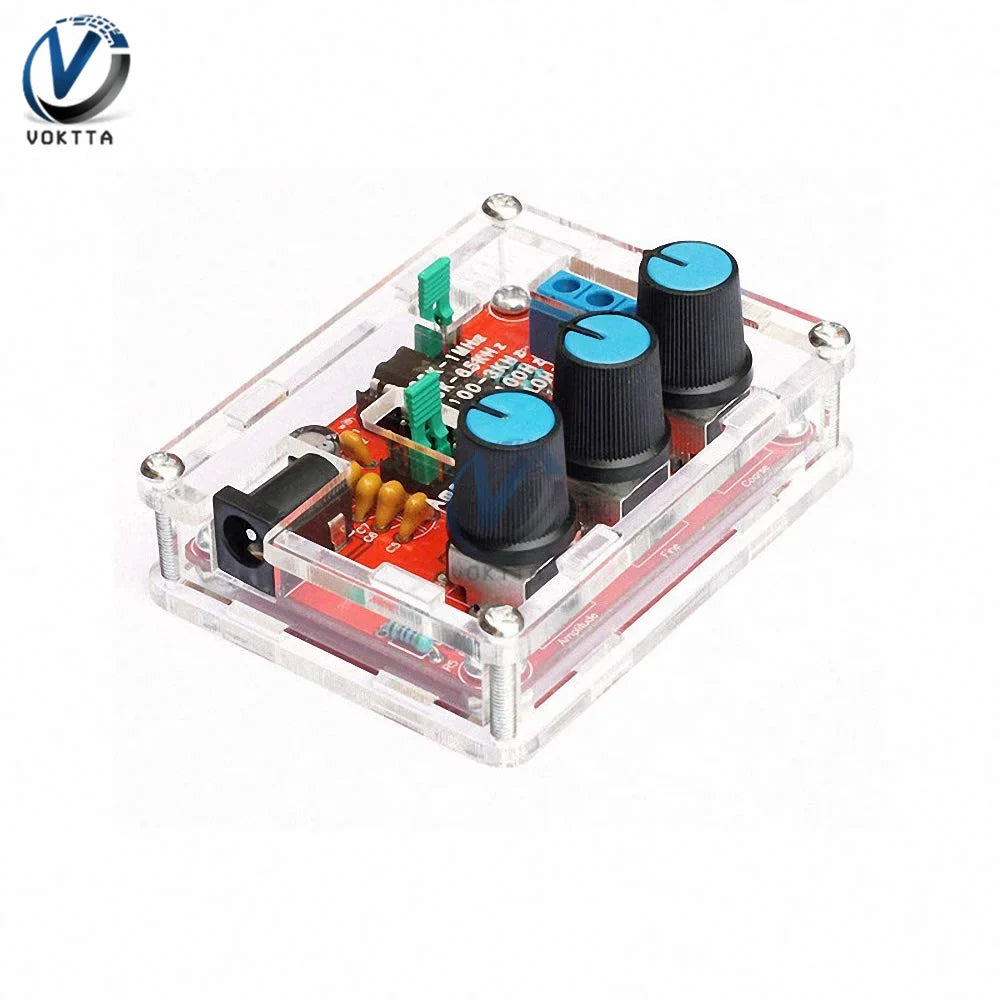

• 🛠️ DIY-Friendly with Case Included
  Comes as a DIY kit with a protective enclosure—learn, build, and protect your masterpiece all in one go!

• 🔌 Impedance: 600Ω ±10% – Great for interfacing with audio, oscilloscope, or RF testing setups.

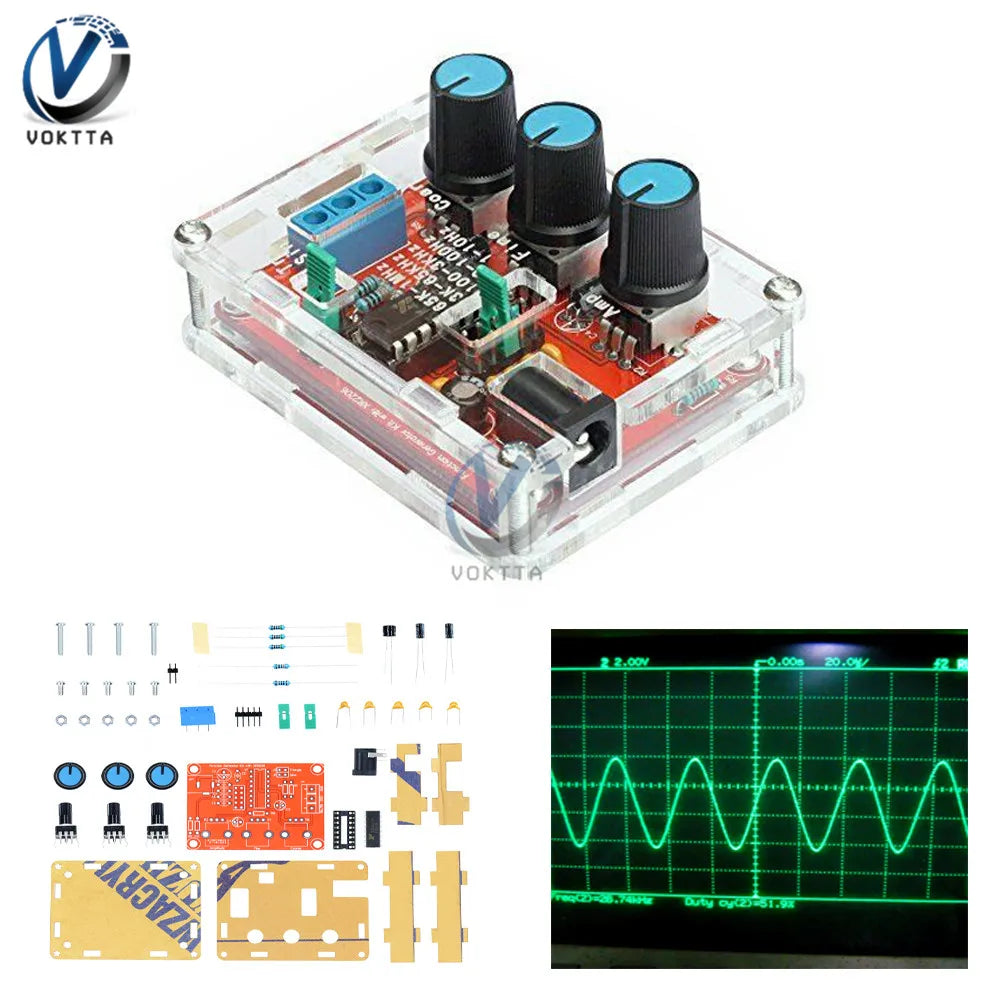

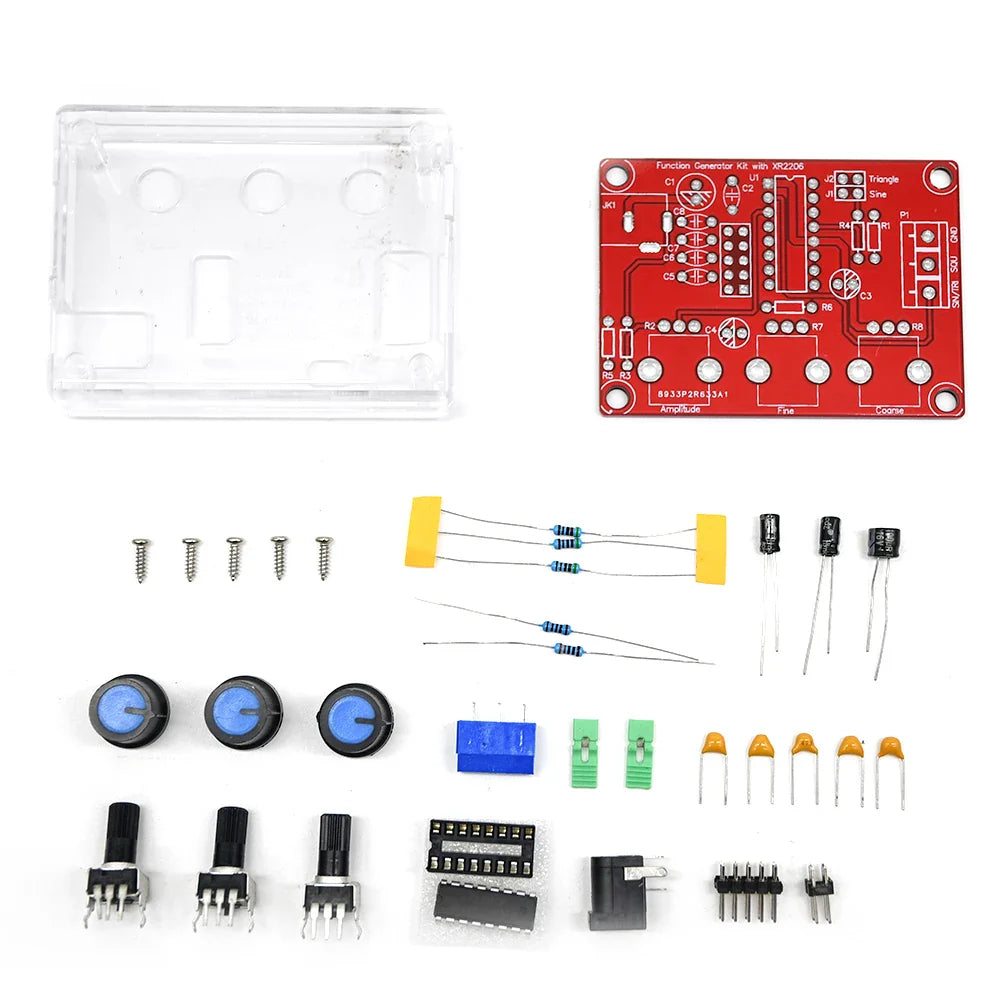

📦 Package Includes:

• 1 x XR2206 Signal Generator DIY Kit

• Includes all components and acrylic protective cover box

🌐 Perfect For:

• DIY electronics & engineering students

• Signal testing and waveform analysis

• Audio and RF circuit experimentation

• Hobbyists building function generators from scratch

Whether you're prototyping your next gadget or sharpening your electronics skills, the XR2206 DIY Signal Generator Kit is the fun, educational, and functional tool you’ve been waiting for. Build it, test it, and let the waves roll! 🌊💡
