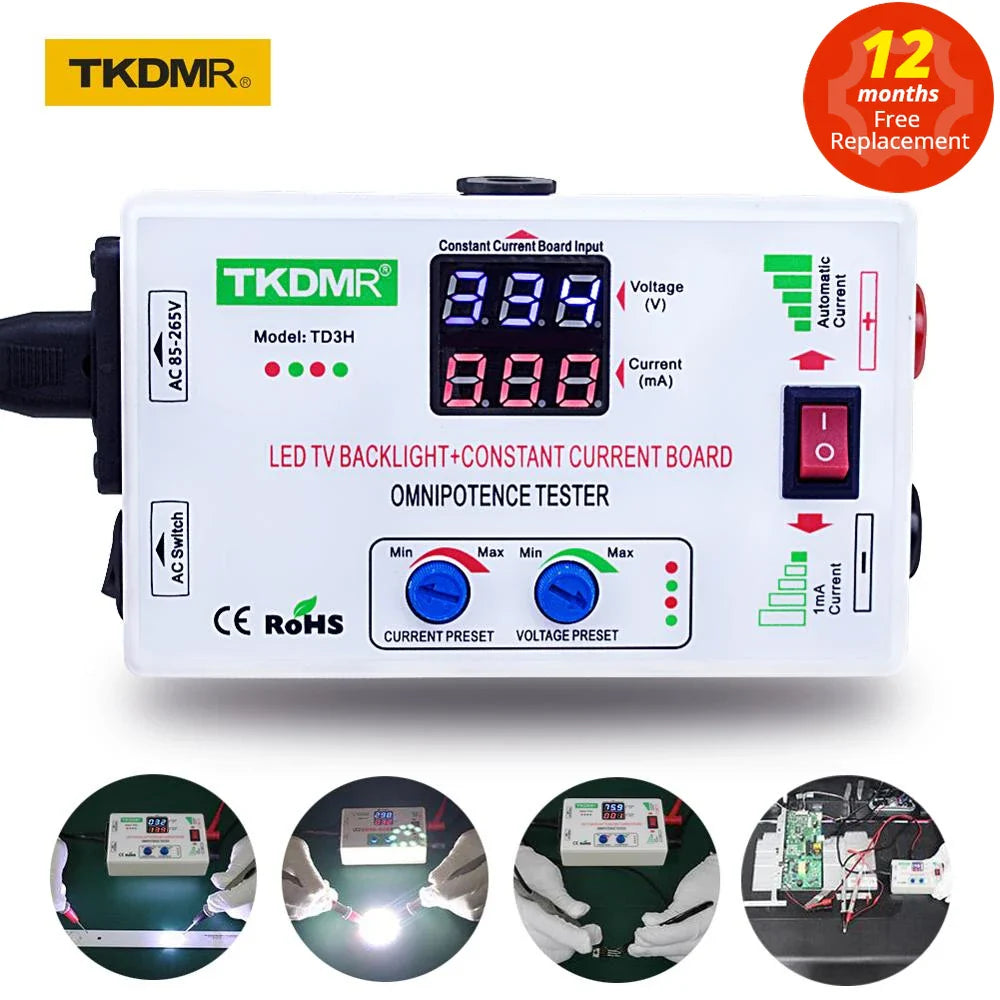

Perfect for DIY enthusiasts and professionals, the TKDMR 0-330V Smart-Fit Voltage Tester is a versatile tool designed to test a wide range of LED TV backlight systems, LED strips, and constant current driver boards. With its adjustable voltage and current settings, this tester provides precise measurements for reliable troubleshooting and repairs. Whether you’re testing single LED beads, LED strips, or even electrolytic capacitors, this tool makes your work faster, easier, and more accurate!
🔌 Key Features:
Wide Voltage & Current Range: With 0-330V adjustable output and 0-150mA current adjustment, this tester is ideal for various LED and electrical testing applications, including TV backlight systems and LED panels.
Manual & Automatic Adjustment: Effortlessly adjust the voltage and current for LED strips, single LED beads, or constant current driver boards. It offers automatic and manual settings to suit any testing scenario.
Built-in Safety Features: Test your components with confidence—this tool ensures no burnout when testing a single LED bead with incorrect polarity, providing protection for your equipment.
Versatile Applications: Great for testing:
LED TV backlights
LED strips (high or low voltage)
LED beads and COB lights
Constant current driver boards
Electrolytic capacitors
Electronic components like diodes, triodes, MOS tubes, and ICs

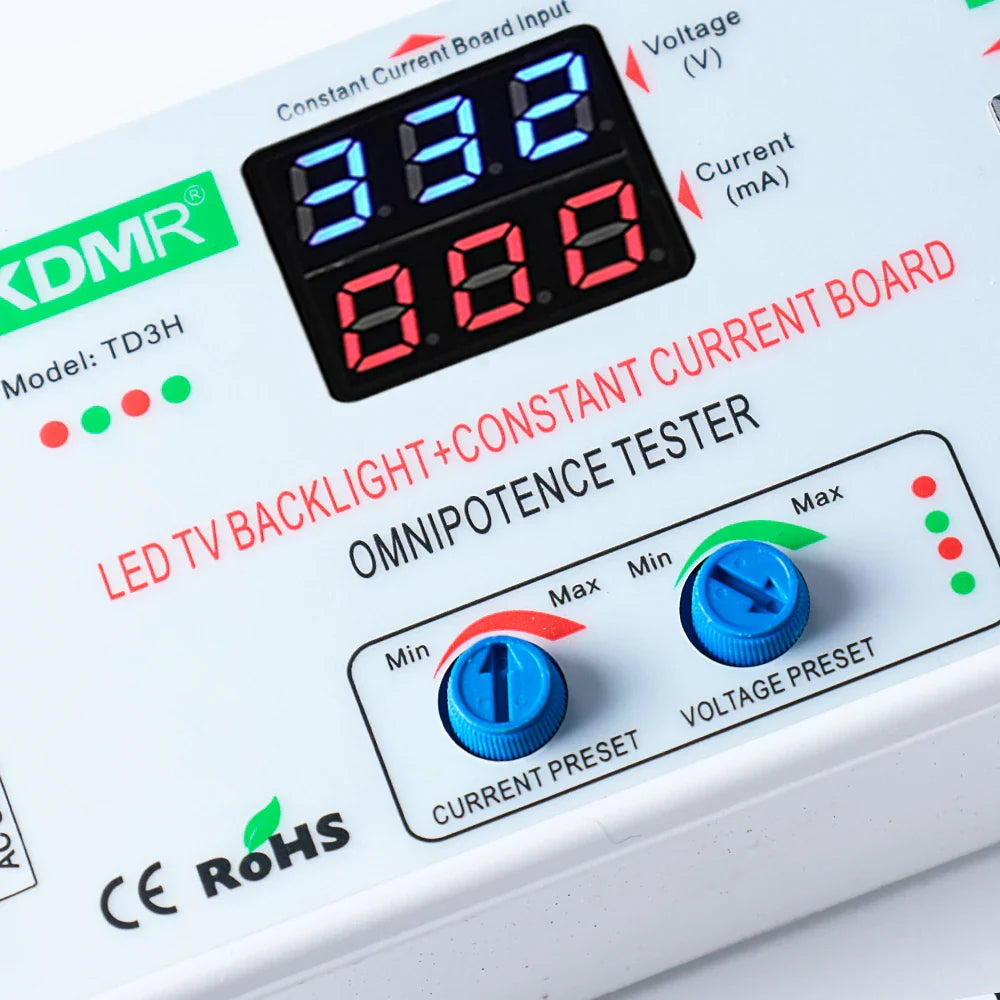

High Accuracy Testing: The voltmeter and ammeter display highly accurate measurements, ensuring precision testing every time.
⚙️ Additional Features:
Easy Setup: Plug and play functionality with intuitive self-testing modes. Begin testing in minutes with factory preset voltage (330V) and current (30mA).
Real-Time Testing: Ideal for diagnosing and calibrating:
LED backlights and driver boards
Electrolytic capacitors (measuring actual withstand voltage)
Diodes, transistors, and other electronic components

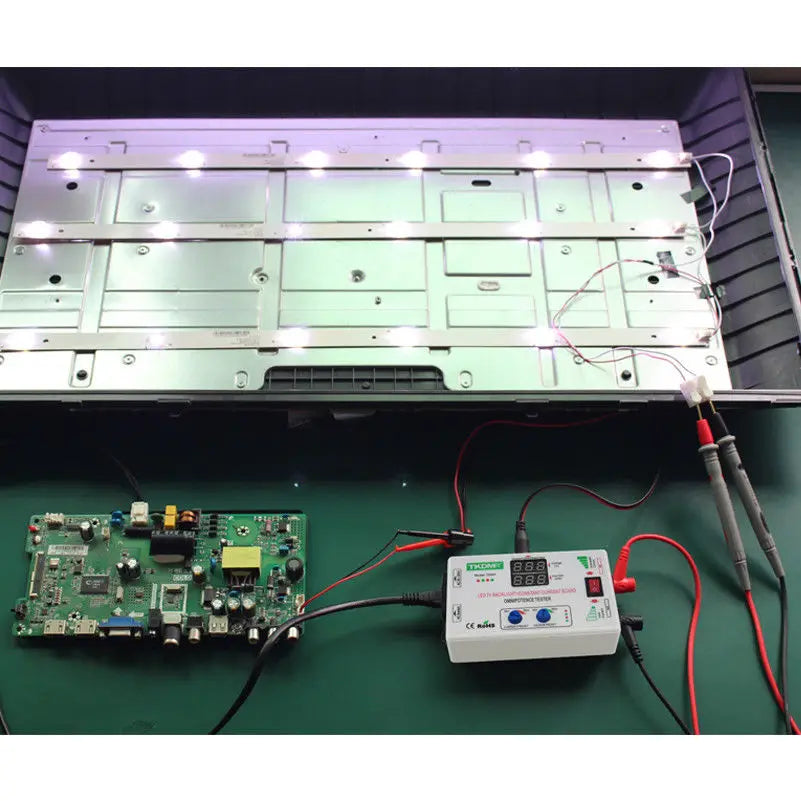

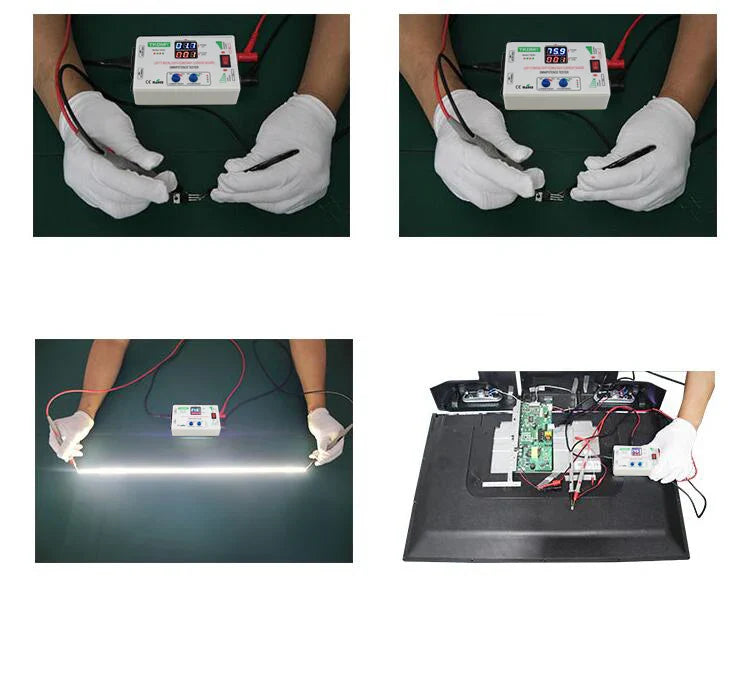

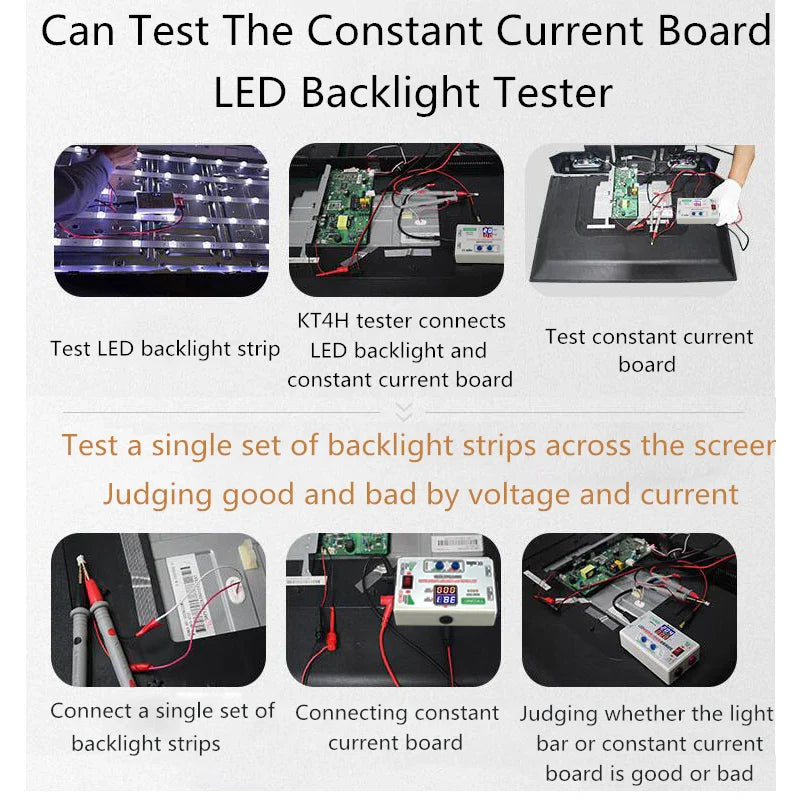

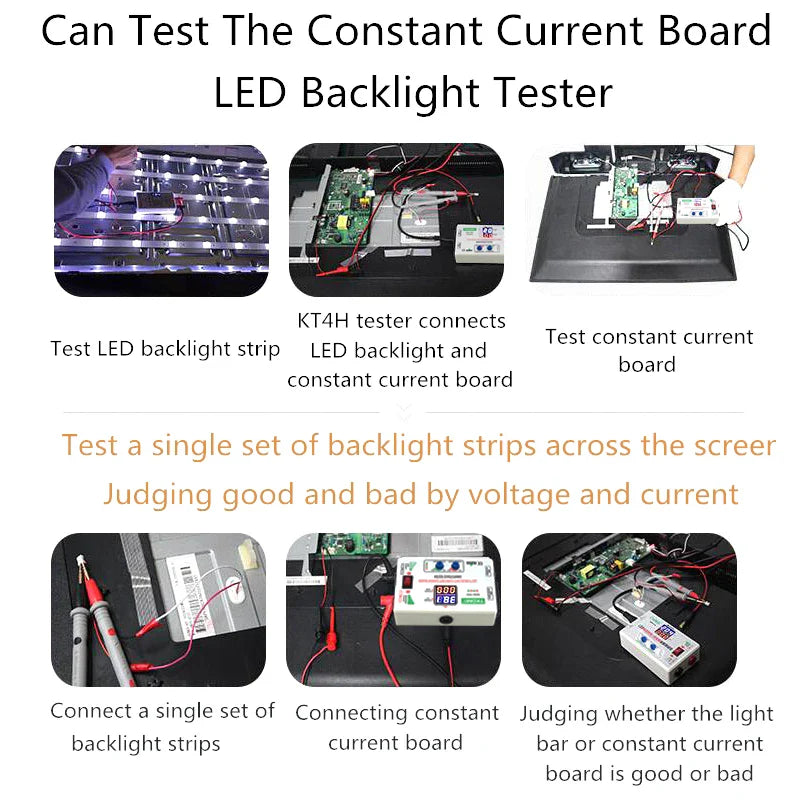

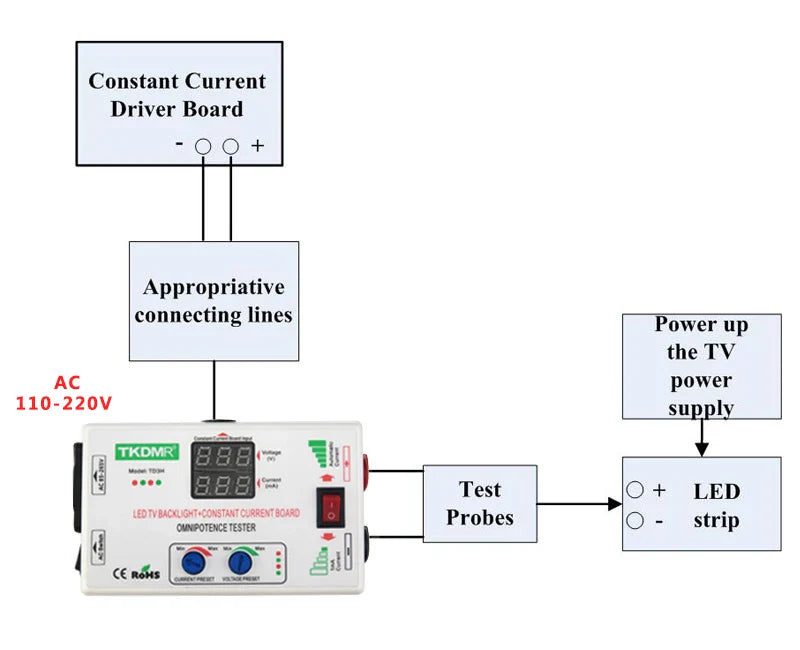

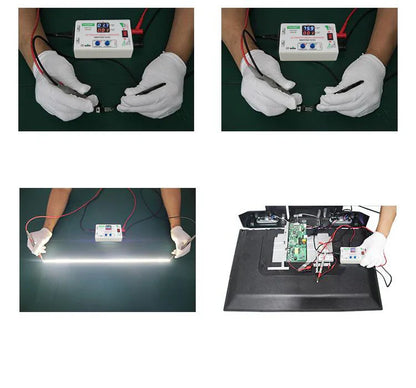

Multiple Testing Methods: The tester allows for efficient troubleshooting without dismantling screens. For LED strips, simply connect the probes and compare voltage to determine operational status.
🔧 How It Works:

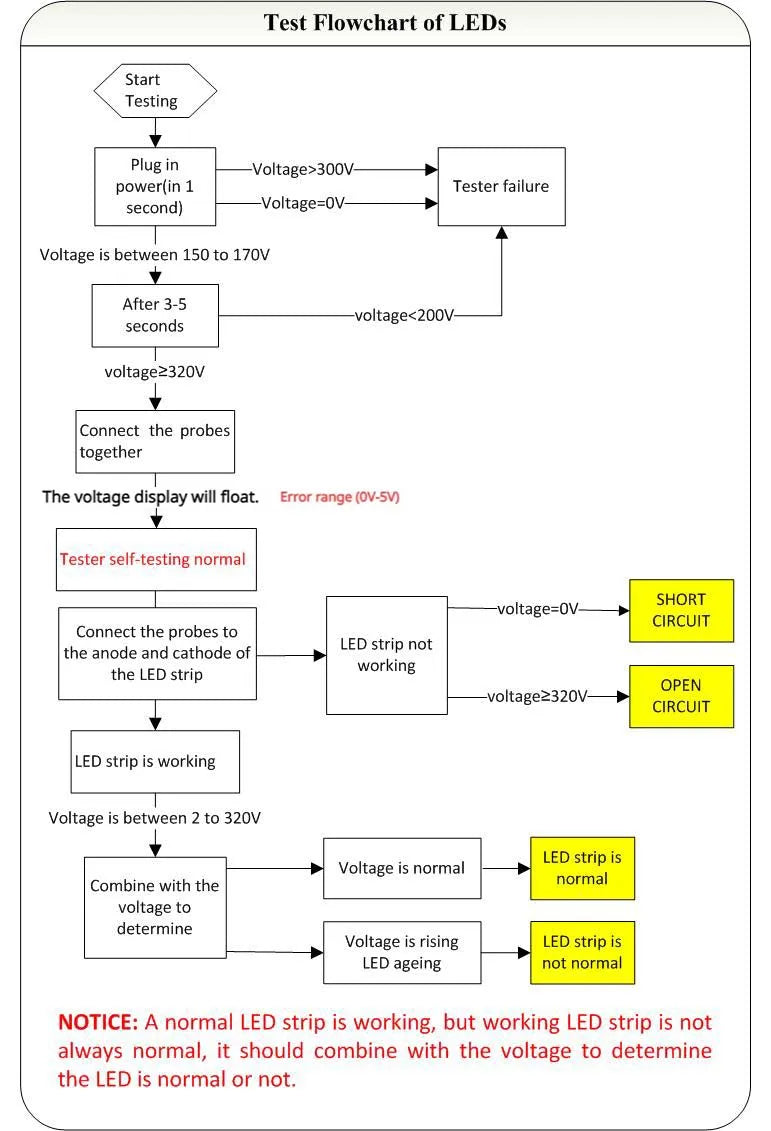

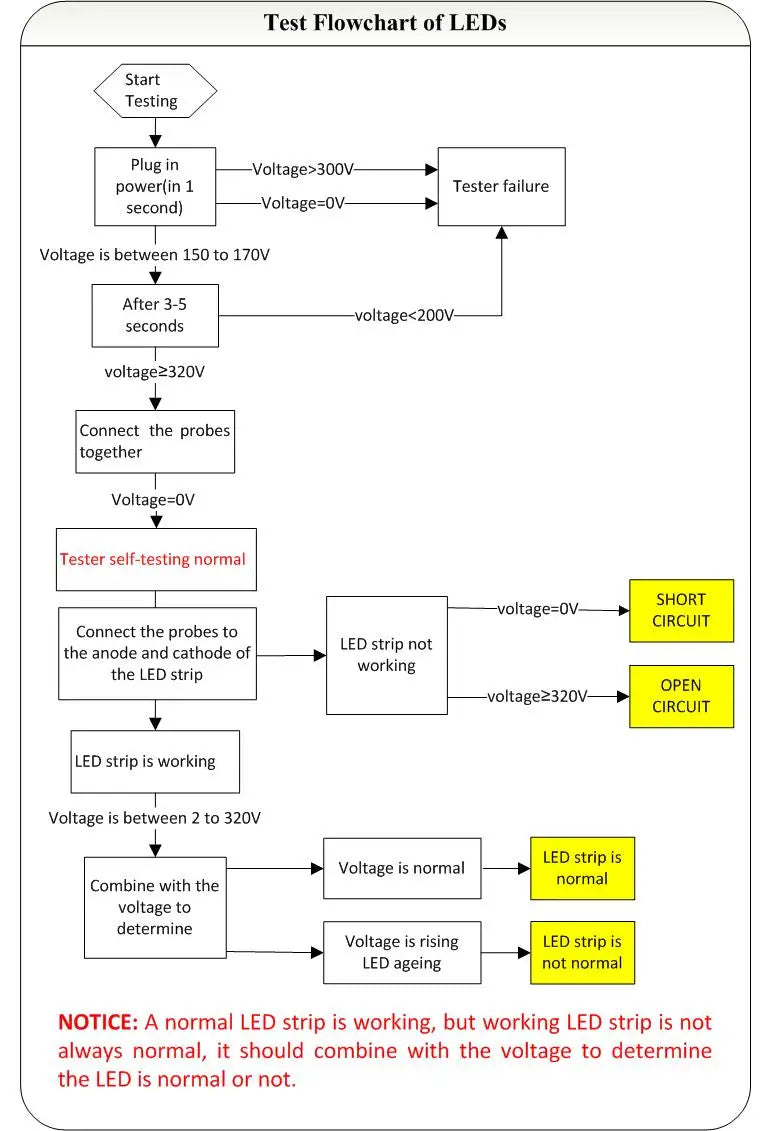

Self-Testing Mode: Plug in the tester, turn on the power switch, and start testing. Voltage adjusts automatically between open circuit (330V) and short circuit (0V), with real-time current monitoring.

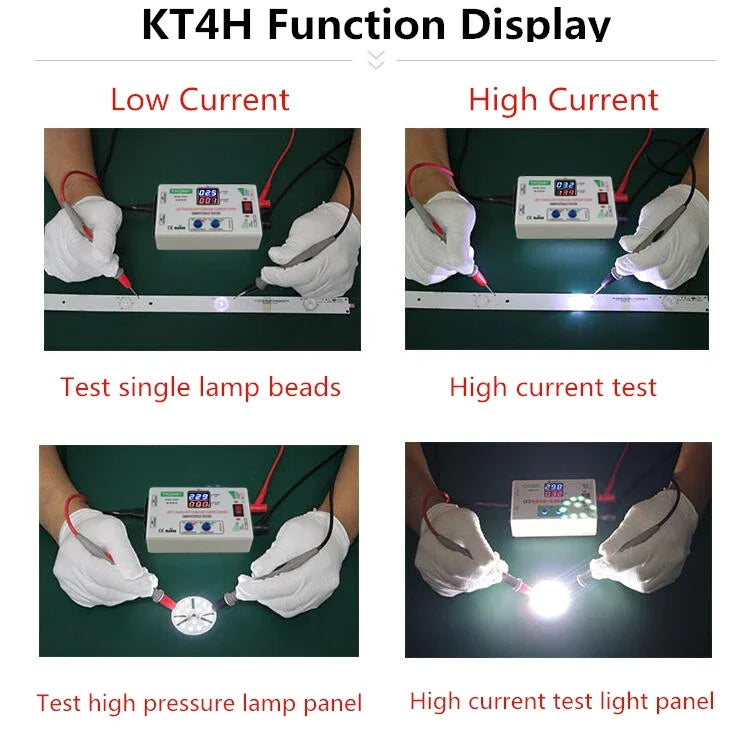

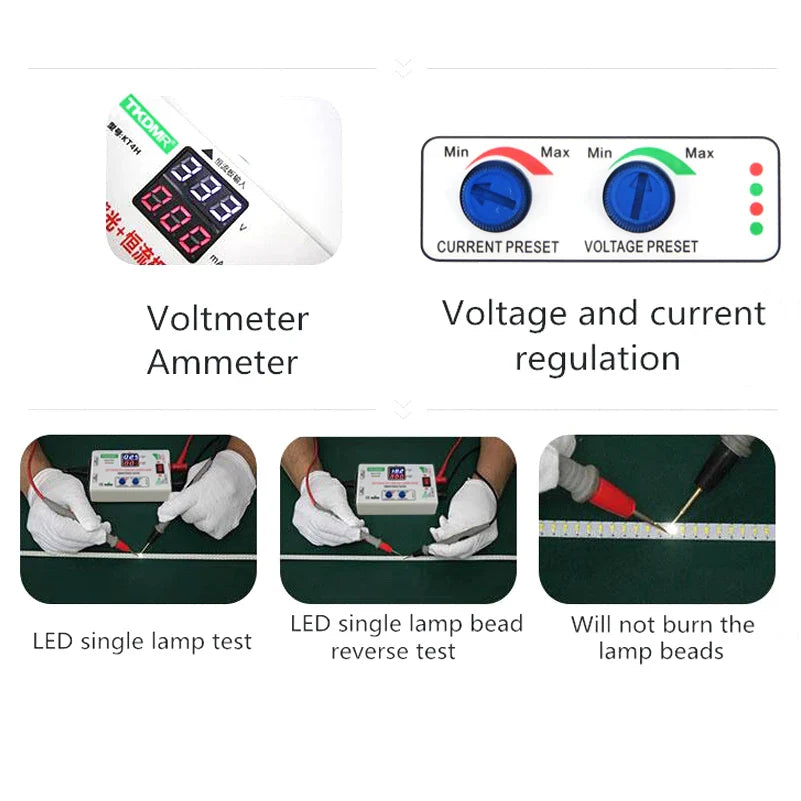

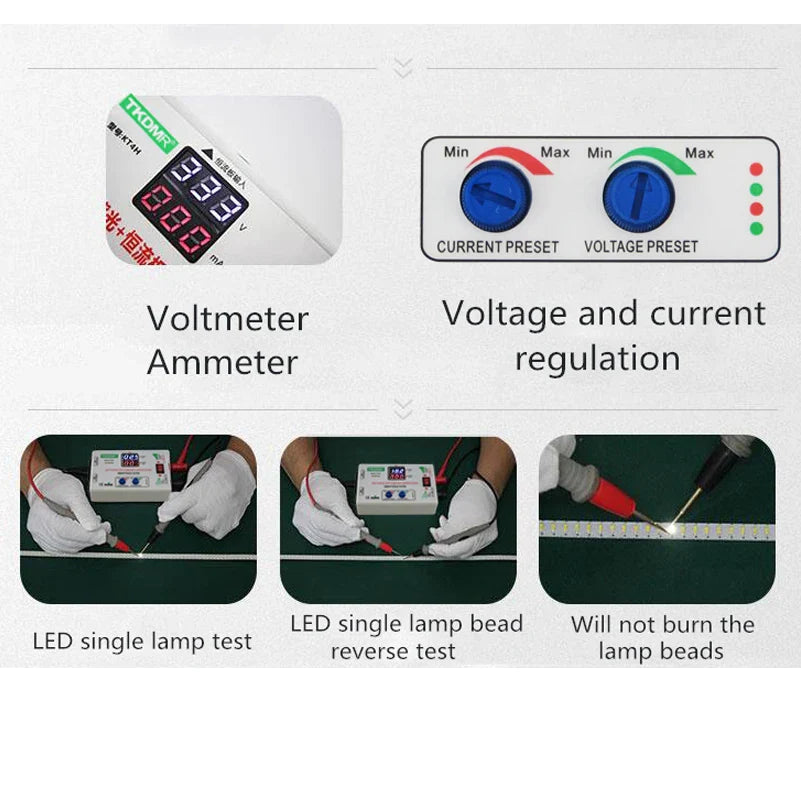

LED Testing: Adjust the voltage to 20V and set the current to 1mA for single LED bead tests. The tester will display voltage based on correct polarity, while incorrect polarity shows an open circuit voltage.
Capacitor Testing: Use the voltage around 20V for diodes, transistors, and electrolytic capacitors to assess breakdown voltage or actual withstand voltage.
🌟 Why Choose TKDMR’s 0-330V Smart-Fit Tester?

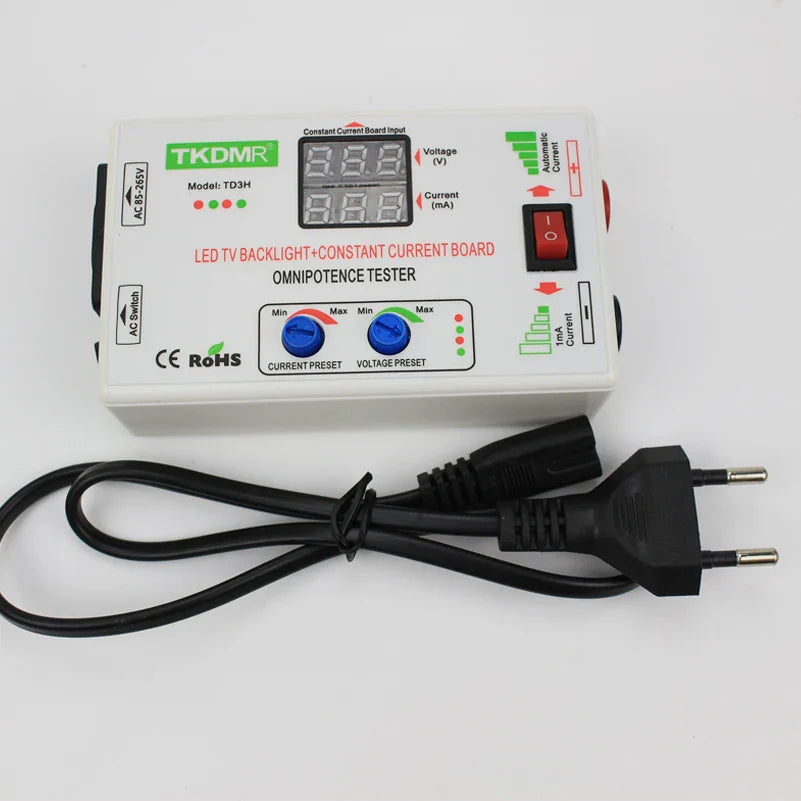

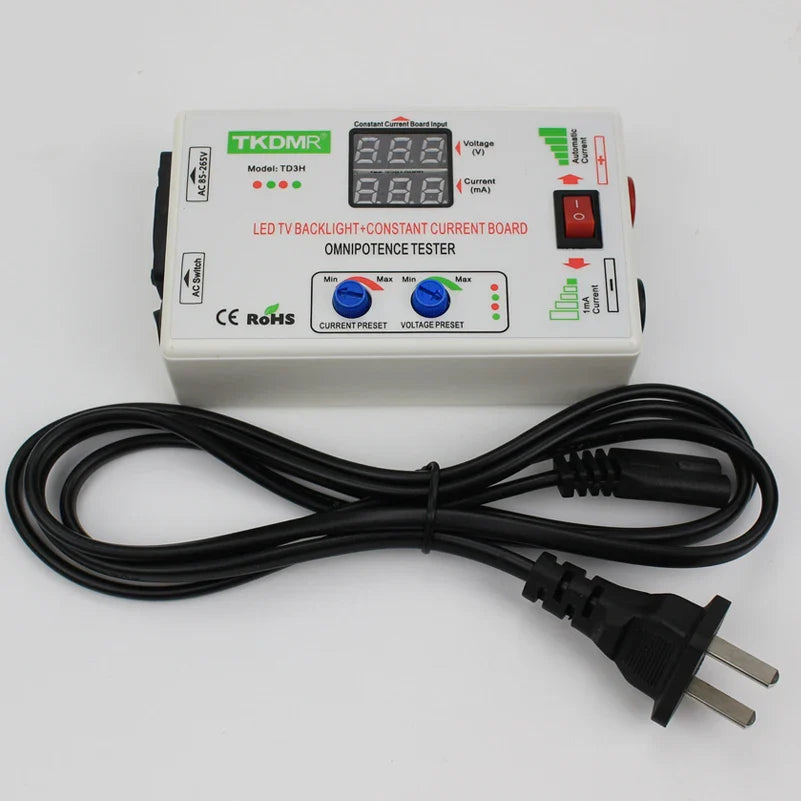

Compact & Durable: The TKDMR TD3H tester is lightweight and portable, offering high durability for extensive use in various testing environments.
User-Friendly Interface: With easy manual adjustments and clear readouts, testing components is simplified for both novices and experts.
Accurate Results: Achieve precise voltage and current measurements, essential for ensuring your LED systems and electrical components are operating optimally.
Free Warranty & Customer Support: Enjoy peace of mind with a 12-month free replacement warranty and responsive after-sales support.
📏 Technical Specifications:
Input Voltage: AC 85-265V
Output Voltage: DC 0-330V
Current Range: 0-150mA adjustable
Accuracy: ±0.5% for voltage, ±2% for current
Temperature Range: -20℃ to +40℃
Size: Compact, easy to handle for regular use
Testing Methods: Short circuit, open circuit, and voltage breakdown for components
Voltage Test for Electrolytic Capacitors: Yes

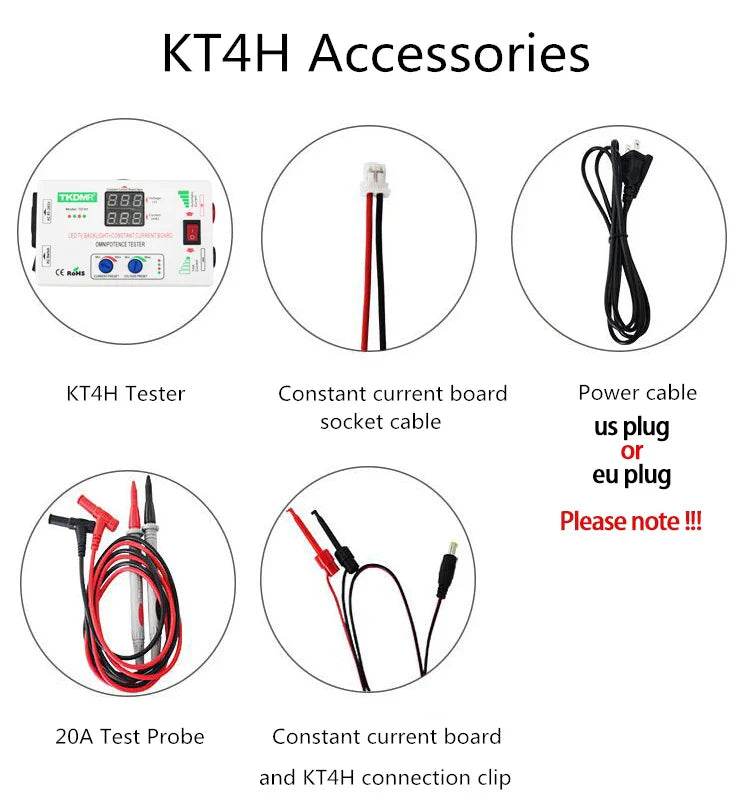

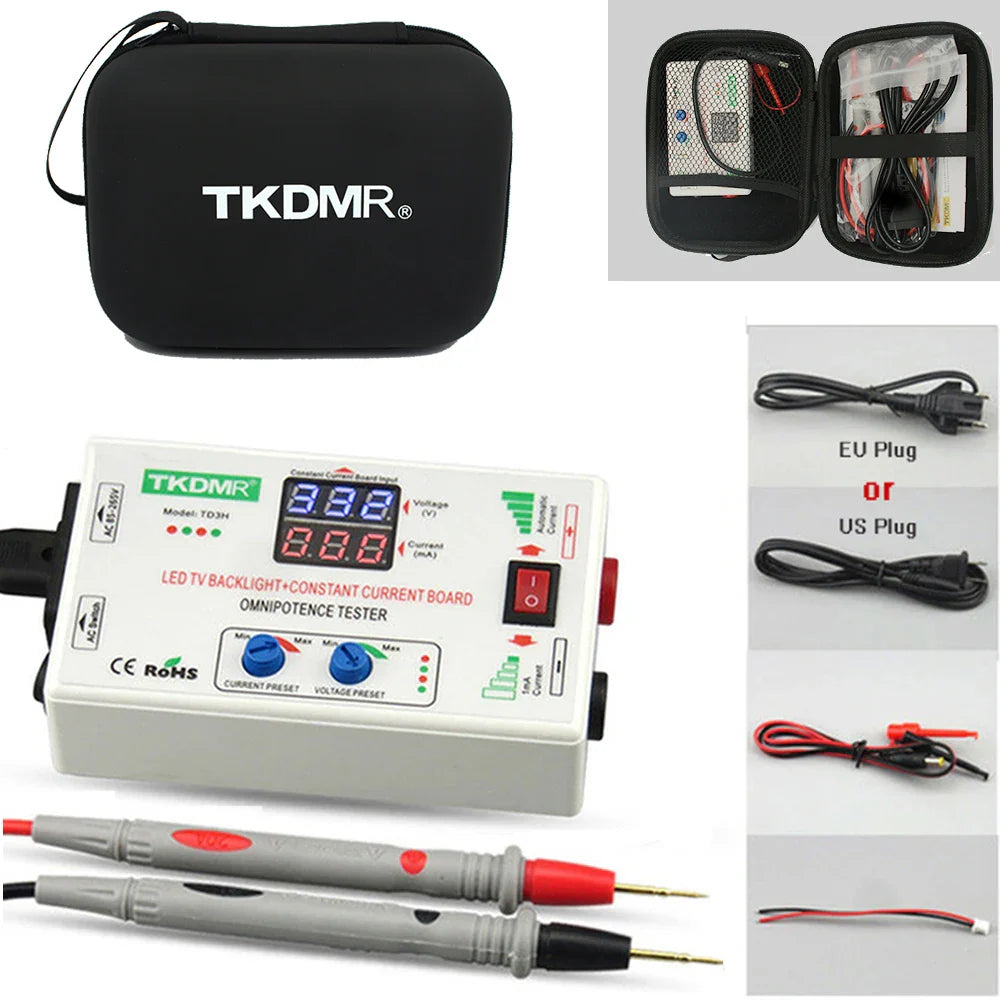

🛠️ Package Includes:
1 x TKDMR 0-330V Voltage Tester
1 x Set of Probes
User Manual for easy setup and operation
🌍 SEO Keywords:
TKDMR voltage tester
LED backlight tester
Constant current board tester
LED strip voltage tester
Smart voltage and current tester
Manual voltage adjustment tool
LED bead testing
LED TV repair tool
Adjustable current tester
Electrolytic capacitor voltage tester
This TKDMR 0-330V Smart-Fit Tester is an essential tool for anyone working with LED electronics. Whether you're testing TV backlights, LED panels, or other components, this tester delivers the precision and reliability you need to get the job done right every time.
