The BOBLOV NanoVNA-H4 is your ultimate vector network analyzer that combines high-performance spectrum analysis with portability and ease of use. Whether you’re testing antennas, tuning your RF systems, or exploring the world of HF, VHF, and UHF frequencies, this versatile device provides the precision and accuracy you need in a compact and user-friendly package. With an impressive 10KHz to 1.5GHz frequency range, this NanoVNA-H spectrum analyzer is built for both professional engineers and amateur radio enthusiasts looking to take their testing and tuning to the next level.
Key Features of the NanoVNA-H4 Spectrum Analyzer:
Wide Frequency Range (10KHz to 1.5GHz): From the low-frequency MF bands to the high-frequency UHF spectrum, the NanoVNA-H handles all your antenna tuning and network analysis needs. It supports both HF, VHF, and UHF, making it ideal for a wide range of RF applications.

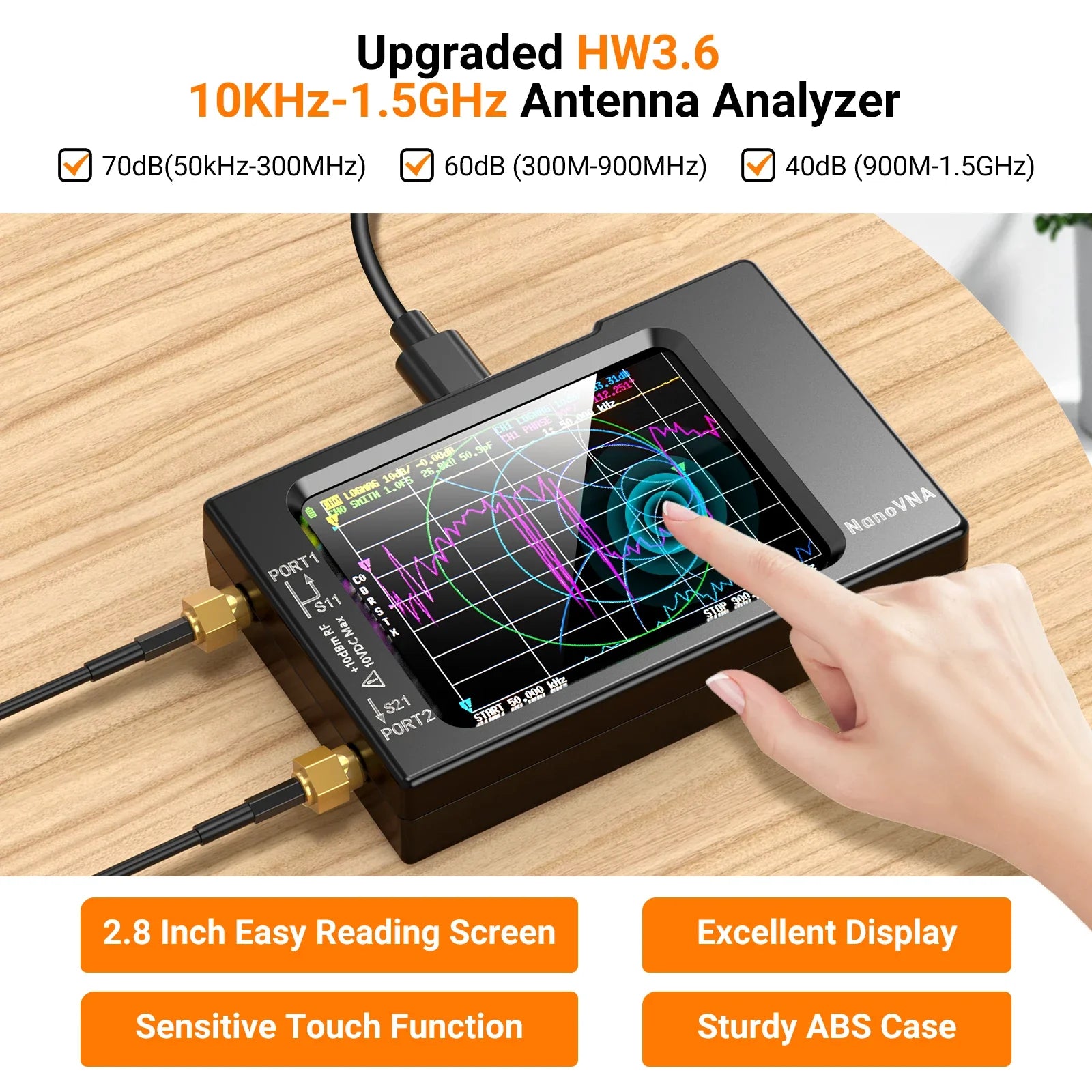

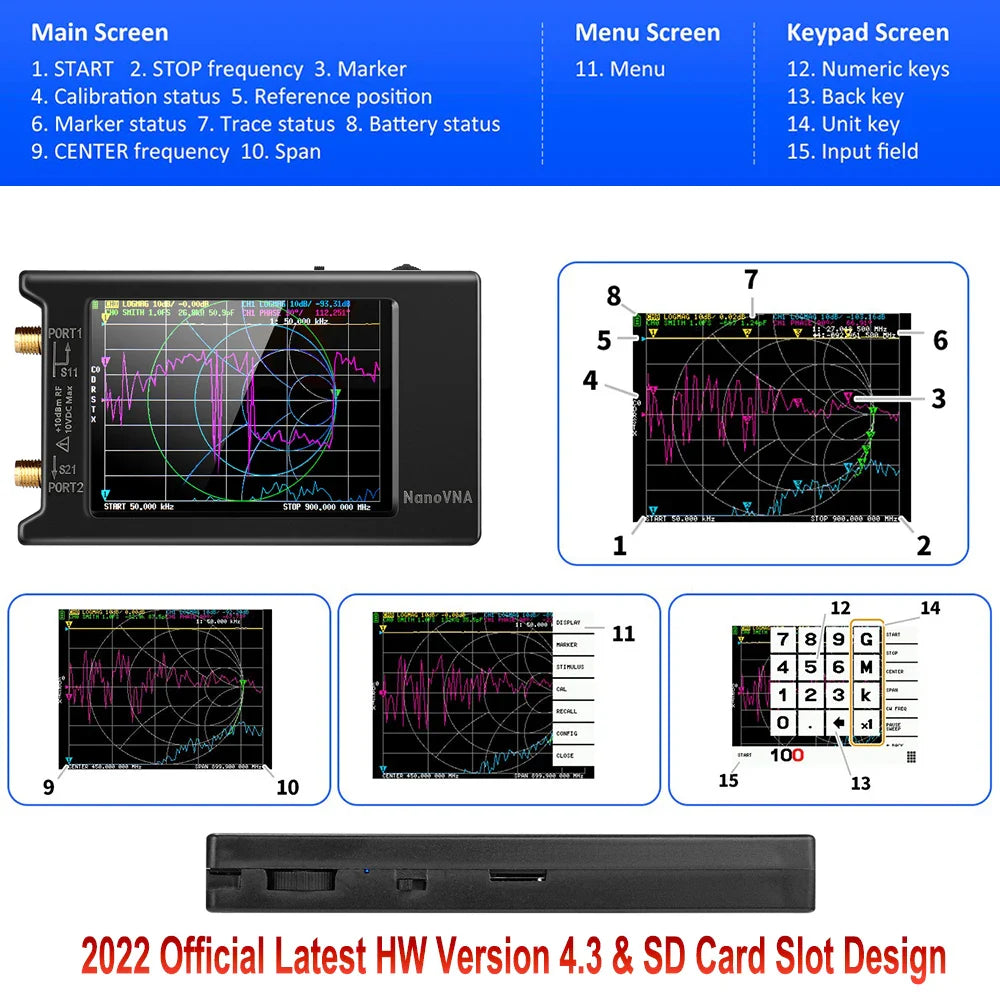

Enhanced Display & User Experience: With a 2.8-inch TFT display featuring 320 x 240 resolution, this spectrum analyzer provides a crisp and clear view of your measurements. Whether you're on-site or in the lab, the display ensures you can see every detail of your signal, from SWR (Standing Wave Ratio) to Smith charts, with precision.

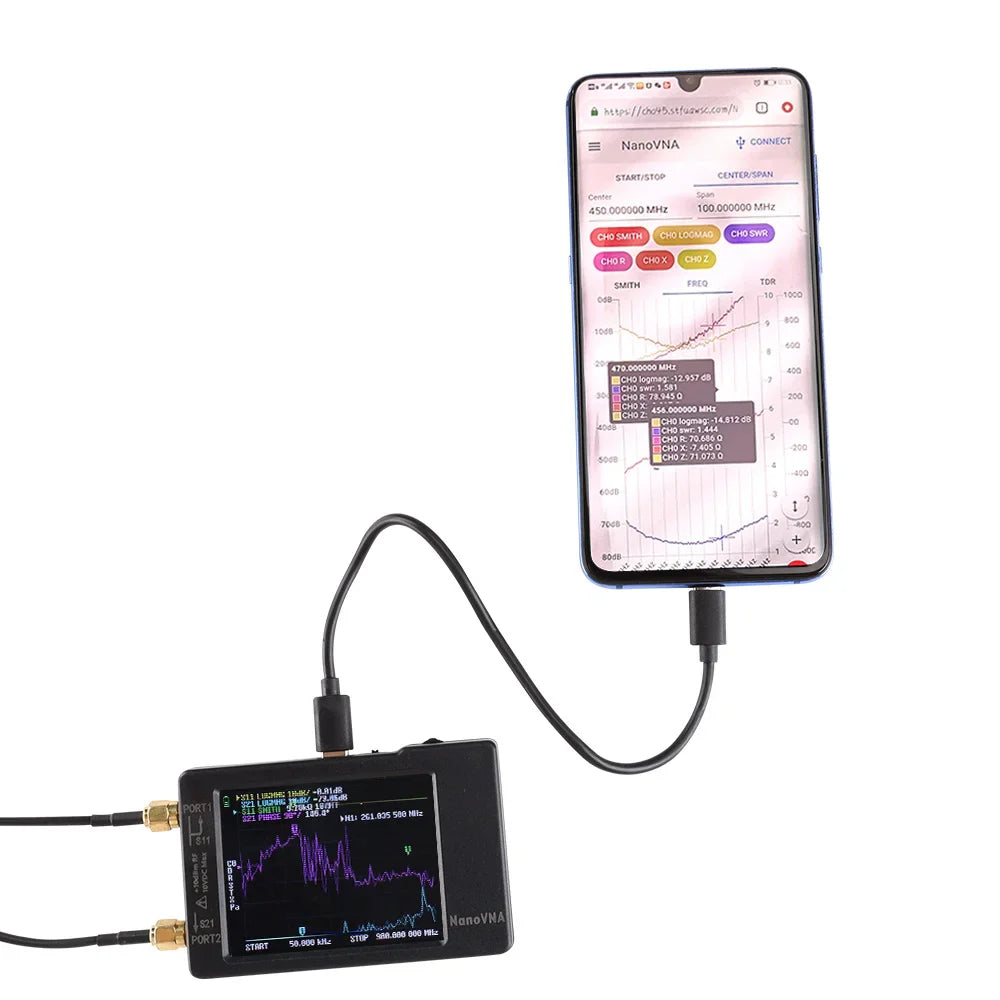

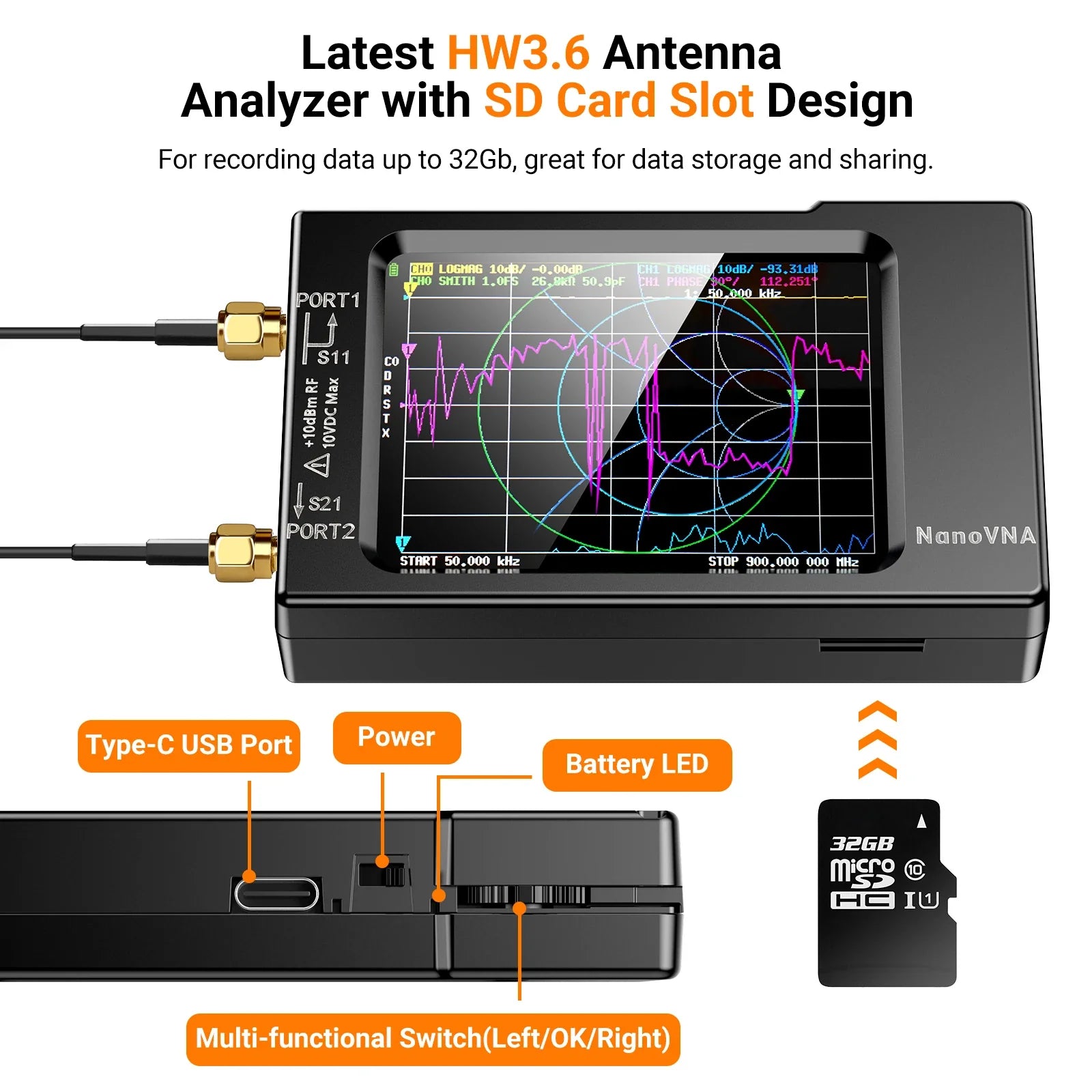

USB Type-C Connectivity: The NanoVNA-H offers USB Type-C connectivity, making it incredibly easy to connect to your Android devices for a larger screen experience. Say goodbye to small, hard-to-read screens and enjoy a seamless experience by pairing it with your phone for more efficient analysis (note: iPhone is not supported).
Portable & Convenient: Powered by a built-in 650mAh battery, the NanoVNA-H offers hours of continuous operation, ensuring you're always ready for measurements on the go. Plus, the compact design and ABS casing make it incredibly portable and durable, perfect for field use.
Precision and Accuracy: With a frequency accuracy of less than 0.5ppm and a SWR (Standing Wave Ratio) of <1.1, you can be sure of reliable, accurate results. Whether you’re measuring S-parameters, voltage standing wave ratio (VSWR), phase, delay, or impedance, this analyzer delivers precise data for all your RF projects.
Time Domain Analysis (TDR): The NanoVNA-H4 supports Time Domain Reflectometry (TDR) functionality, which helps analyze the performance of your antennas and networks, making it a powerful tool for troubleshooting and system optimization.
Calibration & Accessories Included: The NanoVNA-H4 includes everything you need to start analyzing immediately. The package contains SMA calibration kits, SMA connectors, and RF cables, ensuring you can get precise and accurate measurements straight out of the box.
Key Specifications:
Frequency Range: 10KHz - 1.5GHz (covering MF, HF, VHF, and UHF bands)
Display: 2.8-inch TFT, 320x240 resolution
RF Output: -13dBm (max -9dBm)
Power Supply: USB 5V 120mA, with built-in 650mAh battery for portability

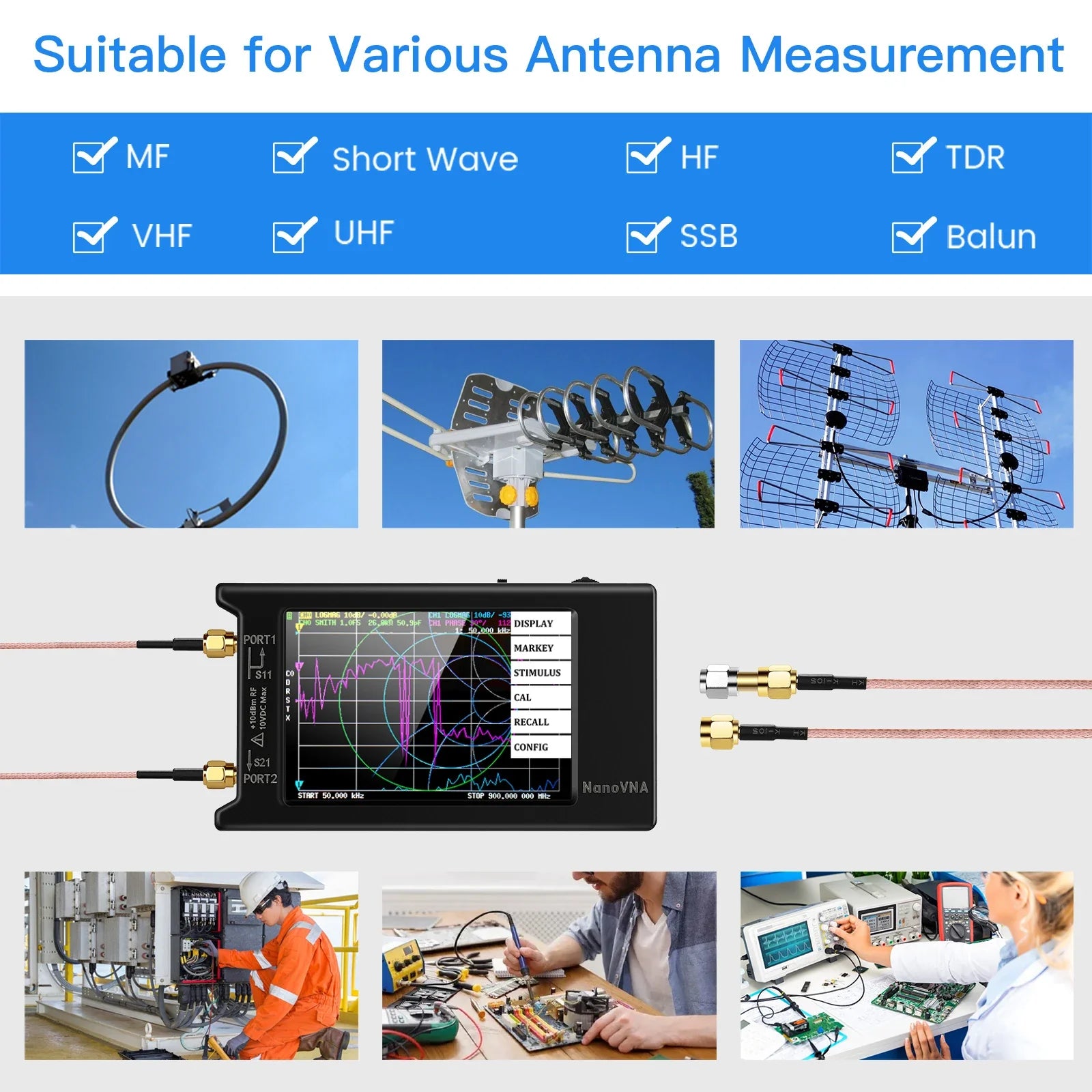

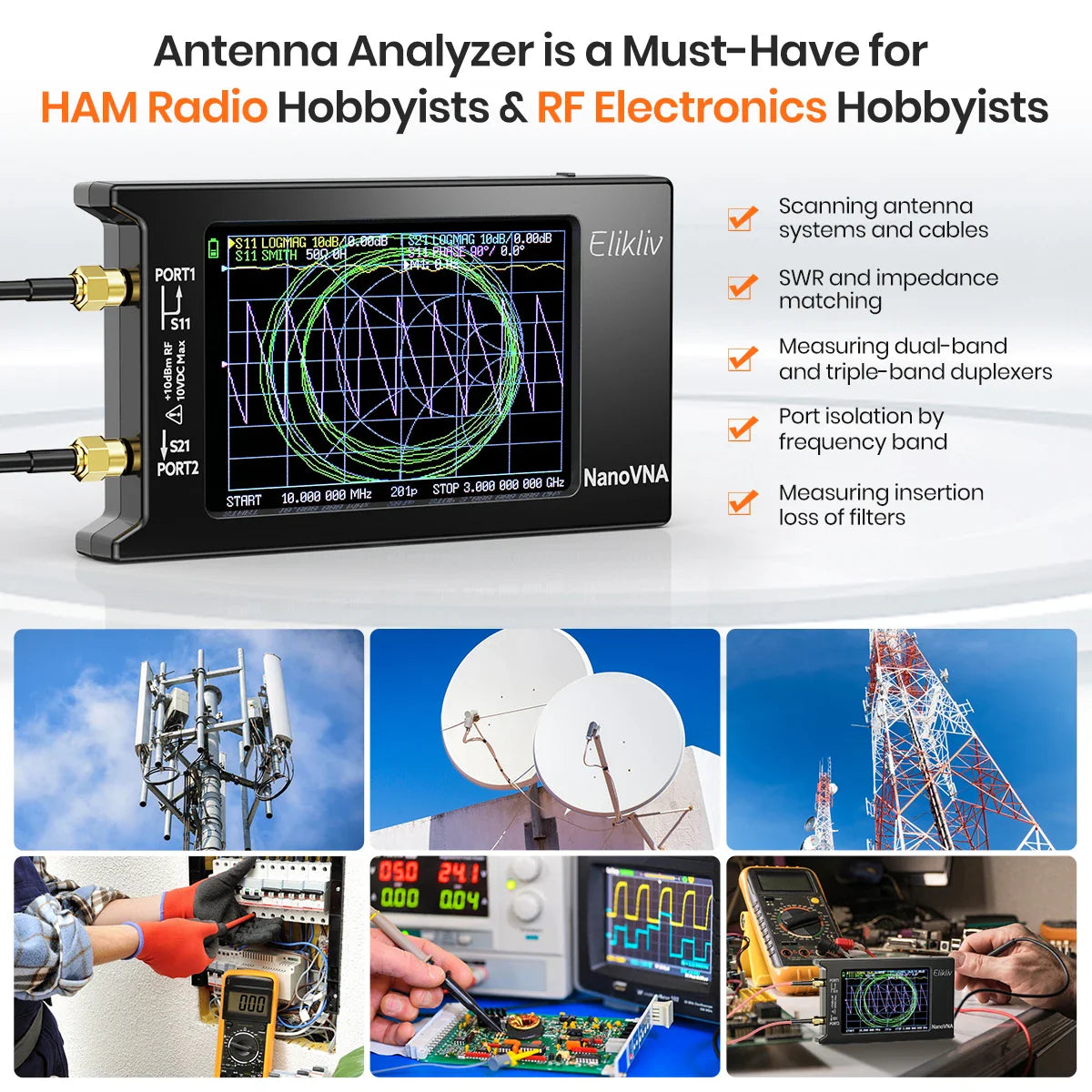

Versatile and Multi-Purpose: Perfect for antenna tuning, signal analysis, SWR measurement, and network analysis, the NanoVNA-H is an indispensable tool for engineers, RF enthusiasts, and anyone working with RF systems.
Portable & User-Friendly: Compact, lightweight, and powered by a rechargeable battery, it’s ideal for testing and tuning wherever you are, whether in the field or on the workbench.
Easy to Connect & Display: Enjoy a larger display by connecting your NanoVNA-H to your Android phone via USB Type-C for improved visibility and ease of use.

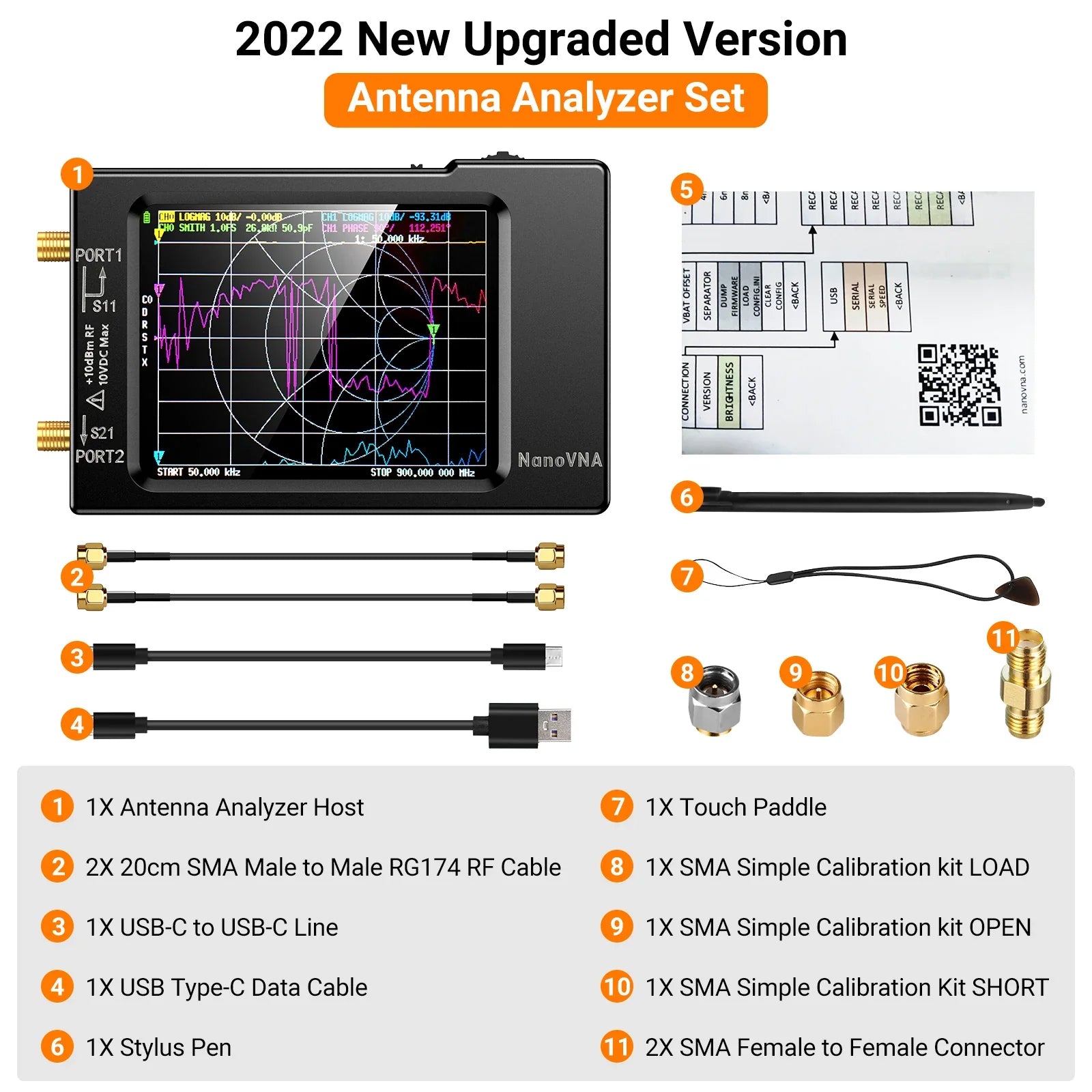

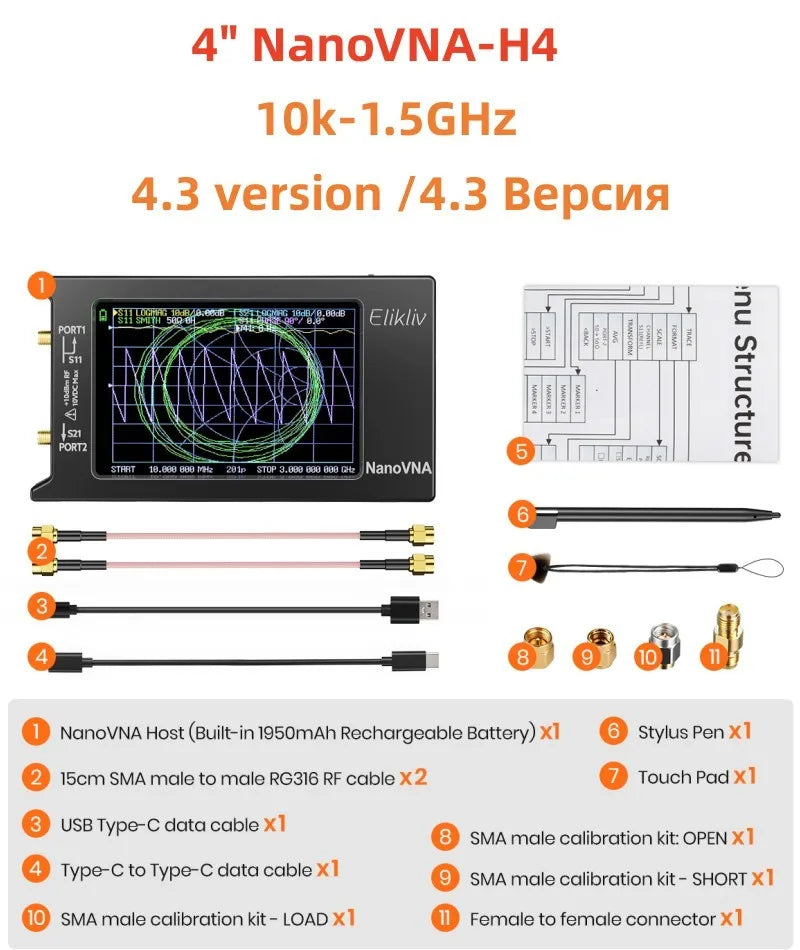

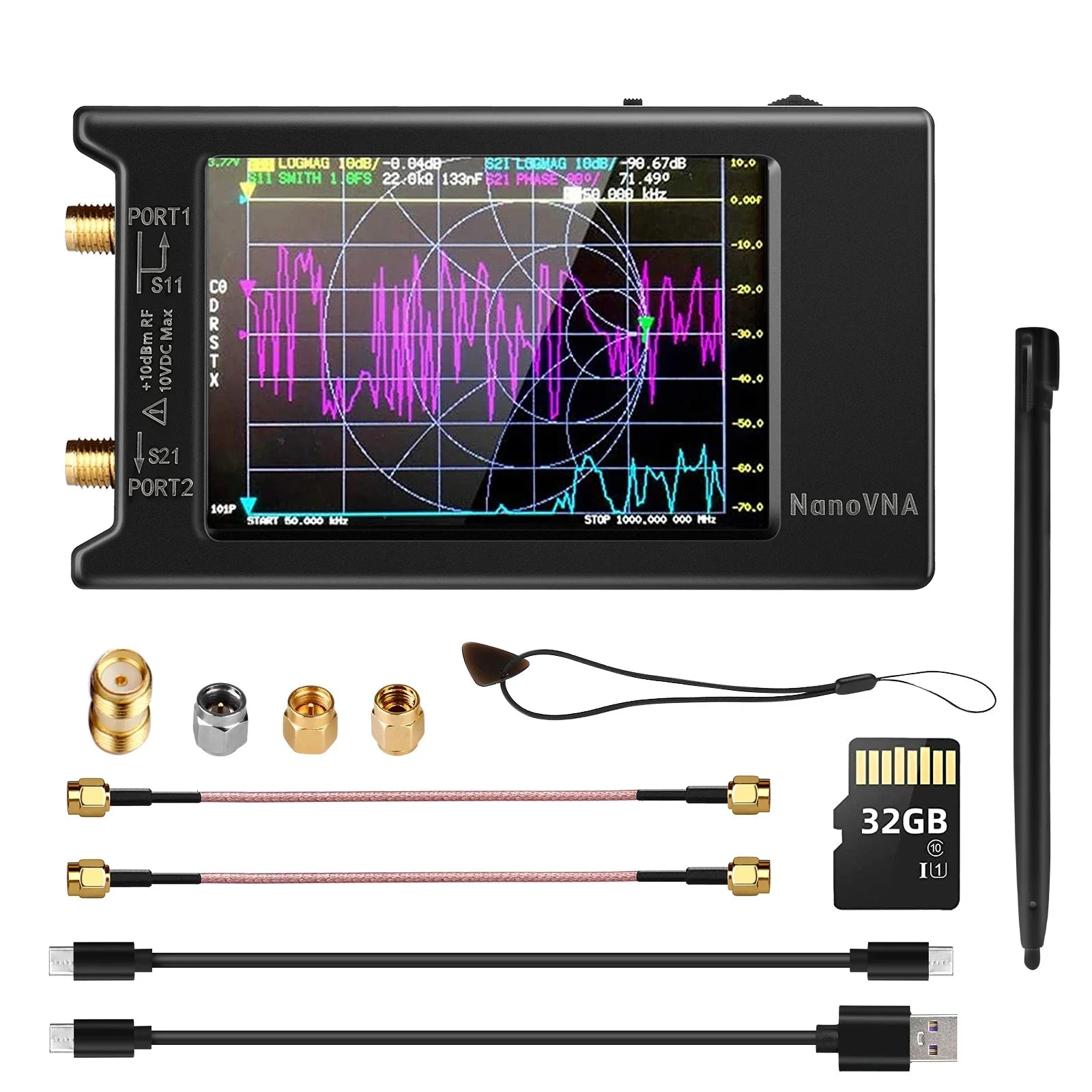

Comprehensive Accessories Kit: The package includes SMA calibration kits, connectors, RF cables, and everything you need to start testing immediately, saving you time and effort.

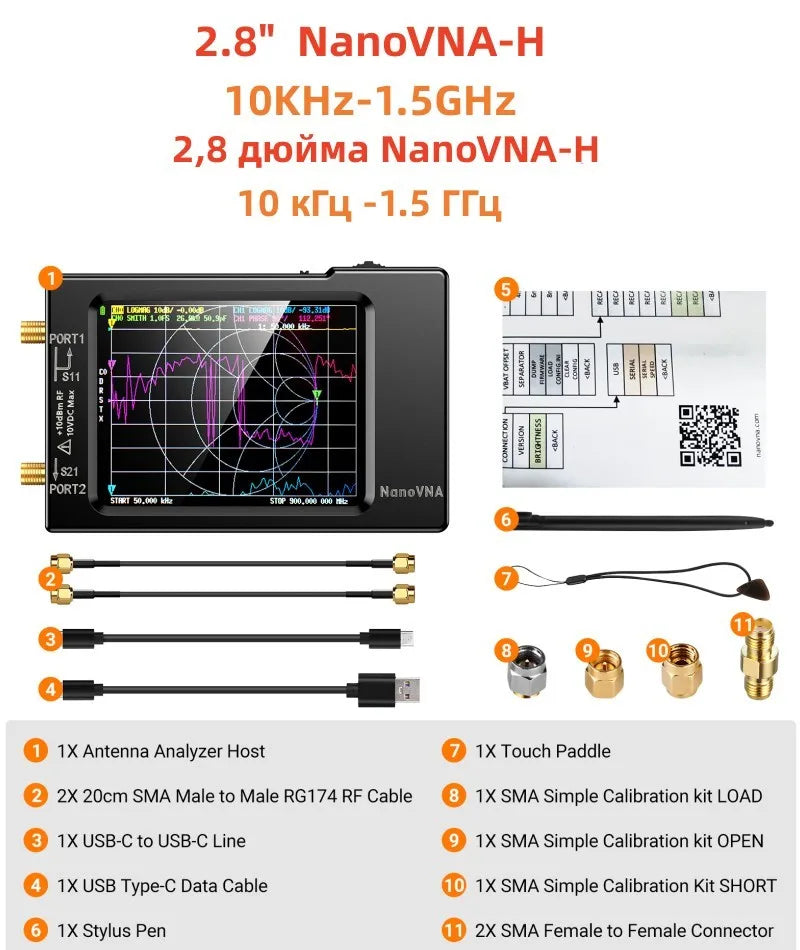

SMA Simple Calibration Kit (Short, Open, and Load)
USB Type-C Data Cable
Type-C to Type-C Line
Touch Paddle for easy control
Boost your RF analysis with the BOBLOV NanoVNA-H today and experience the next level of antenna tuning, SWR measurement, and signal analysis. Perfect for anyone serious about working with RF systems, this compact and powerful tool is a game-changer for both beginners and professionals alike!
