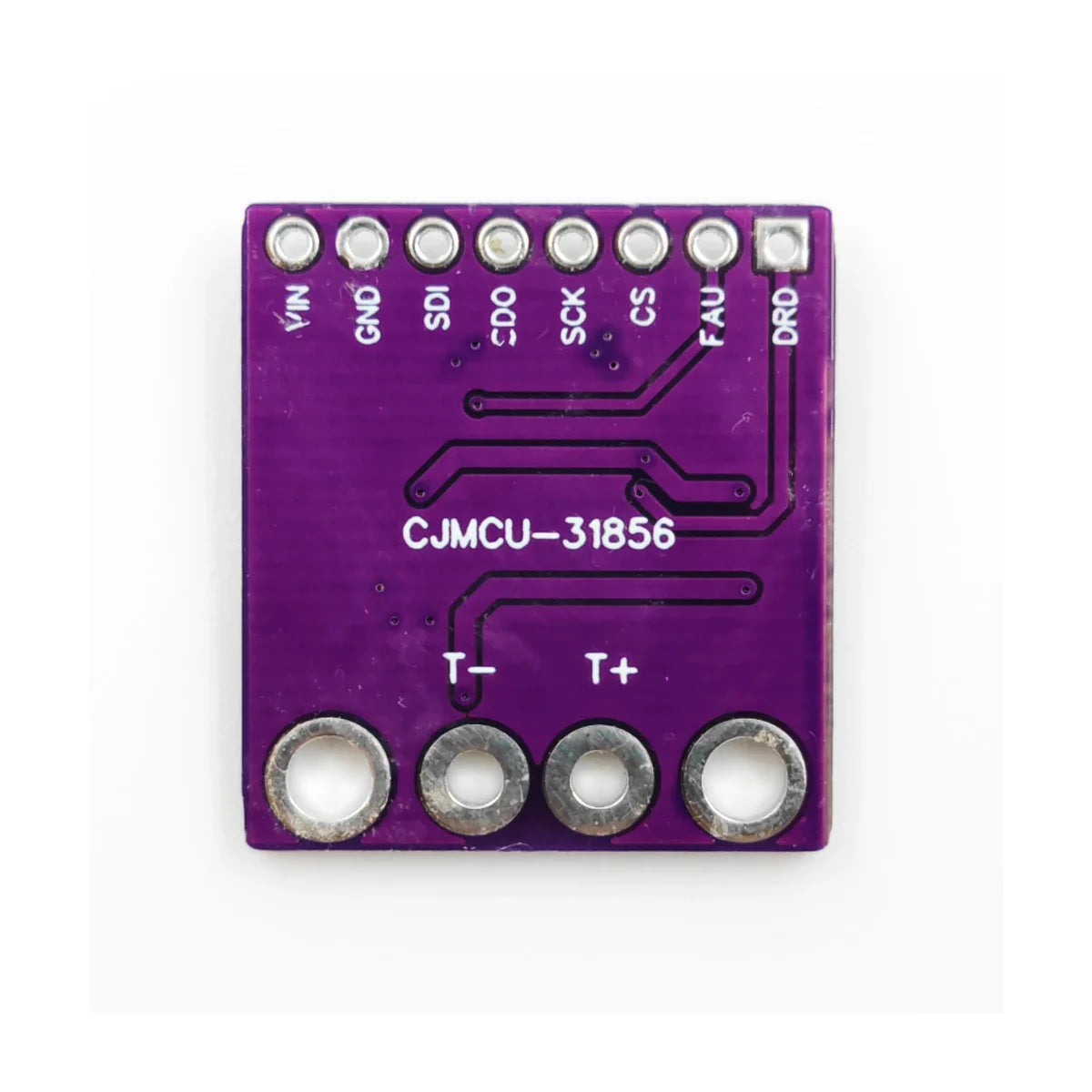

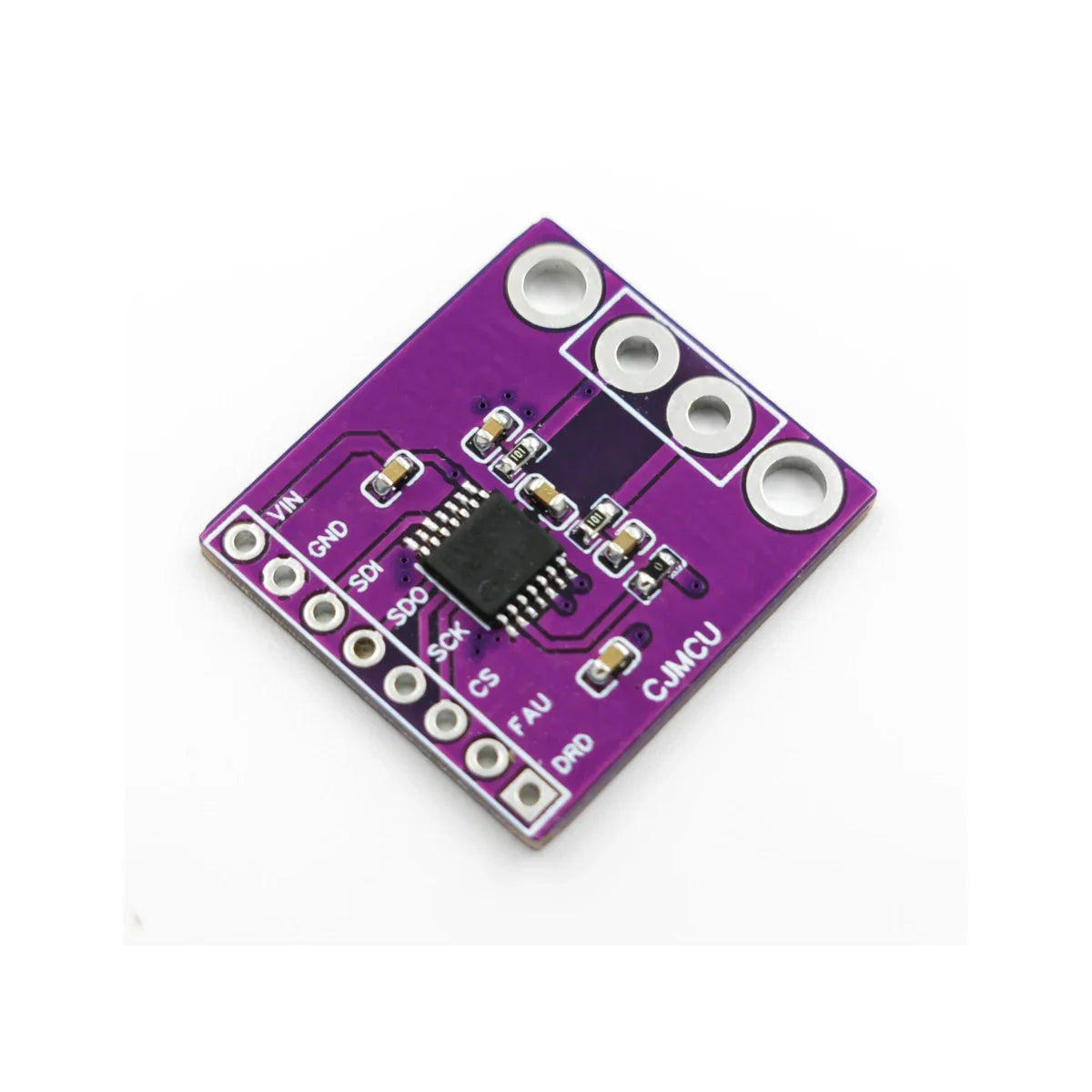

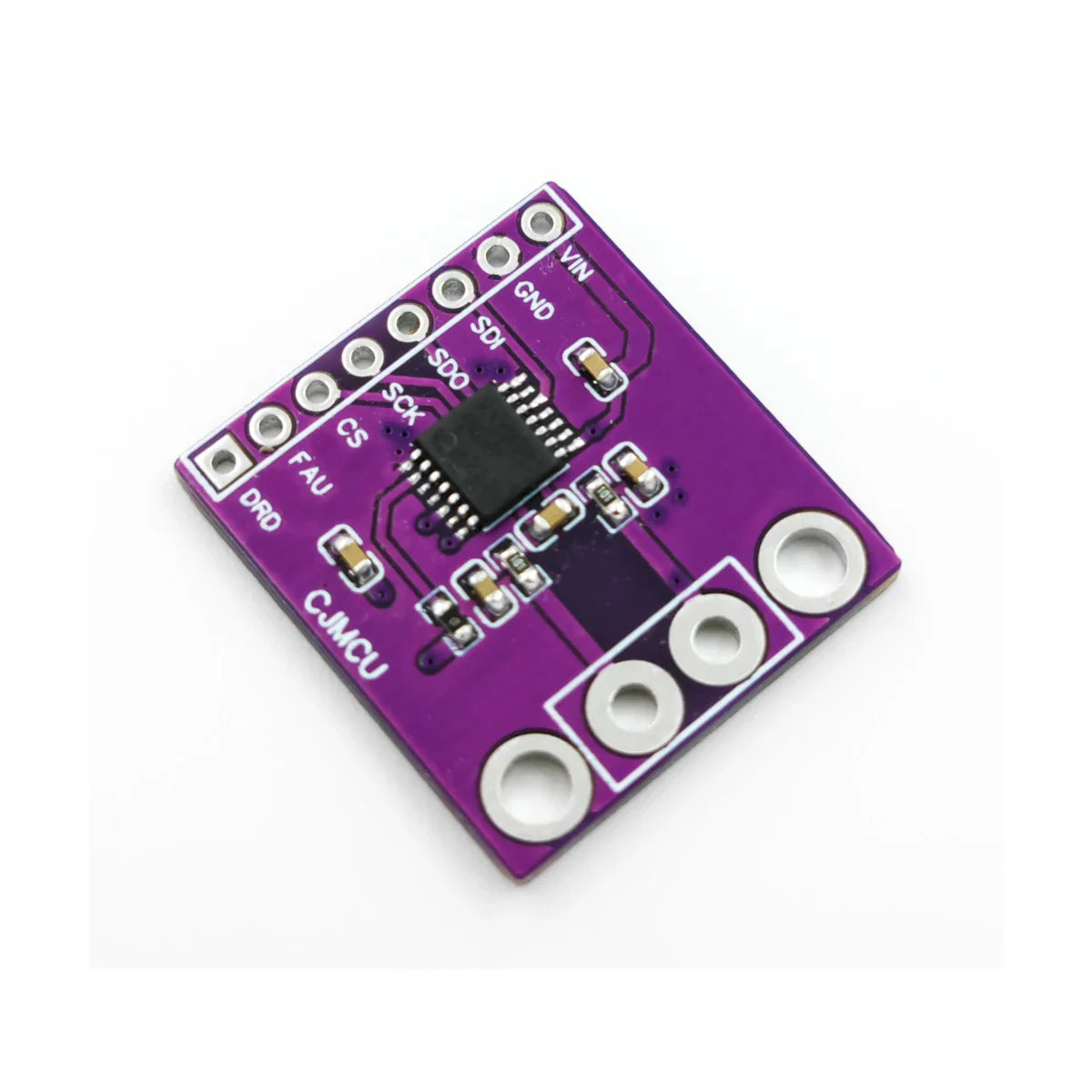

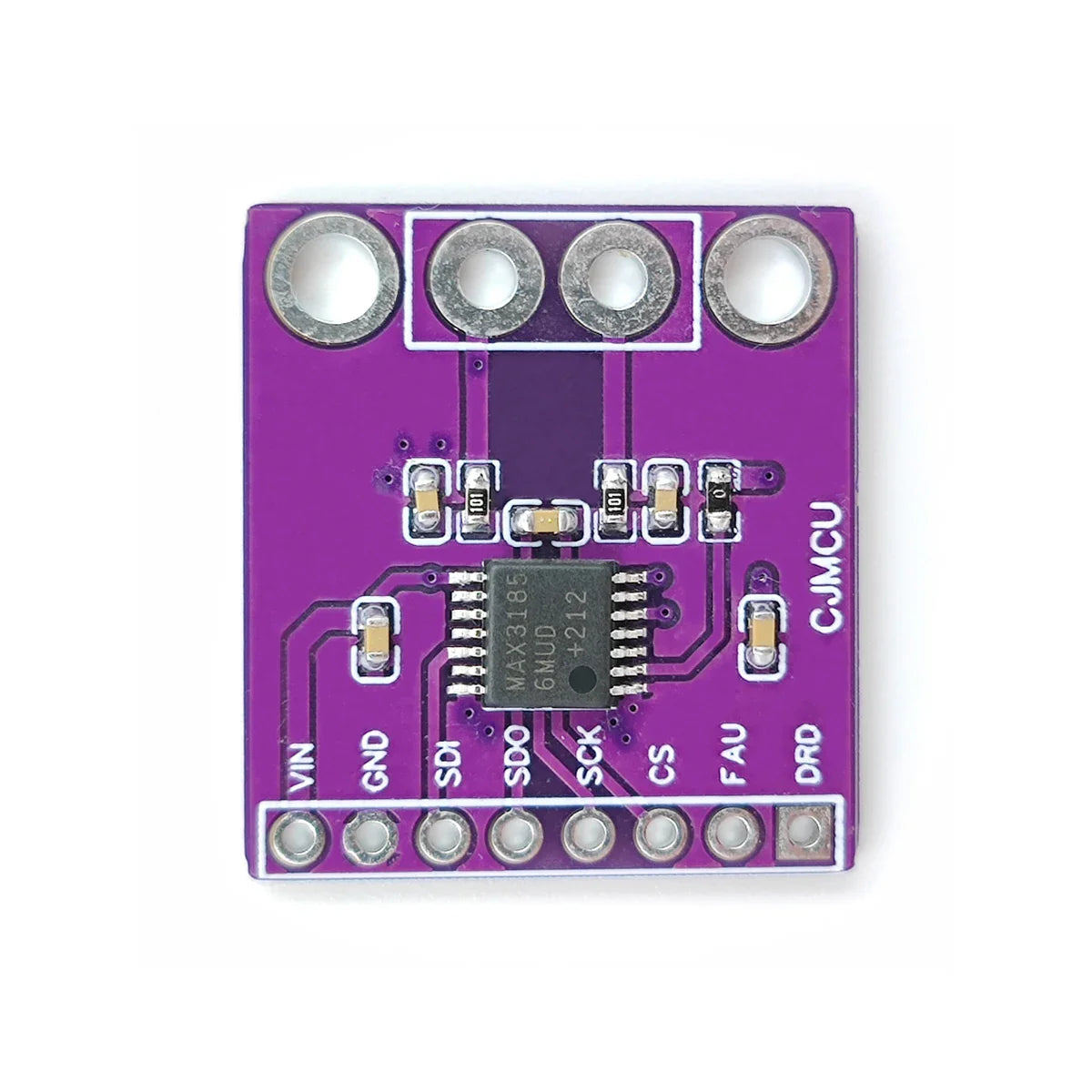

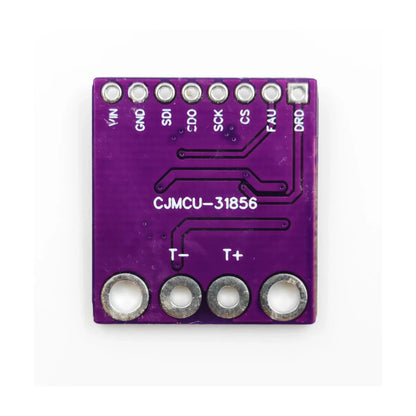

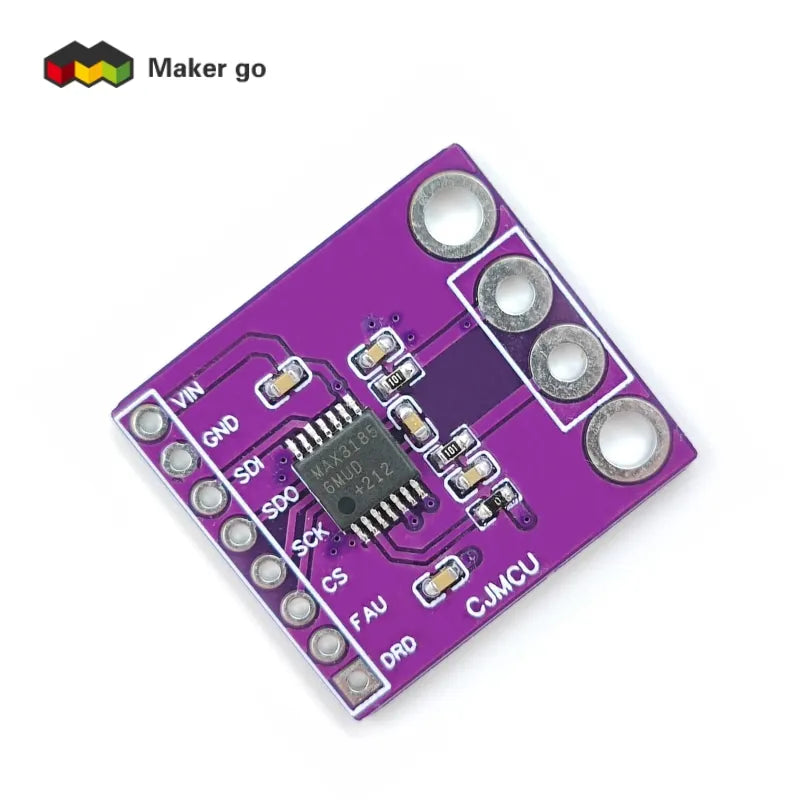

MAX31856 Thermocouple Module – High Precision A/D Converter with SPI Interface for Arduino Temperature Measurement

Unlock the power of high-precision temperature measurement with the MAX31856 Thermocouple Module. This A/D converter is designed for accurate and reliable temperature readings, making it an essential tool for Arduino projects and other temperature-sensitive applications. Whether you're working on a DIY weather station, industrial sensors, or science experiments, the MAX31856 offers the precision you need for thermocouple temperature measurement.

Why Choose the MAX31856 Thermocouple Module?

Unmatched Accuracy

The MAX31856 guarantees 0.15% maximum accuracy over a temperature range from -210°C to +1800°C, depending on the thermocouple type. With a resolution as fine as 0.0078125°C, it ensures precise temperature readings for your most demanding projects. Say goodbye to inaccurate readings and ensure reliable data with this high-precision A/D converter.

Supports Multiple Thermocouple Types

This thermocouple module supports a range of thermocouple types, including Type K, J, N, R, S, T, B, and E. With automatic linearization, the MAX31856 module compensates for any temperature non-linearities, providing accurate temperature data across various thermocouple types.

Cold-Junction Compensation

No more worrying about cold-junction effects! The cold-junction compensation feature minimizes system components and ensures that your temperature readings stay accurate by compensating for changes in ambient temperature. With ±0.7°C accuracy in the range of -20°C to +85°C, this feature enhances your measurements, providing stable and reliable results.

Robust Protection for Your System

The MAX31856 comes with built-in overvoltage protection up to 45V, making it ideal for systems where electrical noise or voltage spikes may occur. Its noise rejection feature improves system performance, even in environments with 50Hz/60Hz electrical interference, ensuring smooth operation in industrial or laboratory settings.

Easy Integration with Arduino

Designed with an SPI interface, the MAX31856 module easily integrates with Arduino and other microcontrollers for seamless data collection. Whether you're building a thermometer, temperature monitoring system, or conducting temperature-sensitive research, this module simplifies the process and gives you accurate results every time.

Key Features:

• High-Precision Measurement: 0.0078125°C resolution with 0.15% accuracy (max) for precise temperature readings.

• Supports 8 Types of Thermocouples: Type K, J, N, R, S, T, B, and E for versatile applications.

• Cold-Junction Compensation: Ensures accurate readings in varying environmental conditions with ±0.7°C accuracy.

• Overvoltage Protection: Safeguards your system with protection up to 45V.

• Noise Rejection: Filters out 50Hz/60Hz noise, improving performance in noisy environments.

• System Fault Detection: Includes open thermocouple and under-temperature fault detection for easy troubleshooting.

• Wide Temperature Range: Measures temperatures from -210°C to +1800°C (depending on thermocouple type).

• Easy Integration: Works with Arduino via SPI interface, perfect for DIY projects and prototyping.

Applications:

• Arduino Temperature Sensing: Build custom temperature sensors for various applications.

• Industrial Monitoring: Use for high-temperature monitoring in furnaces, ovens, or industrial processes.

• Research & Development: Ideal for scientific projects requiring precise temperature measurement and monitoring.

• Weather Stations: Create reliable DIY weather stations for accurate temperature readings.

Product Details:

• Model: MAX31856

• Type: Thermocouple A/D Converter

• Interface: SPI

• Package: TSSOP 14-Pin

• Brand: QSZNTEC

What's Included:

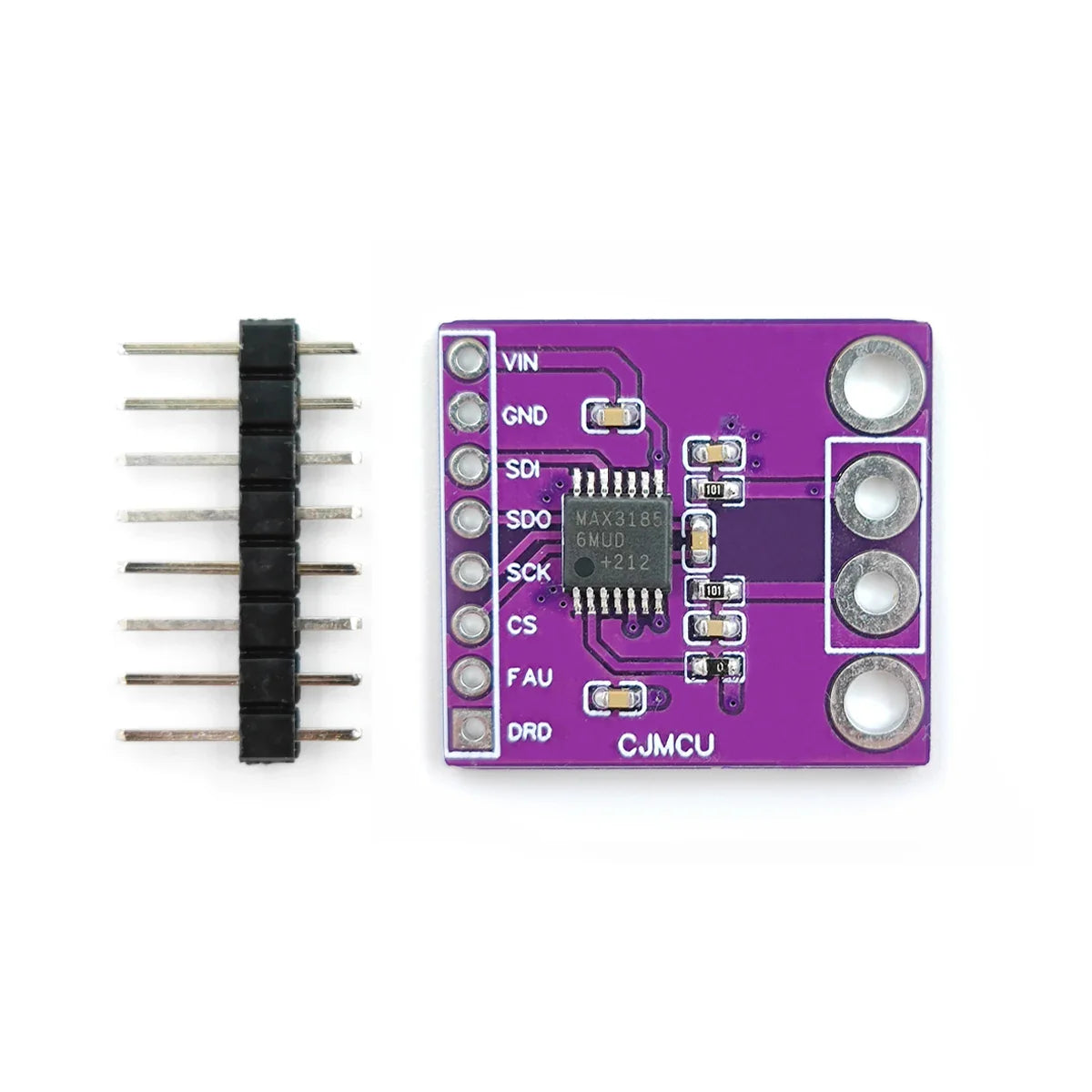

• MAX31856 Board (1x)
