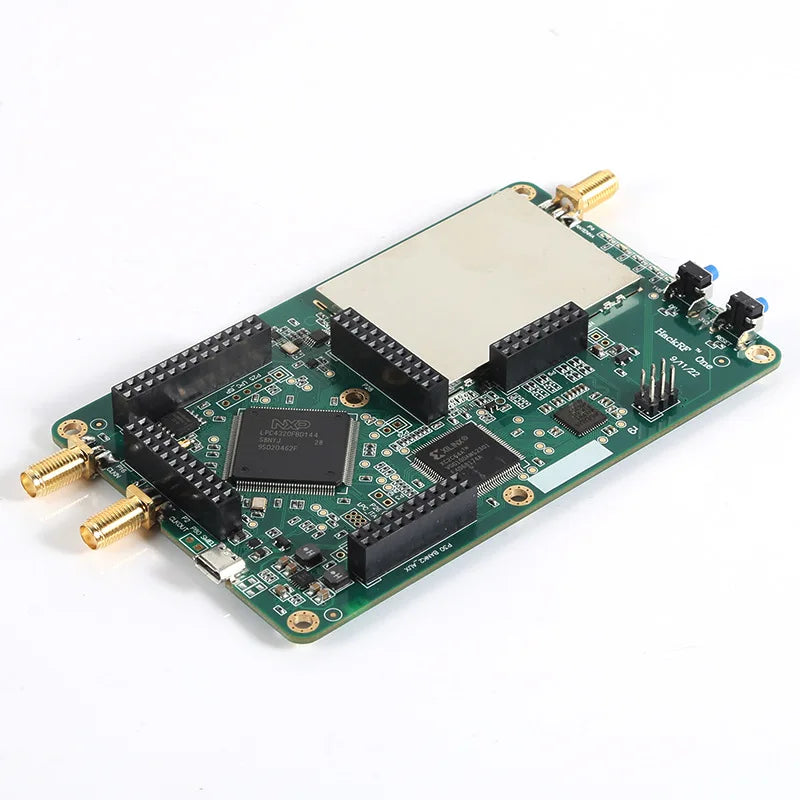

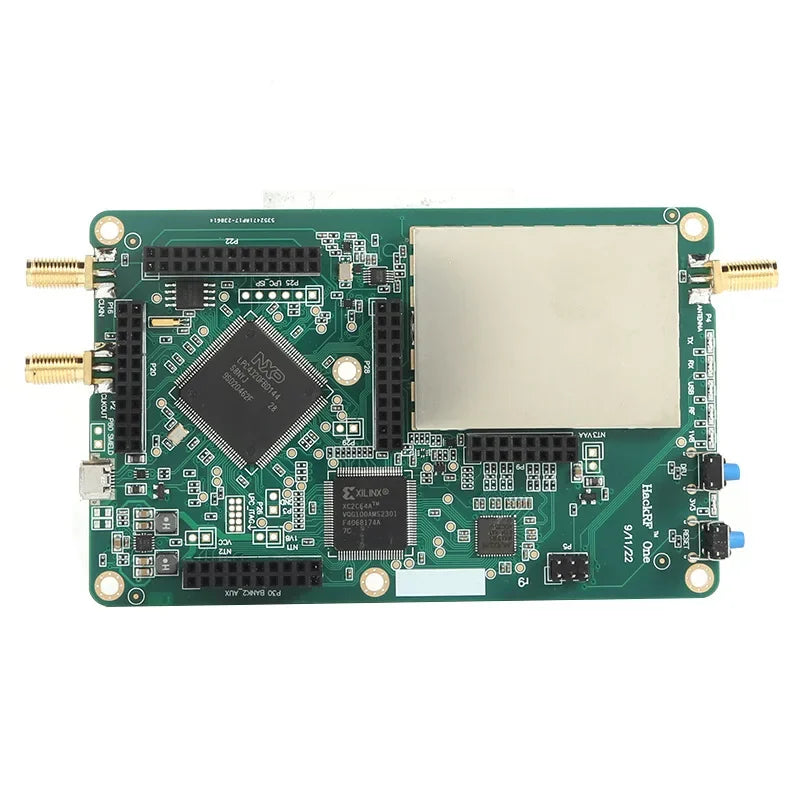

HackRF One R9 SDR Development Board – 1MHz-6GHz Open Source Hardware with USB Antenna

Unleash the power of modern radio technologies with the HackRF One R9 1MHz-6GHz Software Defined Radio Development Board. Whether you're a hobbyist, an engineer, or a developer, this open-source hardware platform gives you full control to explore, design, and test cutting-edge radio frequencies from 1 MHz to 6 GHz. With its impressive capabilities and the flexibility of SDR, you can dive into both transmission and reception of radio signals with ease.

🔧 Why Choose HackRF One R9?

✔ Wide Frequency Range: With a broad operating frequency range from 1 MHz to 6 GHz, the HackRF One allows you to experiment with a wide variety of radio signals, including AM, FM, SW, MW, and LW bands. This makes it an ideal tool for radio enthusiasts, researchers, and engineers working with radio technology or software-defined radio (SDR).

✔ Advanced Hardware Upgrades: The HackRF One R9 features important hardware improvements, including the MAX2839 upgrade (replacing the MAX2837) for improved signal handling and the addition of the Si5351A clock distribution, enhancing the overall performance. These upgrades ensure superior radio signal processing for professional applications.

✔ Half-Duplex Transceiver: Designed as a half-duplex transceiver, HackRF One can transmit or receive signals, enabling versatile SDR applications. Whether you're building a wireless communication project or testing signals, this device is up to the task.

✔ Impressive Sampling Speed: With the ability to process up to 20 million samples per second, HackRF One provides fast data processing, perfect for real-time SDR applications and simulations.

✔ Open Source Hardware: As an open-source platform, HackRF One gives you the flexibility to modify and adapt it to your needs, allowing for complete customization. Use it with GNU Radio, SDR#, or other SDR software for full control.

✔ Compact and Portable Design: The HackRF One R9 is designed to be portable, with a USB-powered system that connects easily to your computer or development environment. This makes it an excellent choice for mobile testing, development, and experimentation.

✔ Powerful Expansion Options: With internal pin headers for expansion and software-controlled antenna port power (50 mA at 3.3V), you have the freedom to connect and expand HackRF One to suit your needs.

🛠 HackRF One R9 Features & Specifications:

• Frequency Range: 1 MHz to 6 GHz
• Transceiver: Half-Duplex (Transmit or Receive)
• Sampling Rate: Up to 20 million samples per second
• Bit Depth: 8-bit quadrature samples (I and Q)
• Software Compatibility: Supports GNU Radio, SDR#, and similar SDR software platforms
• Gain Control: Software-configurable RX and TX gain with baseband filter options
• Antenna Power: Software-controlled 50 mA at 3.3V for the antenna port

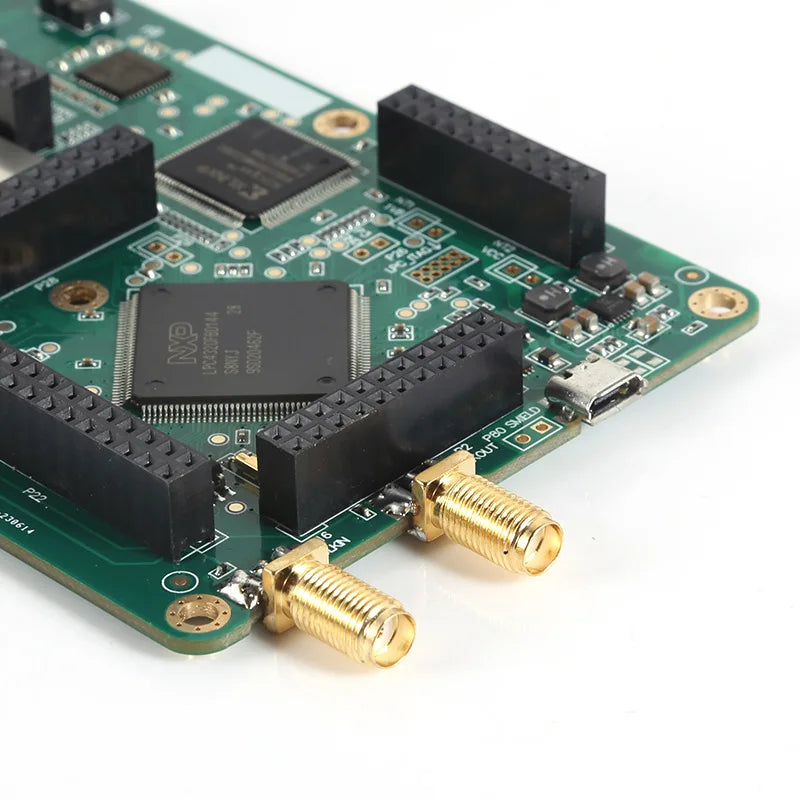

• Connectors: SMA female antenna and SMA female clock input/output for synchronization
• USB Connectivity: Hi-Speed USB 2.0 (USB-powered)
• Expansion: Includes internal pin headers for easy expansion

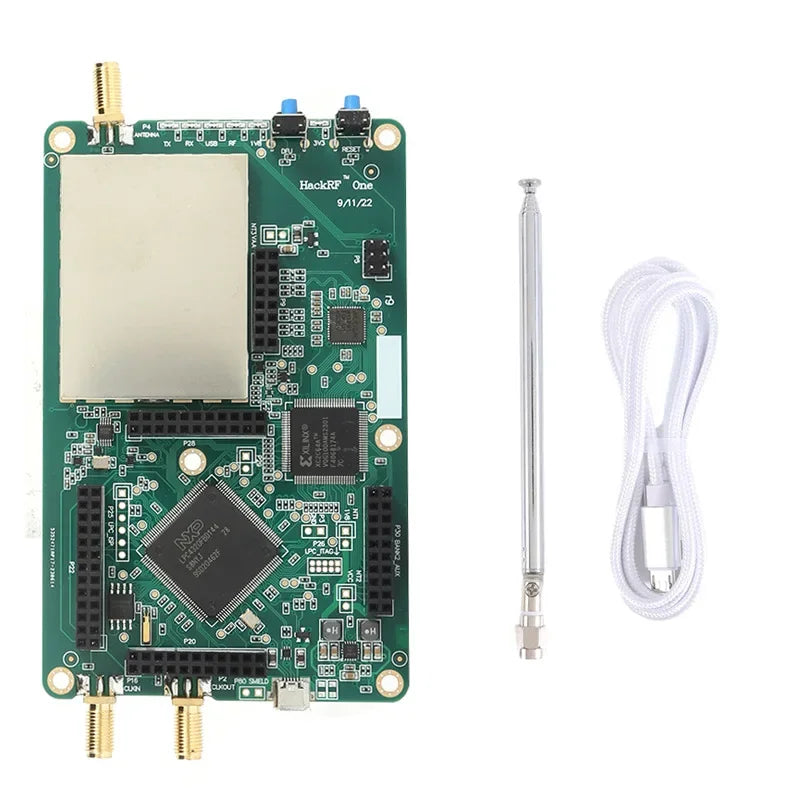

• Package Includes:
  • HackRF One R9 Board
  • Extendable Antenna
  • Data Cable

🌍 Perfect For:

• Radio Frequency Engineers: Use HackRF One for testing and developing next-generation radio technologies.
• Hobbyists & Makers: Get started with SDR experimentation to receive, decode, and generate radio signals from a wide range of frequencies.
• Educators & Researchers: HackRF One is a powerful tool for teaching and exploring modern communications technologies.
• Security Professionals: Perfect for RF security testing and creating custom radio solutions.

⚡ Additional Notes:

• HackRF One supports the latest firmware updates, including Mayhem firmware, but does not come pre-flashed.
• For enhanced functionalities like world map, GPS simulator, and other features, you’ll need a PortaPack H2 and a FAT32 formatted MicroSD card (over 1GB).

The HackRF One R9 SDR platform is a versatile tool that offers a comprehensive solution for anyone involved in radio signal processing, communications research, and SDR development. Whether you're an experienced developer or a beginner, HackRF One provides everything you need to begin your journey into the world of software-defined radios. Grab yours today and start experimenting with the limitless possibilities of radio technology!
