Whether you're an electronics wizard, embedded developer, or a passionate hobbyist, the Hanmatek Digital Oscilloscope is your perfect lab partner. This desktop oscilloscope is built to decode the most complex waveforms with 110MHz bandwidth, lightning-fast 1GS/s real-time sampling, and crystal-clear visuals on a vibrant 7-inch 800x480 TFT display. Get ready to capture, analyze, and conquer signals like never before!
⚡ Key Features That Set It Apart:

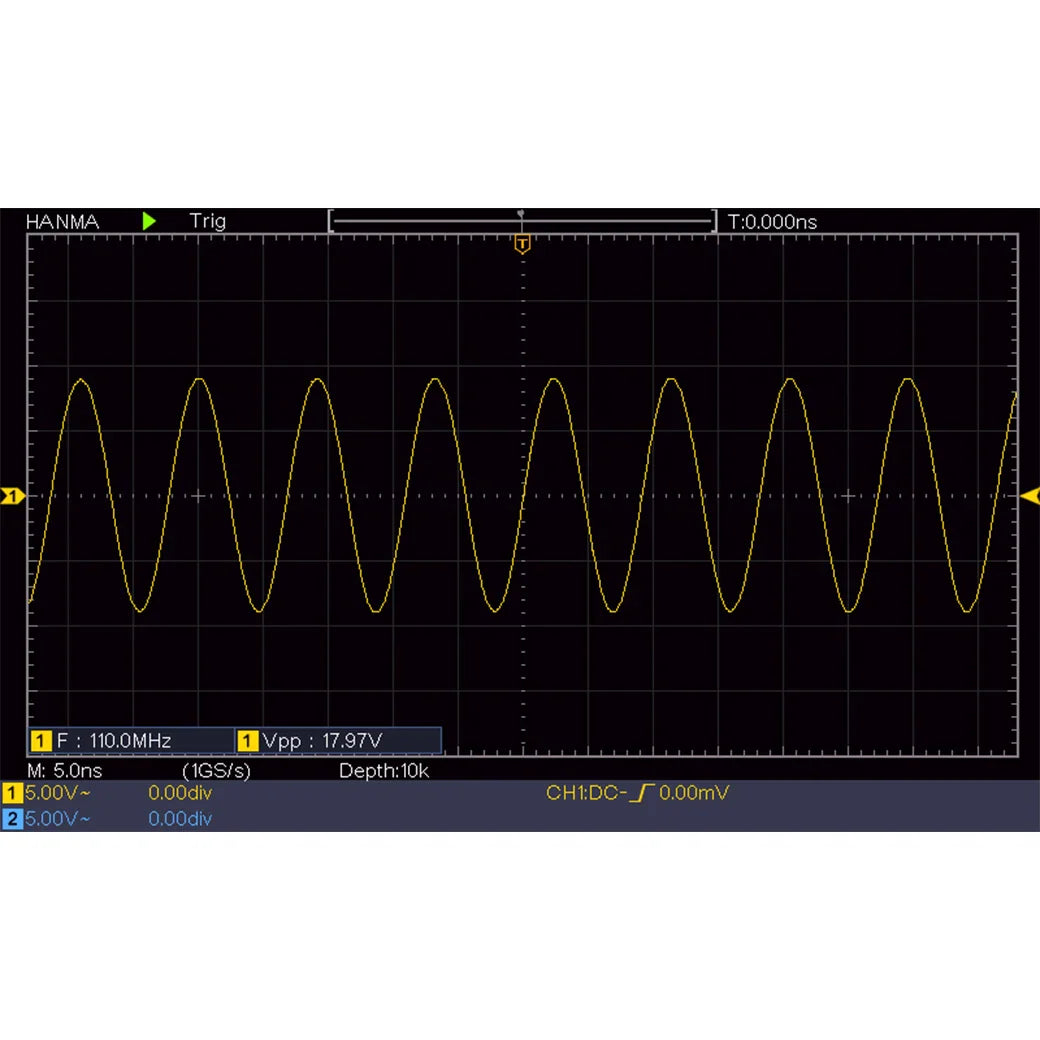

✅ High Bandwidth, High Precision: With a bandwidth of 110MHz (expandable in range up to 349MHz), and up to 1GSa/s sampling rate, you're capturing every pulse, glitch, and ripple with extraordinary detail.

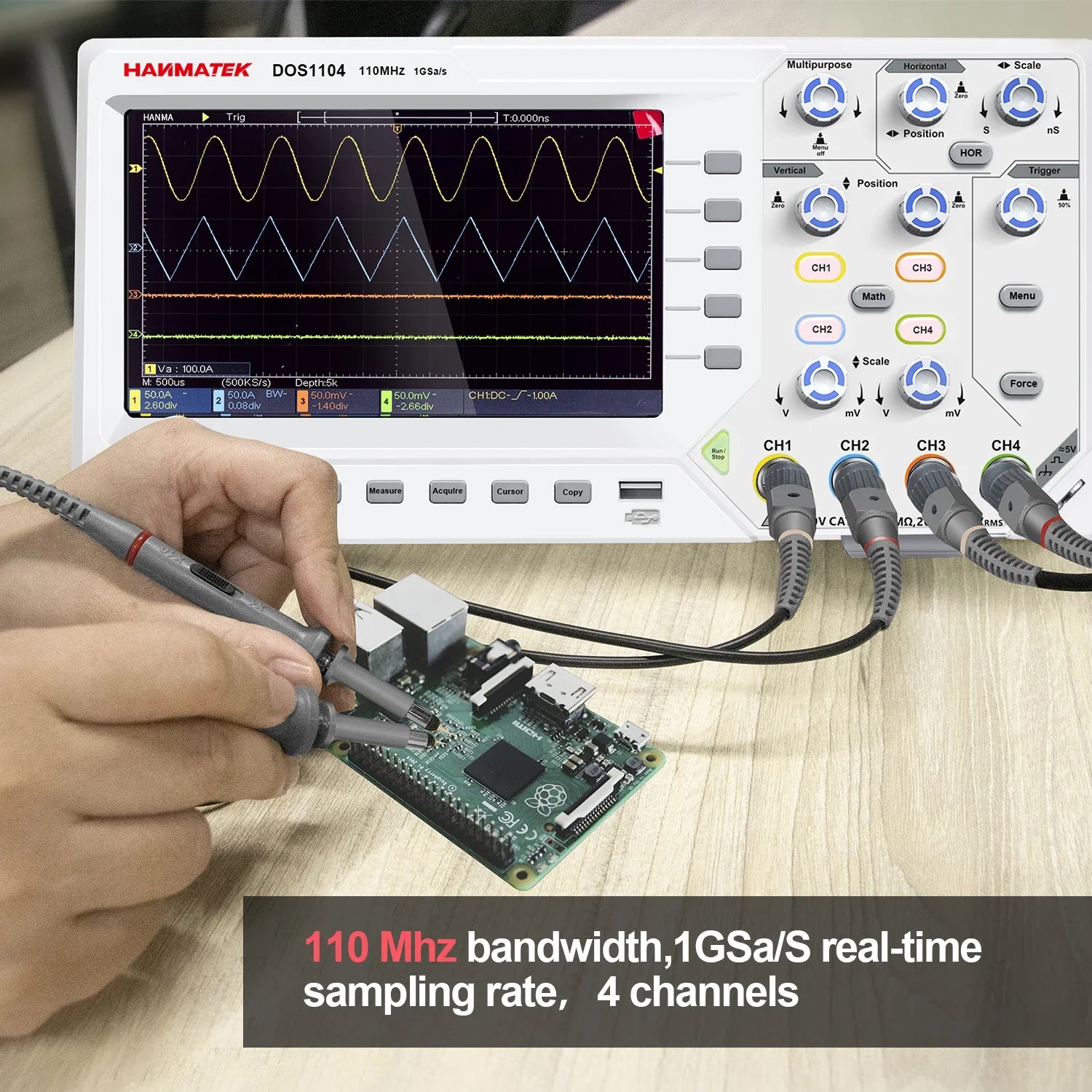

✅ Multi-Channel Marvel: Choose between 2 or 4 channels, allowing you to test multiple signals simultaneously—perfect for multi-signal debugging or comparing input/output behavior.

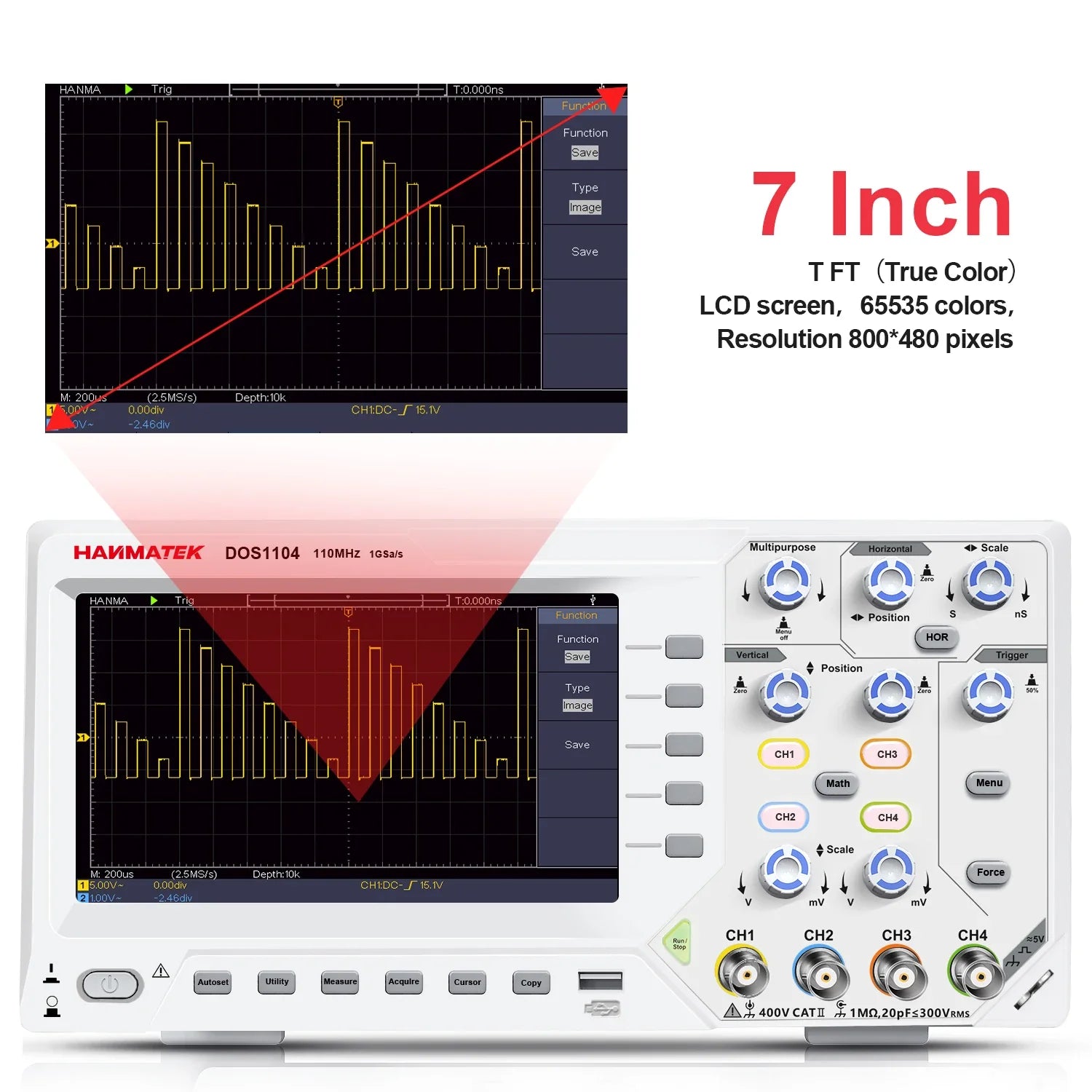

✅ 7-Inch Large TFT Display: A bright and spacious 800×480 pixel display delivers crisp waveforms and easy navigation, reducing eye strain and maximizing clarity.

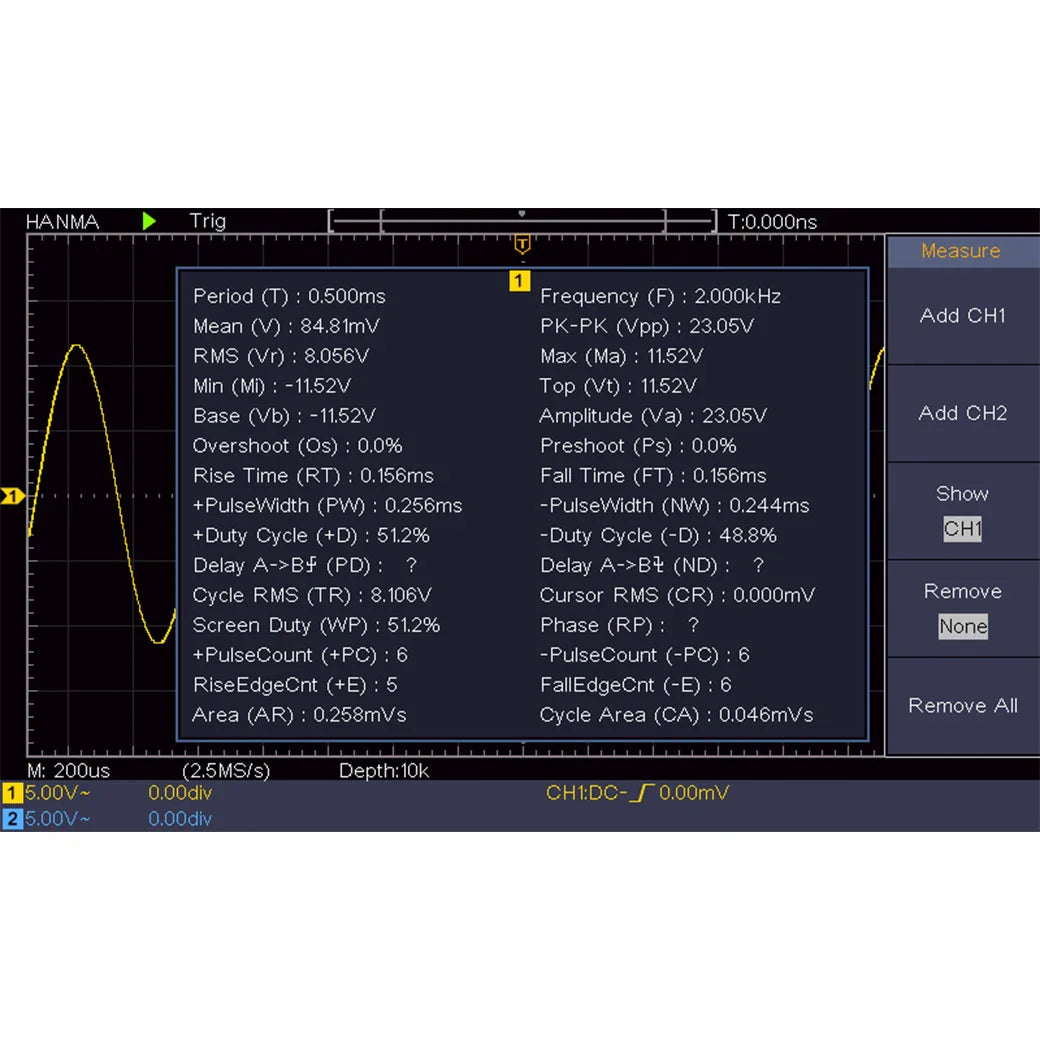

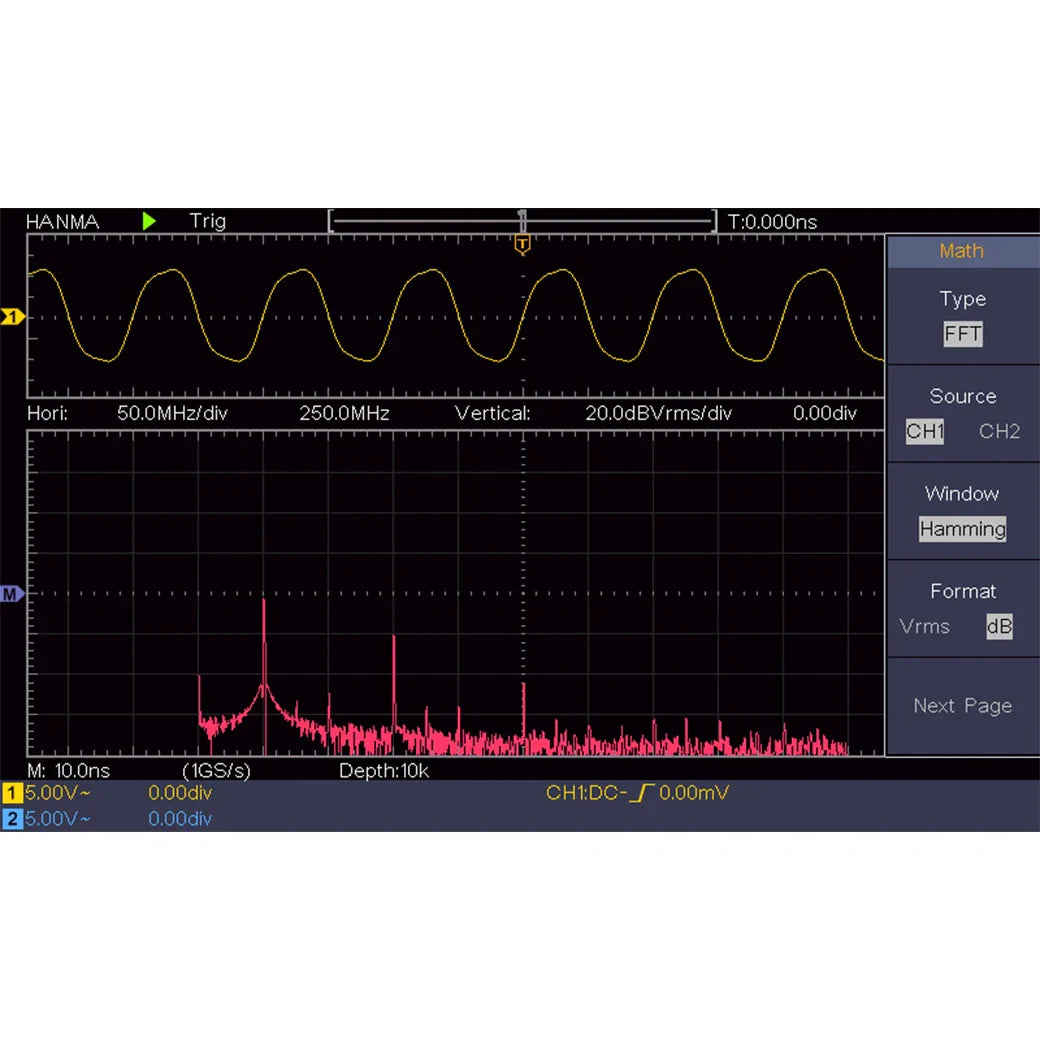

✅ Deep Memory & Smart Storage: Store up to 16 waveform groups, view FFT analysis, and perform real-time calculations like invert and math functions.
✅ Fast Triggering: Capture those elusive waveforms with 50,000 waveforms/sec capture rate and smart triggering (Edge, Video), even in noisy environments.

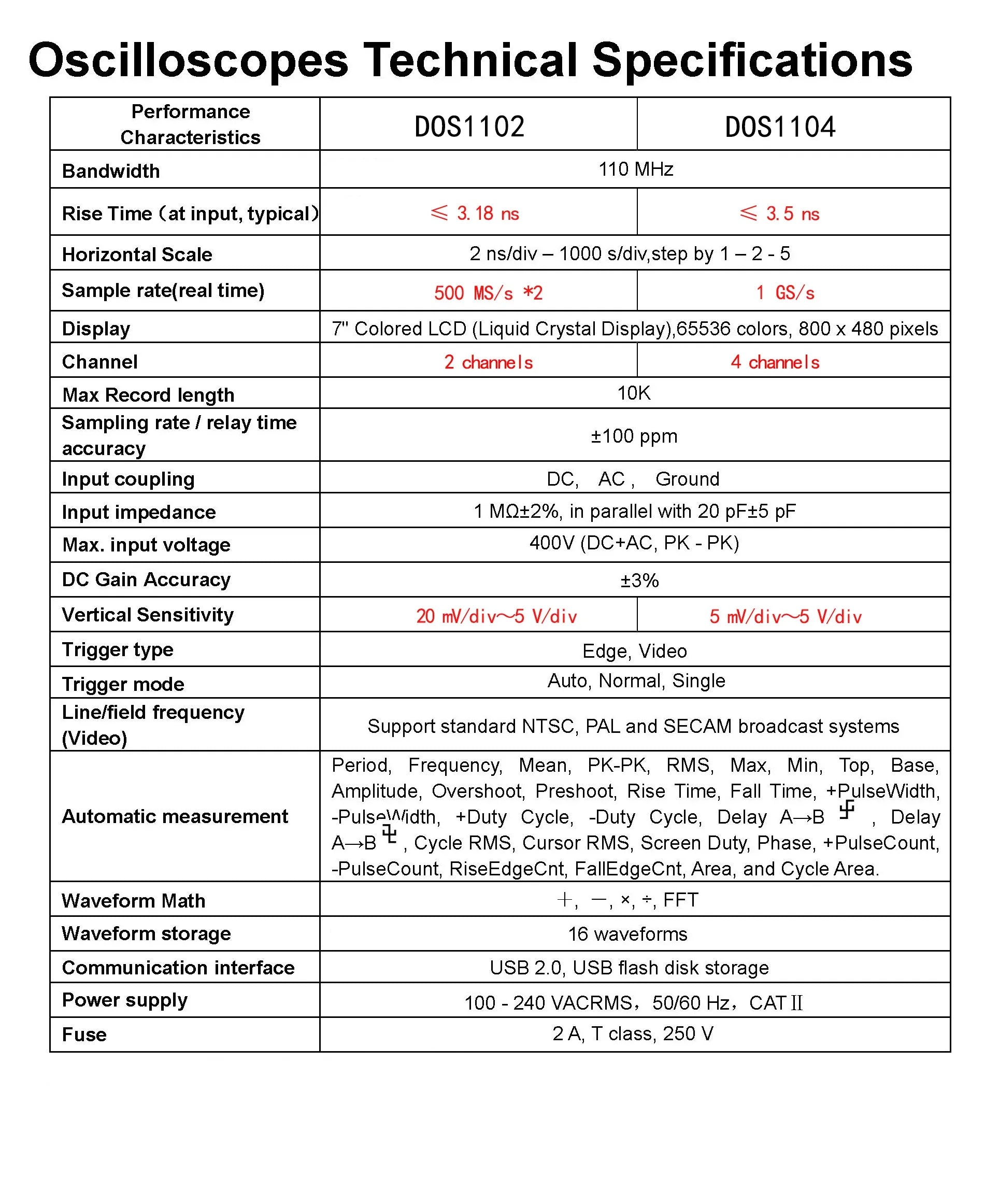

🔧 Specs Snapshot:

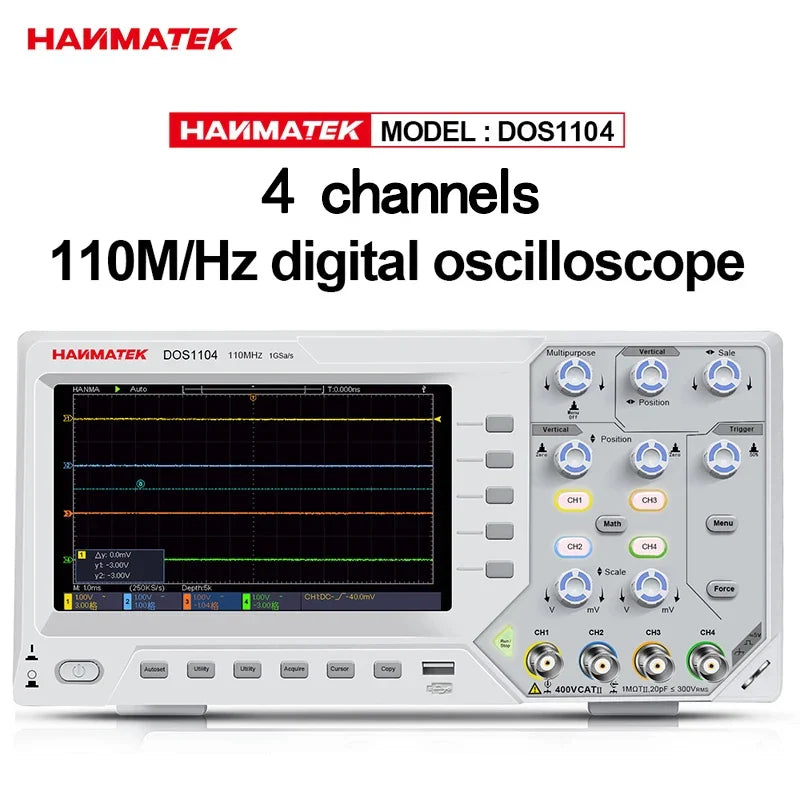

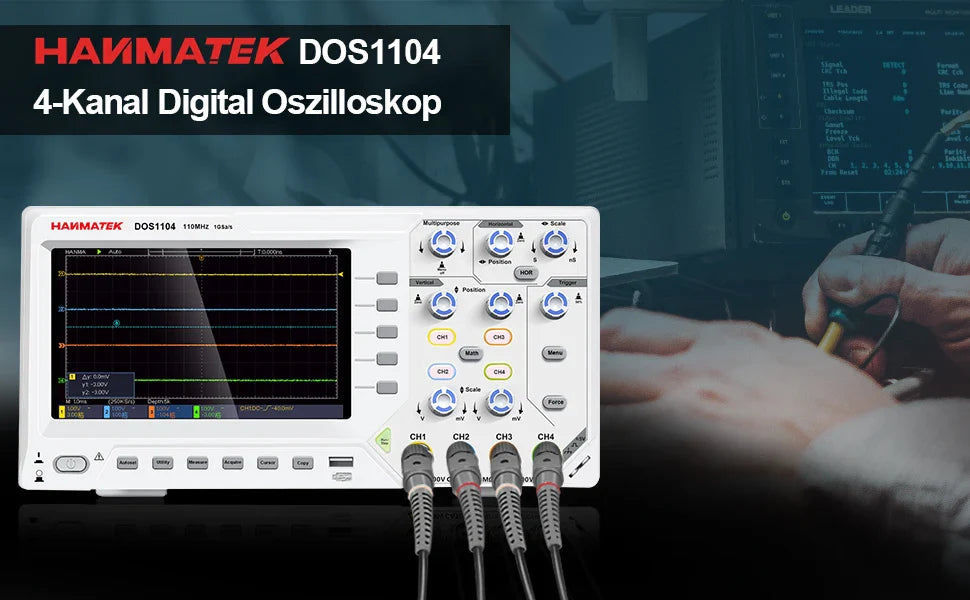

Model: DOS1102 (2-channel) / DOS1104 (4-channel)
Bandwidth: 110MHz
Sampling Rate: 1GSa/s
Record Length: 10K
Waveform Storage: 16 groups
Trigger Types: Edge, Video
Input Resistance: 1MΩ
Time Base Range: 2ns/div – 1000s/div (1-2-5 step)
Vertical Resolution: 8-bit
Waveform Math: Invert, FFT

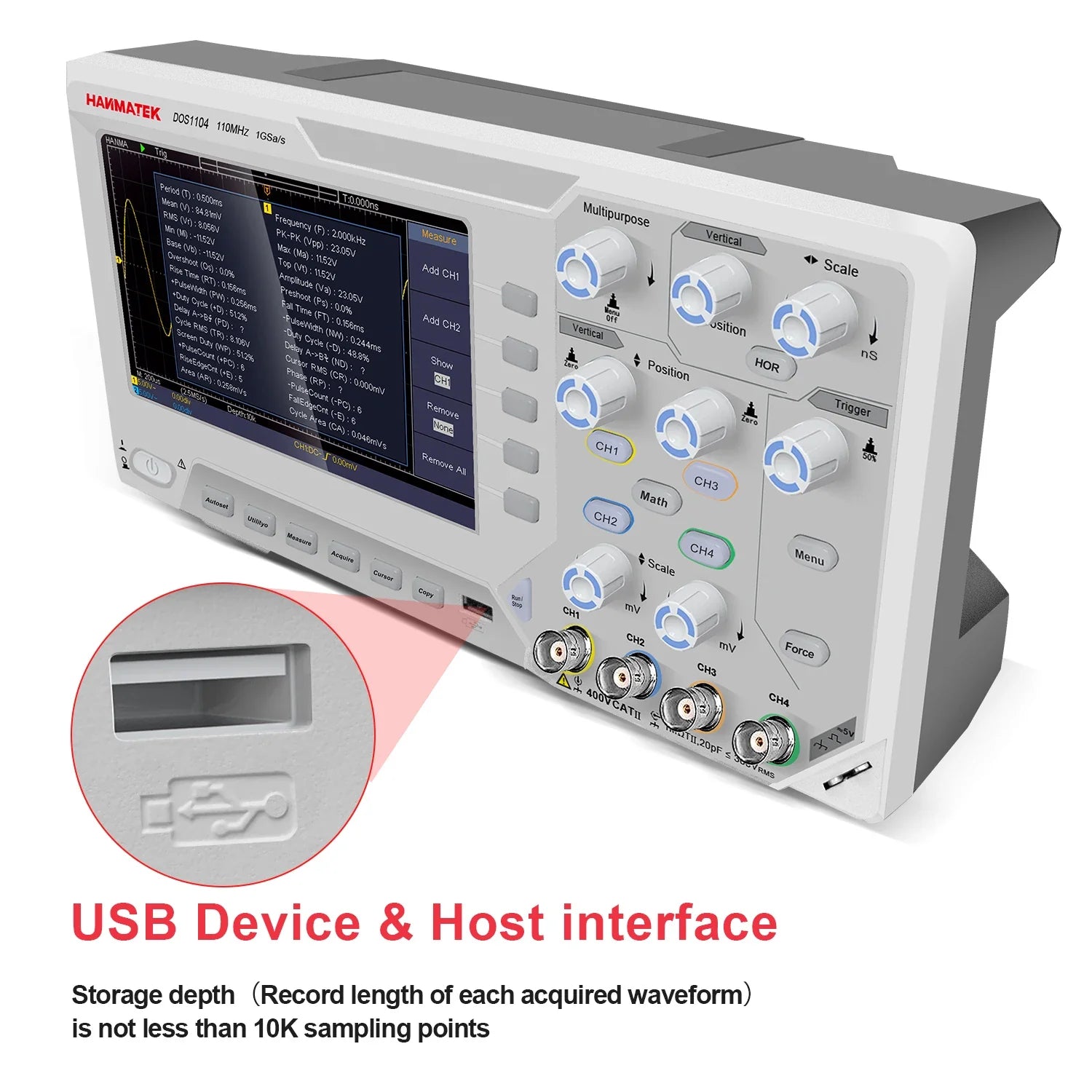

USB Interface: USB Host & Device

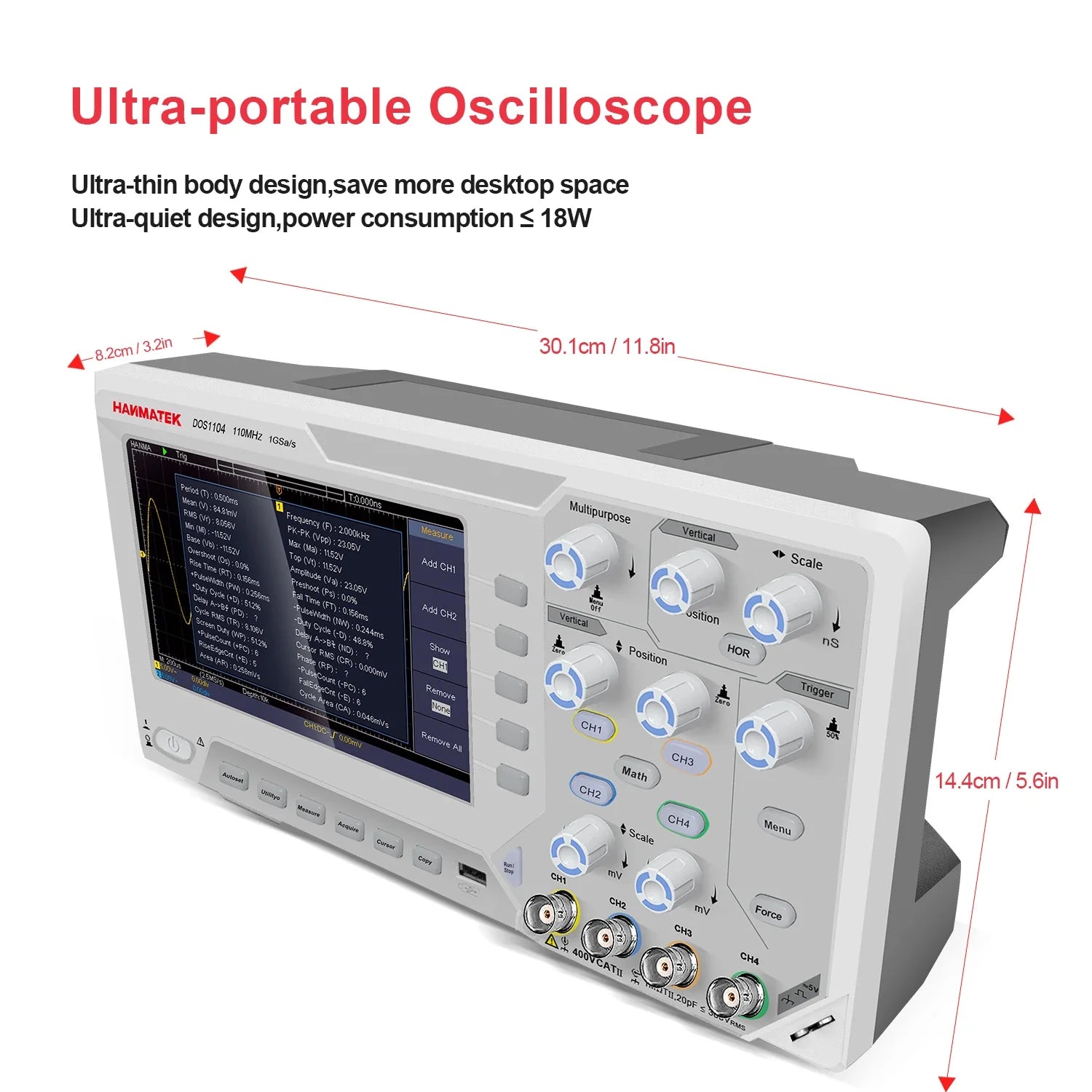

Size: 296 × 65 × 150mm
🧪 Why You’ll Love It:
📈 Analyze in Real Time
🧠 Intuitive UI for all levels

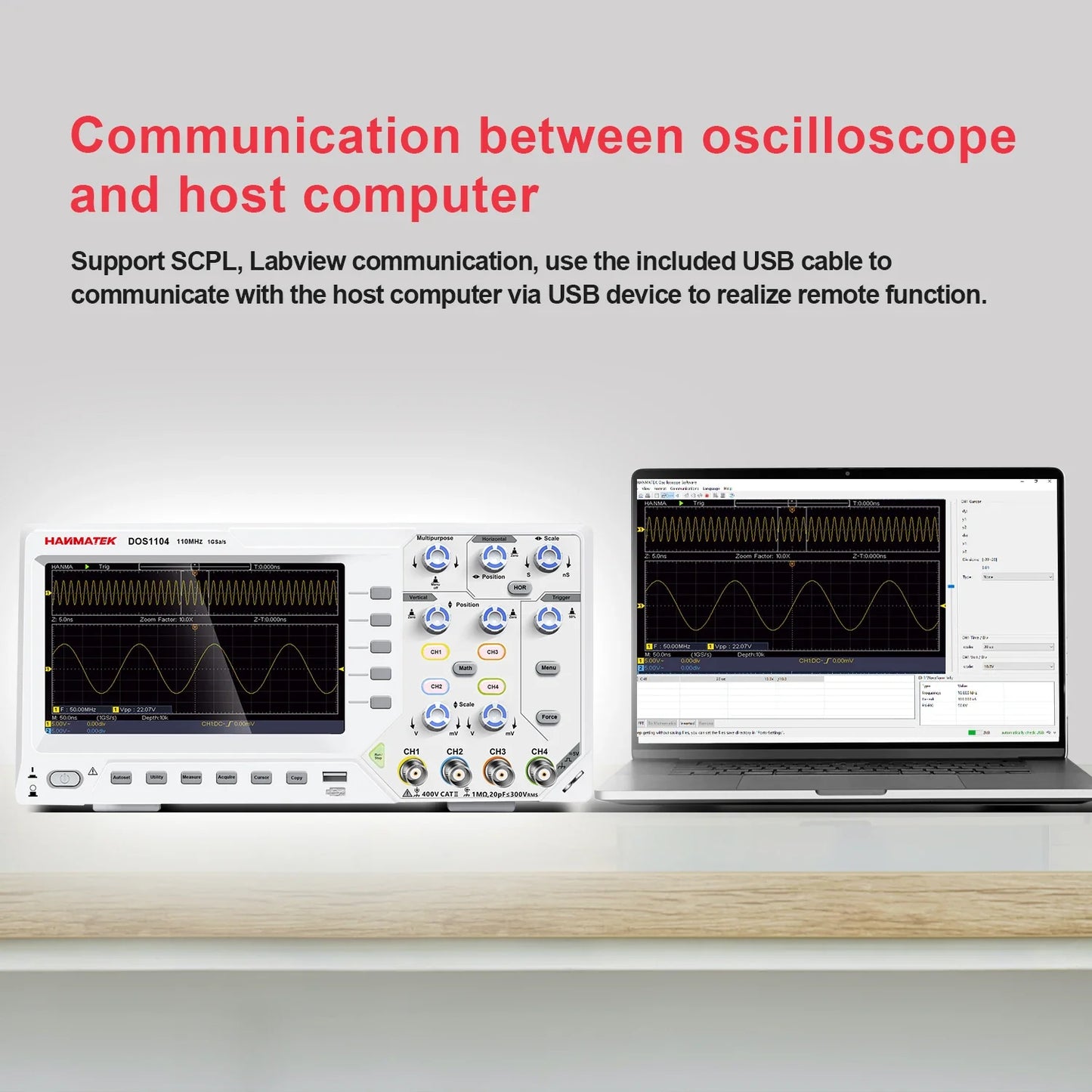

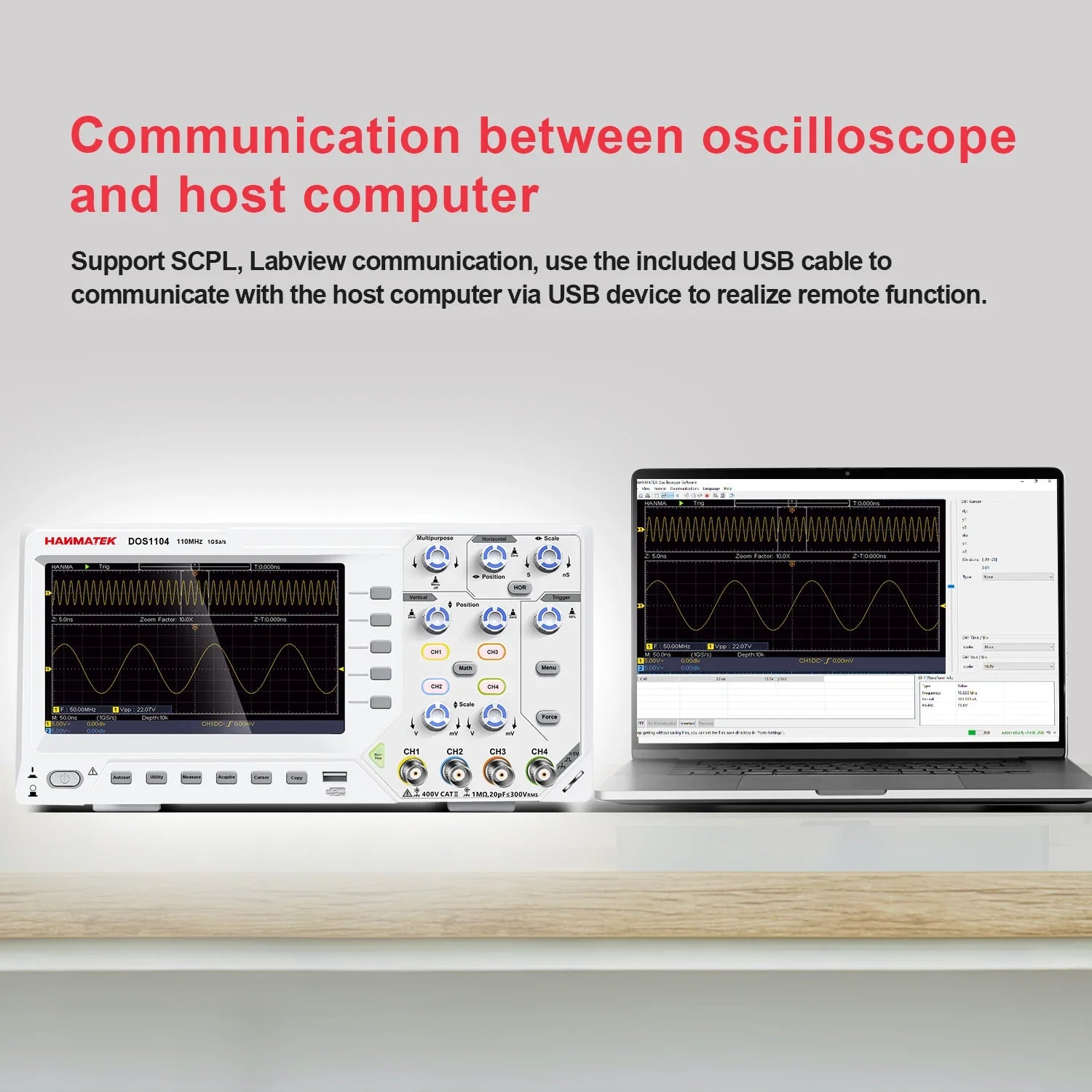

🔌 USB Connectivity for fast waveform export
📊 Great for education, labs, DIY electronics, and pro-level testing
Whether you're debugging a microcontroller or analyzing RF circuits, the Hanmatek DOS1102 / DOS1104 Digital Oscilloscope is built to help you see more, know more, and build better. It’s time to measure with confidence and power your projects with precision!
