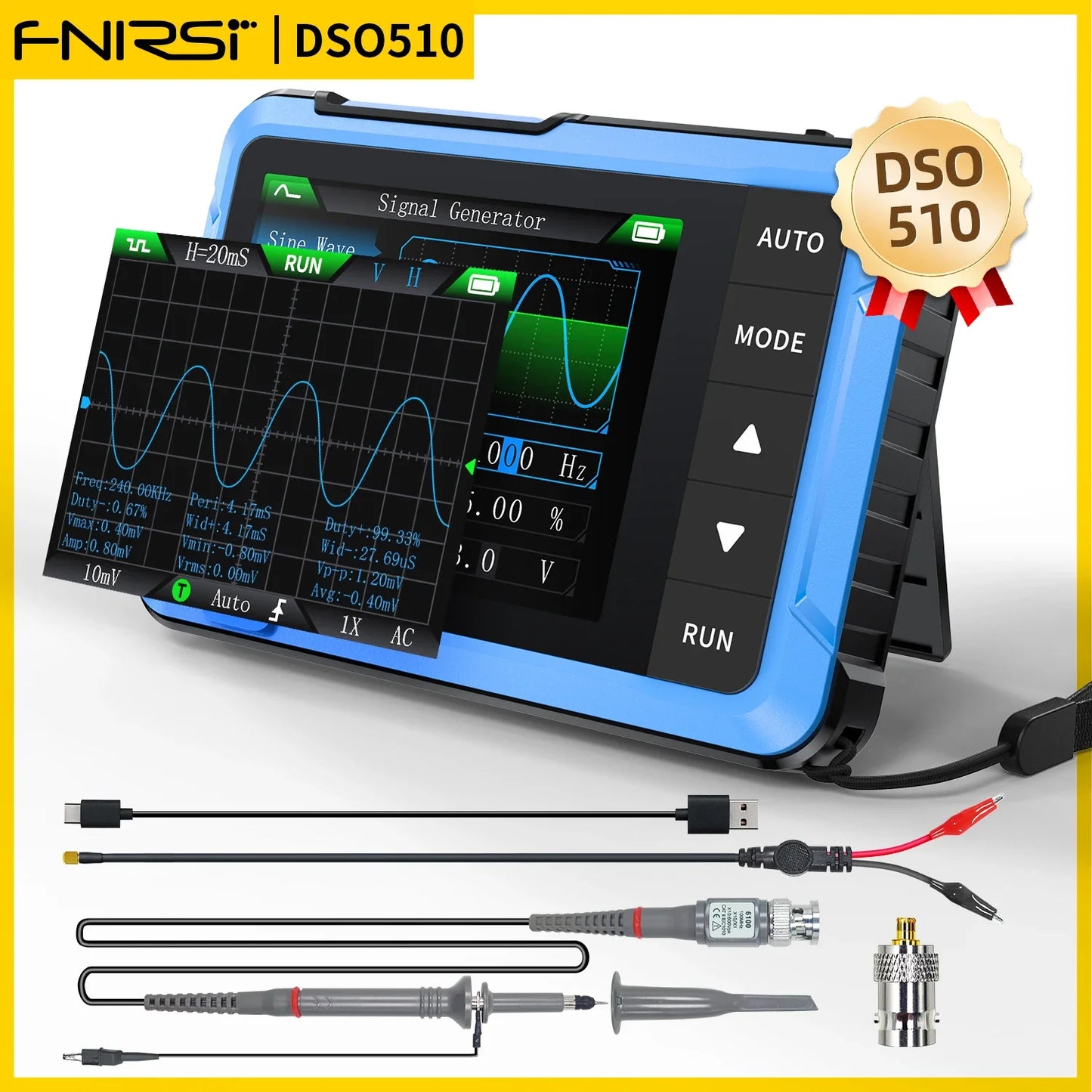

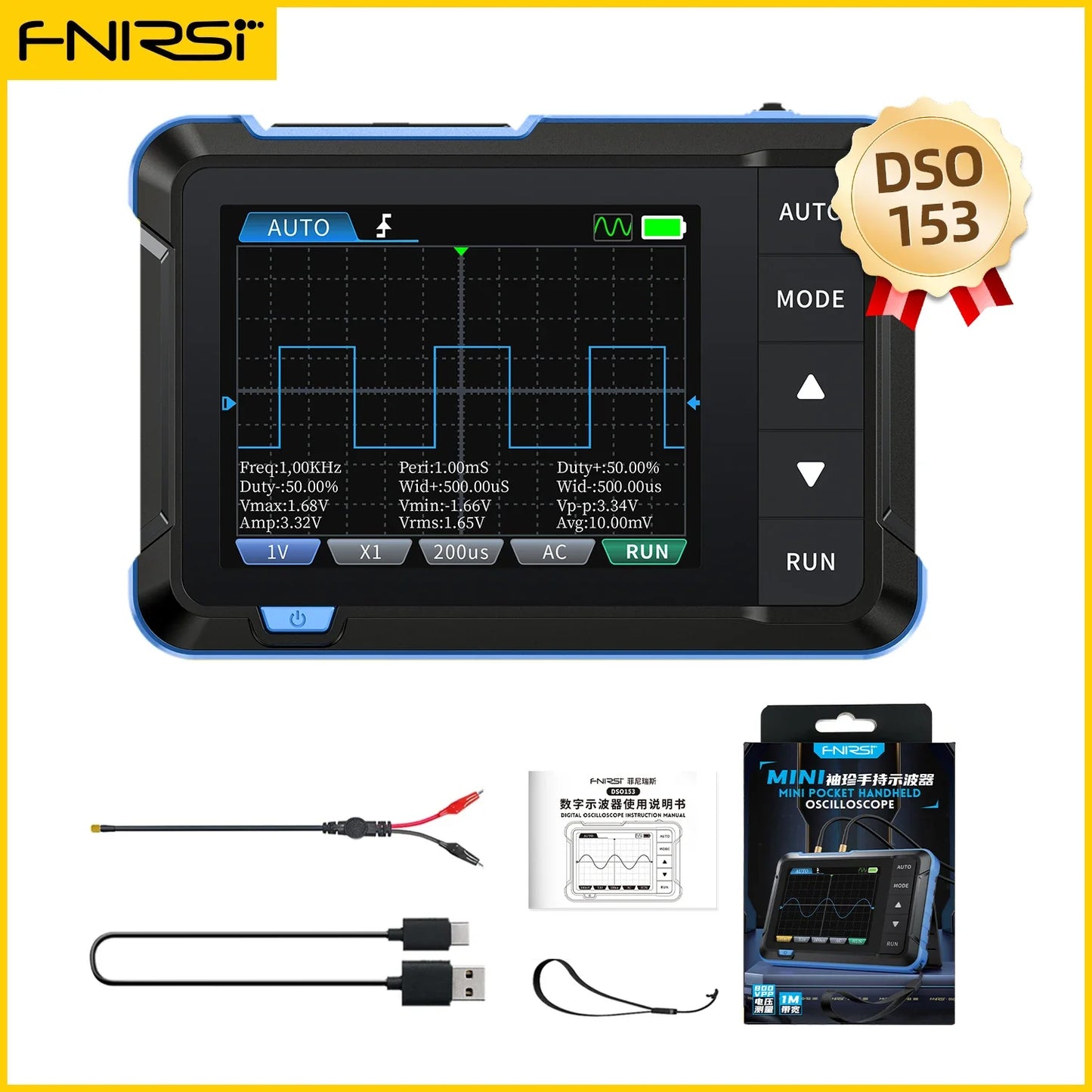

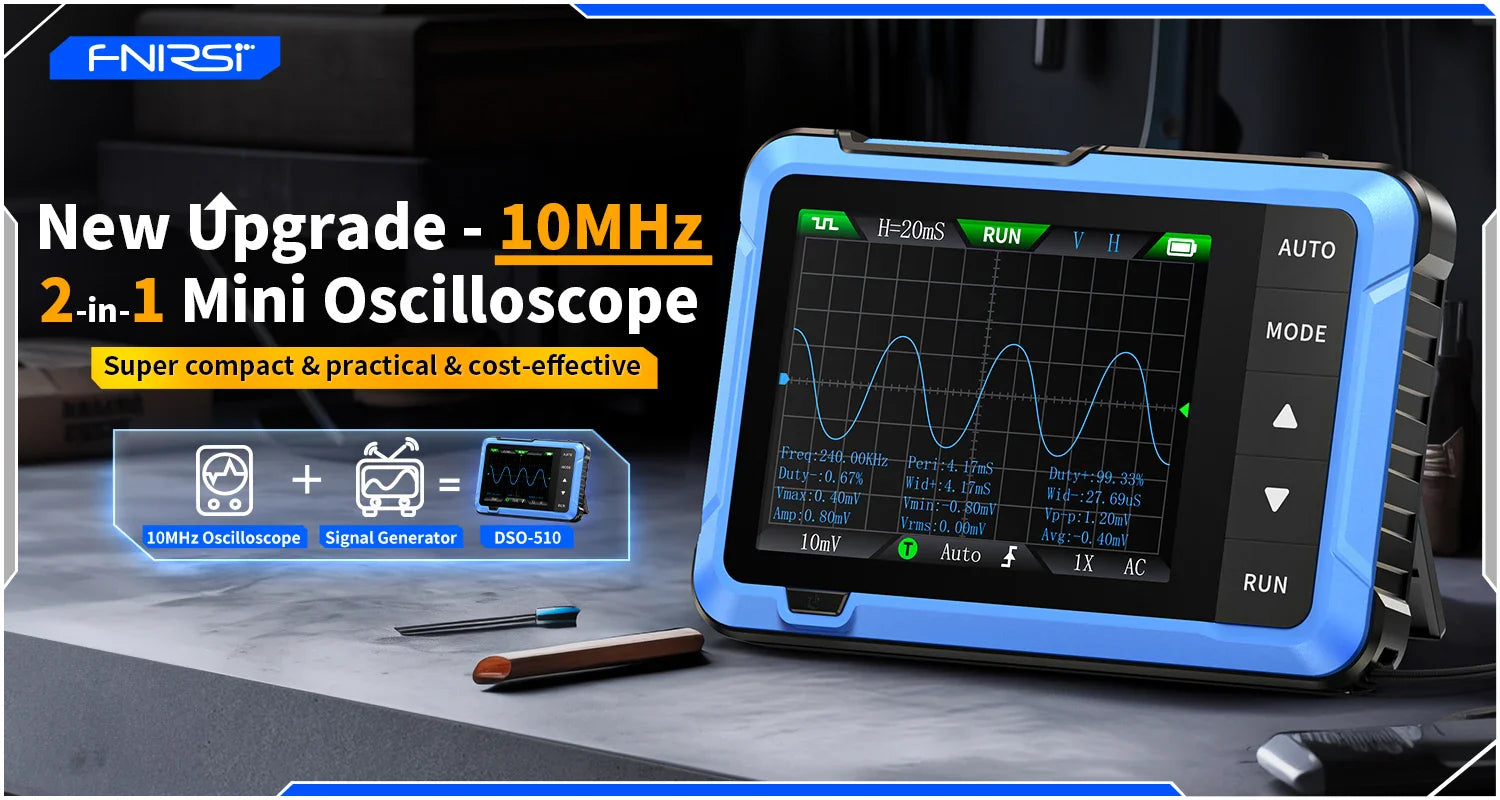

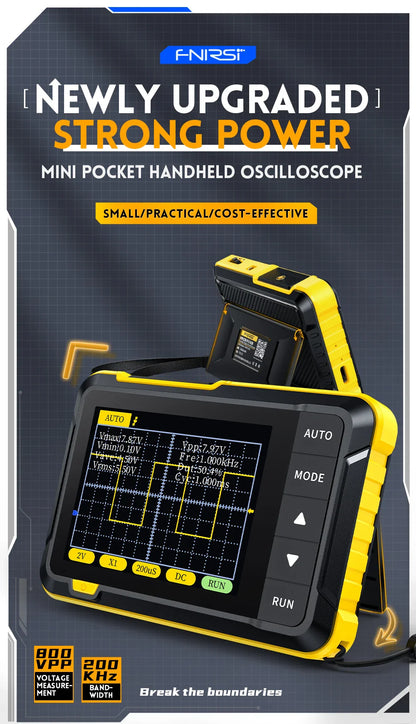

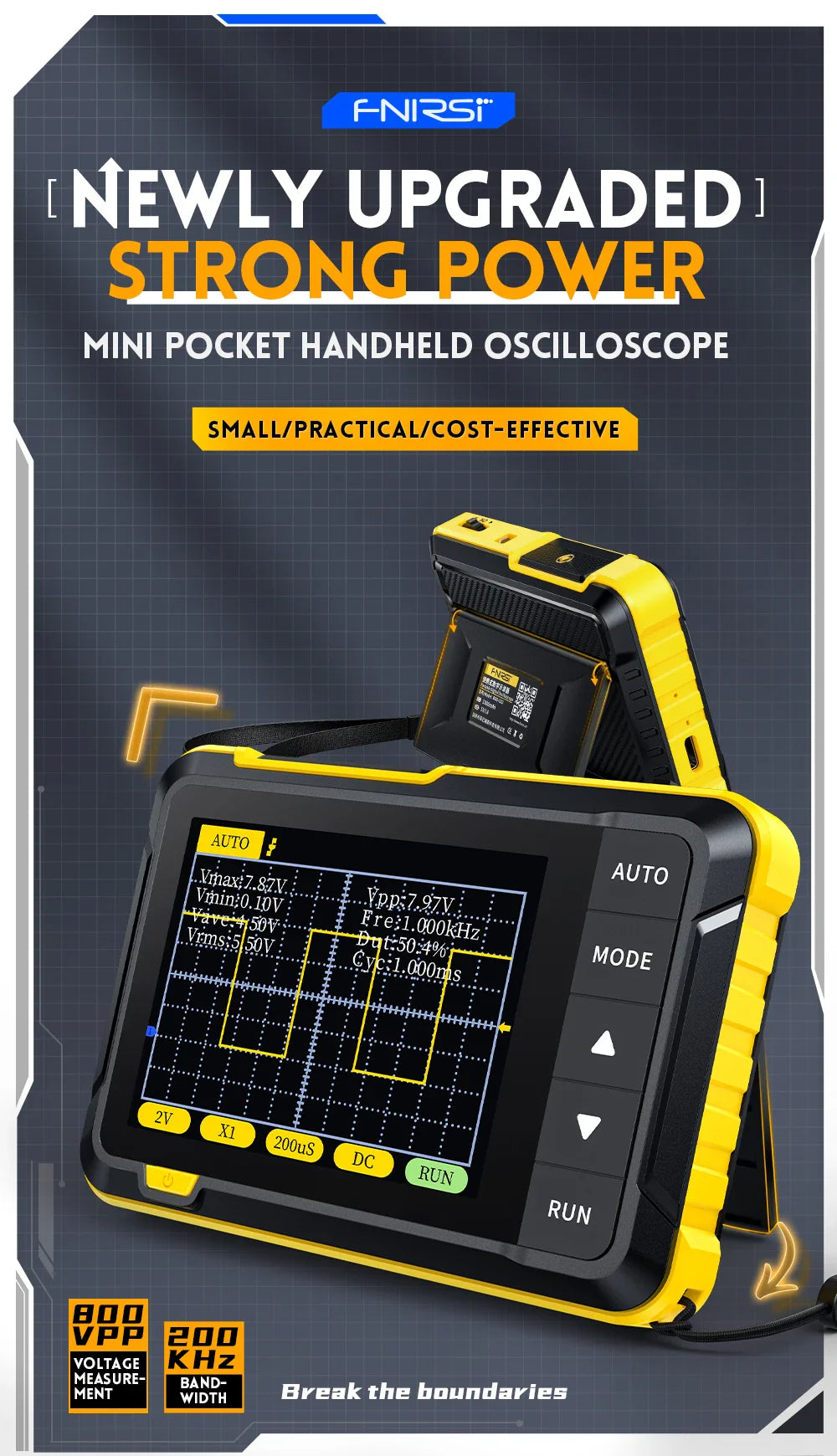

When it comes to electronics troubleshooting and signal analysis, FNIRSI delivers the perfect combination of precision, portability, and versatility. Introducing the DSO510, DSO153, and DSO152 handheld oscilloscopes—your ideal companions for efficient signal measurement, repair, and educational purposes. These 2-in-1 oscilloscopes integrate a signal generator with high-performance oscilloscope functionality, allowing for in-depth testing and diagnostics in various applications. Whether you're a professional electronics technician, hobbyist, or student, these compact tools pack all the power you need for on-the-go repairs and experiments.
Key Features:

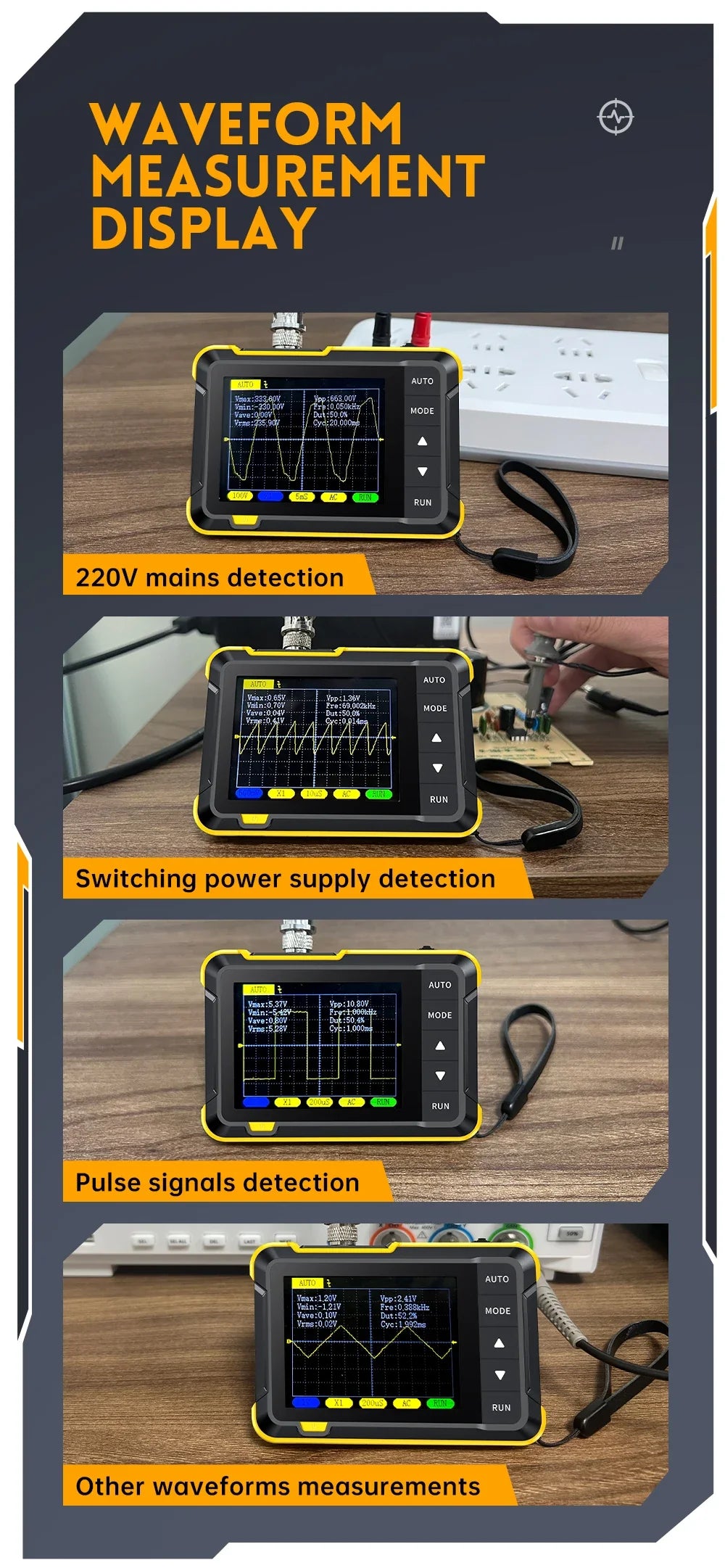

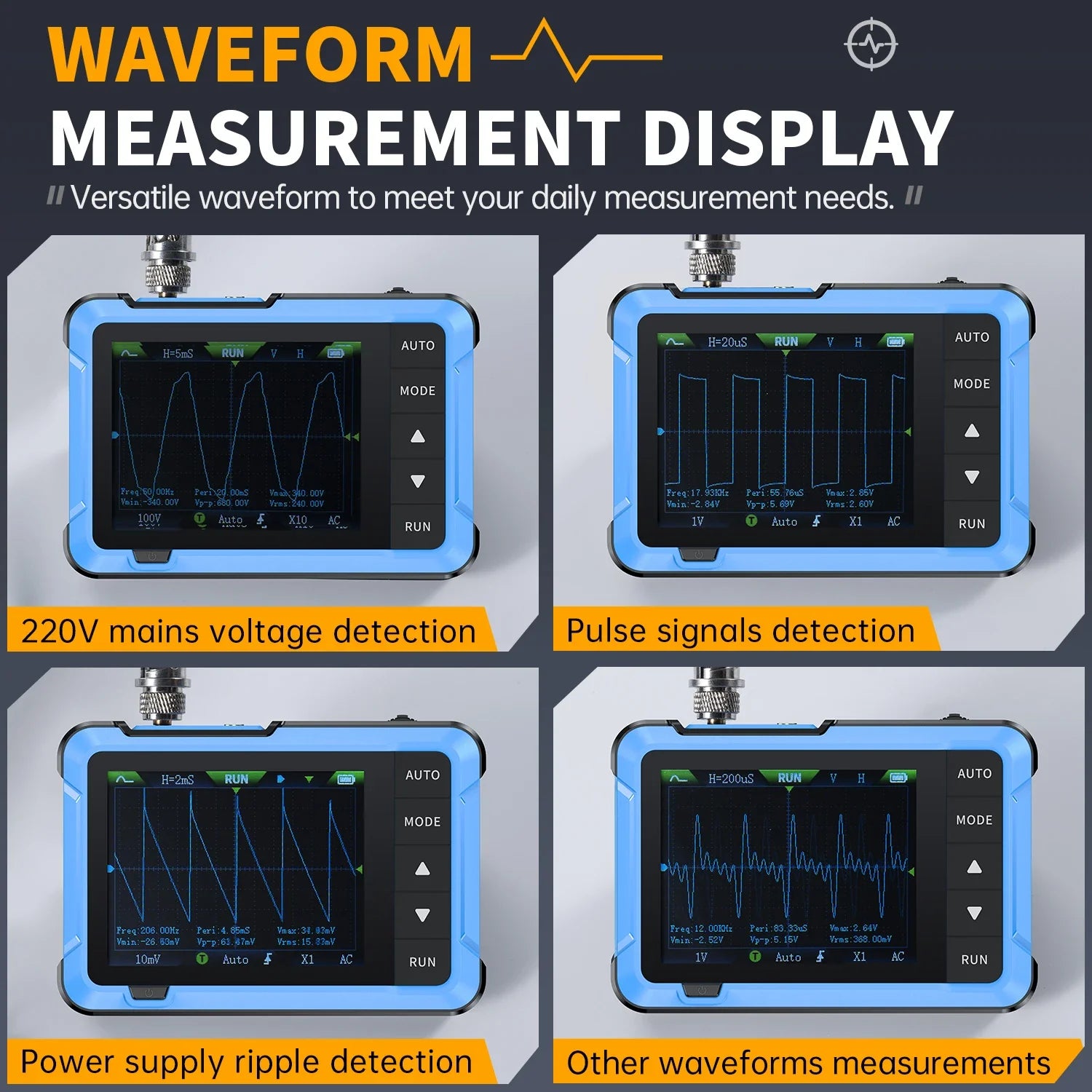

🔬 Precision Measurement in a Compact Design: The FNIRSI DSO510, DSO153, and DSO152 oscilloscopes are designed to provide precise signal analysis with their real-time sampling rates of up to 48MS/s (DSO510) and a 10MHz bandwidth. These oscilloscopes are perfect for capturing detailed waveforms, making them ideal for electronics repair, signal troubleshooting, and educational experiments.
🔬 Multiple Trigger Modes for Reliable Signal Analysis: These oscilloscopes feature Auto, Normal, and Single trigger modes, providing you with flexible signal testing options for various scenarios. The AC/DC coupling method ensures you're ready to handle both analog and digital signals with ease.

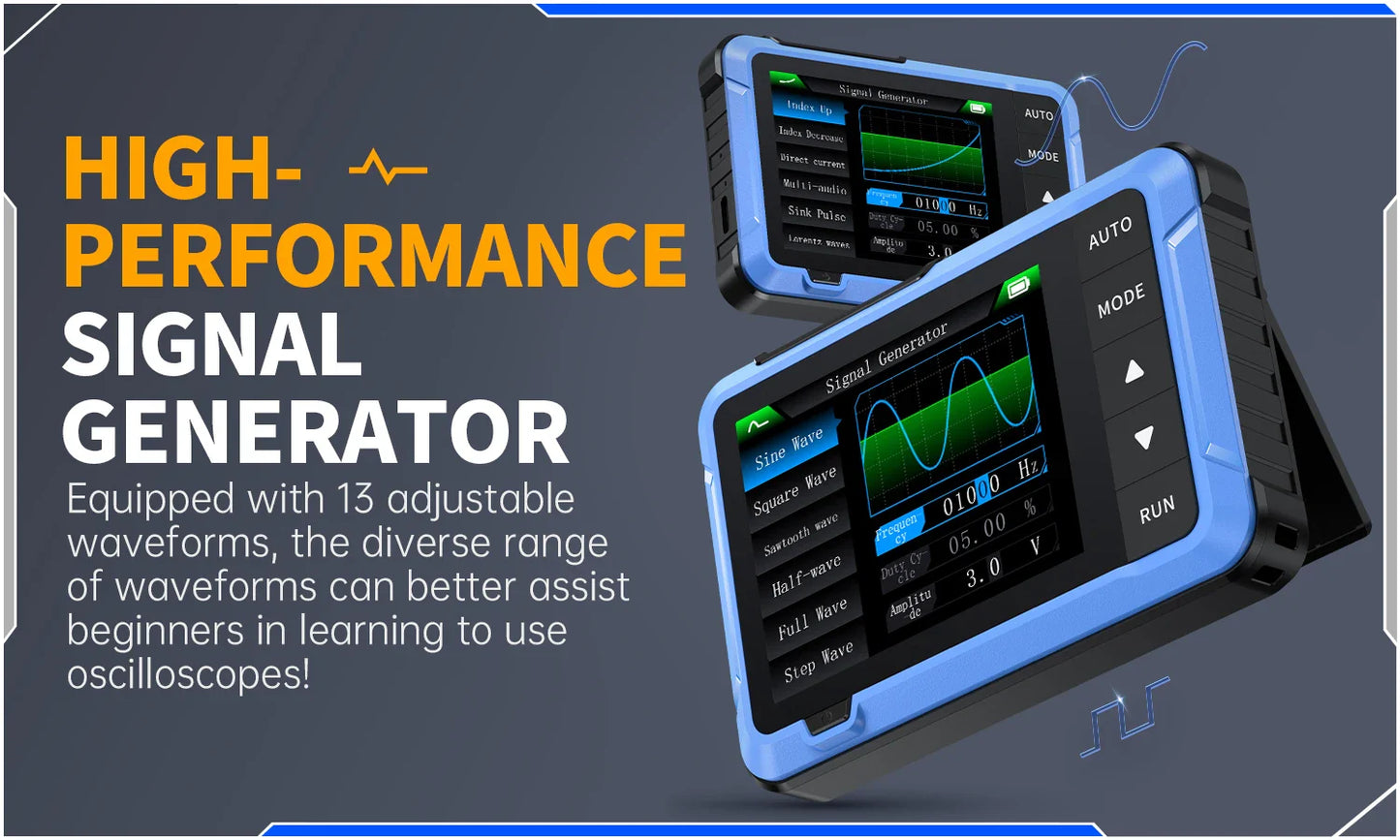

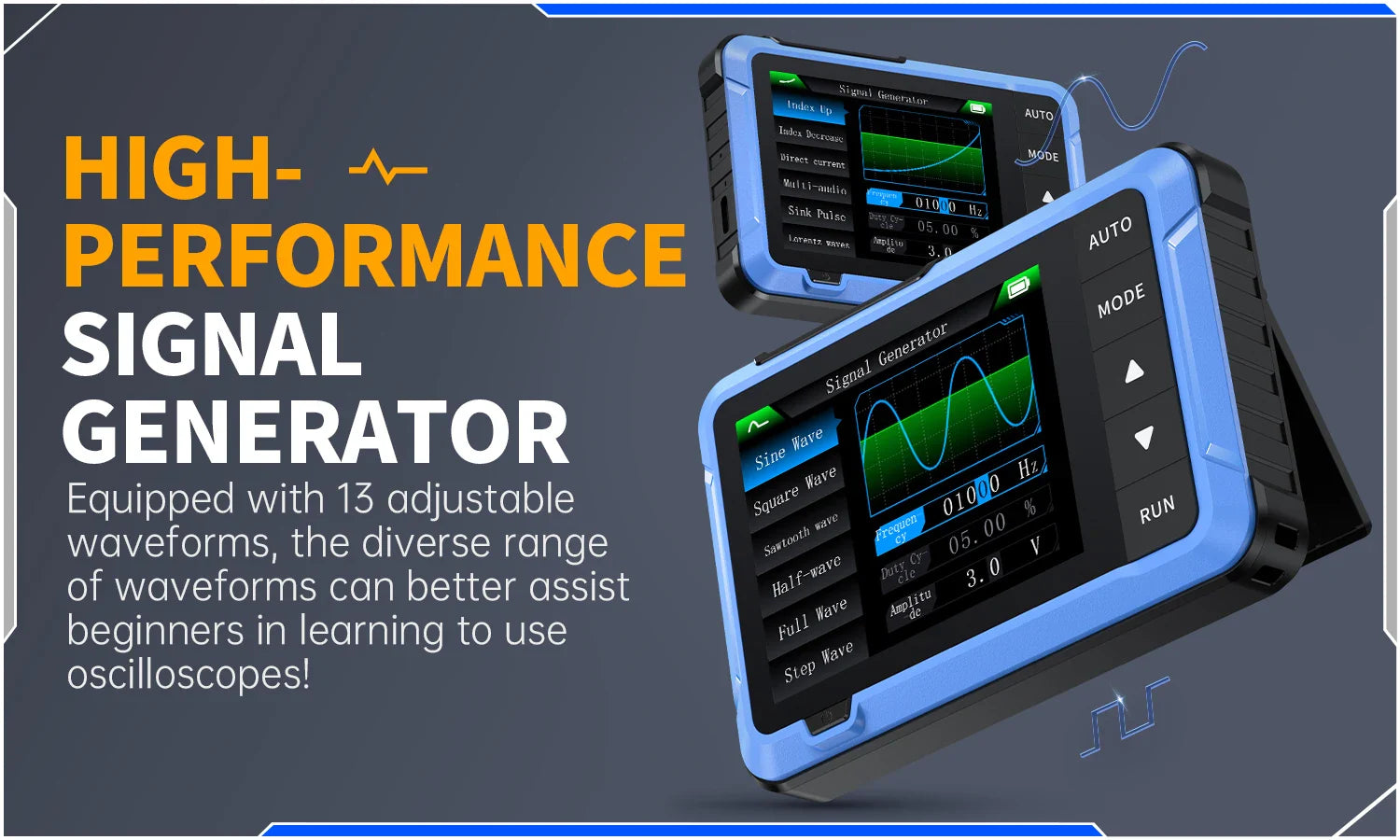

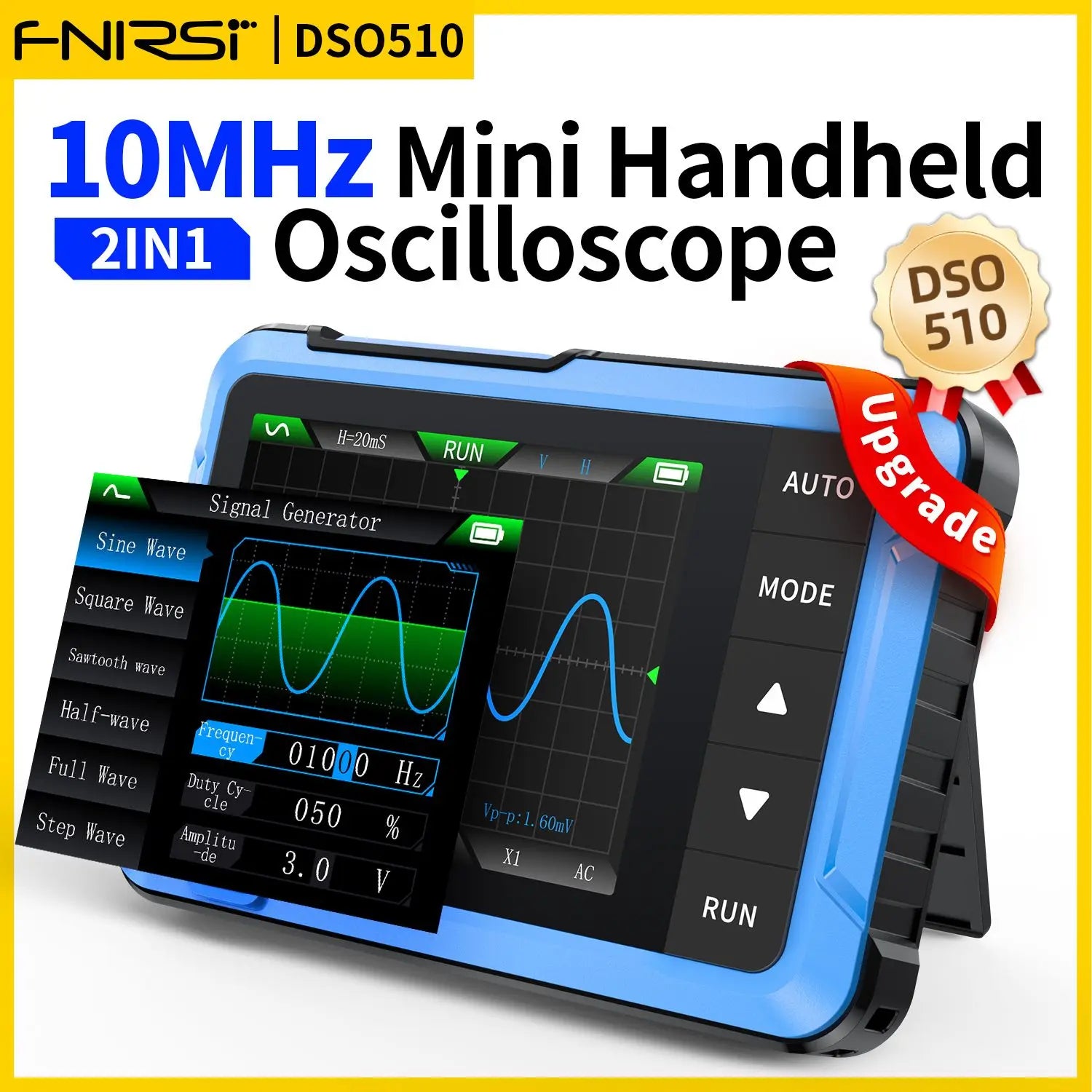

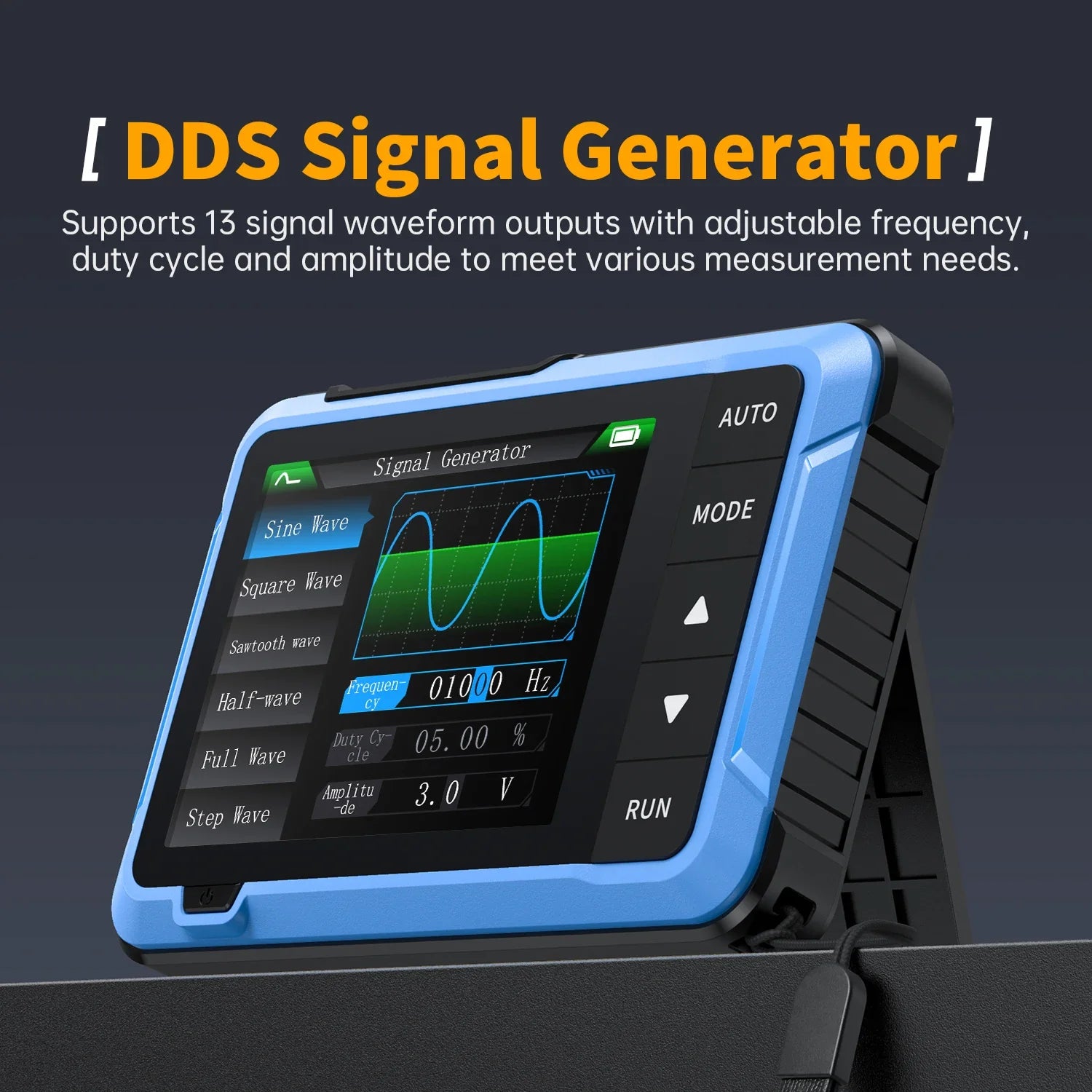

🔬 2-in-1 Oscilloscope & Signal Generator: Each model is equipped with an integrated signal generator that supports a wide range of waveform outputs—sine, square, sawtooth, and more—perfect for testing components and circuits in real time. With frequency ranges up to 50KHz (DSO510) and 10KHz (DSO153), you can generate the signals you need for thorough equipment diagnostics.

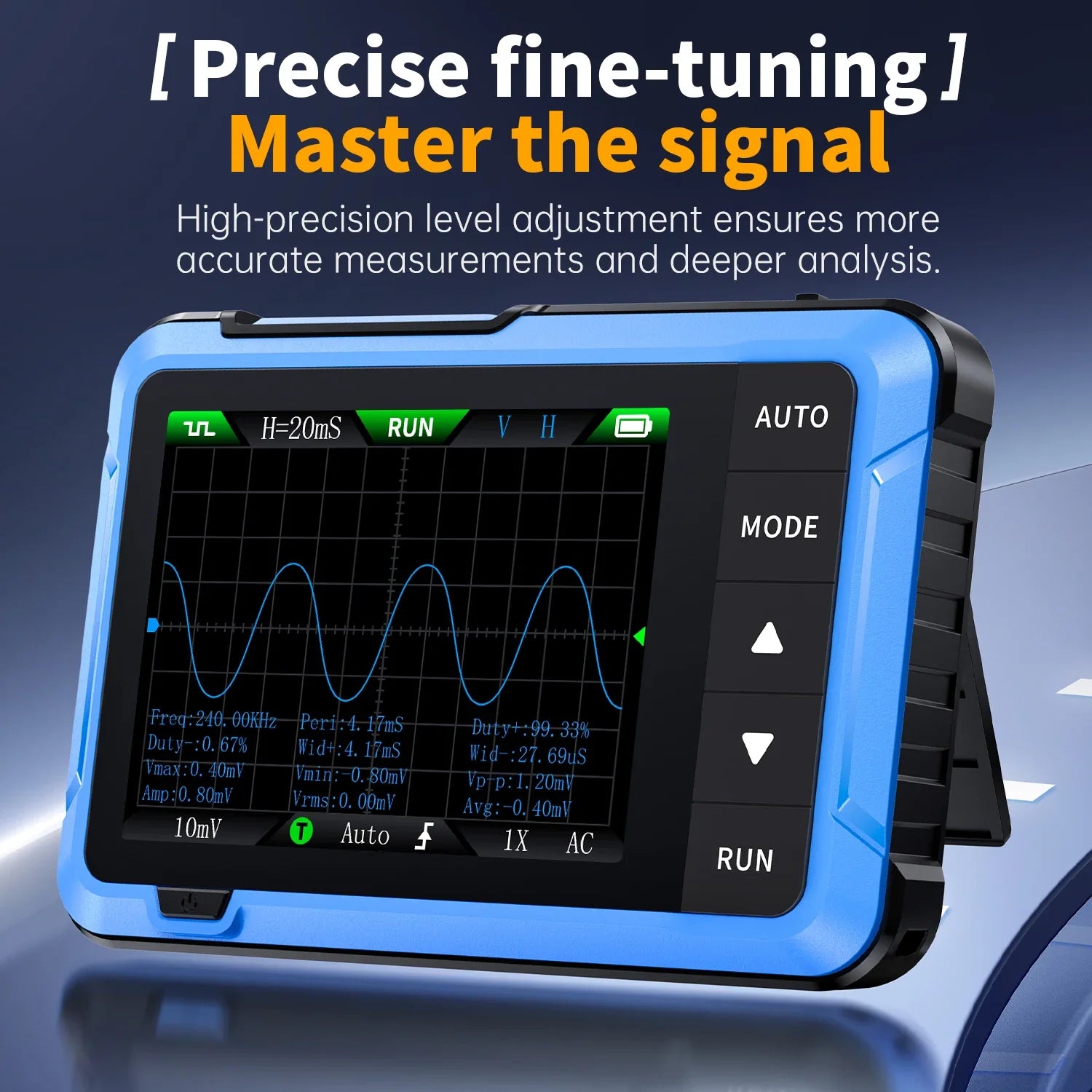

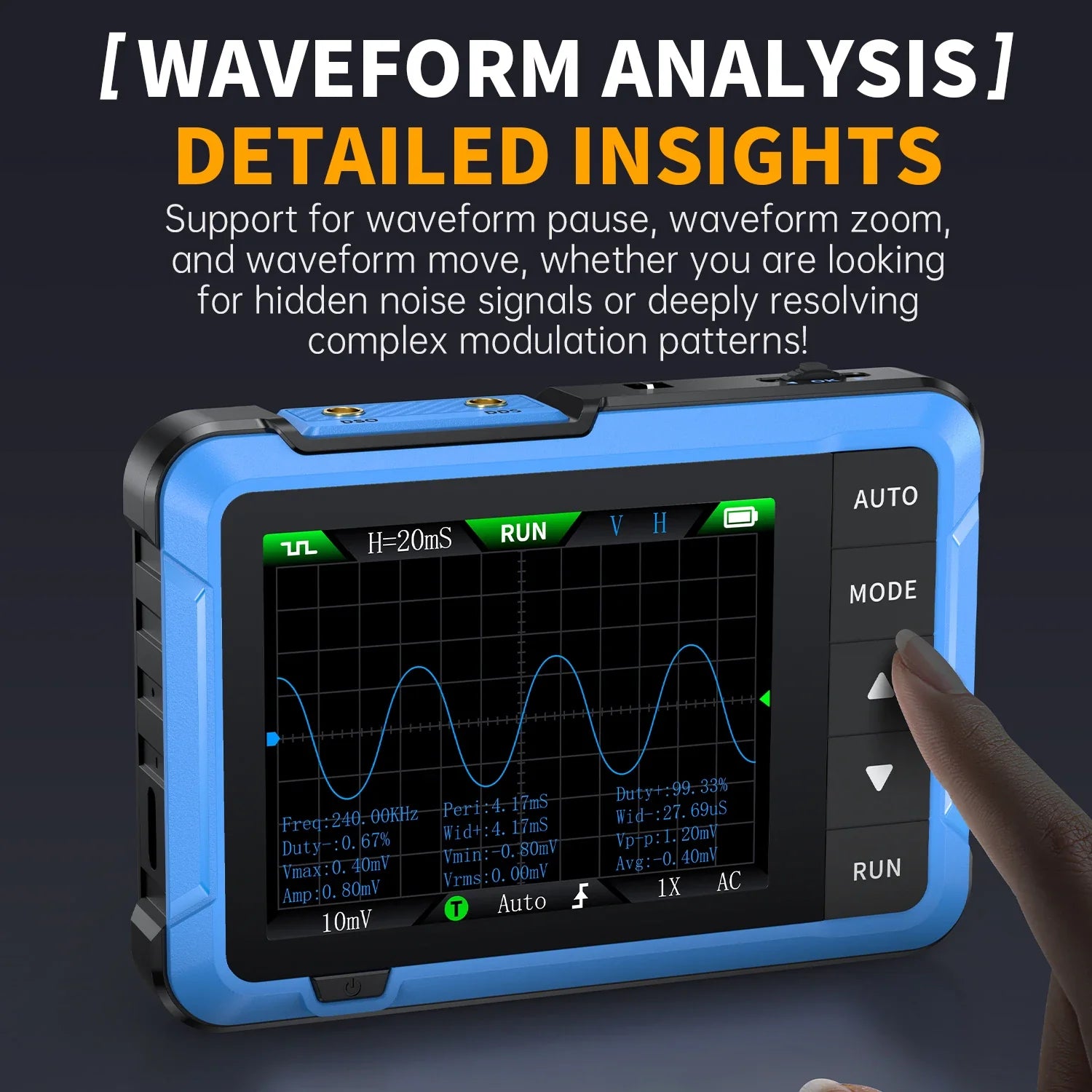

🔬 HD LCD Display for Clarity: The 2.8-inch HD LCD screen with 320x240 resolution ensures you can view waveforms clearly and accurately. Whether you’re working in a dimly lit environment or need to analyze complex signals, the bright display provides the clarity you need for precise measurements.

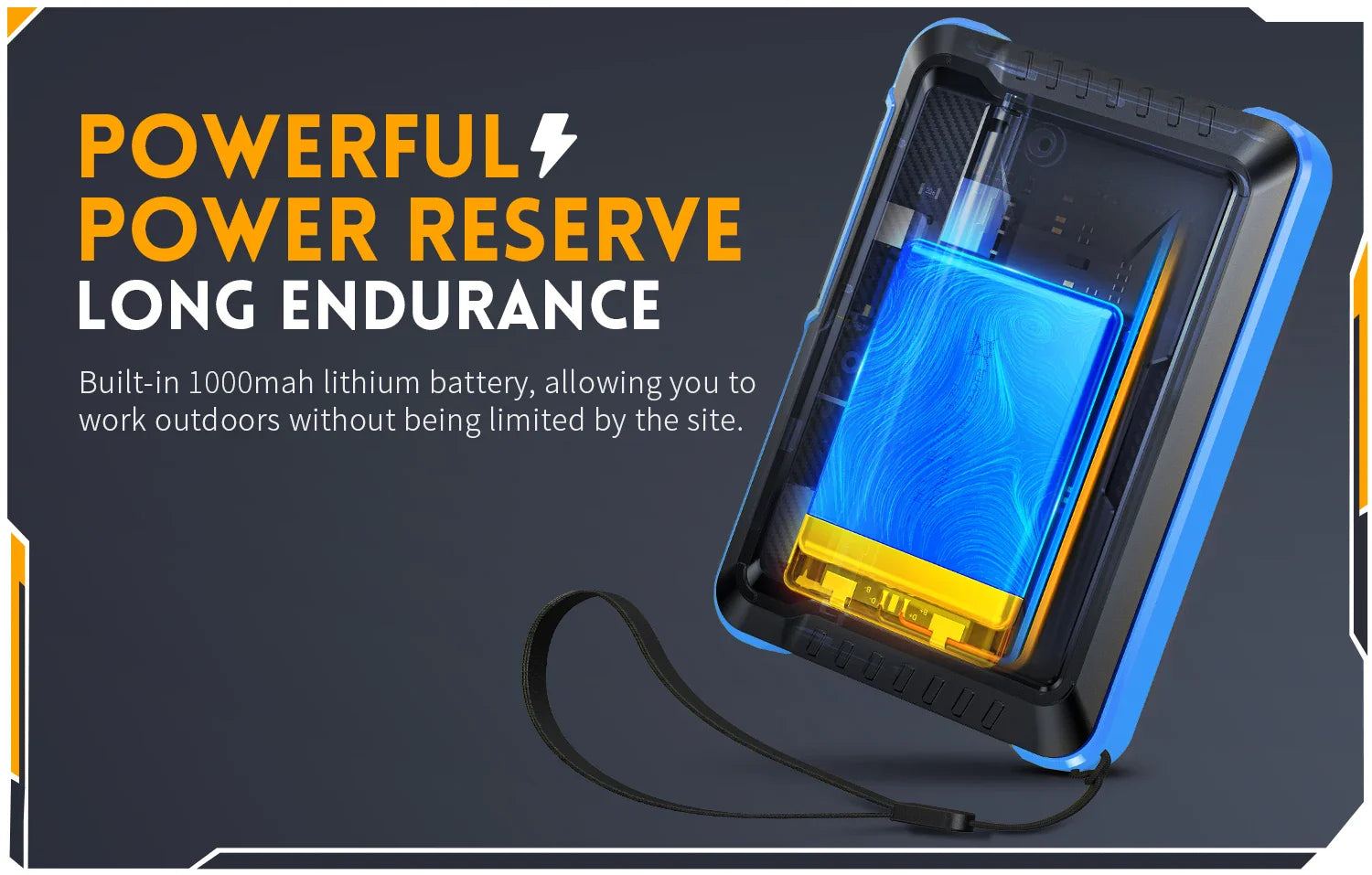

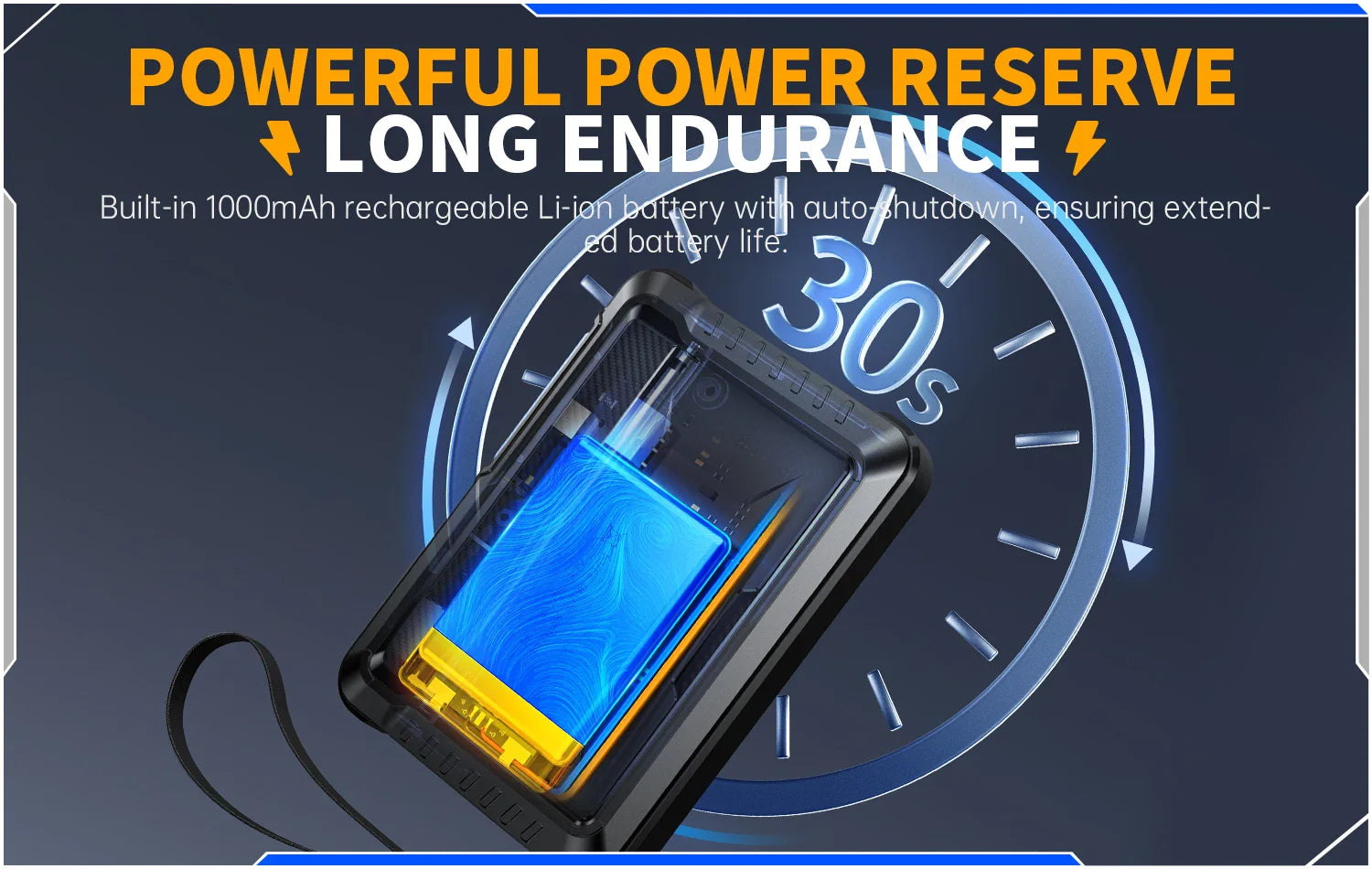

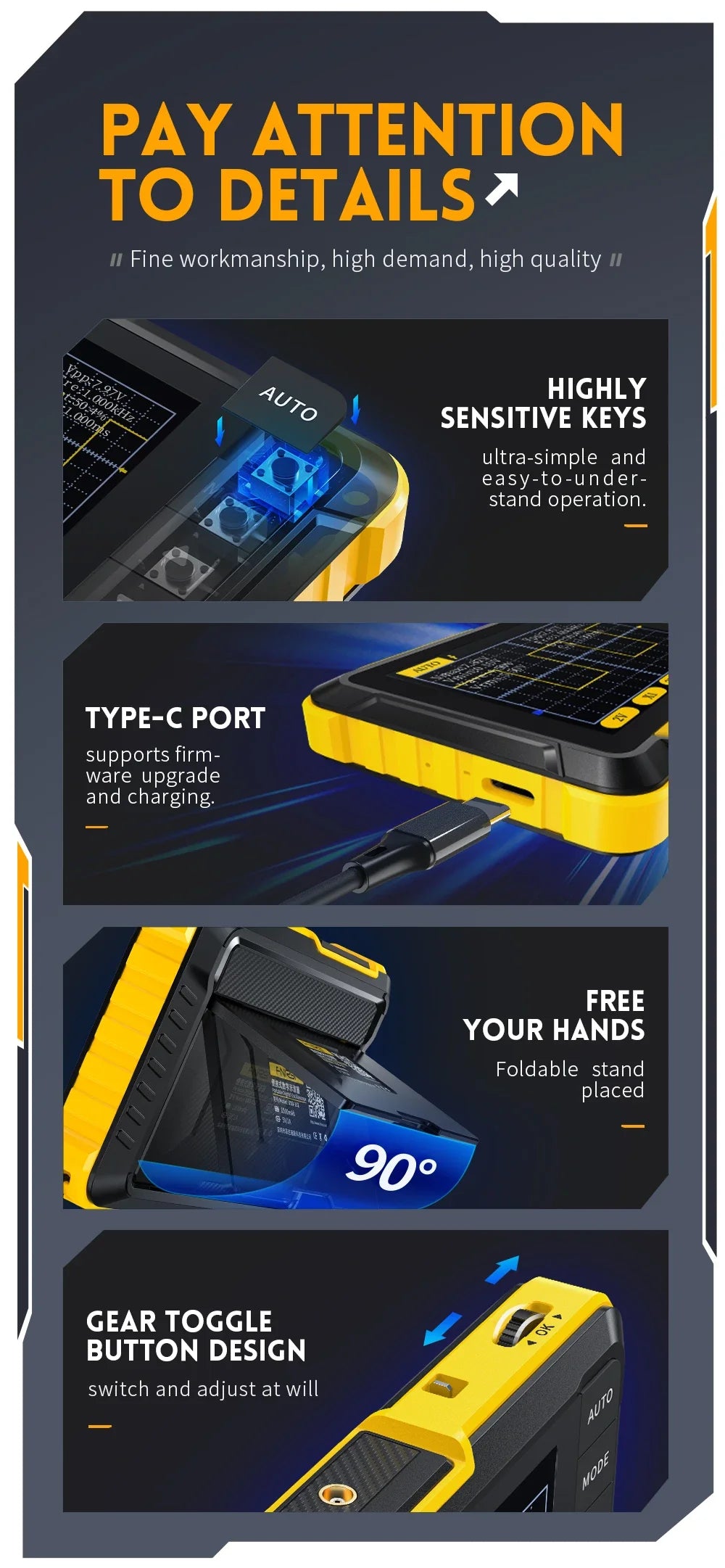

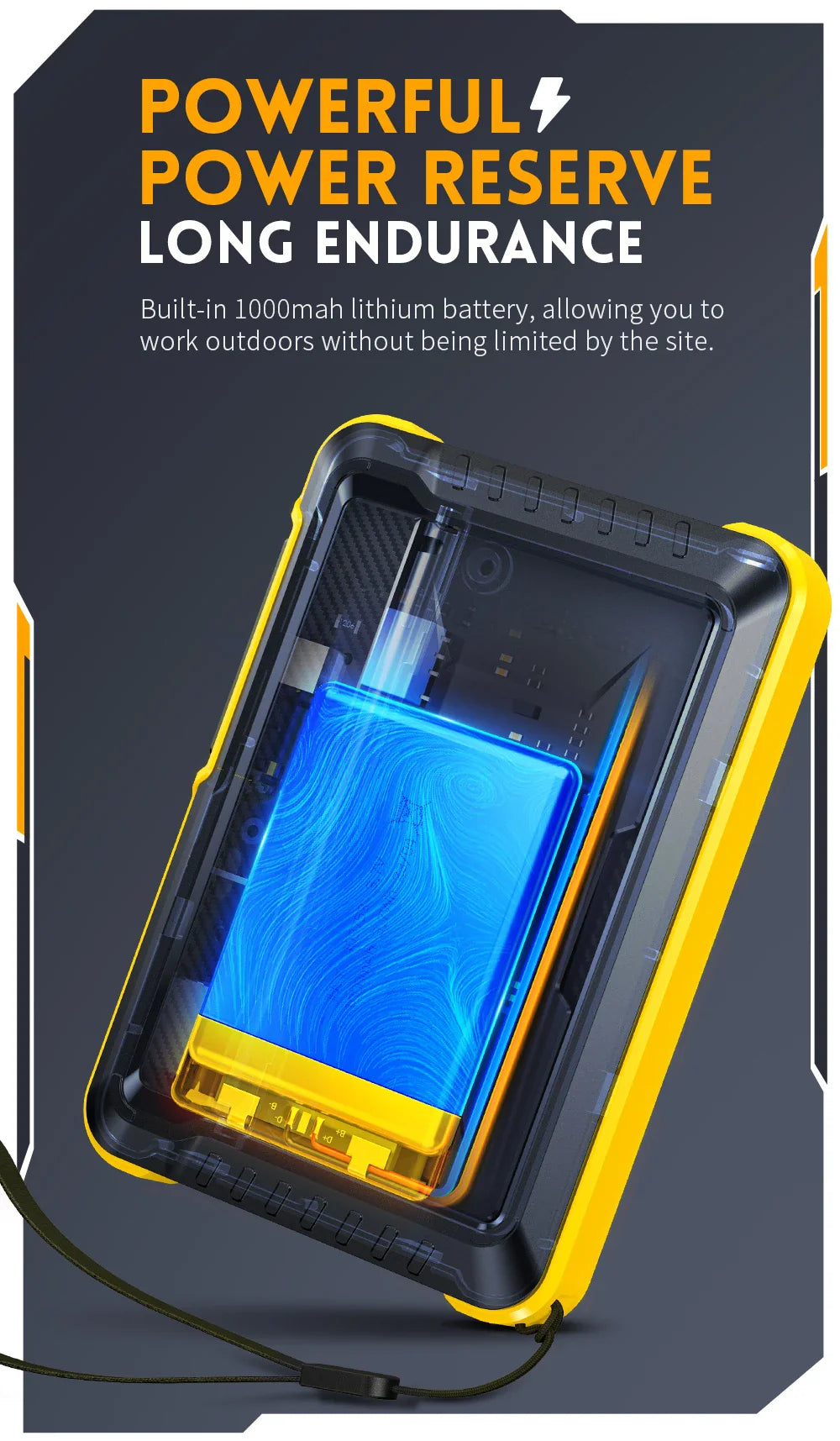

🔬 Long Battery Life for Extended Use: Powered by a 1000mAh lithium battery, these oscilloscopes deliver up to 4 hours of continuous operation. USB charging (5V/1A) keeps you ready to work on long sessions, ensuring that your tool is always charged and ready for use in the field.

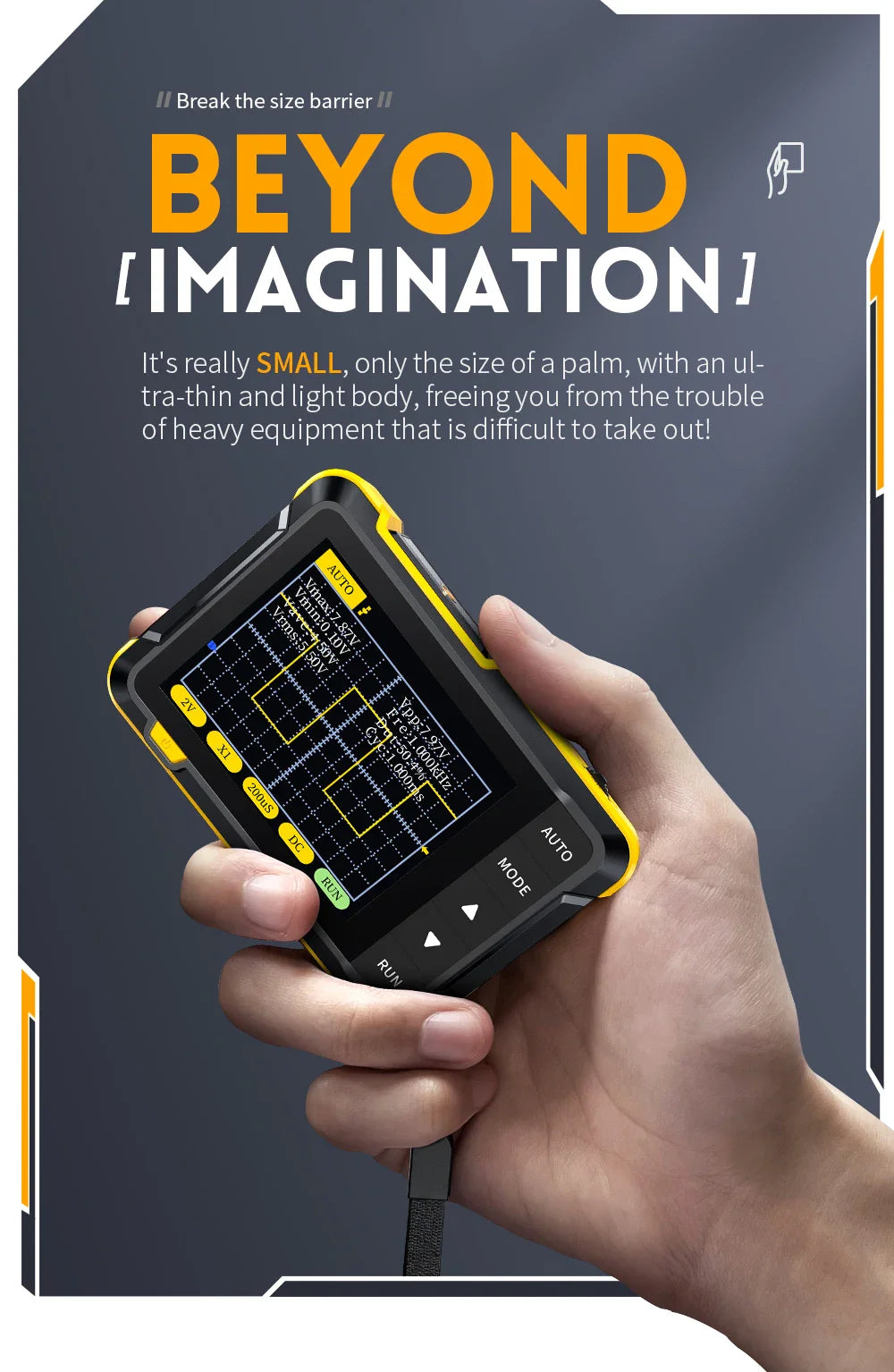

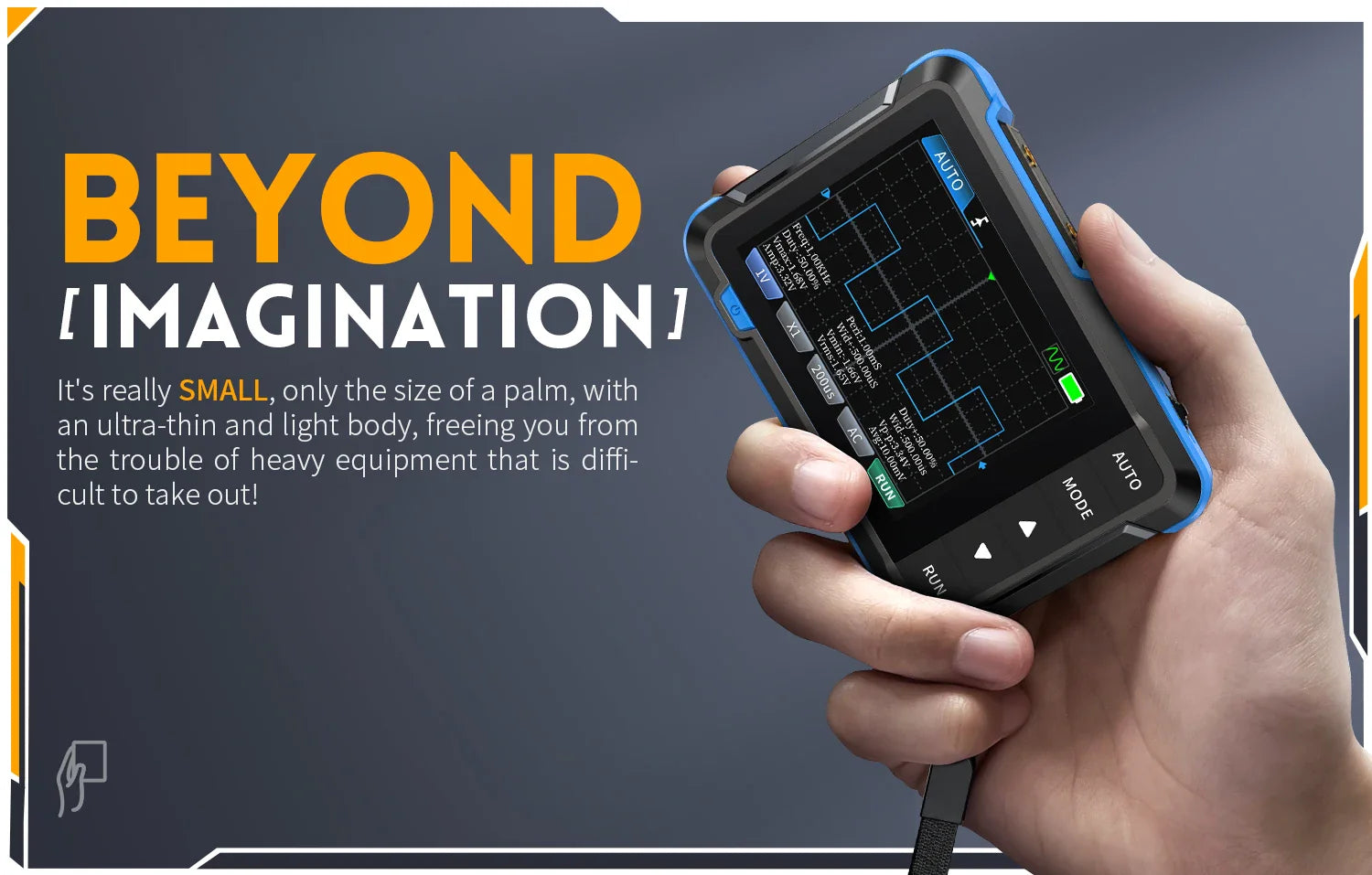

🔬 Portable and Lightweight: Weighing just 104g and measuring 99mm x 68.3mm x 19.5mm, the DSO510, DSO153, and DSO152 oscilloscopes are perfect for on-the-go use. Whether you’re out in the field performing repairs or taking measurements in an educational lab, their compact form factor and lightweight design make them easy to carry and use anywhere.

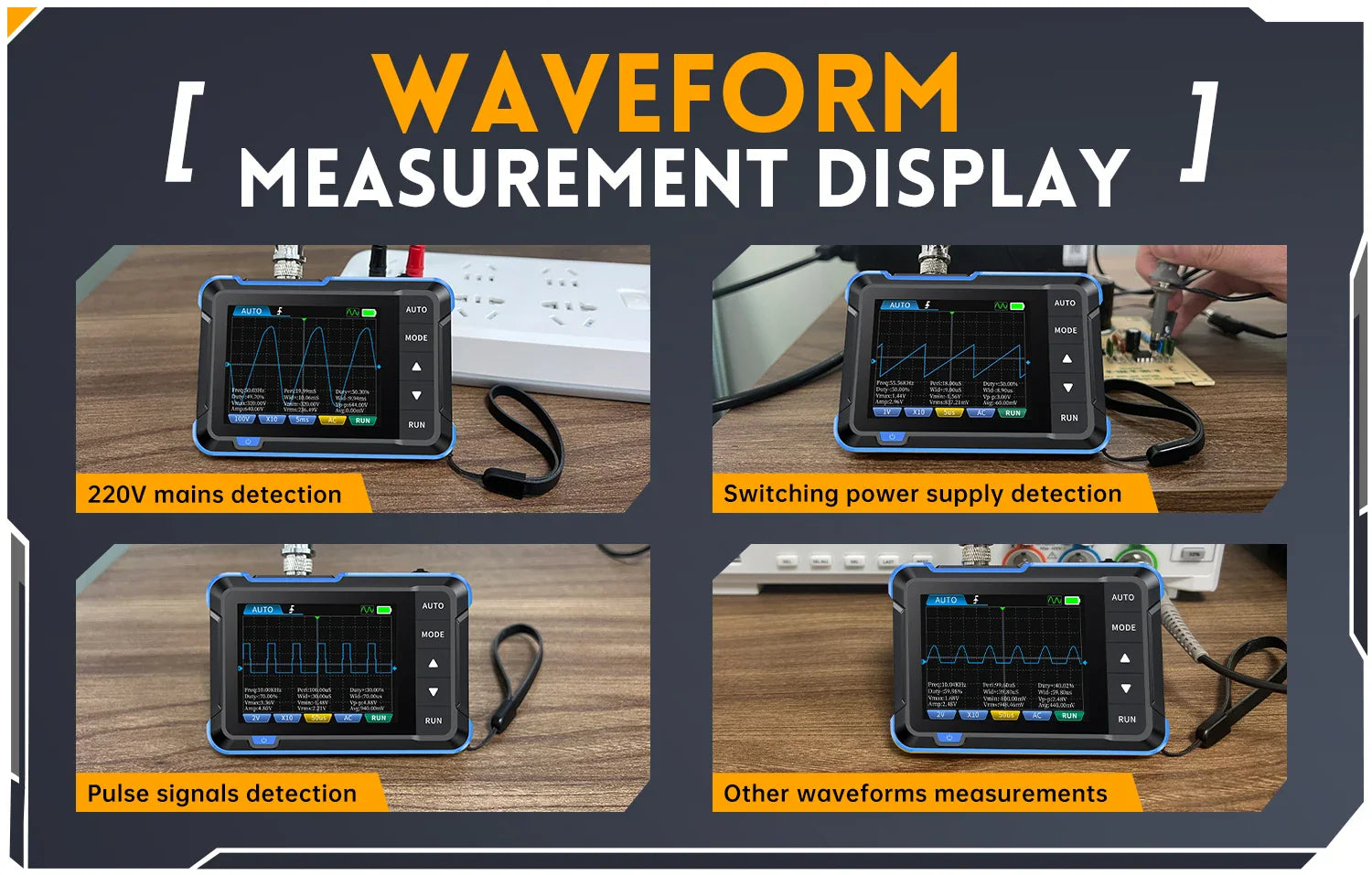

Ideal Applications:
Electronics Repairs: Quickly diagnose and troubleshoot issues with precision.
Educational Use: A must-have for students and educators in electrical engineering courses or labs.
Routine Maintenance: Ideal for techs who need to analyze circuits and signals during regular equipment maintenance.
Prototyping and Development: Use the signal generator and oscilloscope together for circuit testing and signal analysis during development.

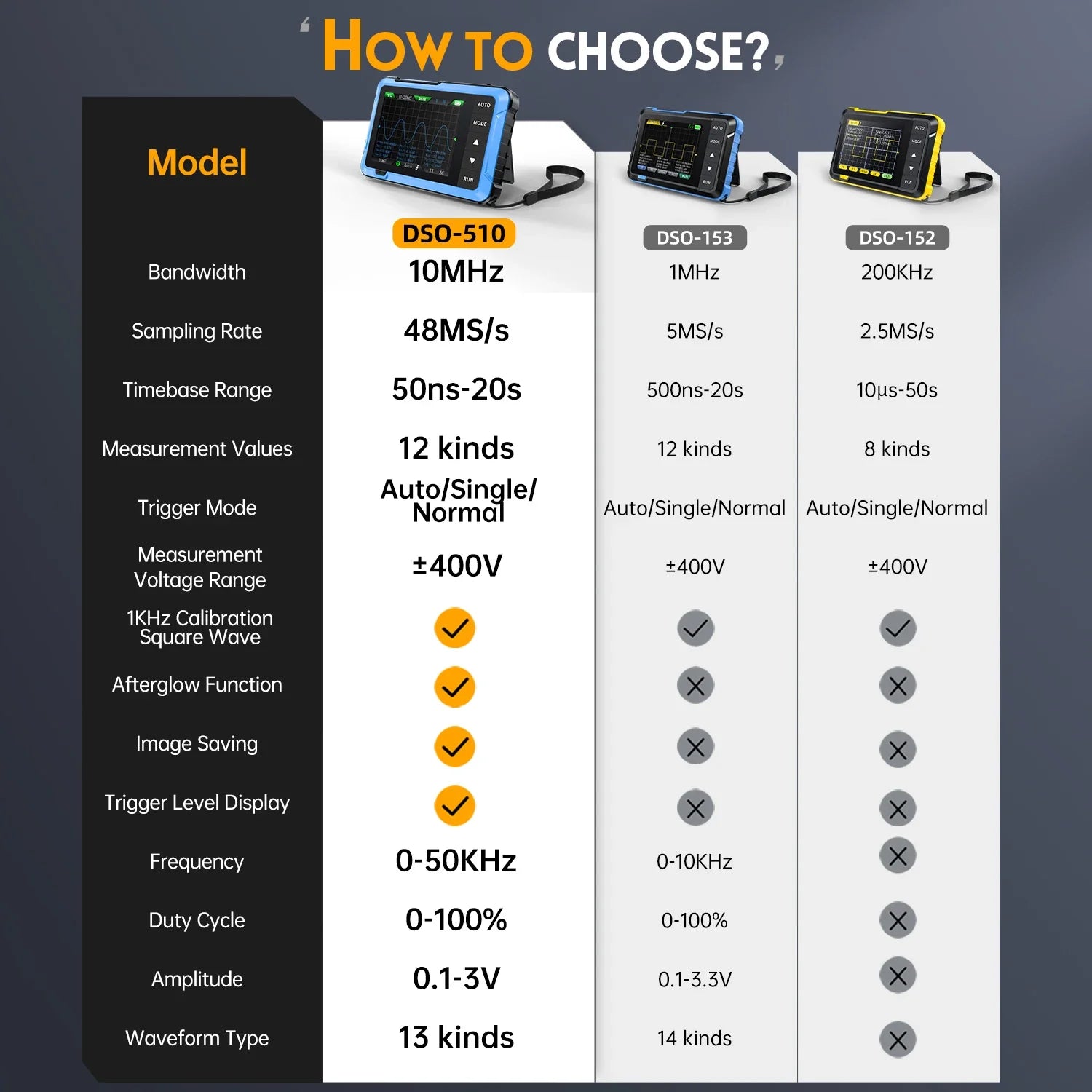

Model Breakdown:

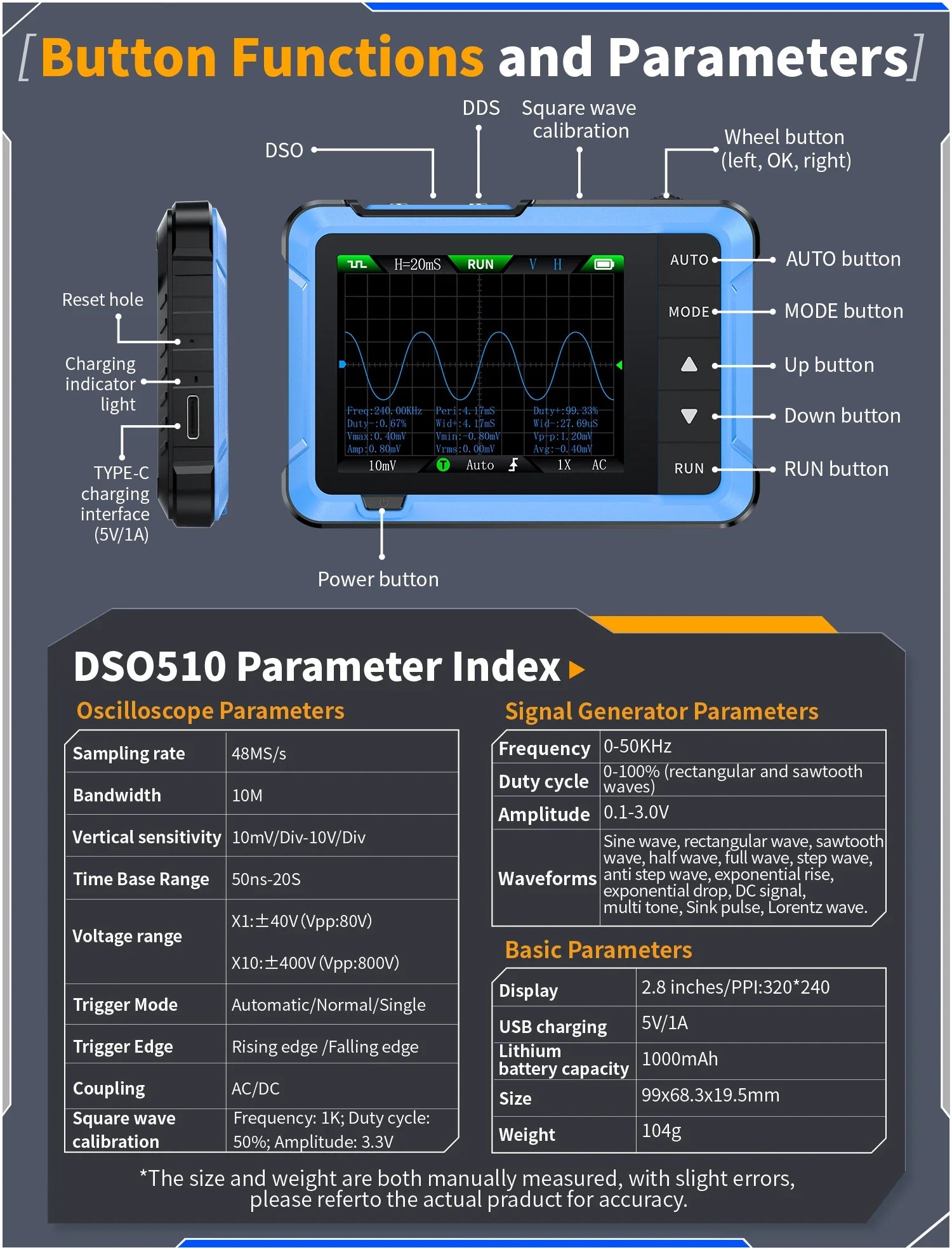

DSO510 (Flagship Model):
Sampling Rate: 48MS/s
Bandwidth: 10MHz
Signal Generator: Frequency up to 50KHz
Voltage Range: ±400V (X1), ±800V (X10)
Battery Life: 4 hours

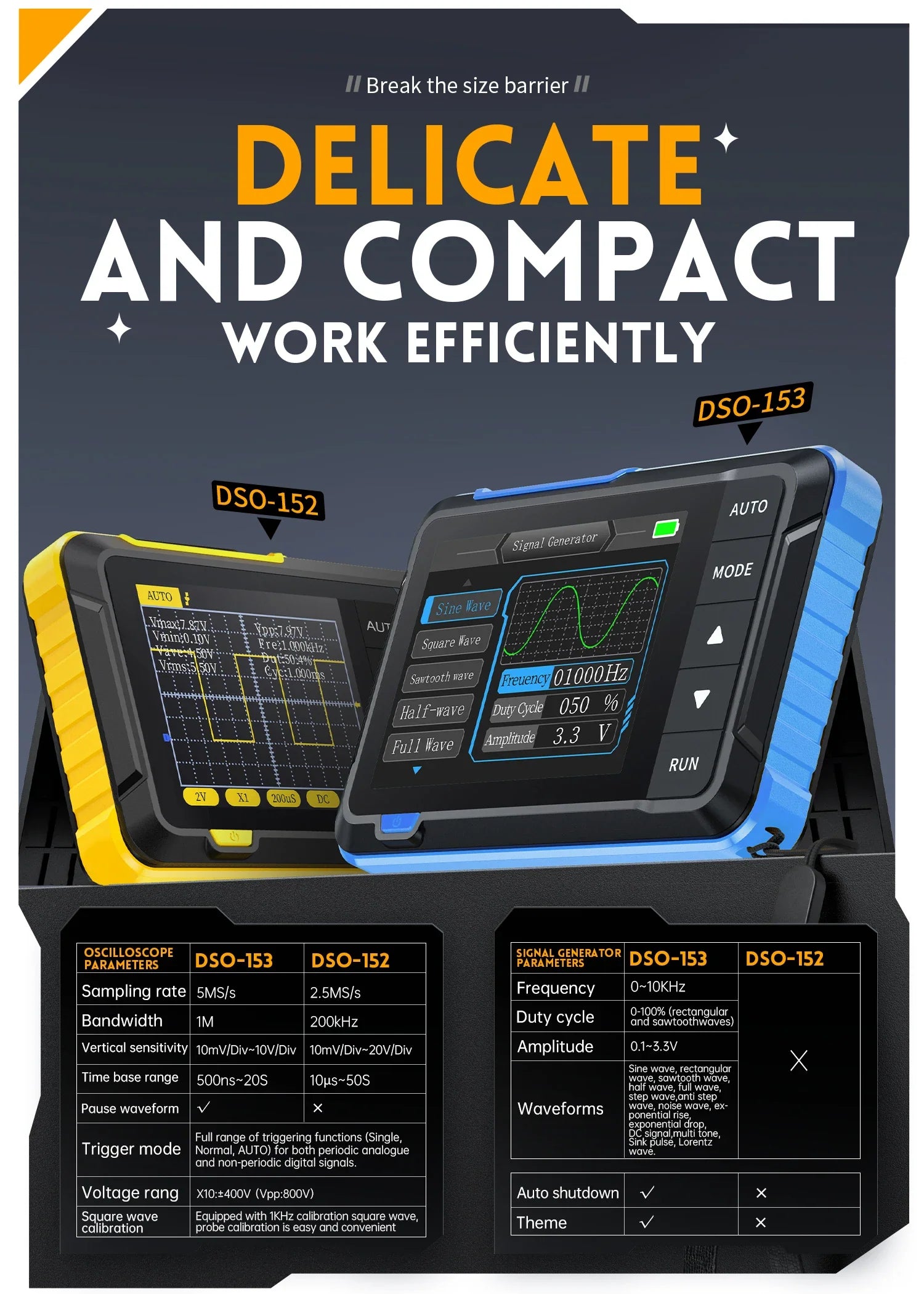

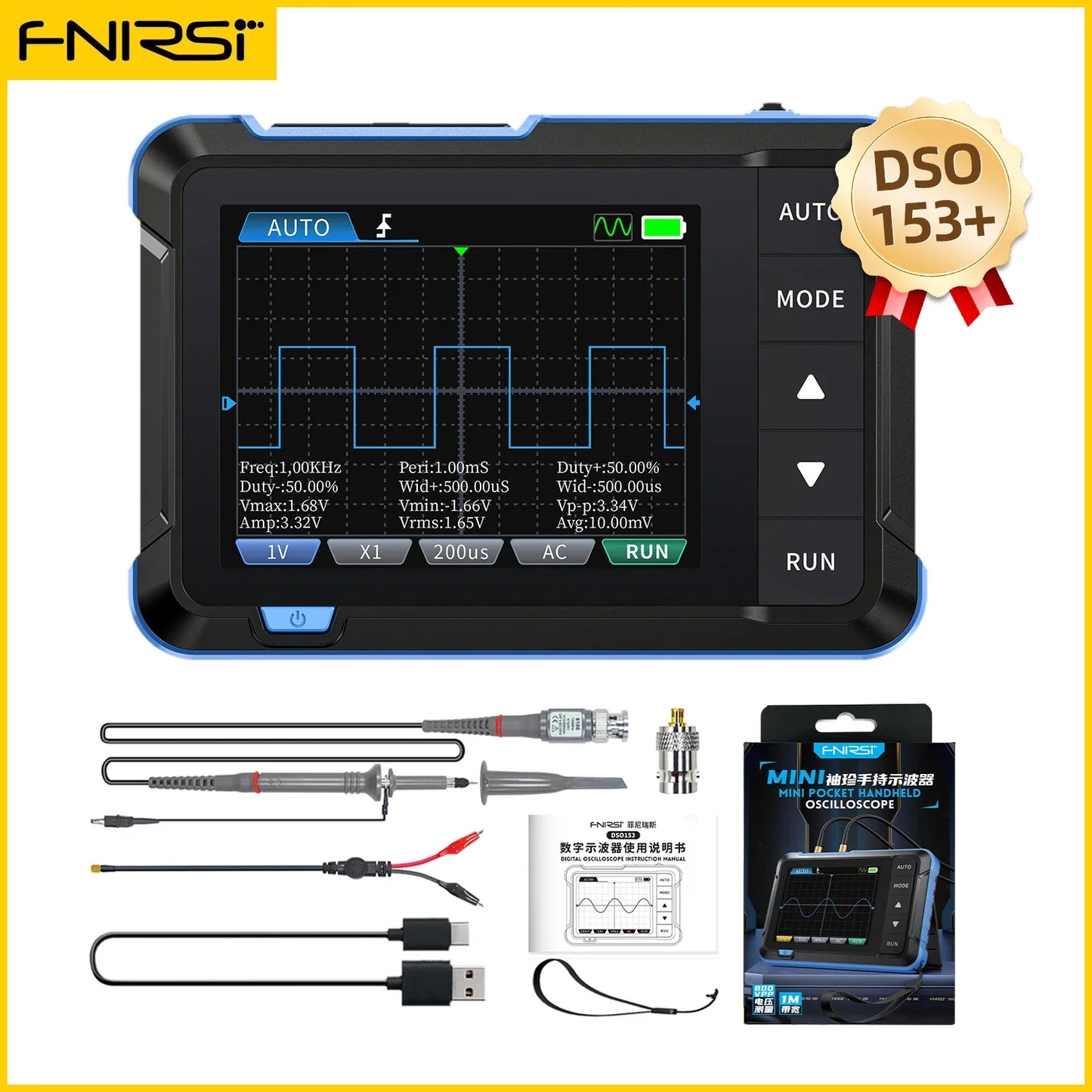

DSO153 (Balanced Model):
Sampling Rate: 5MS/s
Bandwidth: 1MHz
Signal Generator: Frequency up to 10KHz
Voltage Range: ±400V (X1), ±800V (X10)
Battery Life: 4 hours

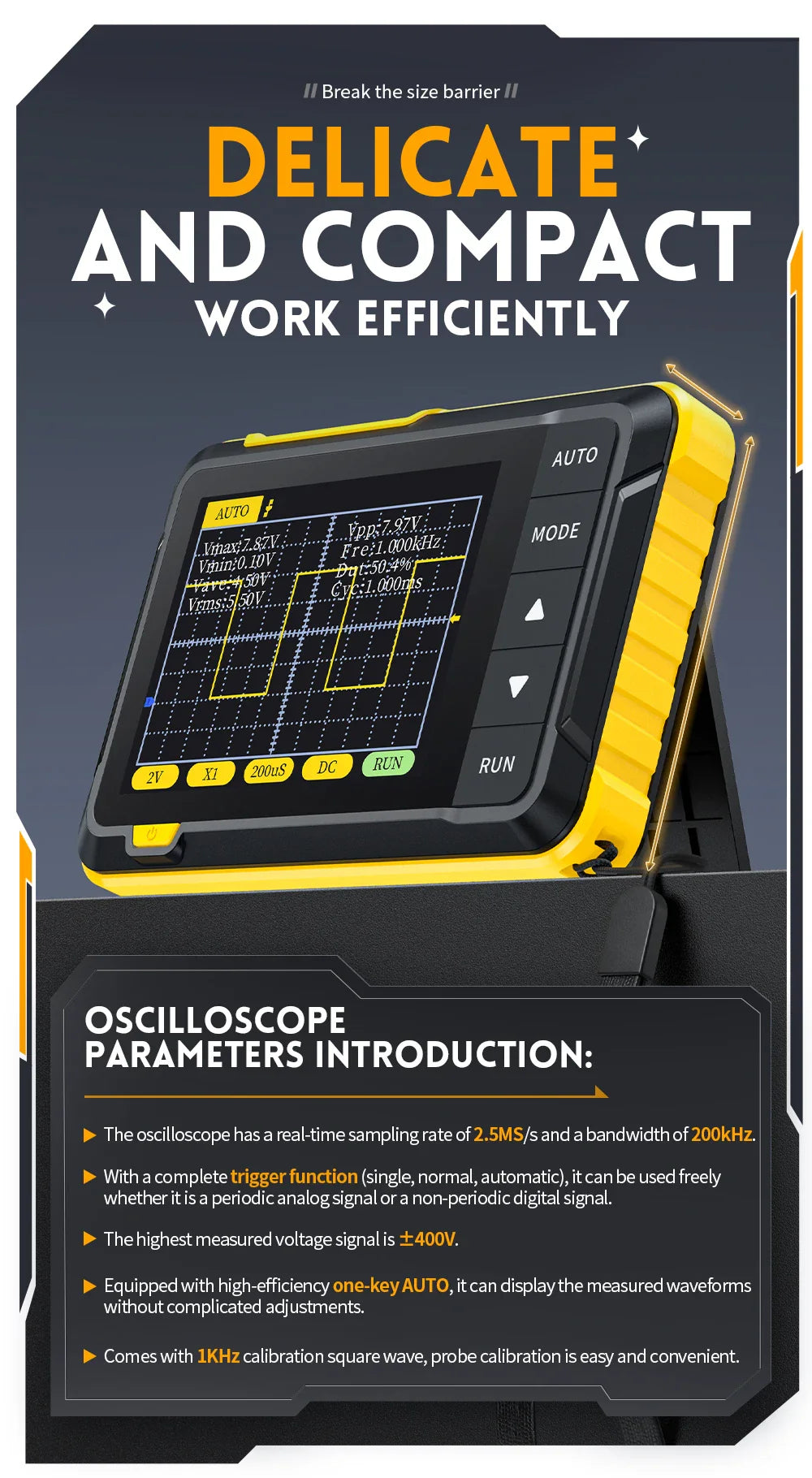

DSO152 (Entry-Level Model):
Sampling Rate: 2.5MS/s
Bandwidth: 200KHz
Signal Generator: Frequency up to 3.3KHz
Voltage Range: ±400V (X1), ±800V (X10)
Battery Life: 4 hours
Why Choose the FNIRSI Mini Oscilloscopes?
Versatility: Each model is equipped with an oscilloscope and signal generator in one tool, providing you with a comprehensive solution for electronics testing and repair.
Precision: With a high sampling rate and wide bandwidth, you can trust that the waveforms and measurements you see are accurate, making these tools perfect for professional repairs, signal analysis, and educational purposes.
Portability: Take the power of an oscilloscope wherever you go. These mini models are lightweight and easy to carry, ideal for both fieldwork and lab use.
Durability: Built to last, these oscilloscopes are designed for heavy-duty use, ensuring that they withstand the wear and tear of everyday repairs and maintenance tasks.
Summary:
The FNIRSI DSO510, DSO153, and DSO152 are ideal for anyone in need of an accurate, portable, and versatile oscilloscope for signal testing and electronics repairs. Whether you're a professional technician, hobbyist, or student, these handheld oscilloscopes provide you with essential tools for troubleshooting, repairing, and analyzing electronic devices with precision and ease.
