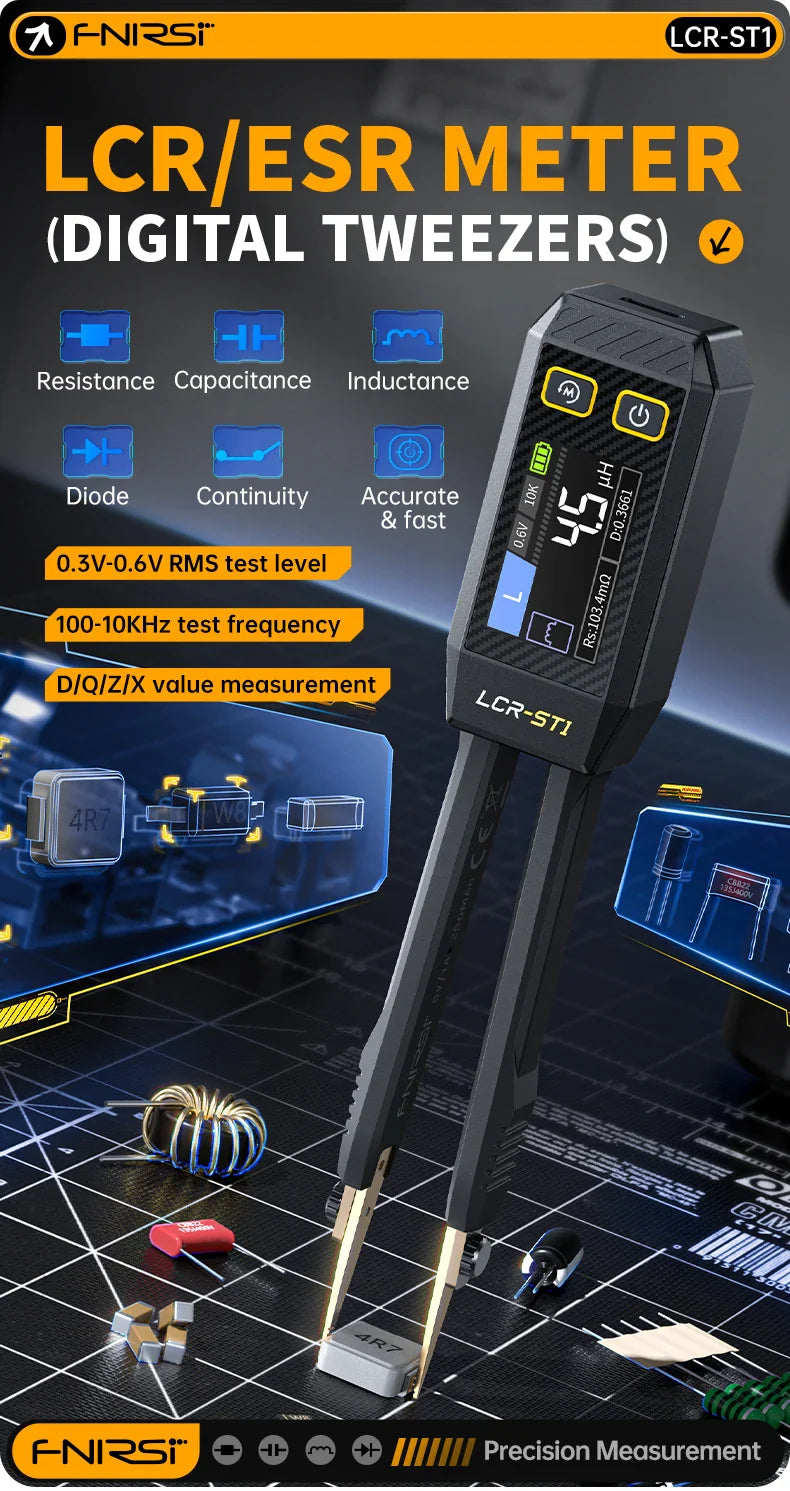

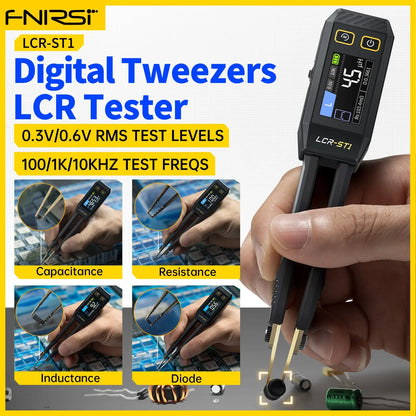

Unlock precision and convenience with the FNIRSI LCR-ST1 Mini Smart Tweezer, an innovative, compact tool designed to handle all your electronic testing needs. Whether you're testing resistance, capacitance, inductance, or diodes, this sleek, portable tester combines cutting-edge technology and ease of use, making it the perfect choice for engineers, DIY enthusiasts, and lab technicians alike.
Key Features:
Compact & Portable Design: With its tweezer-style design, the LCR-ST1 is perfect for testing components in tight spaces. Whether you're in a lab, workshop, or out in the field, this tester offers quick, accurate measurements without compromising on portability.

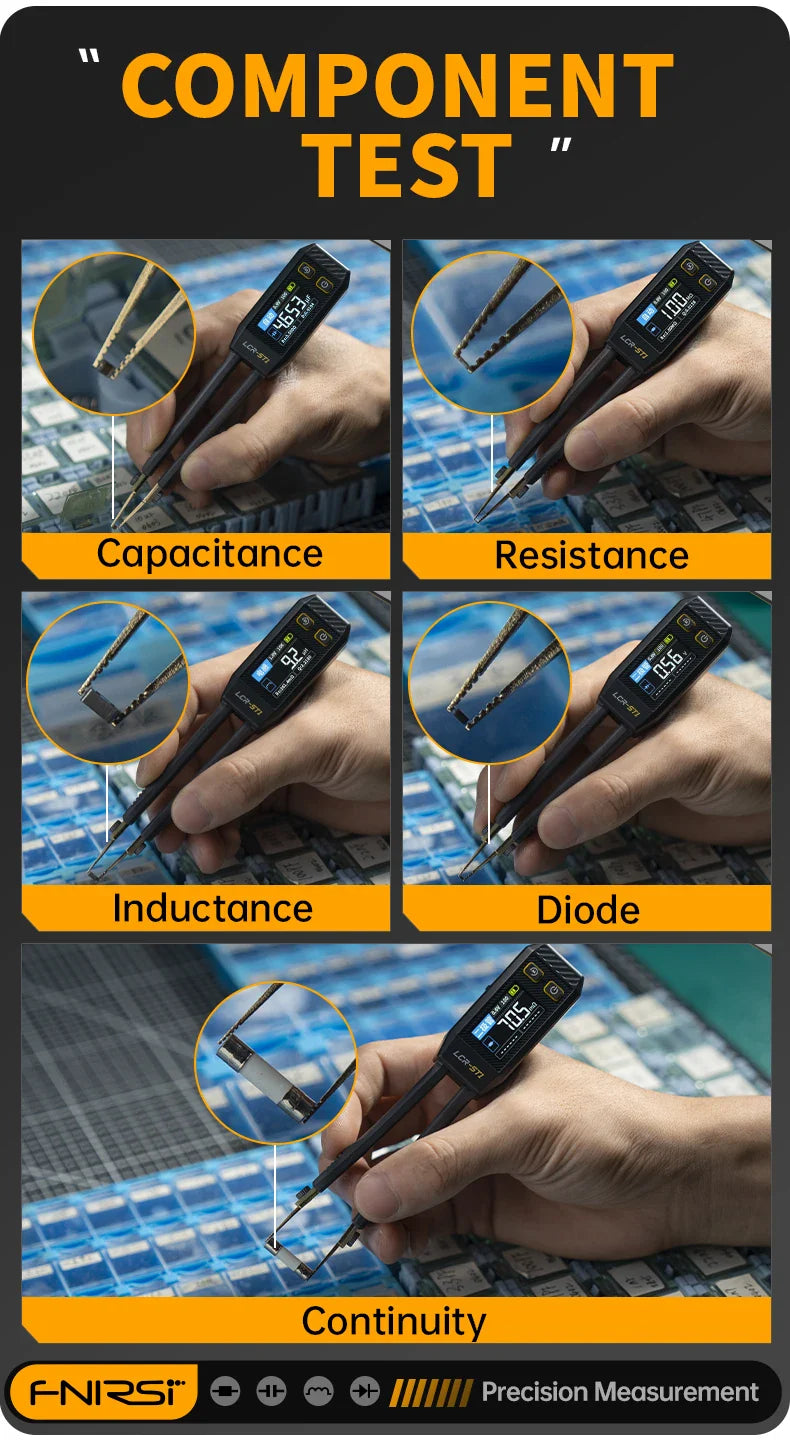

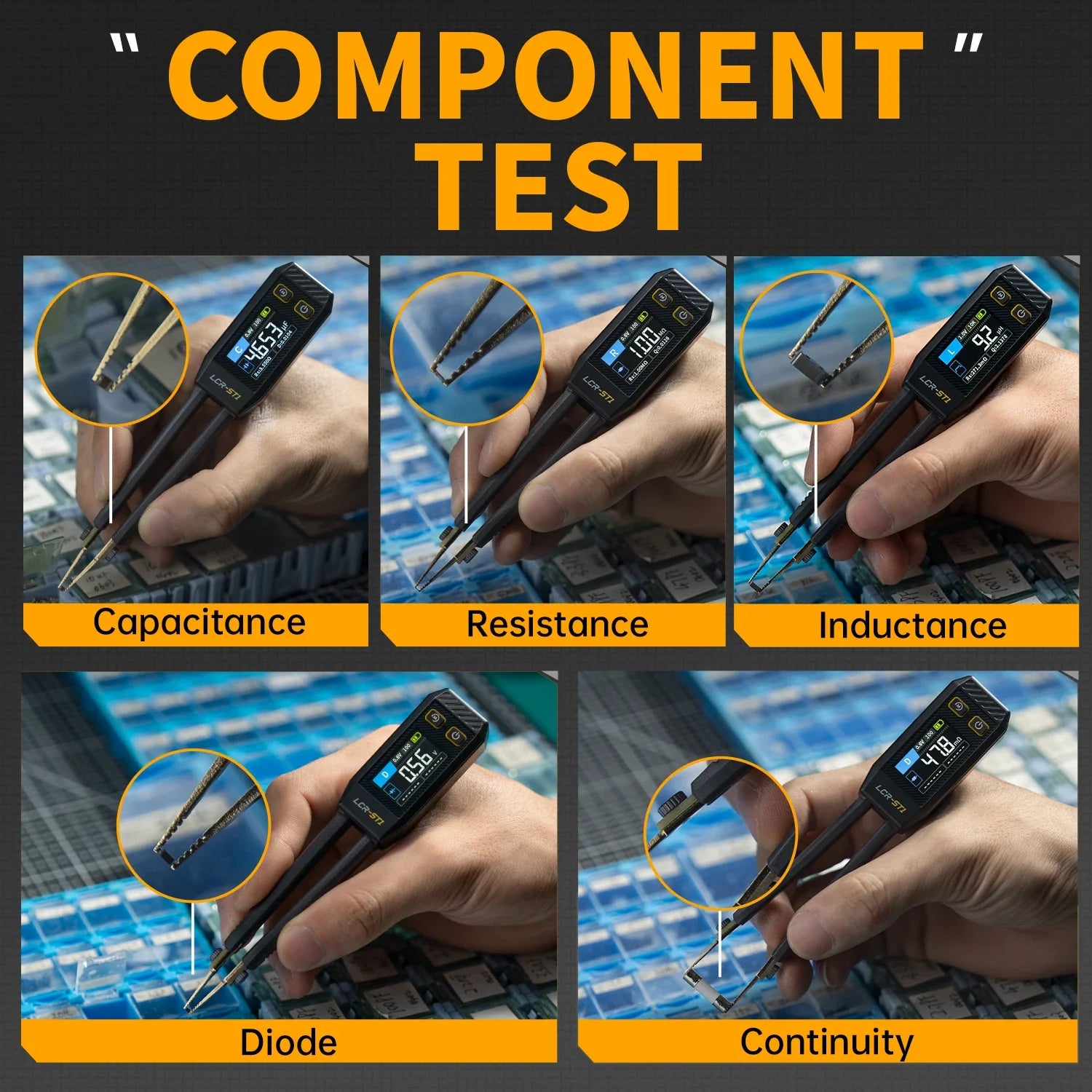

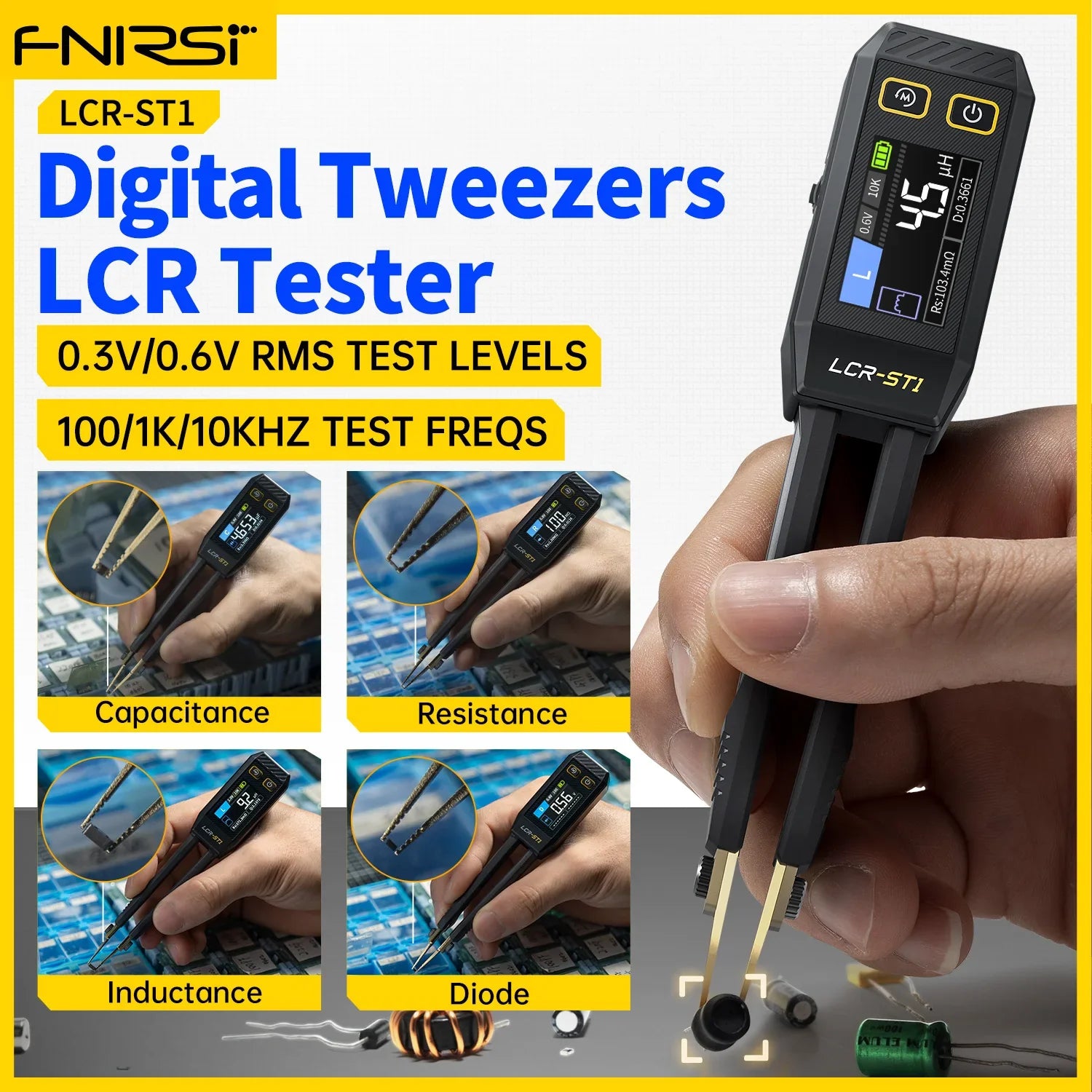

Multi-Function Testing: The LCR-ST1 supports a wide range of testing capabilities, including:
Resistance: 10mΩ to 10MΩ
Capacitance: 1pF to 22mF
Inductance: 1μH to 10H
Diodes: With an on-voltage of 0.7V
Continuity: For testing circuit connections

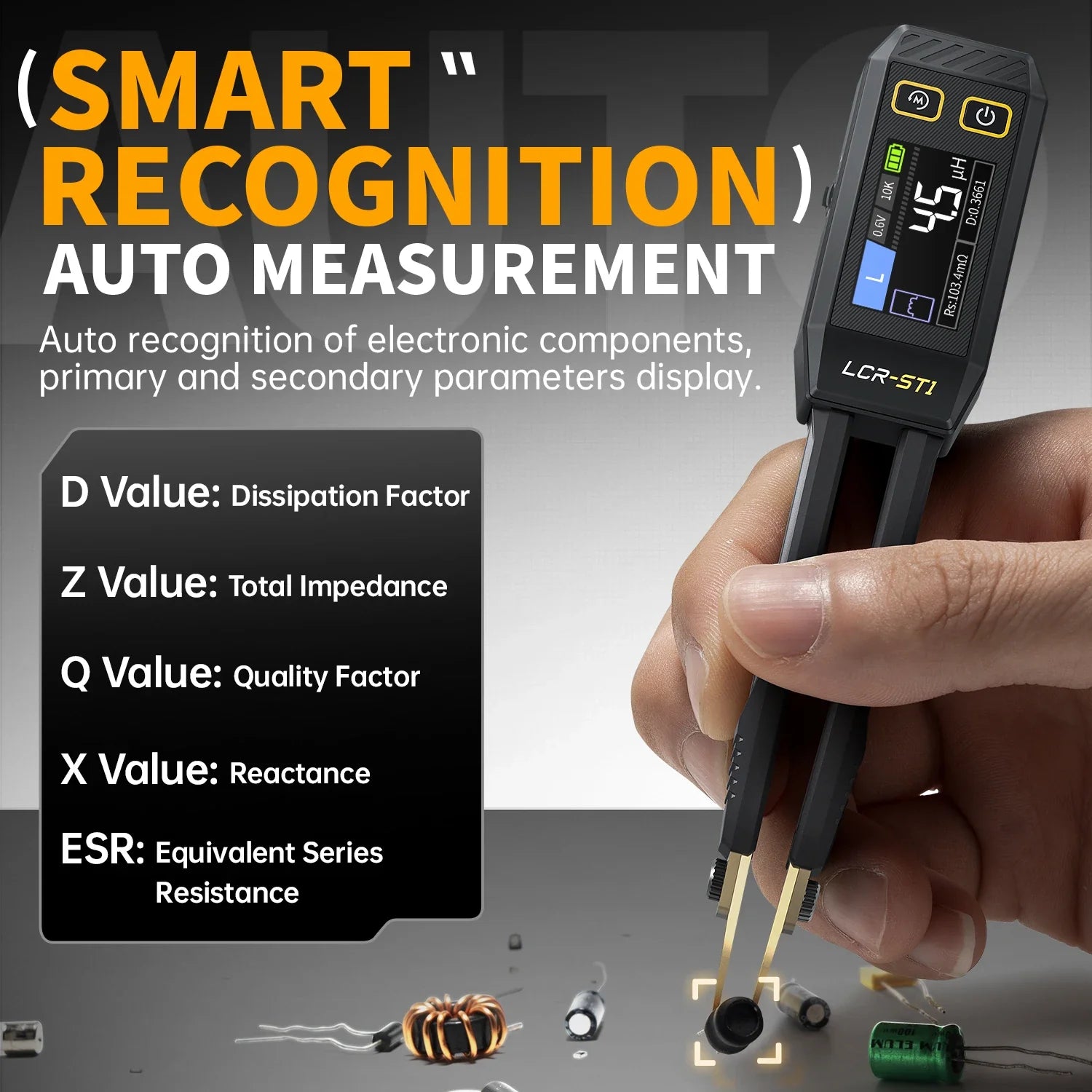

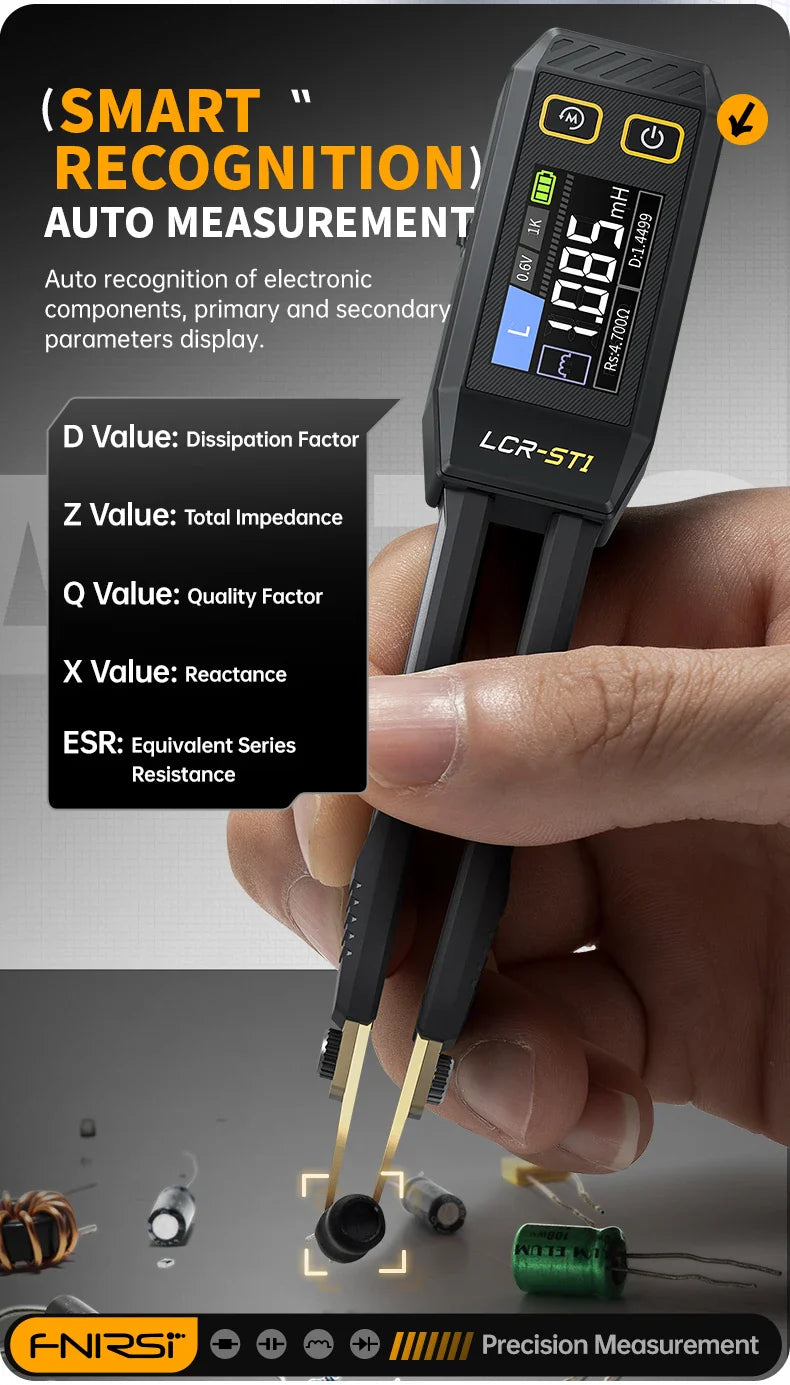

ESR, D Value, Q Value, Z Value, X Value: For advanced component analysis

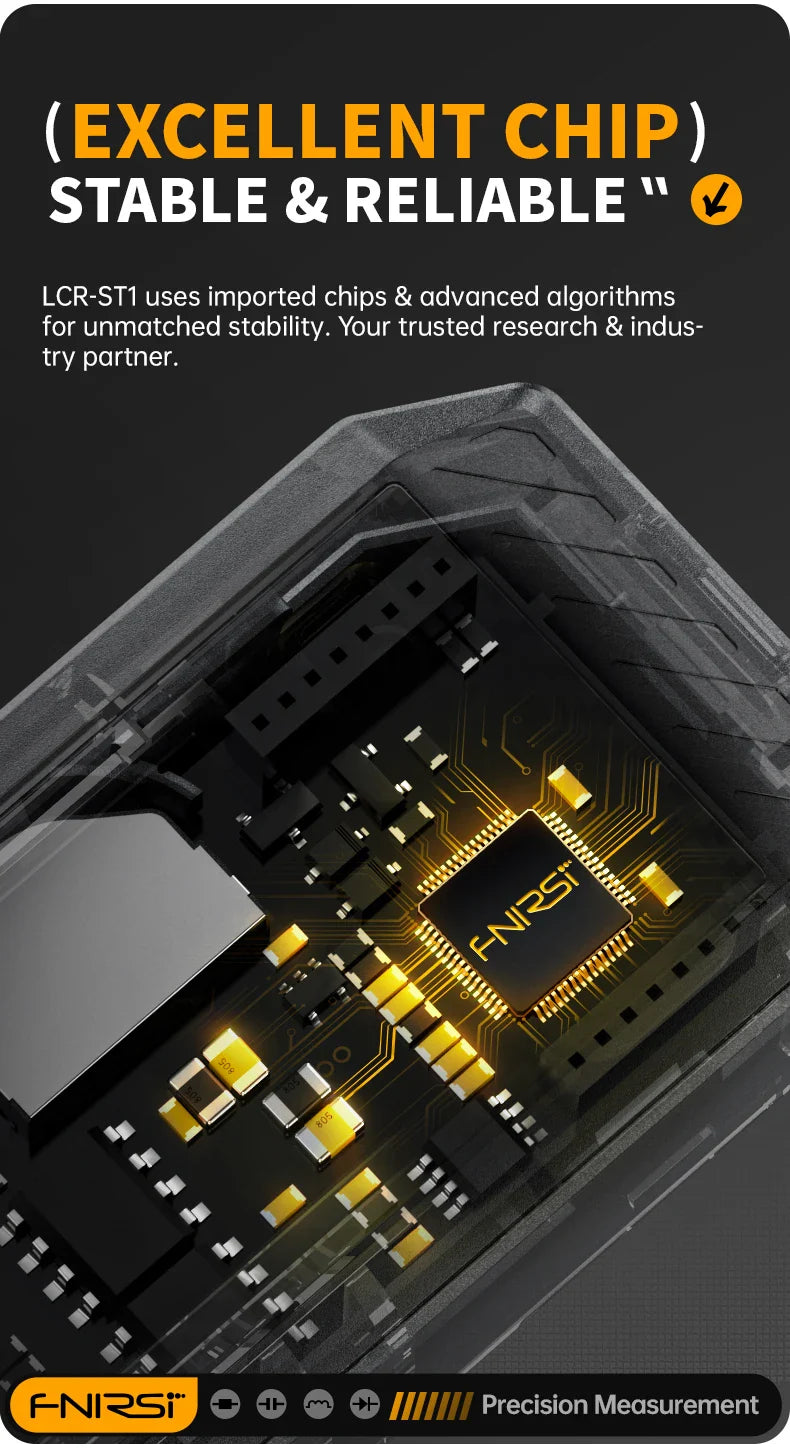

High Accuracy & Stability: Thanks to its advanced measurement technology, the LCR-ST1 offers 0.1% accuracy, ensuring you get reliable and precise results every time. Perfect for both professional and amateur electronics projects.

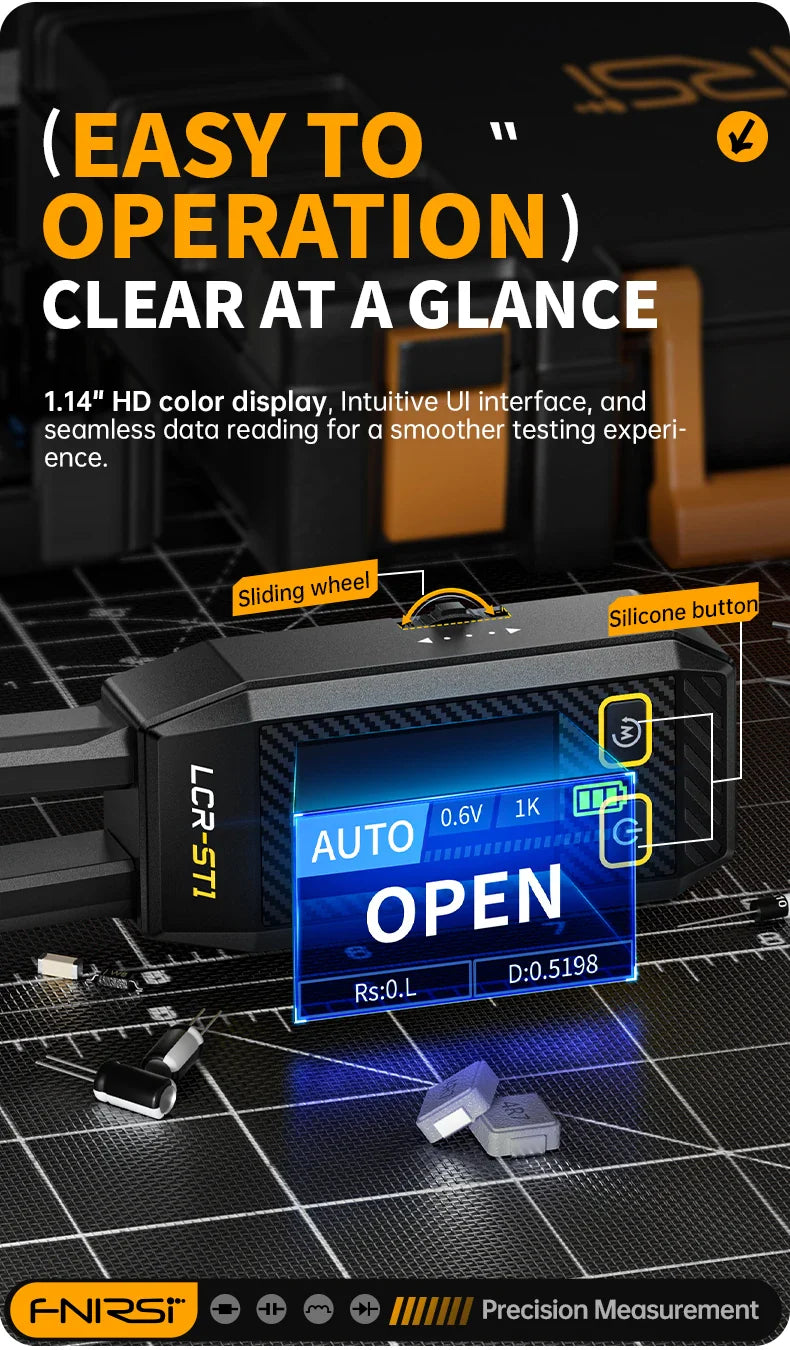

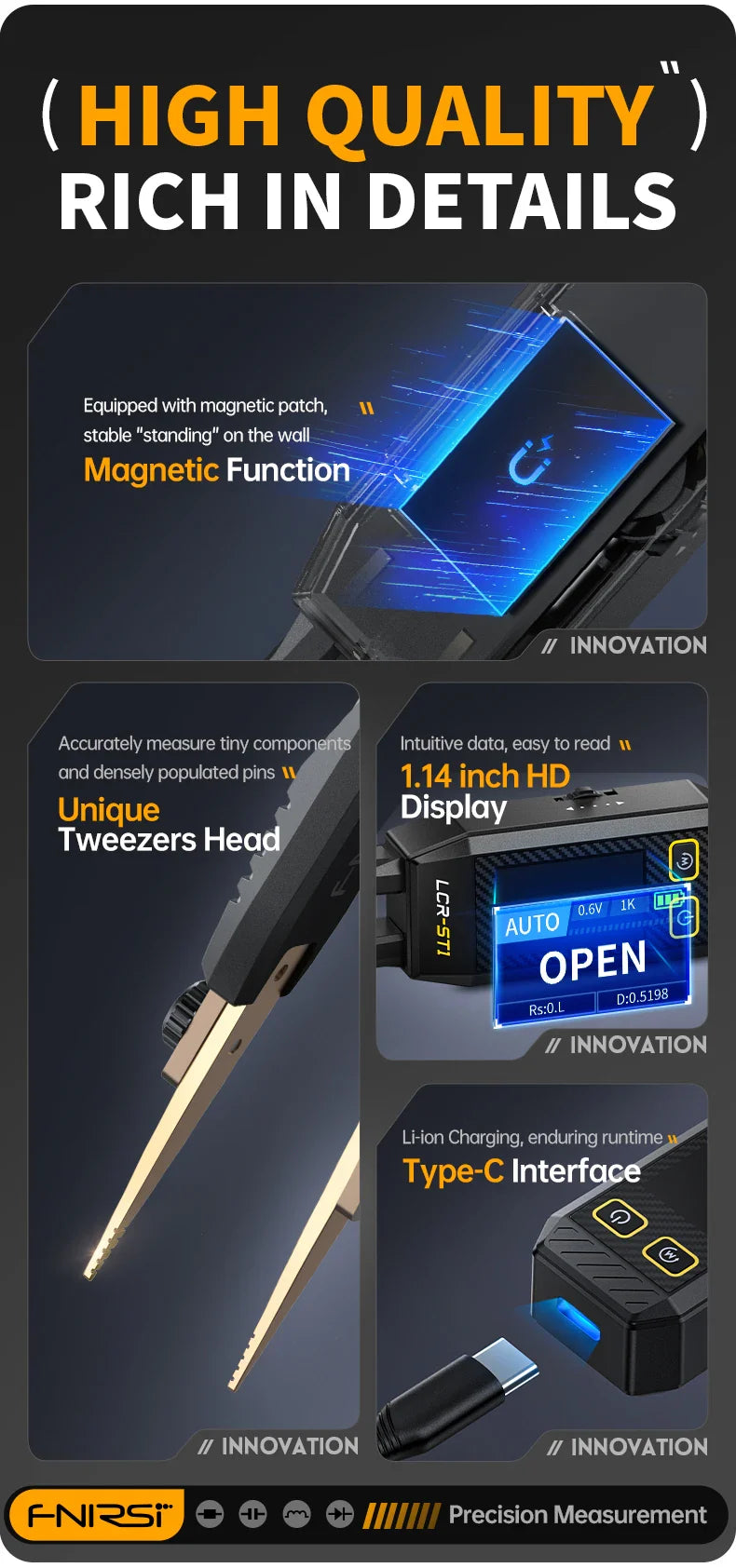

Clear Display & Convenient Features: The 1.14-inch color screen provides a vibrant and easy-to-read display of your test results. The auto-recognition feature helps automatically detect the type of component being tested, and with data hold and history record, you can easily store and review your results. Plus, the magnetic adsorption function adds extra convenience during tests.

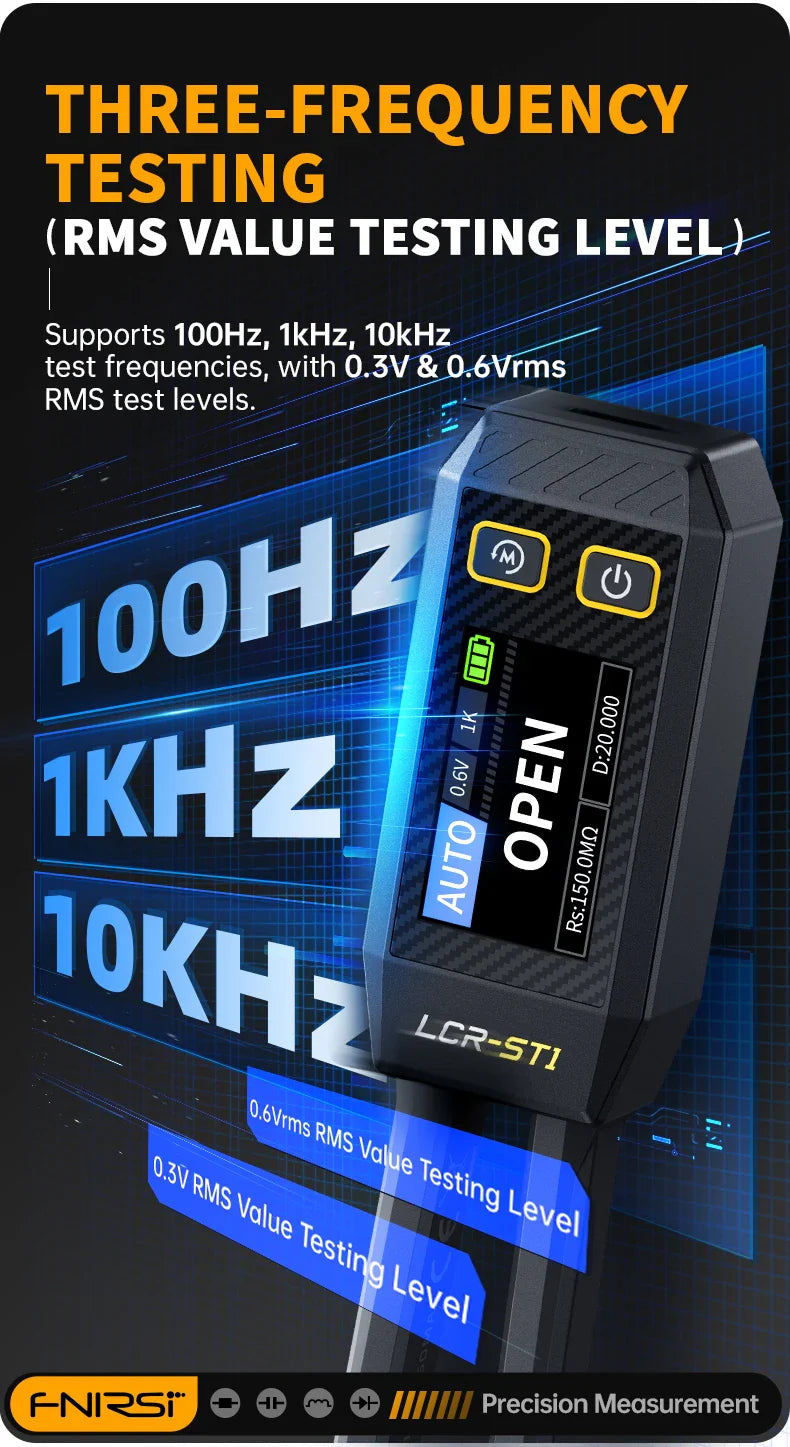

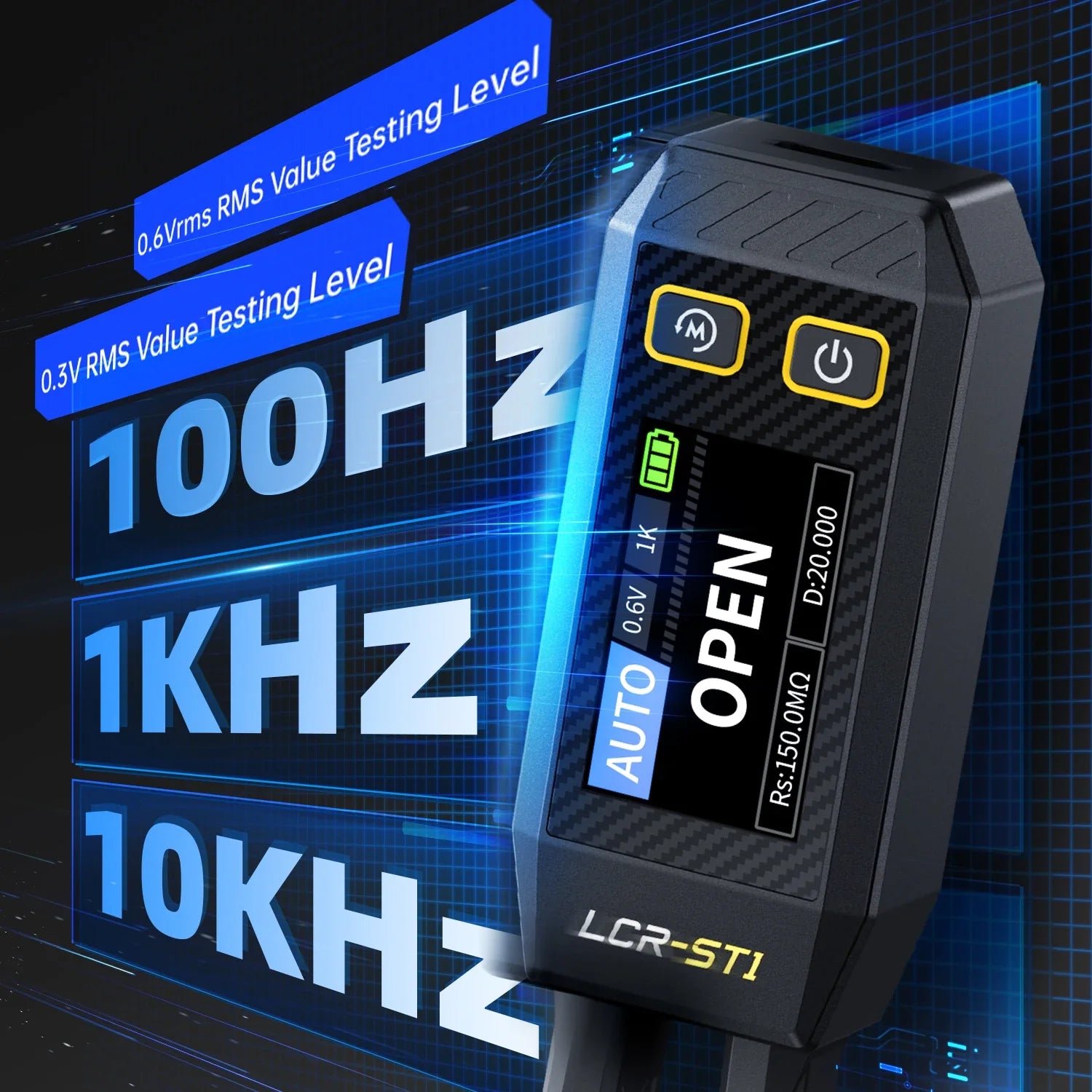

Three Frequency Settings: The LCR-ST1 supports frequency tests at 100Hz, 1kHz, and 10kHz, allowing you to test components across various frequency ranges with ease.
Long Battery Life & USB Charging: Powered by a 250mAh lithium battery, this tool ensures long-lasting use on a single charge. When it’s time to recharge, simply plug it into the Type-C charging port for a quick, efficient power boost.

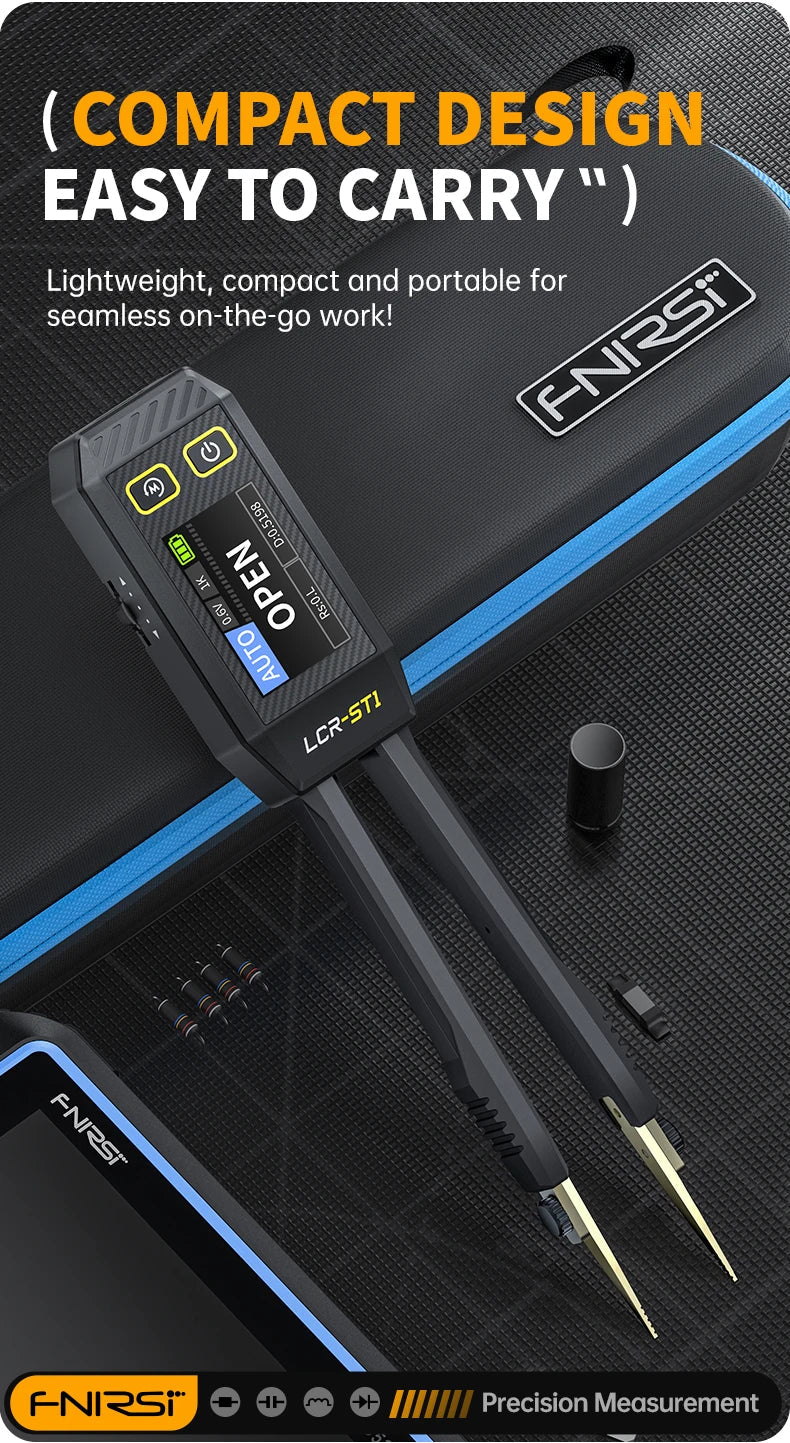

Lightweight & Ergonomic: At just 41g and with a compact size of 28×19×150mm, this tester is incredibly lightweight and easy to handle, making it the ideal tool for quick tests and on-the-go measurements.

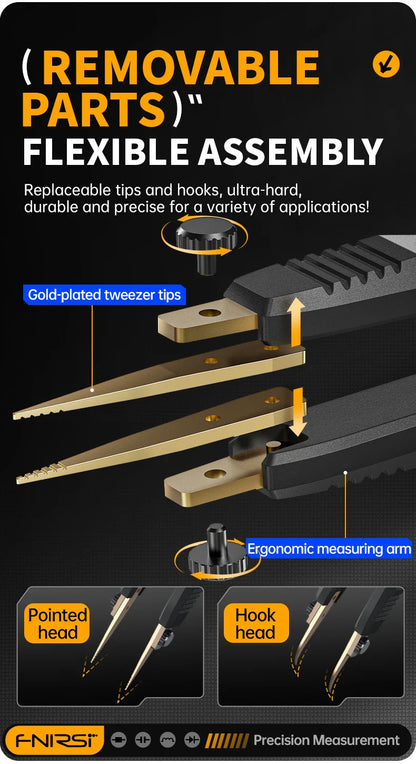

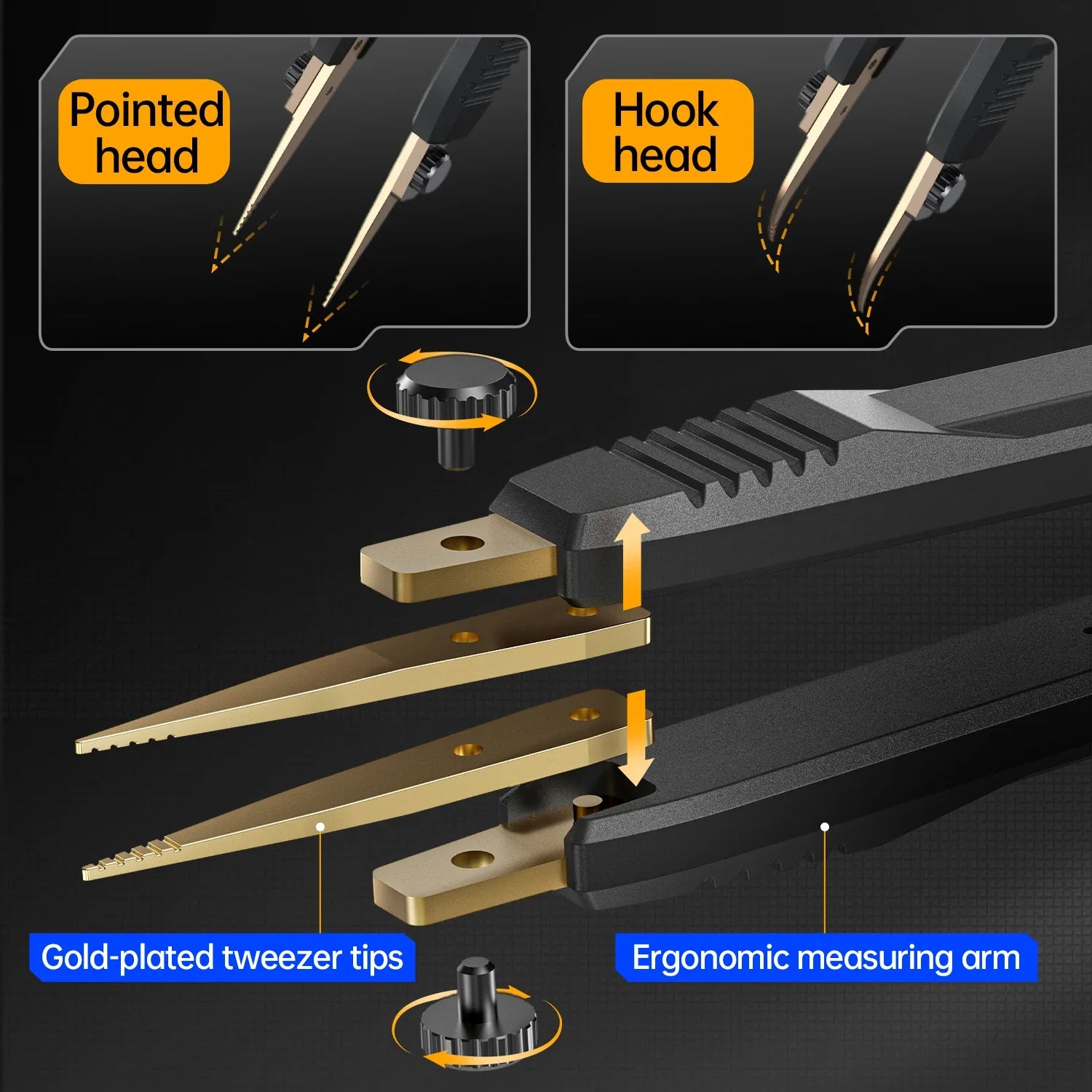

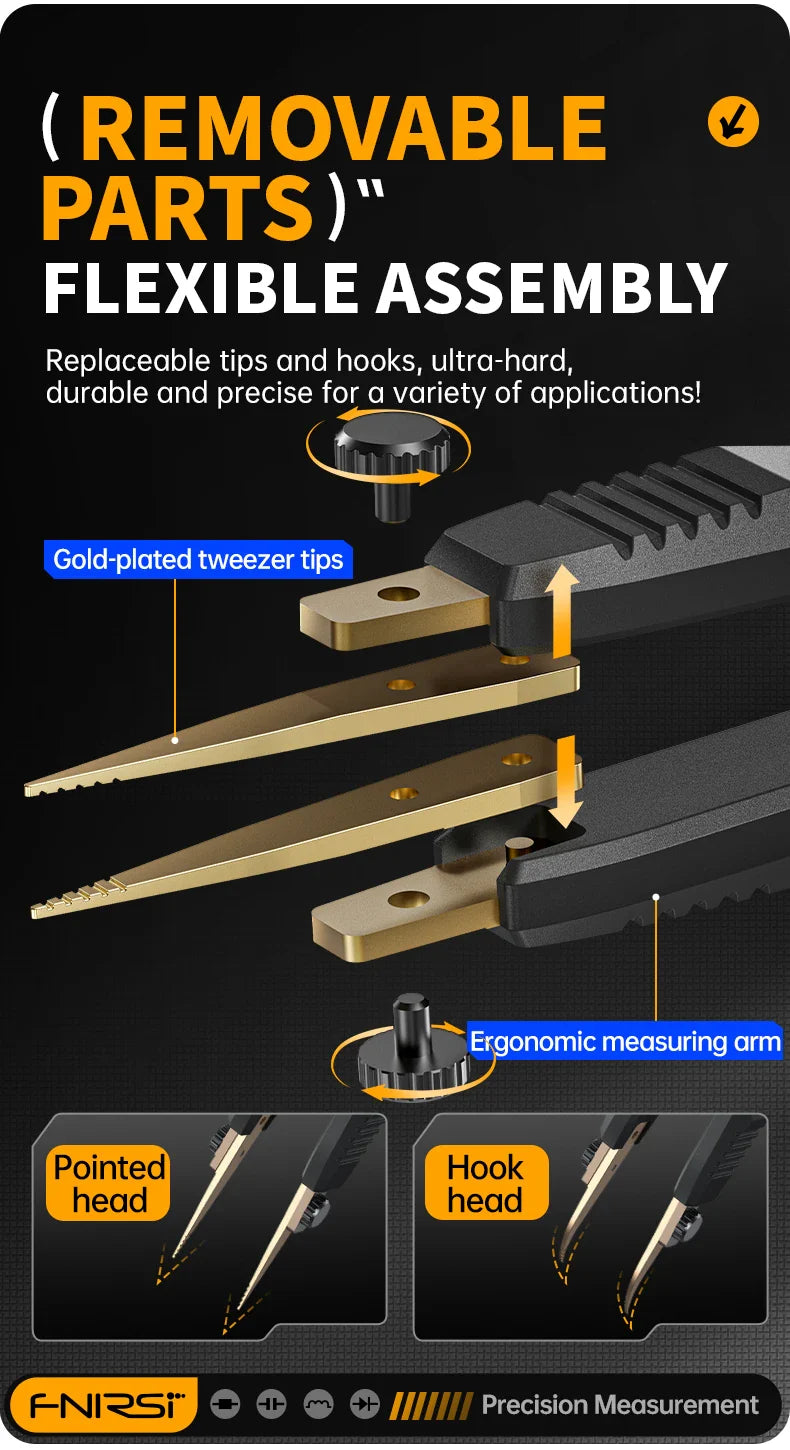

Versatile Accessories & Customization: The LCR-ST1 comes with a replaceable tweezer head, ensuring flexibility for different types of testing. You can also select between pointed or hook heads, giving you the versatility you need to tackle any job.

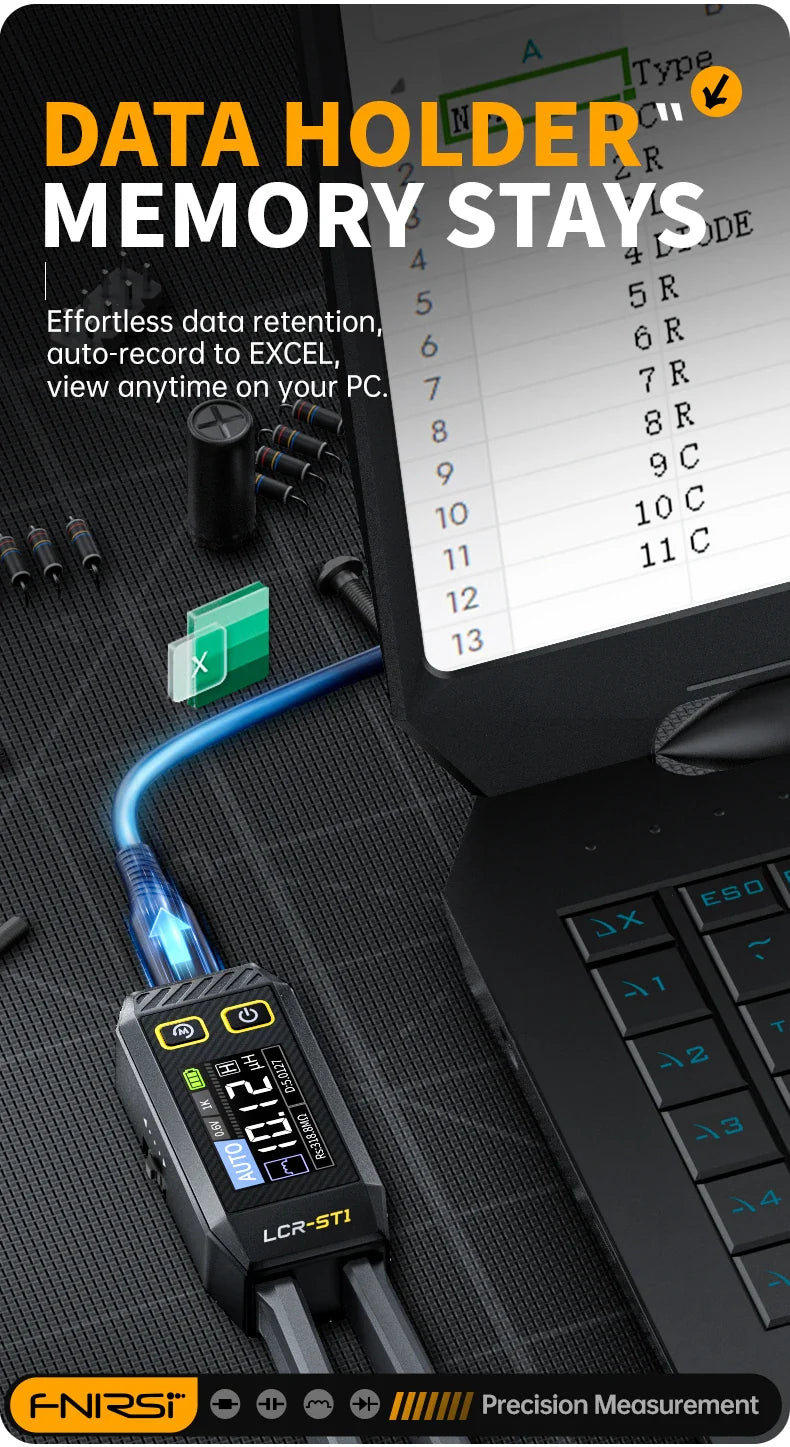

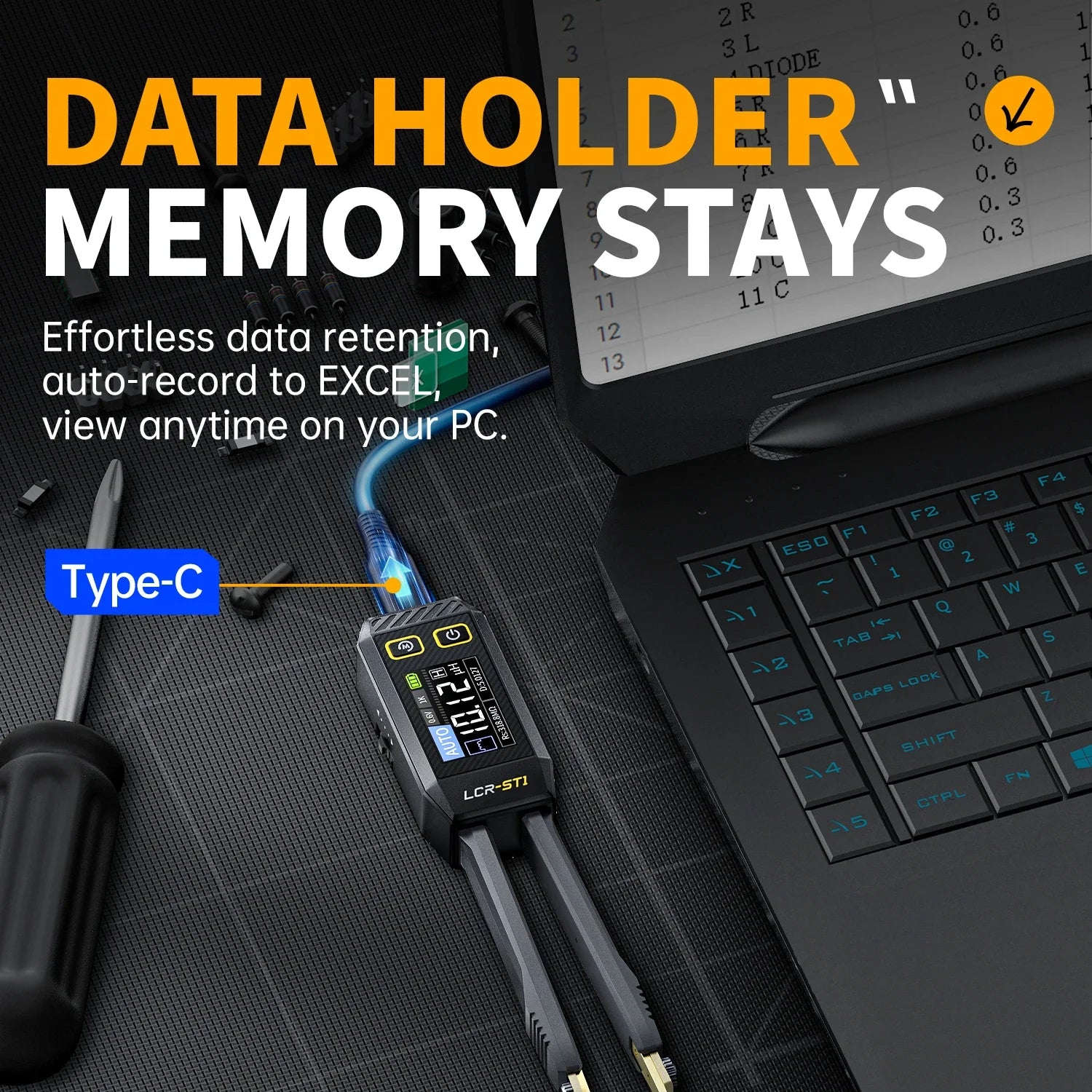

PC Connectivity: Want to keep track of your data? The LCR-ST1 allows you to connect to a PC to view, store, and export your measurement history for in-depth analysis.

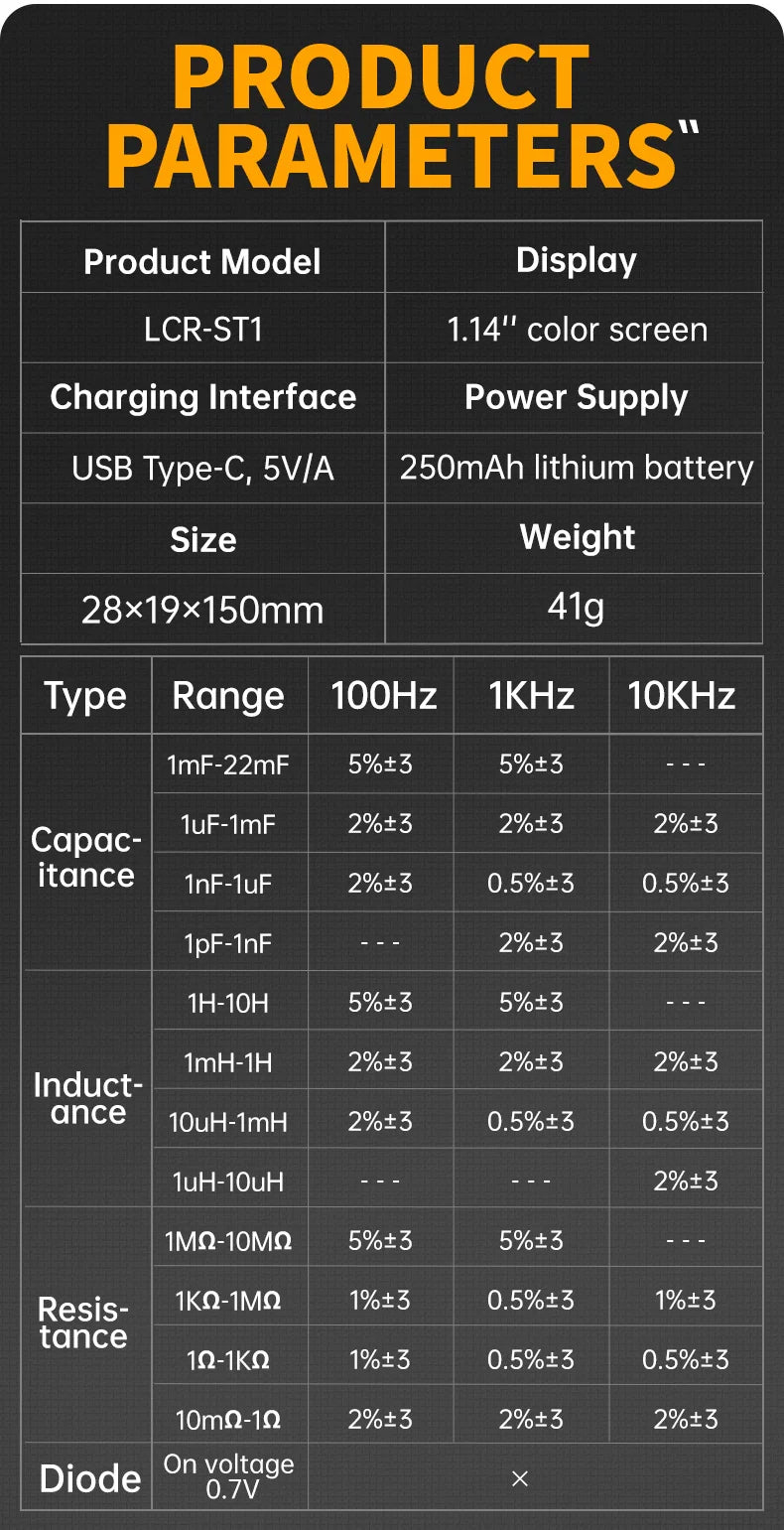

Specifications:
Capacitance Range: 1pF – 22mF
Inductance Range: 1μH – 10H
Resistance Range: 10mΩ – 10MΩ
Diode Testing: 0.7V on-voltage
Frequency Test: 100Hz, 1kHz, 10kHz
Test Levels: 0.3V, 0.6V RMS
Display: 1.14-inch color screen
Battery: 250mAh lithium battery
Charging Port: Type-C, 5V/A
Size: 28x19x150mm
Weight: 41g
Languages: Chinese, English
Auto Shutdown & Auto Recognition: Yes
Data Hold & History Record: Yes (Connect to PC to view/export)

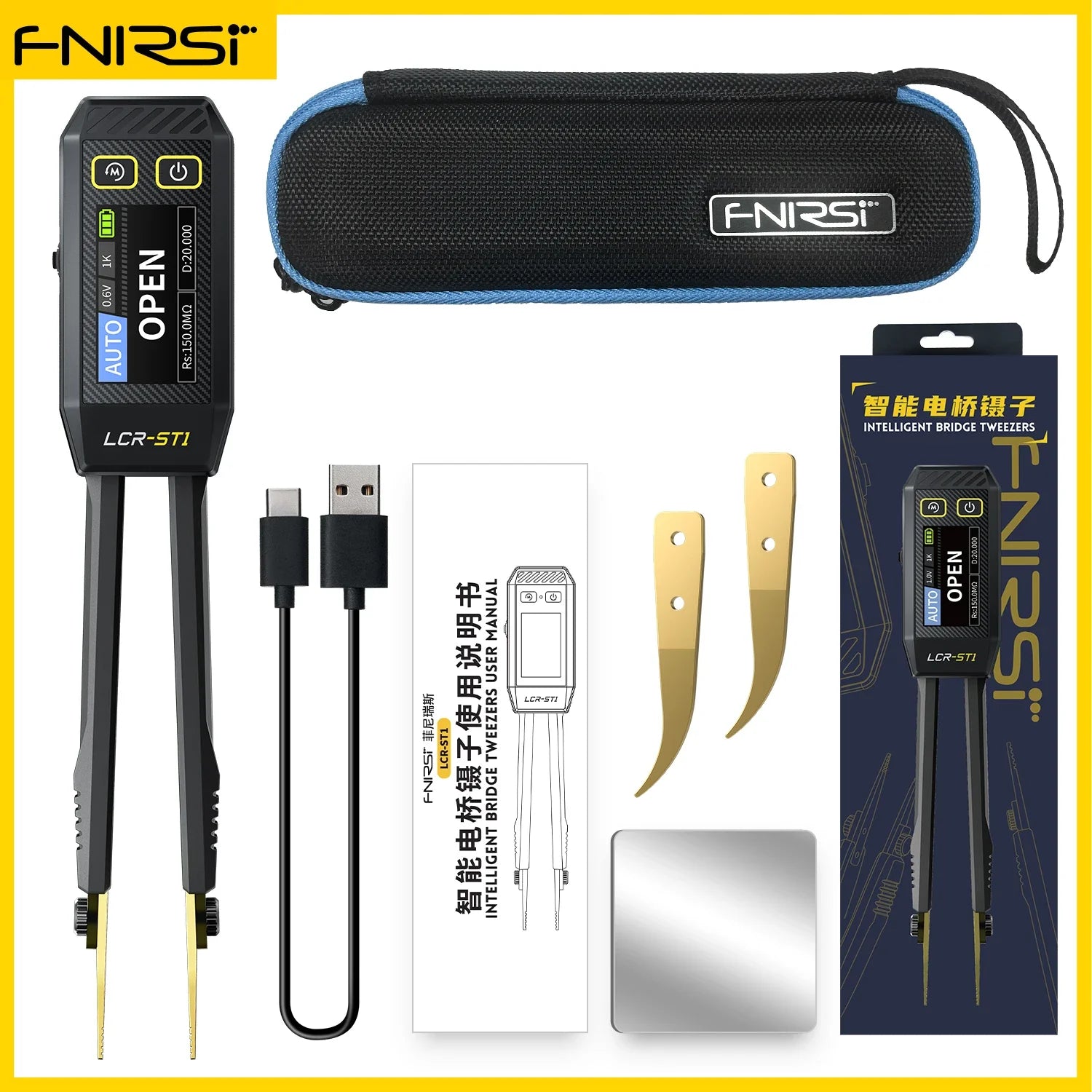

What’s in the Box:
LCR-ST1 Smart Tweezers
Pointed Heads (One Pair)
Magnetic Patch
USB Data Cable
User Manual
Optional (with Bag):
Hook Heads (One Pair)
Storage Bag
Why Choose FNIRSI LCR-ST1?
If you’re in need of a compact, accurate, and versatile electronic tester, the FNIRSI LCR-ST1 Mini Smart Tweezer is your go-to tool. Whether you're diagnosing faulty components, checking circuits, or working with SMDs, this tester offers precise, fast, and reliable measurements for a variety of electronic tests. Its portable design, advanced features, and high accuracy make it an invaluable tool for engineers, technicians, and electronics hobbyists.
