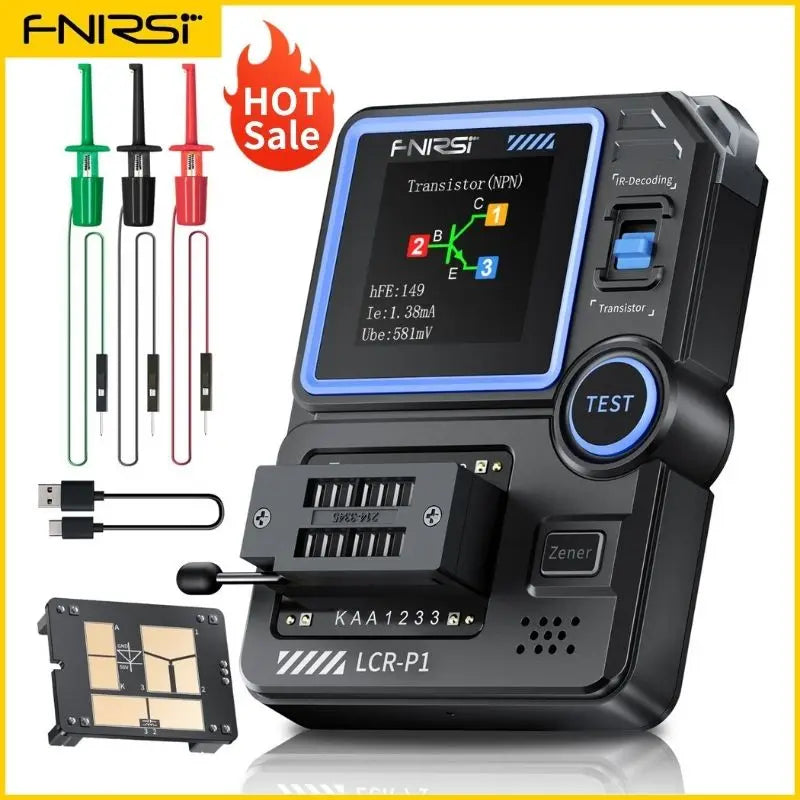

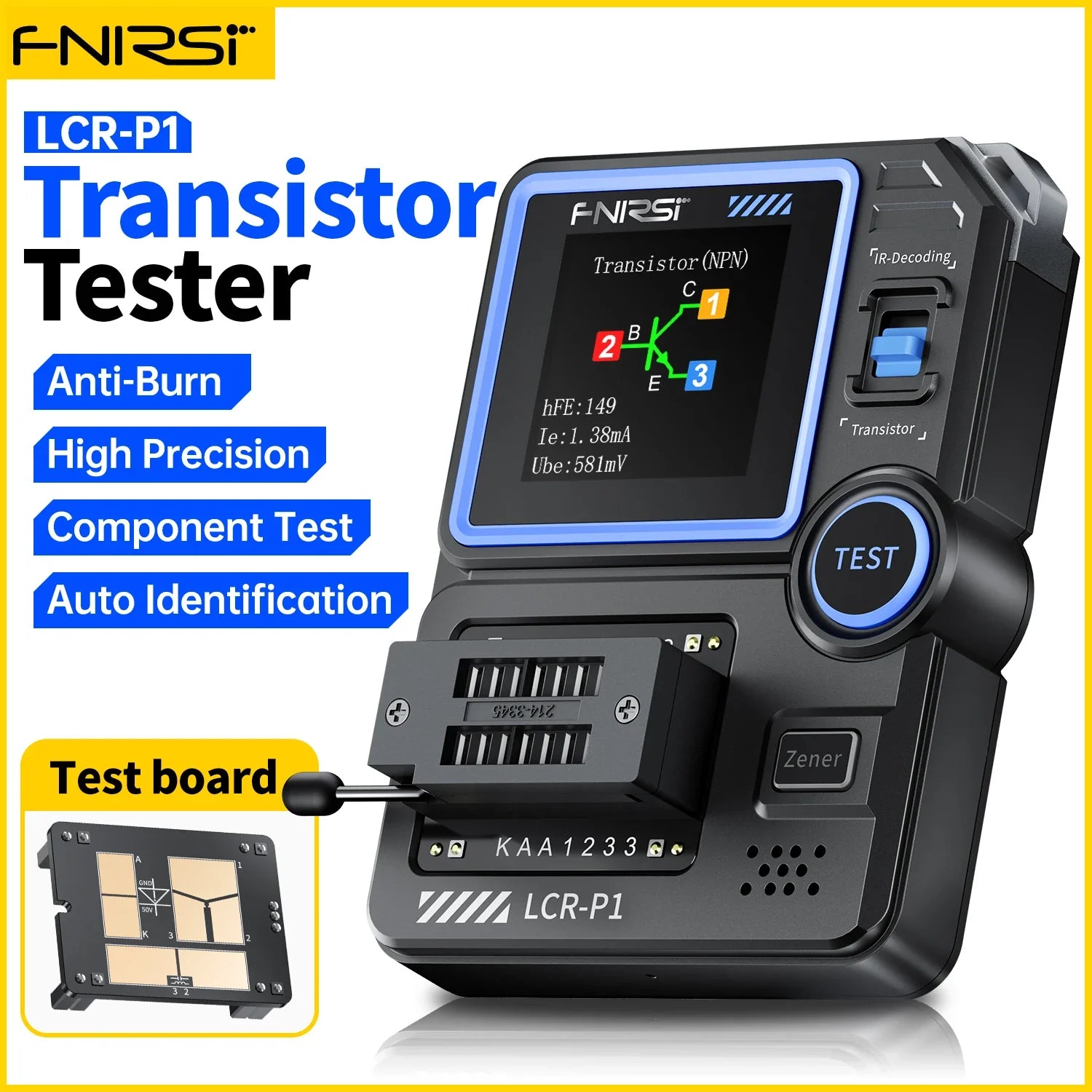

Looking for a versatile, high-precision tool to measure and analyze your electronic components? The FNIRSI LCR-P1 Transistor Tester is your go-to solution! Perfect for electronic engineers, technicians, and DIY enthusiasts, this multifunctional LCR ESR meter is designed to simplify the process of testing transistors, diodes, triodes, capacitors, resistors, and field-effect transistors (FETs). With its intelligent features, easy-to-read color screen, and innovative testing modes, the LCR-P1 takes your testing experience to the next level.
🔧 Key Features & Benefits:

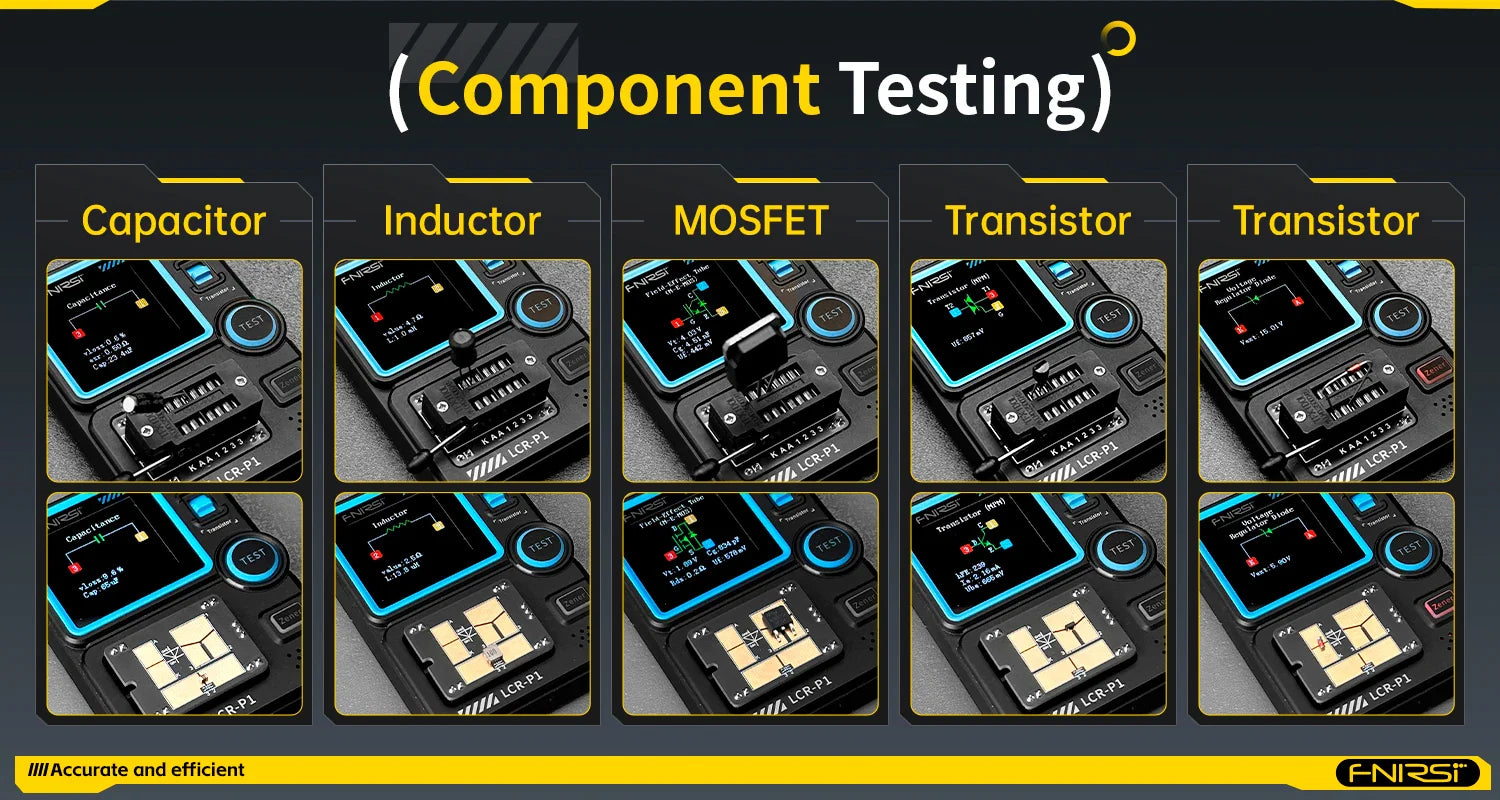

🔹 Comprehensive Component Testing – The LCR-P1 can test a wide range of electronic components, including NPN/PNP transistors, MOSFETs, diodes, JFETs, IGBTs, inductors, capacitors, and resistors. It's designed for testing components from 0.01Ω to 50MΩ for resistance, 25pF to 100mF for capacitance, and 10μH to 1000μH for inductance. This makes it the perfect tool for engineers, technicians, and hobbyists who need precise measurements.

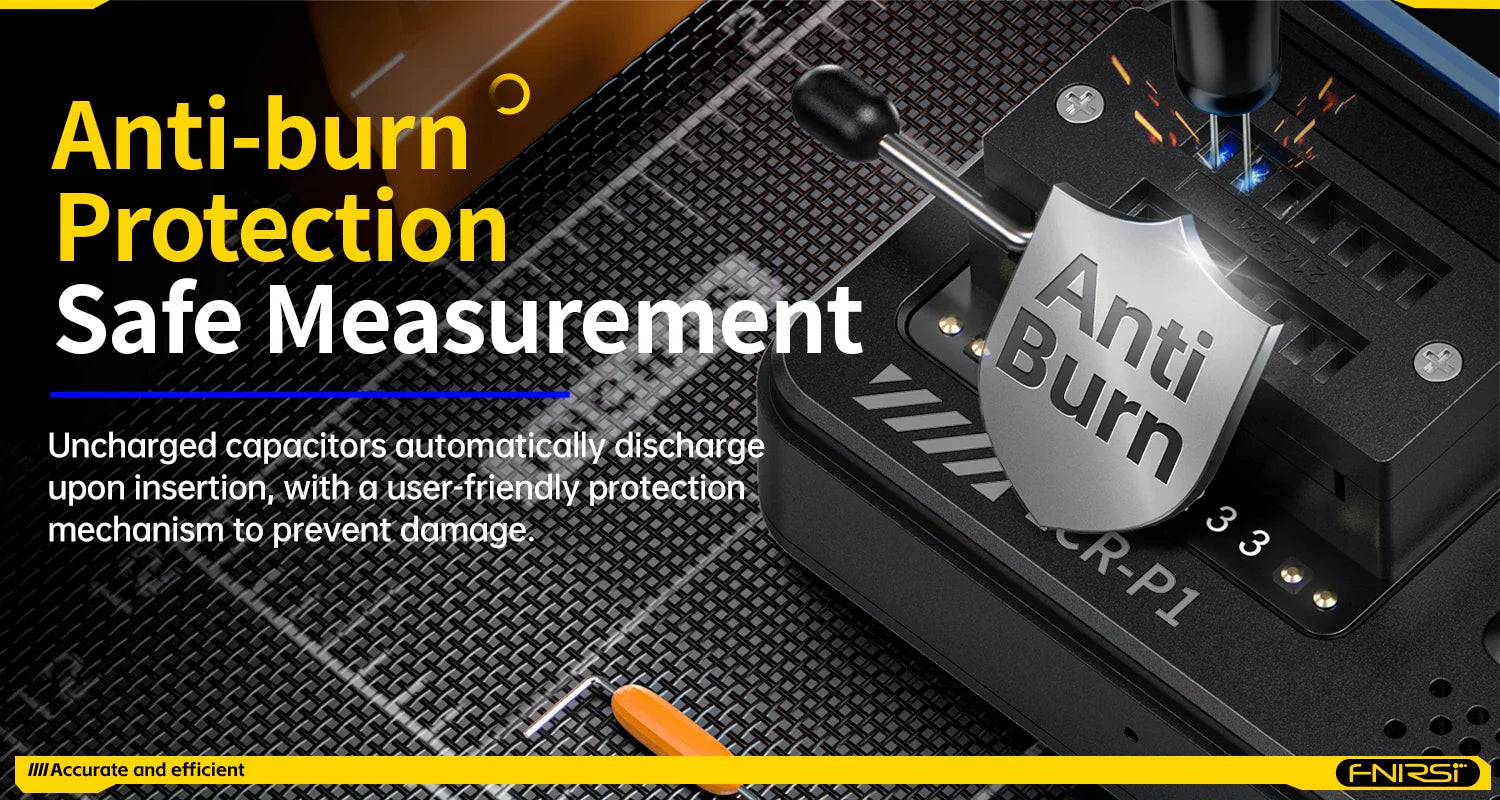

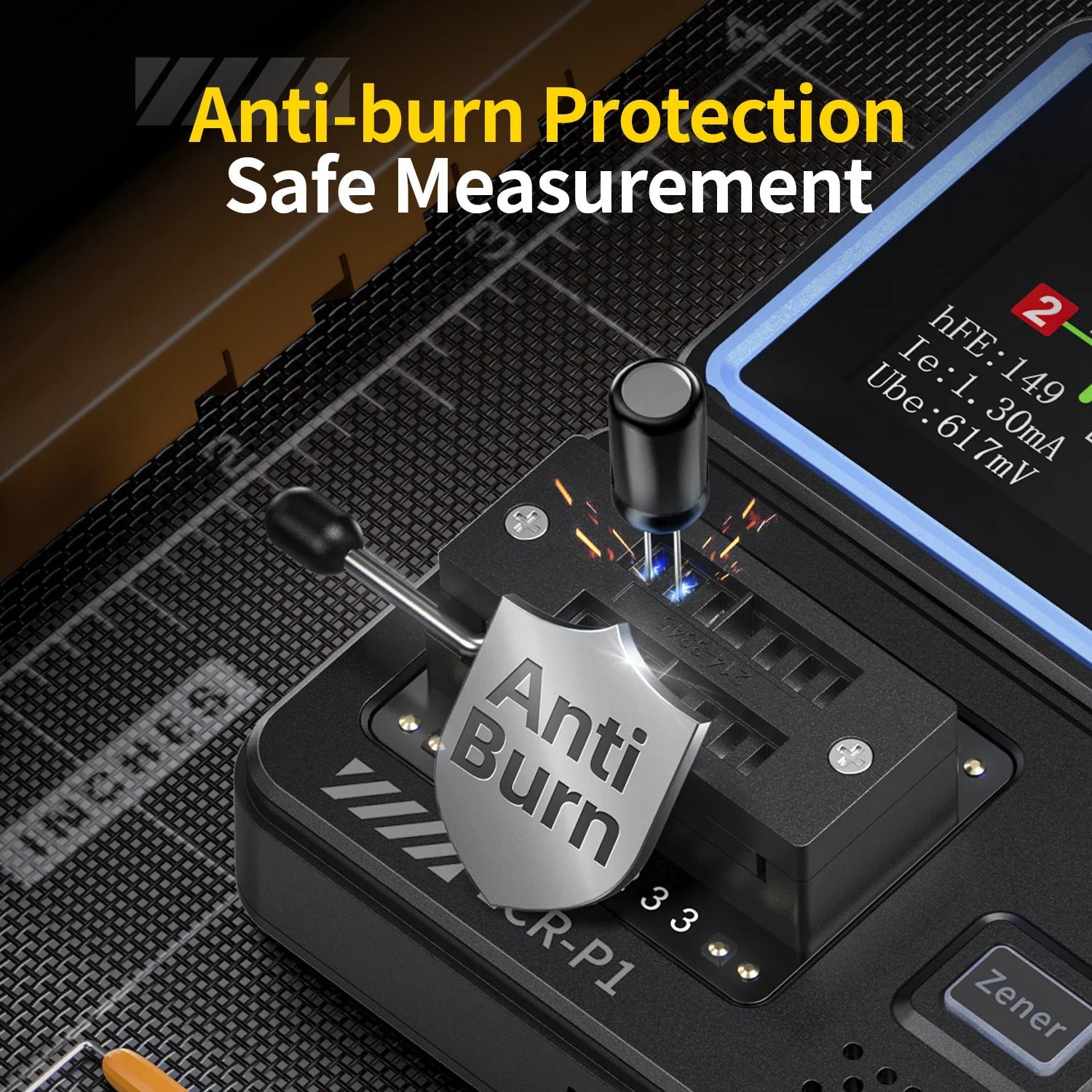

🔹 Smart Anti-Burn Protection – With an anti-burn design, the LCR-P1 automatically discharges uncharged capacitors when inserted. This feature prevents accidental damage, making your testing safer and more reliable.
🔹 USB Type-C Charging – Powered by a 300mAh lithium battery, the LCR-P1 can be charged via USB Type-C (5V/1A). The fast and convenient charging ensures you’re always ready to test without waiting long.
🔹 Data Export for Advanced Analysis – Need to analyze your measurements on a bigger screen? The FNIRSI LCR-P1 allows for easy data export, connecting to your computer for detailed analysis. Simply transfer the test results and dig deeper into your data with your preferred software.

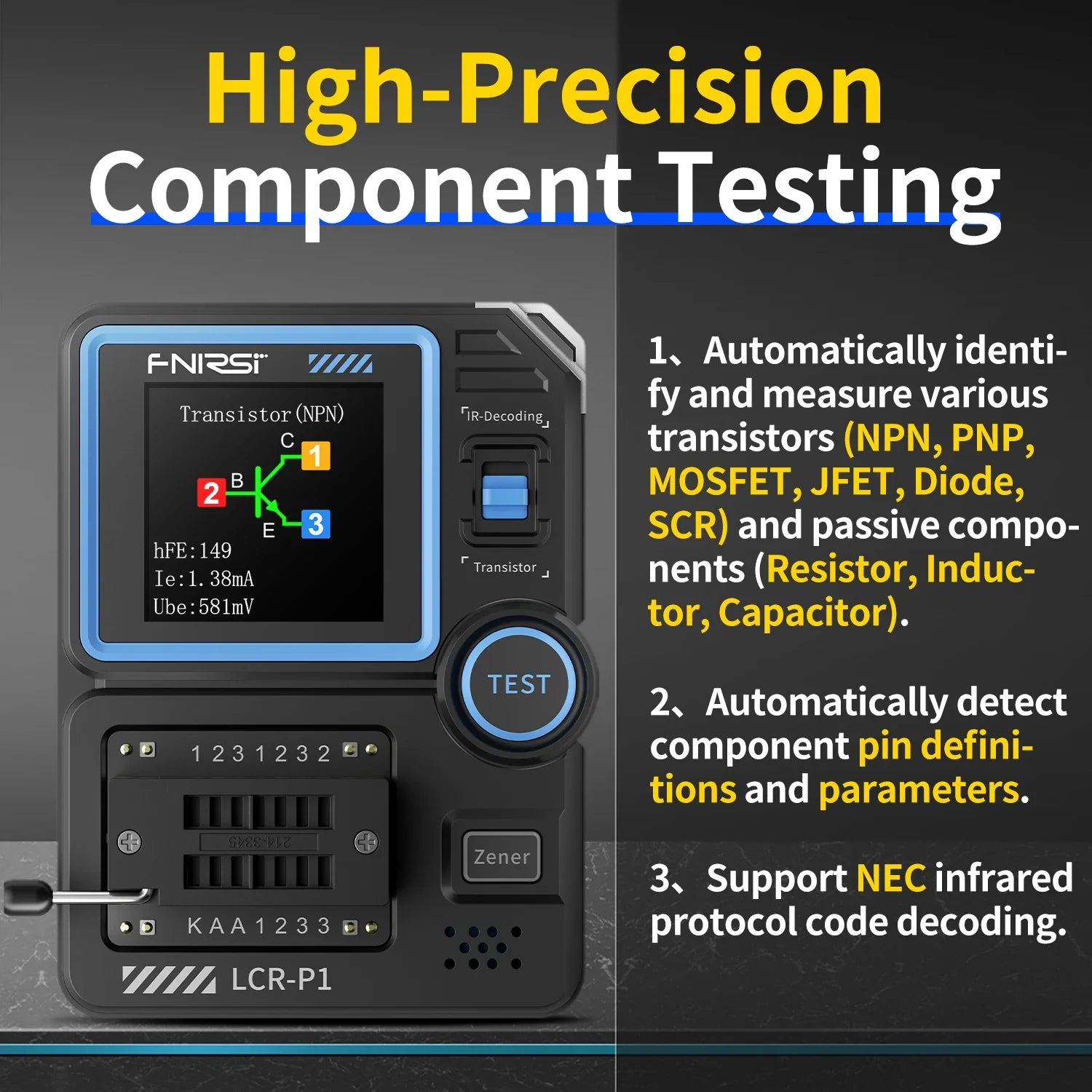

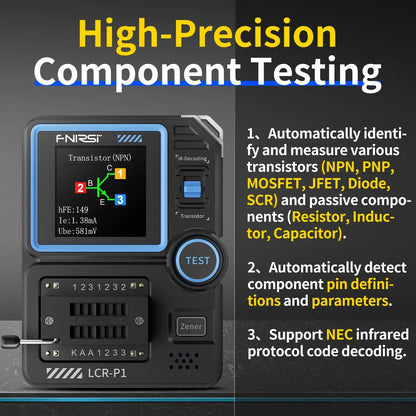

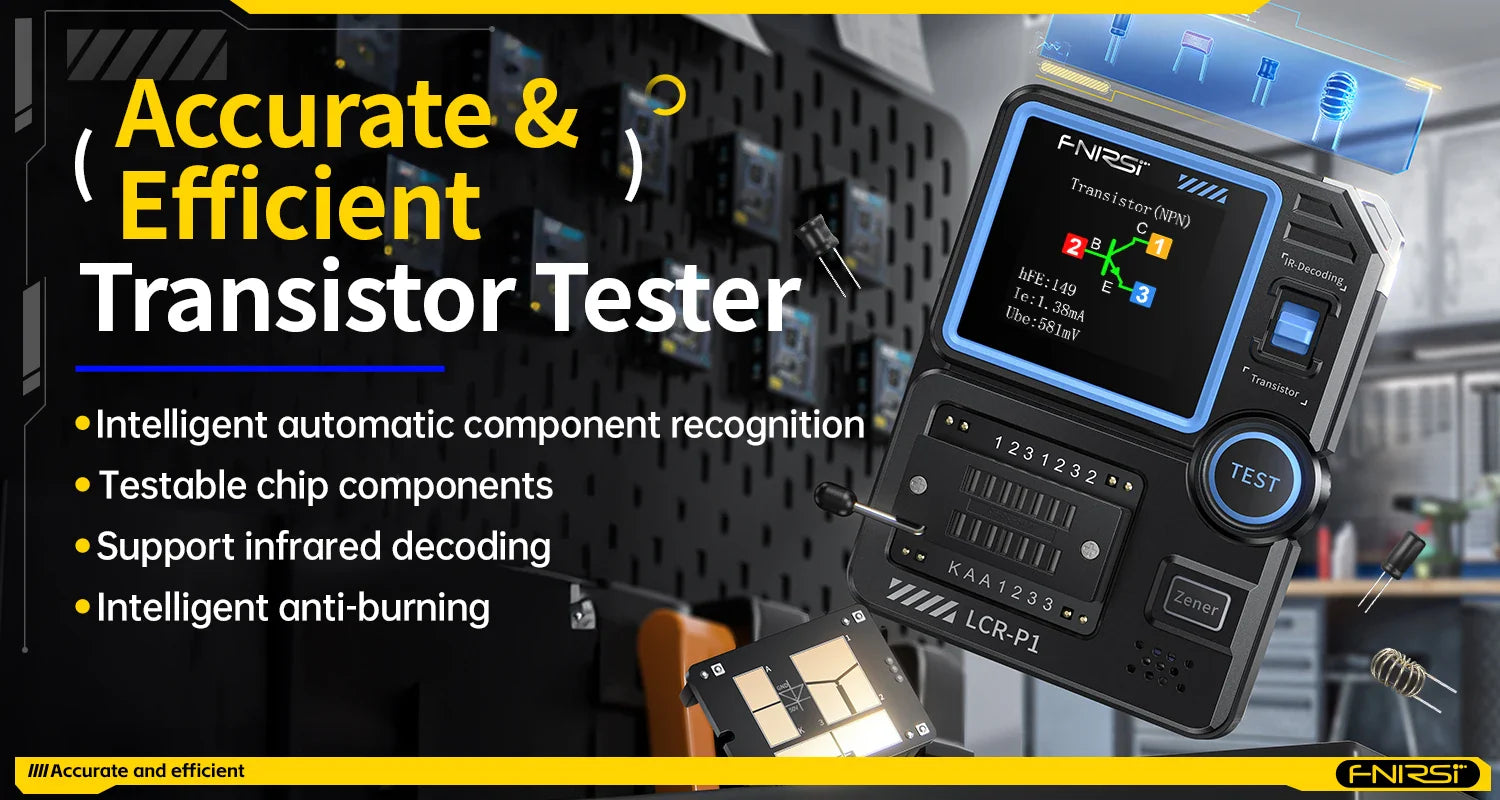

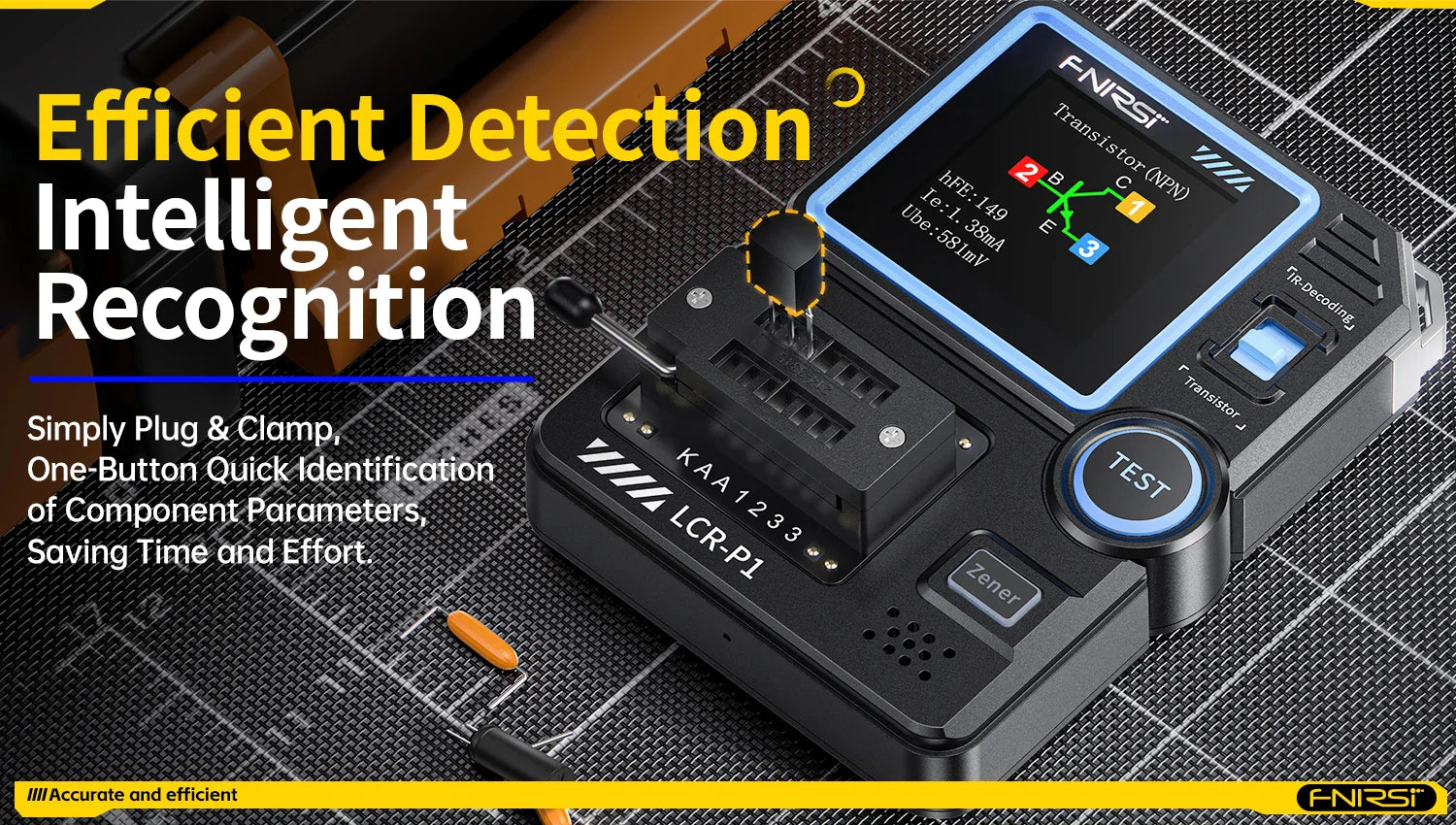

🔹 Intelligent Component Recognition – The LCR-P1 automatically detects the type and pin configuration of the components you insert, providing fast and accurate results. Just plug in your component, and the device will instantly identify it and display its parameters.

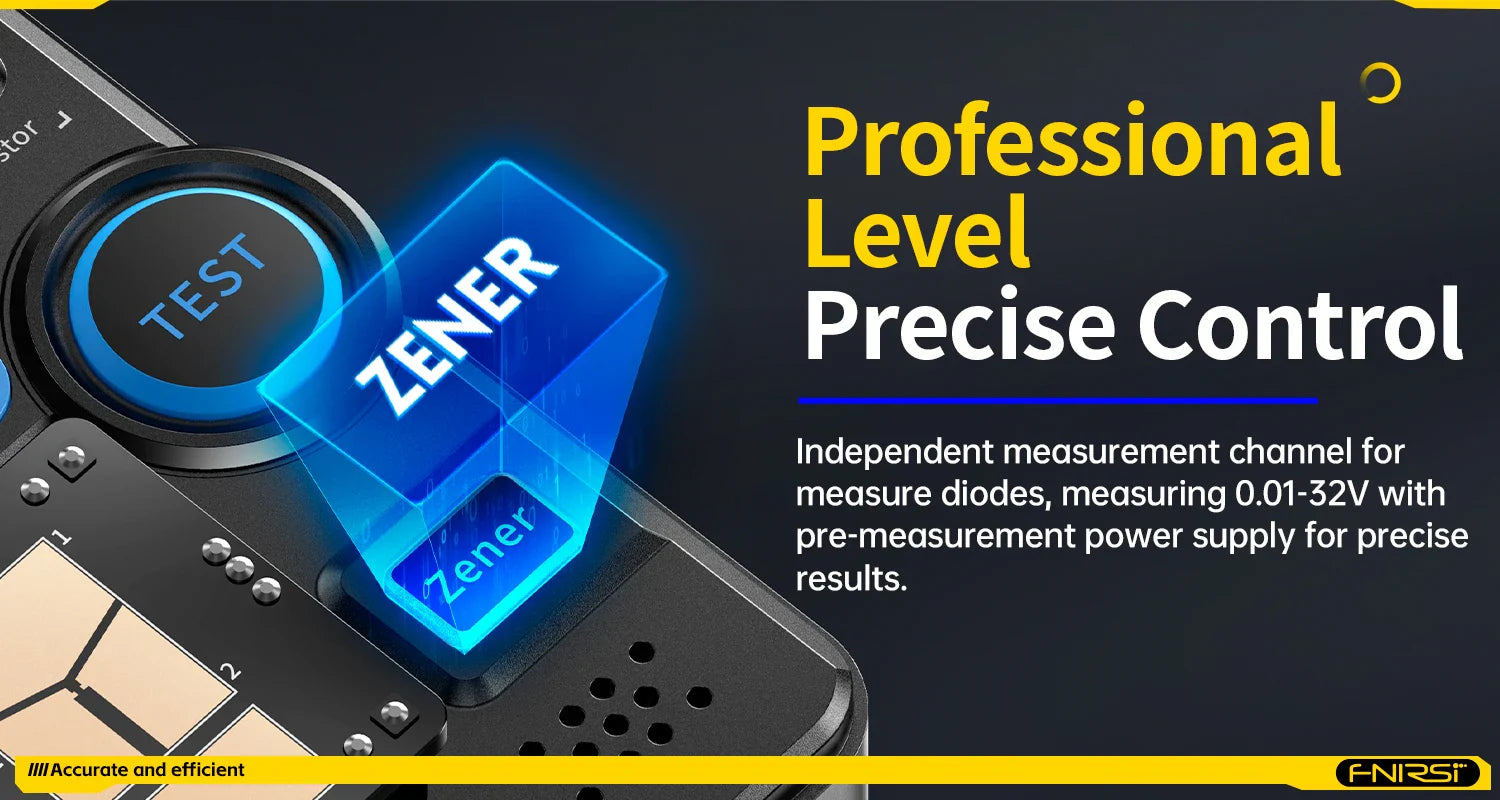

🔹 Zener Diode Independent Measurement – For precise testing, this meter features a dedicated channel for measuring Zener diodes, with a power supply range of 0.01-32V, ensuring accuracy and precision with every test.

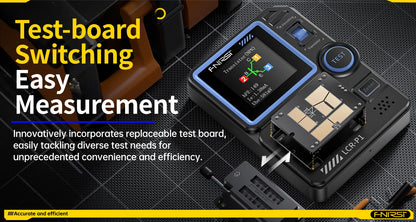

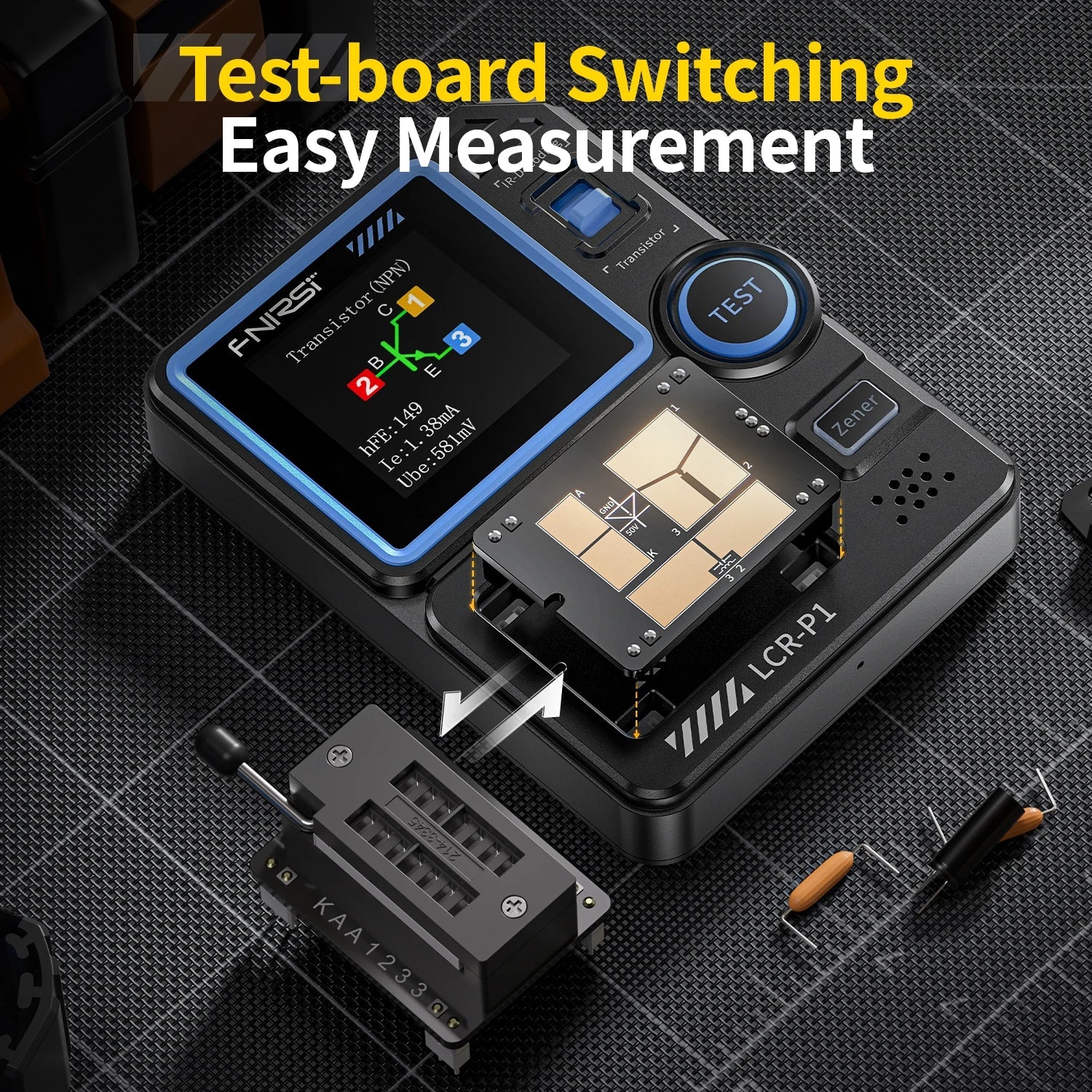

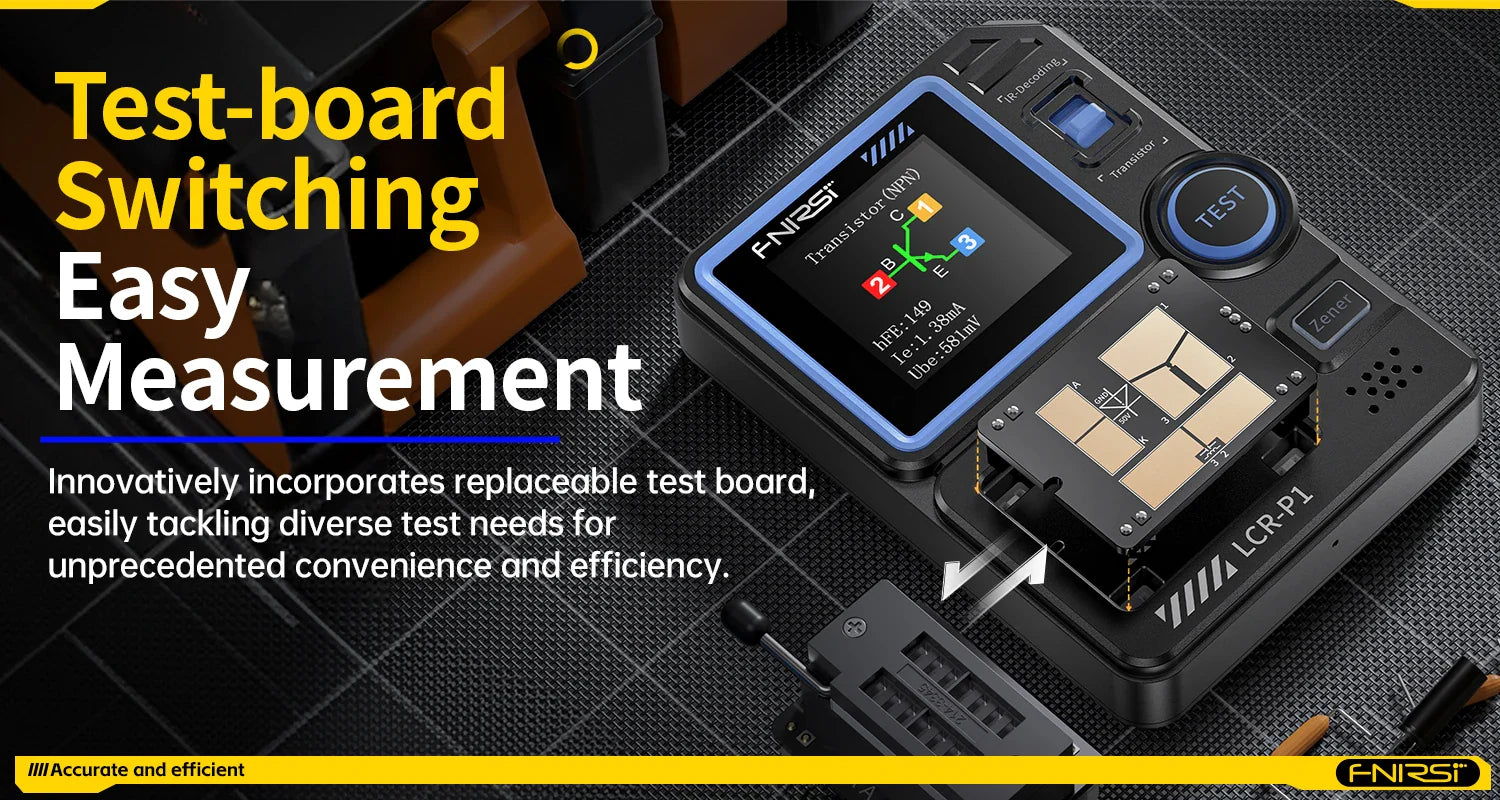

🔹 Versatile Measuring Modes – The LCR-P1 also supports multiple test boards, which are easily interchangeable to suit your specific testing needs. This modular approach allows for greater flexibility and efficiency.

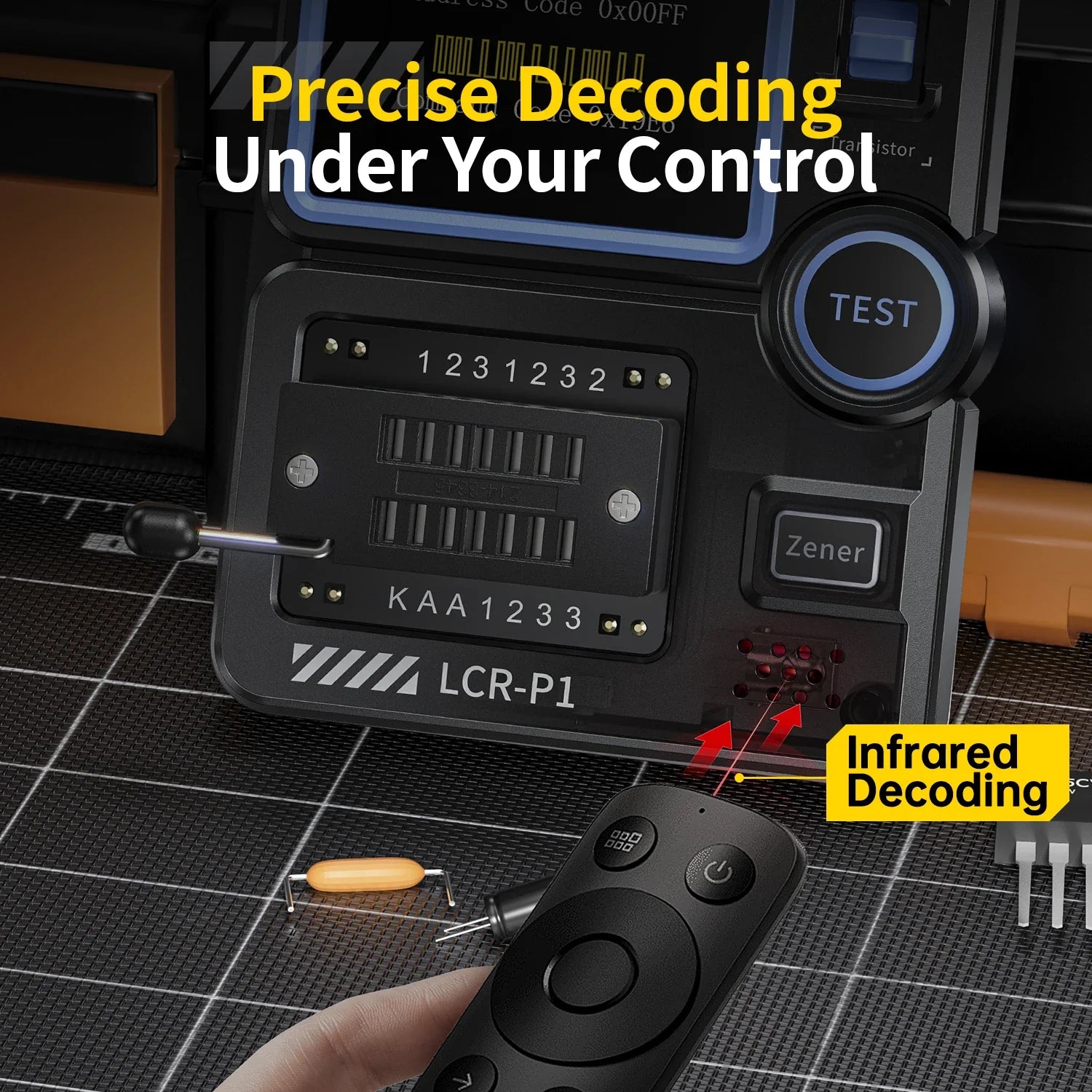

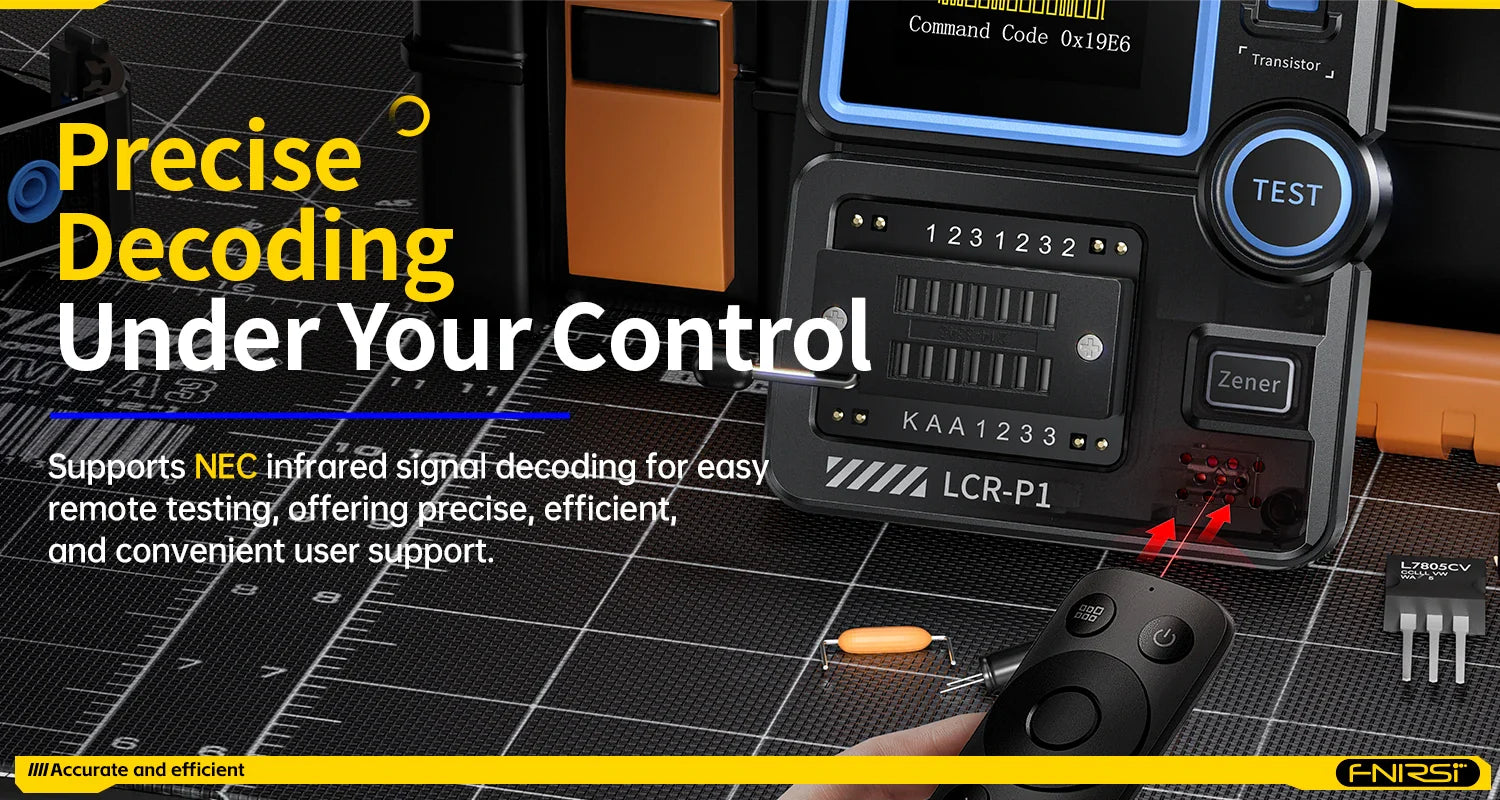

🔹 IR Decoding – The device also supports IR remote decoding using the NEC protocol, allowing for testing of infrared remote control signals, making it an even more valuable tool for technicians working with consumer electronics.

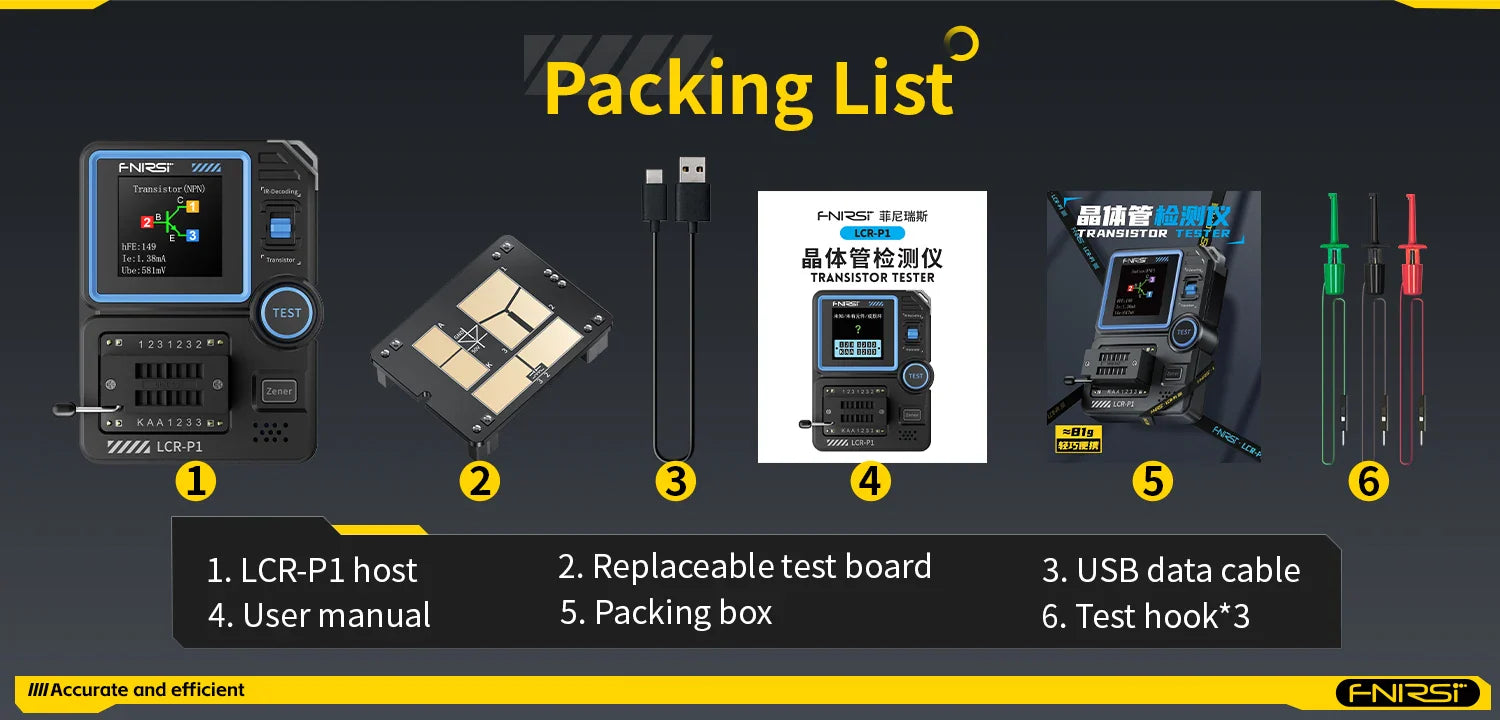

📦 What’s Included:
1x LCR-P1 Host
3x Test Hooks
1x Replaceable Test Board
1x USB Data Cable
1x User Manual
1x Packing Box

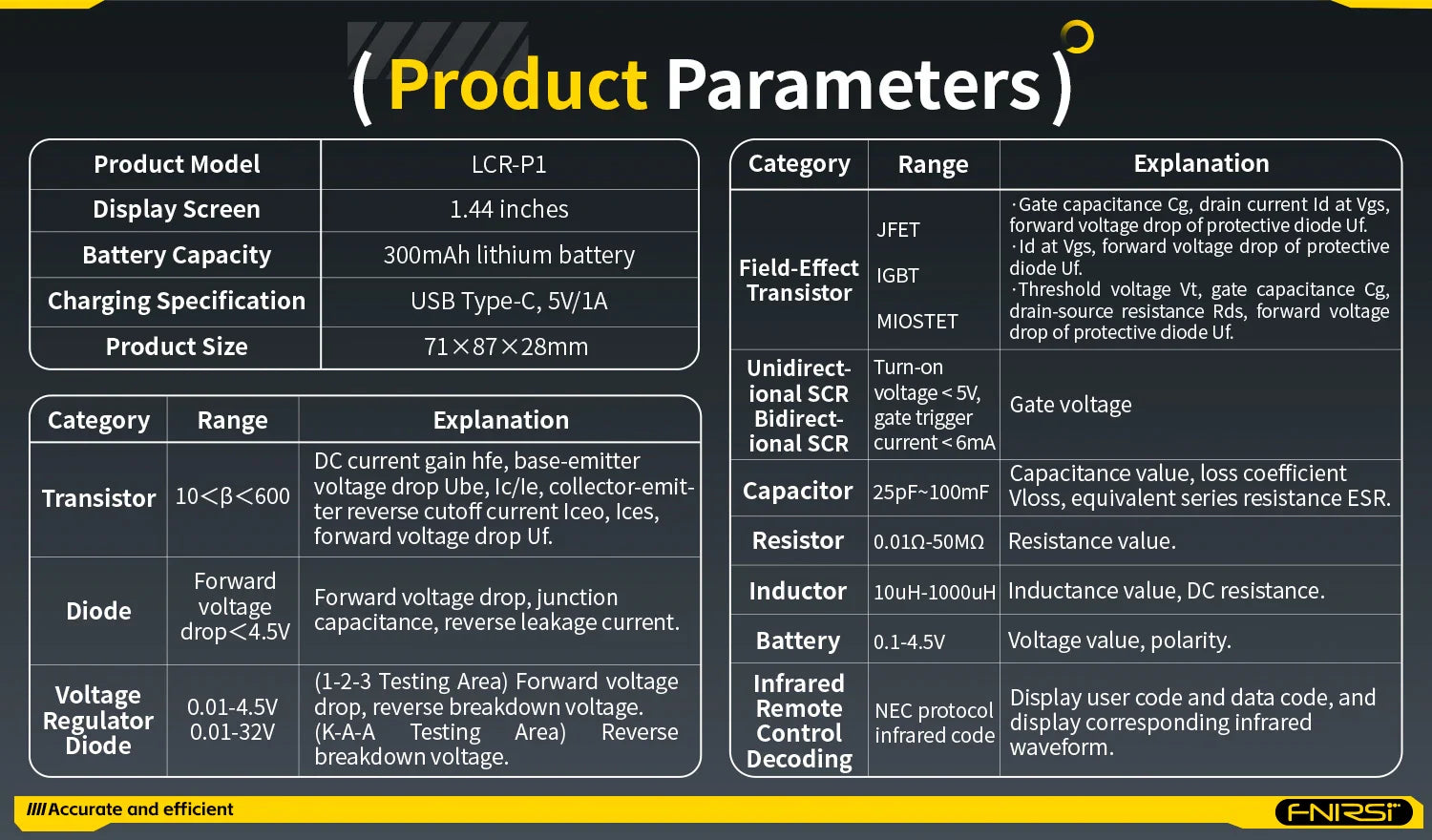

🔋 Technical Specifications:
Display: 1.44-inch Color Screen
Resistance Range: 0.01Ω to 50MΩ
Capacitance Range: 25pF to 100mF
Inductance Range: 10μH to 1000μH
Transistor Range: 10 < B < 600
Diode Measurement: Forward voltage < 4.5V
Field-Effect Transistor: JFET, IGBT, MOSFET
Thyristor: Turn-on voltage < 5V, Gate trigger current < 6mA
Voltage Regulator Diode: 0.01-4.5V, 0.01-32V
Power Supply: 300mAh Lithium Battery
Charging: USB Type-C, 5V/1A
Operating Temperature: 0~40°C
Dimensions: 13x8.5x4.5mm
Certification: CE
💡 Why Choose FNIRSI LCR-P1 Transistor Tester?
✔ Ultimate Precision – With its ability to test a wide variety of components accurately, the LCR-P1 is an essential tool for anyone working with electronics.
✔ Safety First – The built-in anti-burn protection ensures you can test components safely, without worrying about damage to the device.

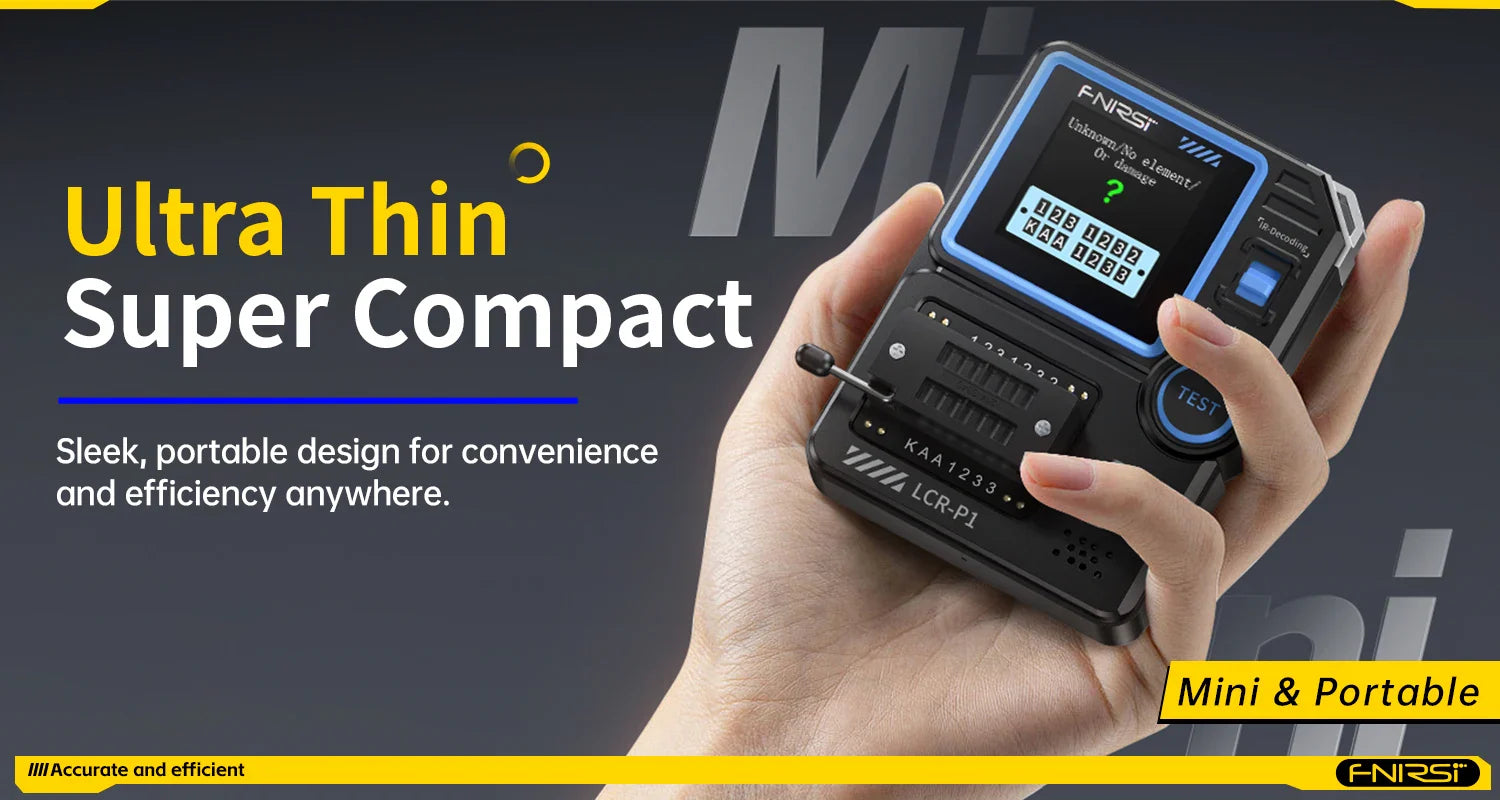

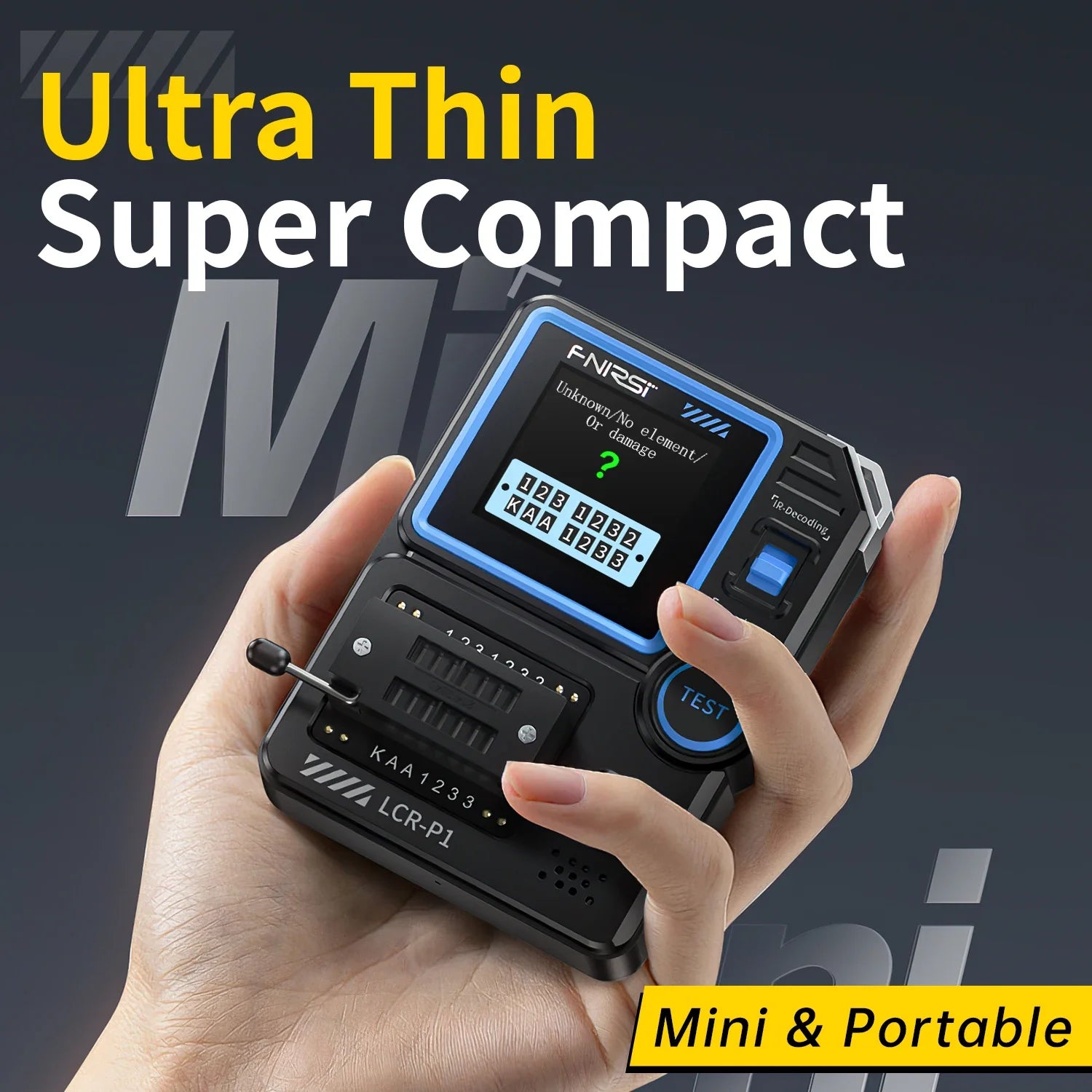

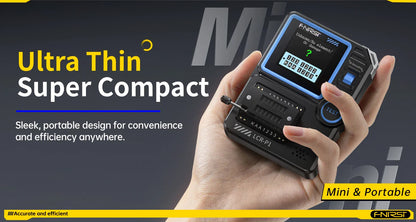

✔ Compact & Portable – With its lightweight design and 1.44-inch color screen, this tester is easy to carry and use anywhere, whether you're working in the lab or on the go.
✔ Convenient & Flexible – USB Type-C charging, data export, and interchangeable test boards make this tester incredibly convenient, saving you time and increasing testing efficiency.
The FNIRSI LCR-P1 Transistor Tester is more than just a multimeter—it’s an advanced, multifunctional testing device that provides you with all the tools you need to diagnose, analyze, and measure a wide range of electronic components with ease. Whether you're a hobbyist, technician, or professional engineer, this tool is built to enhance your testing process with precision, flexibility, and convenience. Get yours today and take your electronics testing to the next level! 🛠️🔧
