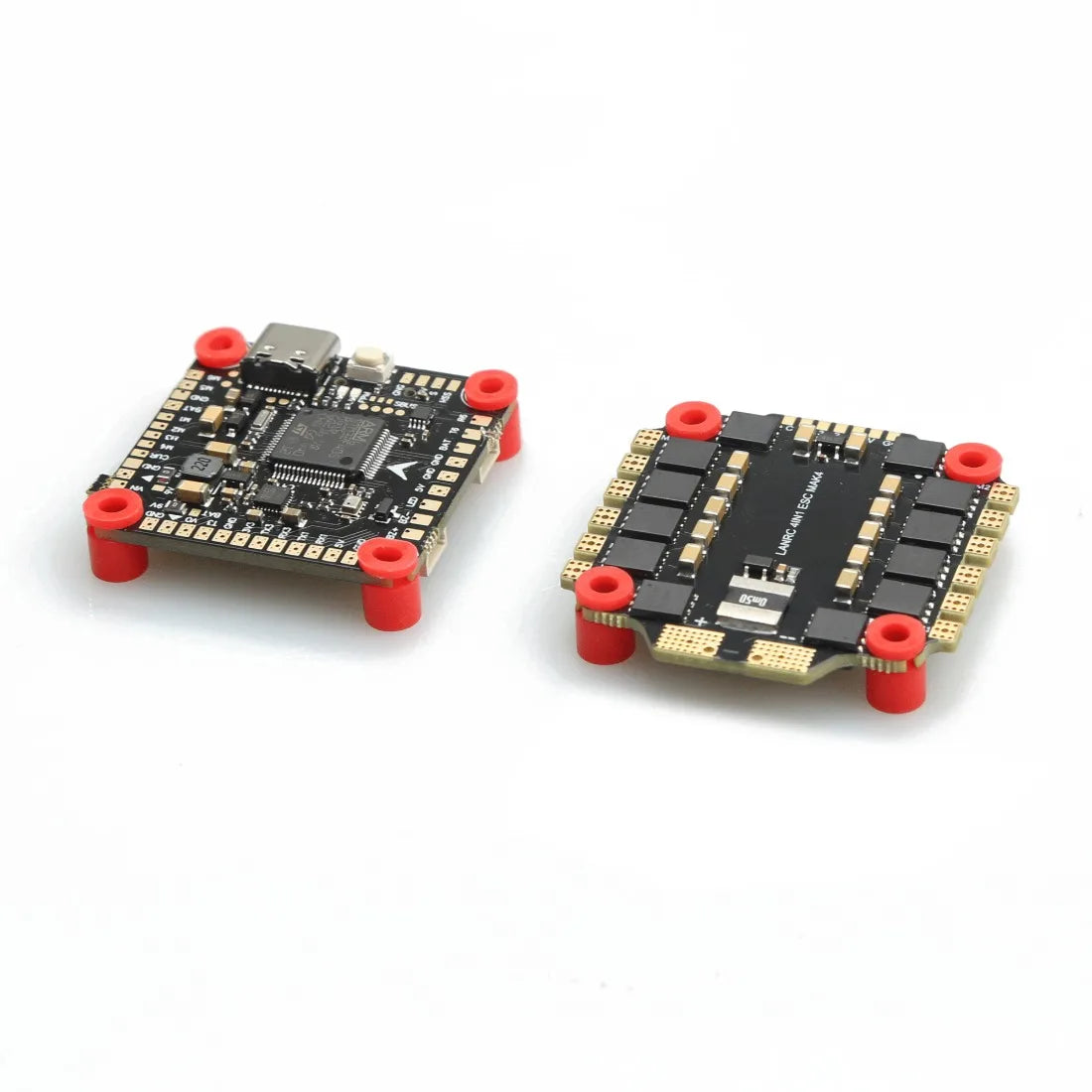

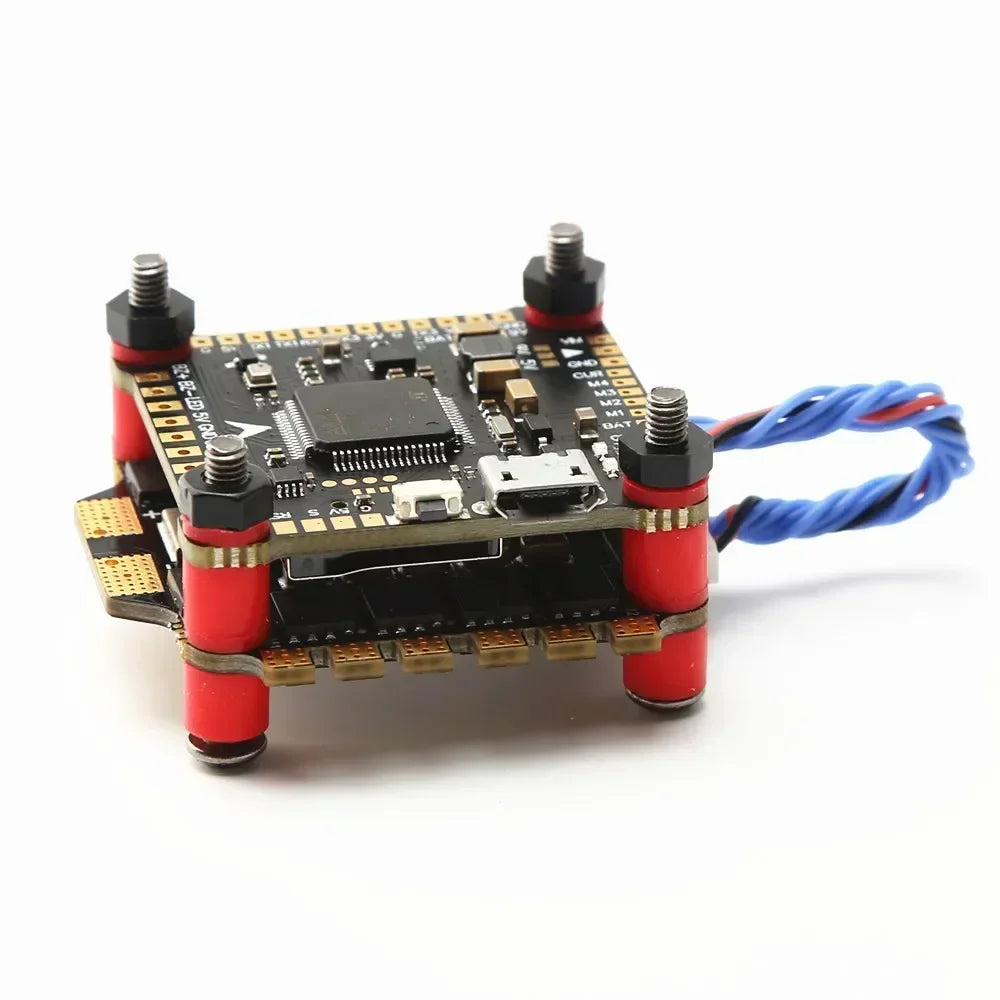

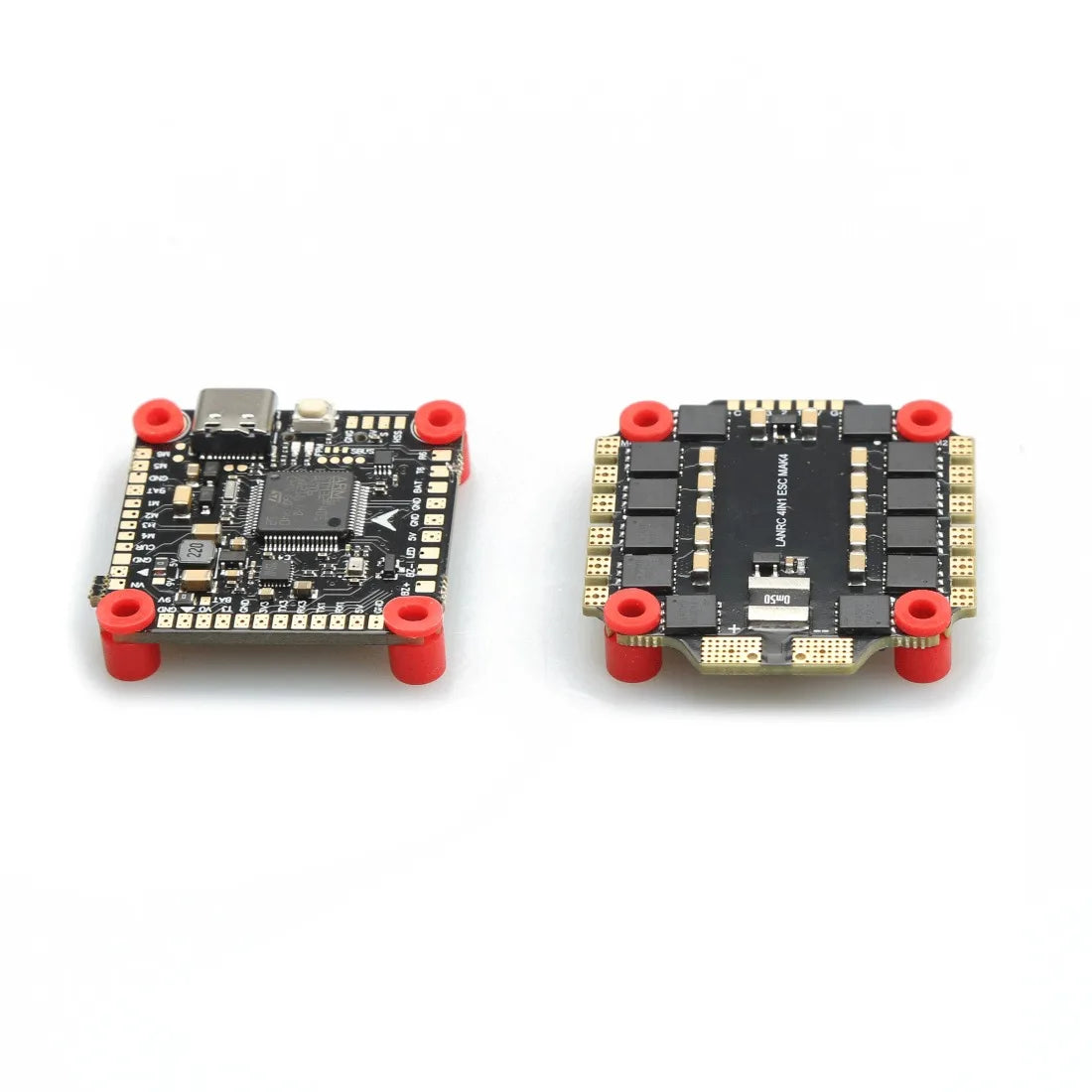

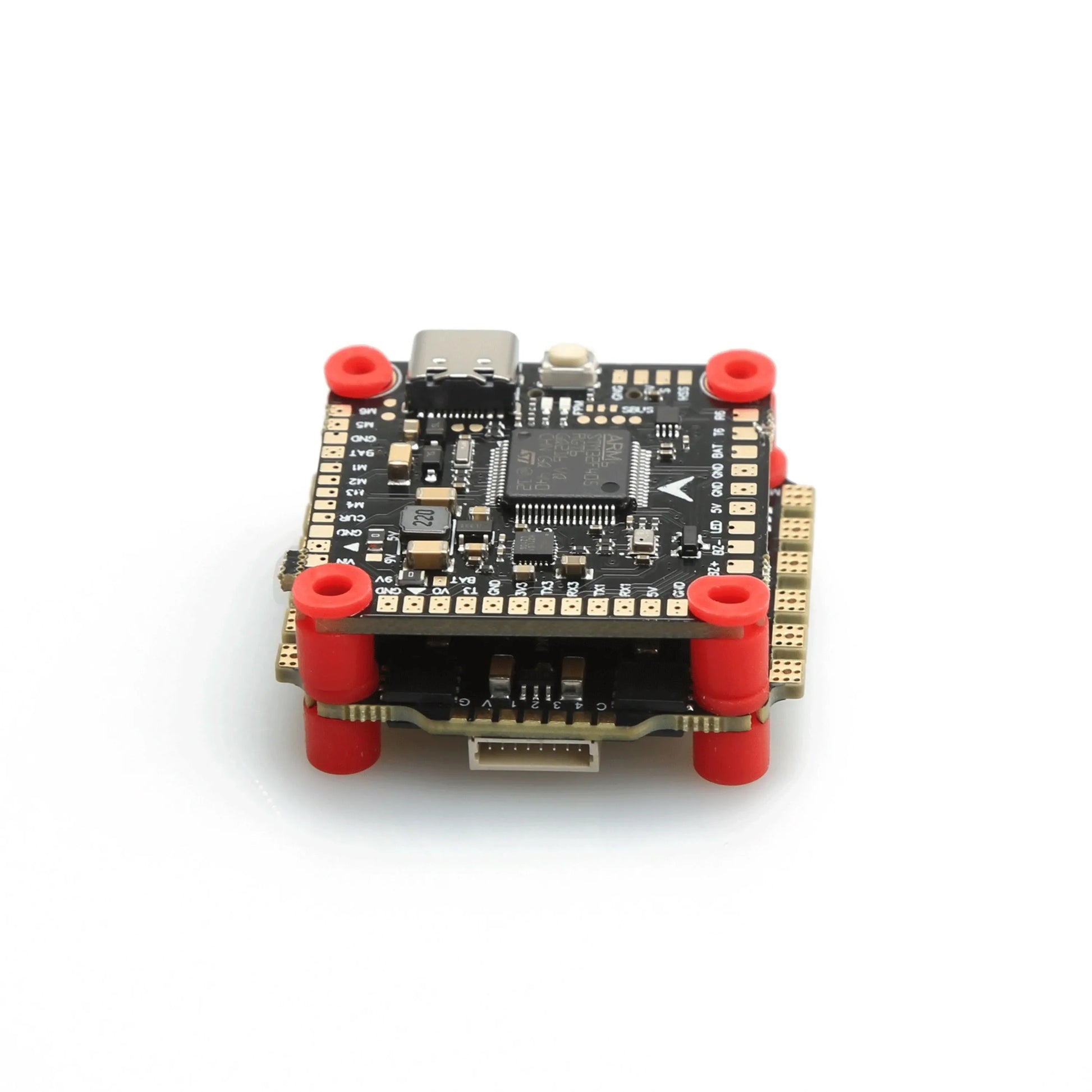

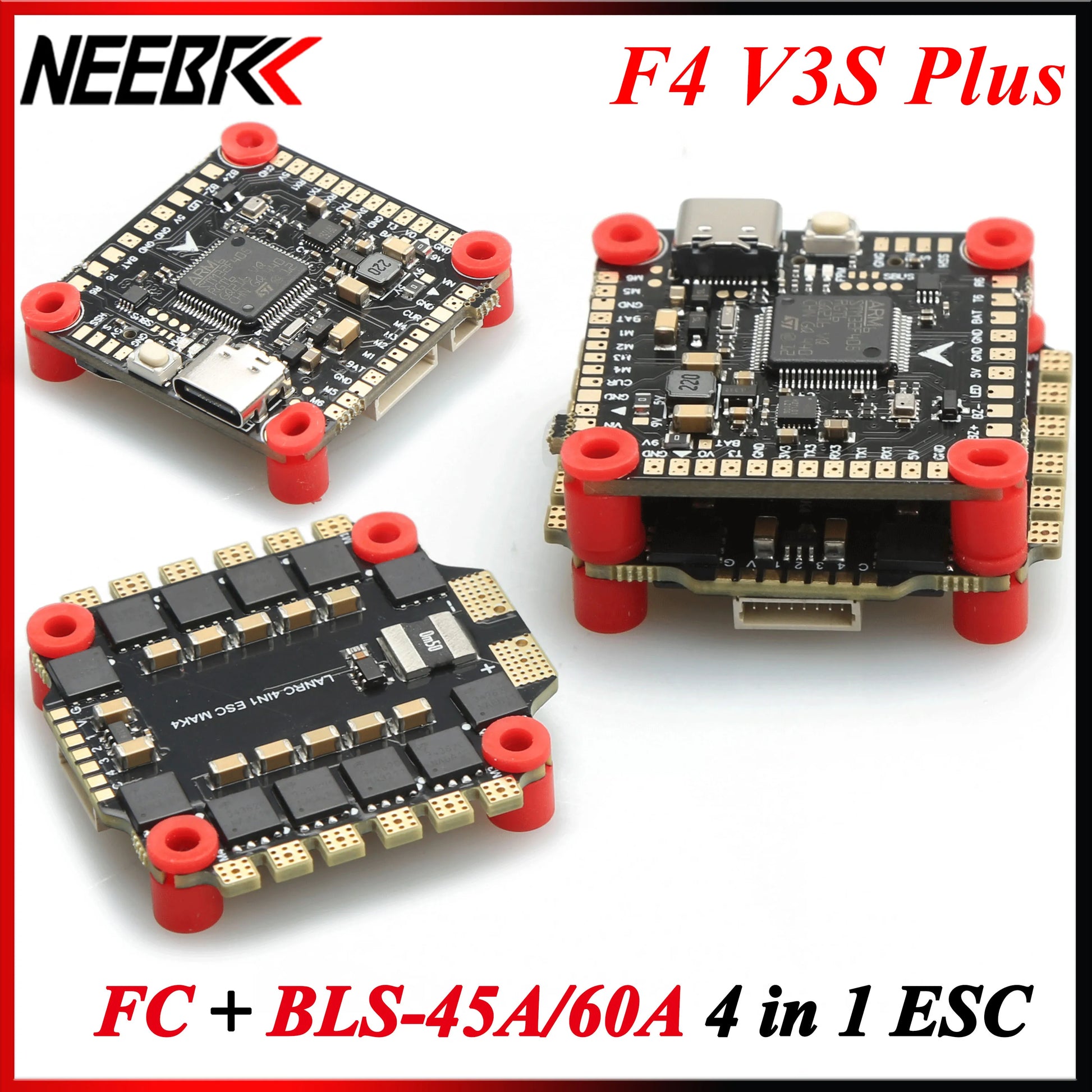

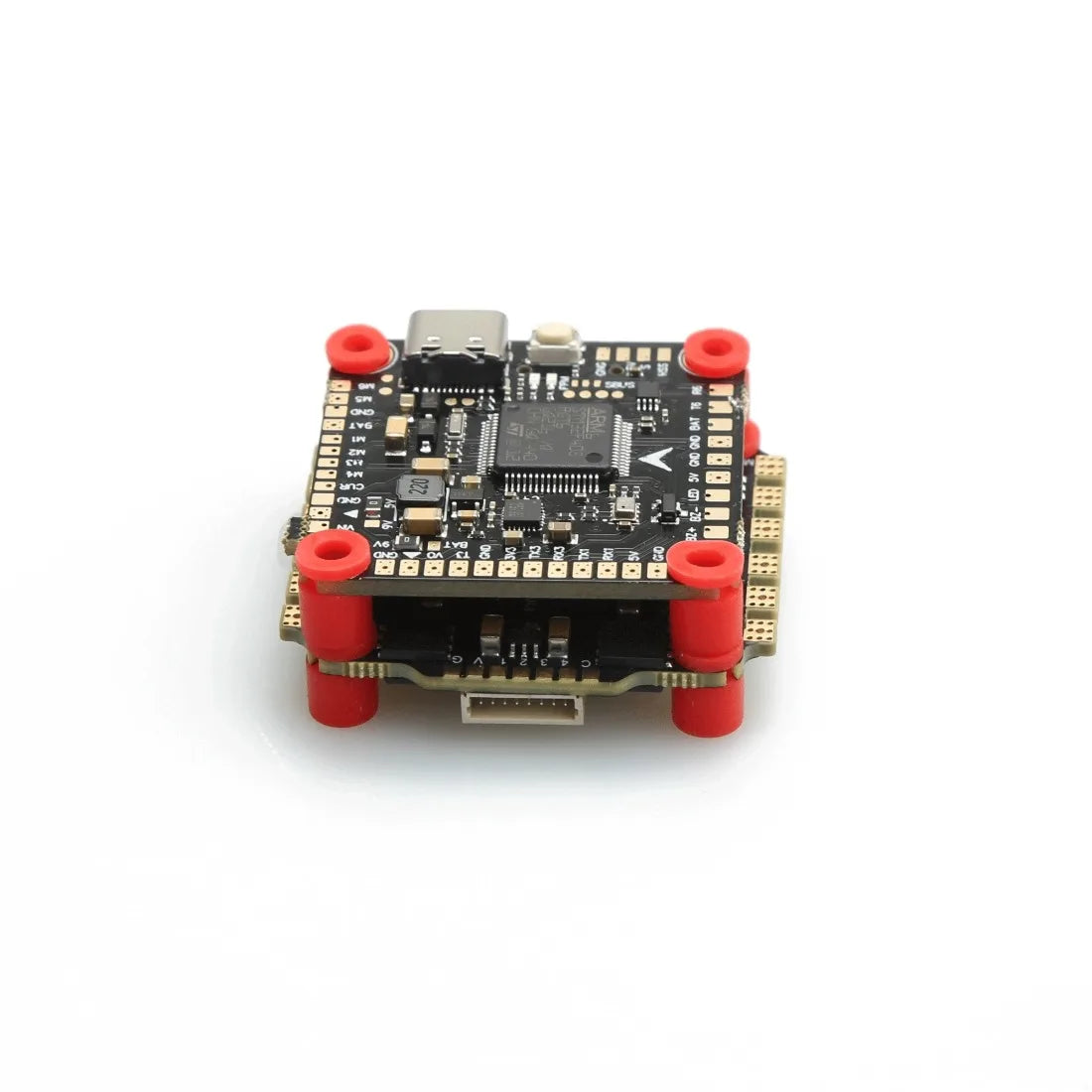

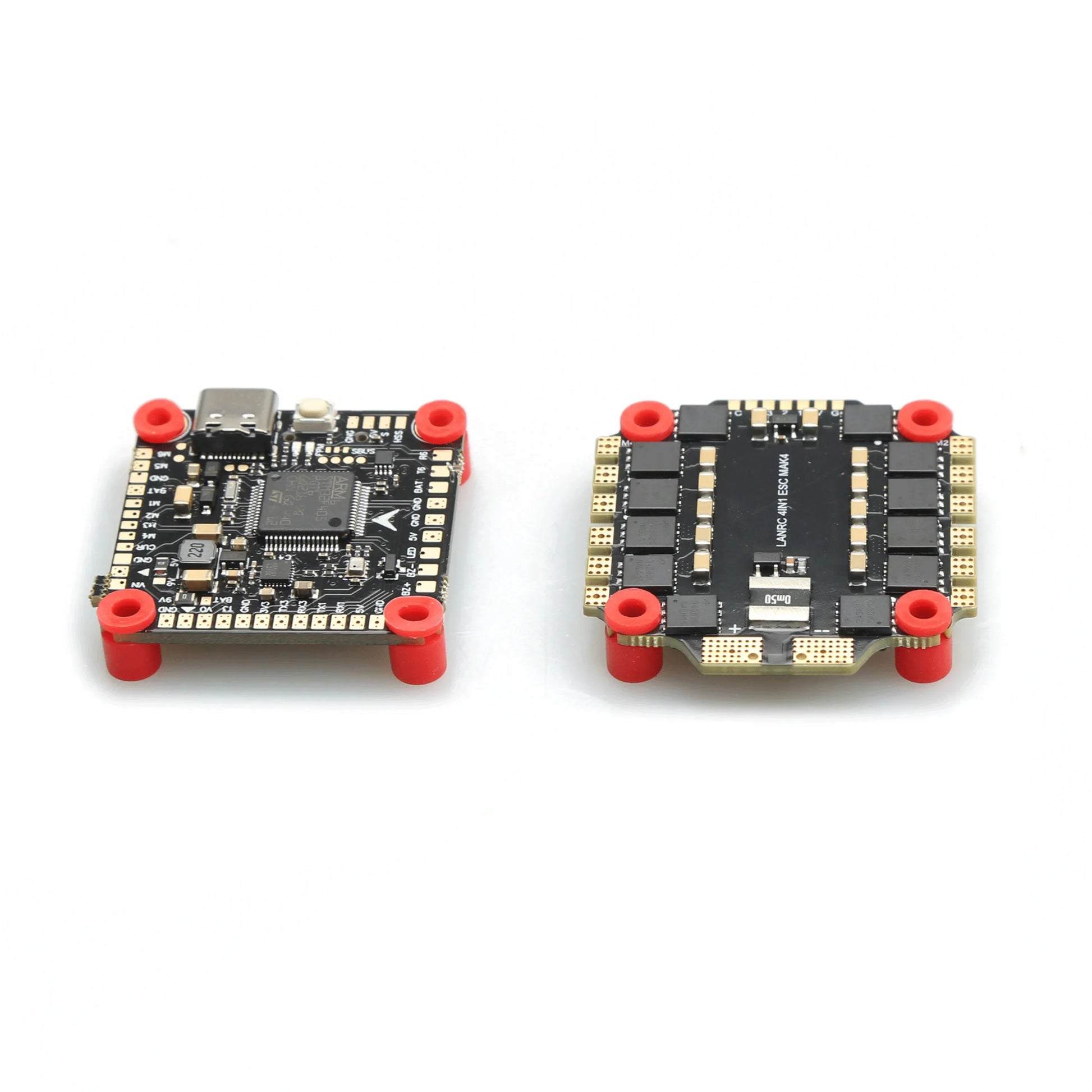

Upgrade your FPV drone performance with the F4 V3S Plus Flight Controller Stack by NeebRC! Designed for RC FPV drones, quadcopters, and racing builds, this high-performance stack combines the powerful F4 V3S Plus flight controller with a choice of 45A or 60A 4-in-1 Brushless ESCs, giving you precision control, stable power, and seamless integration for your Mark4 or APEX builds.

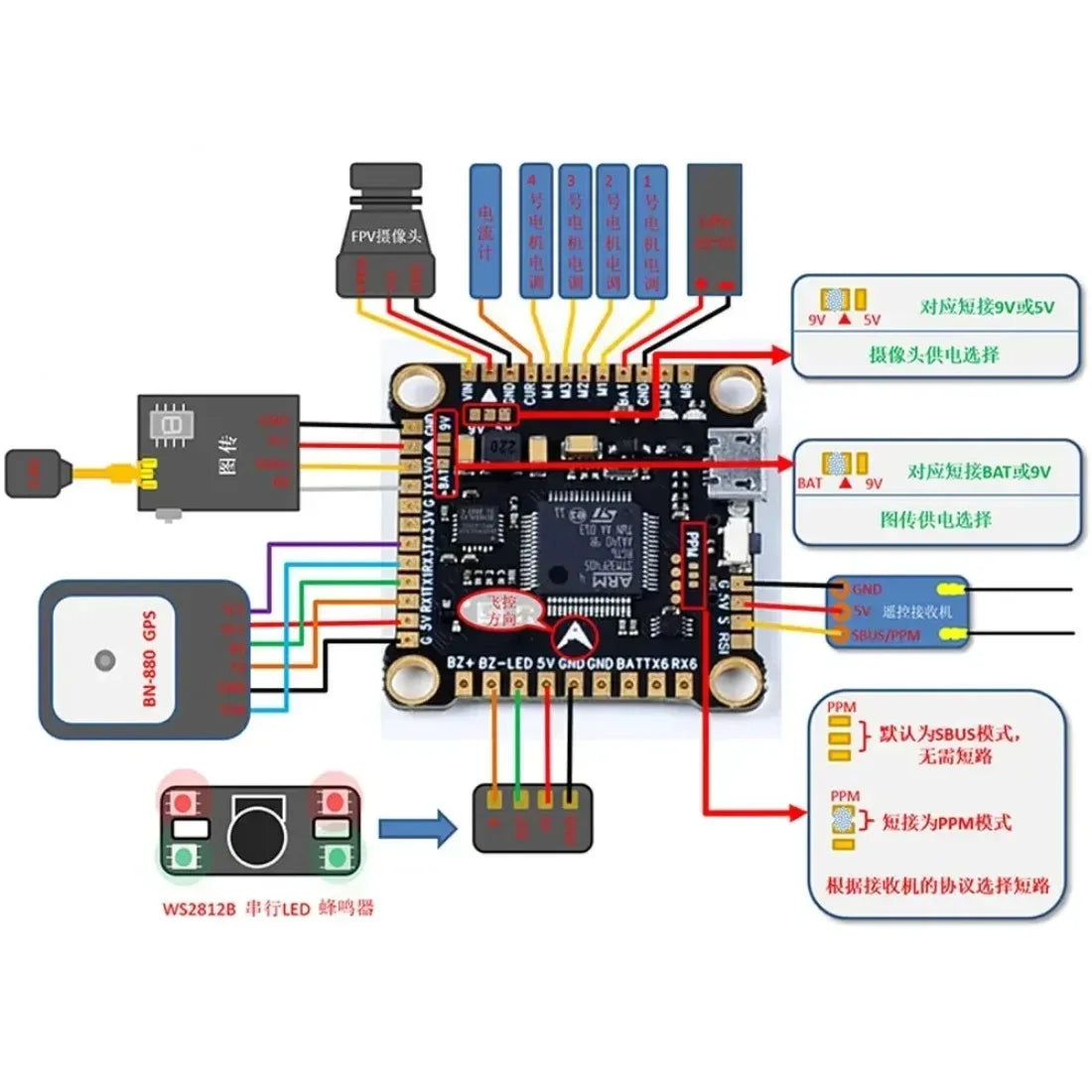

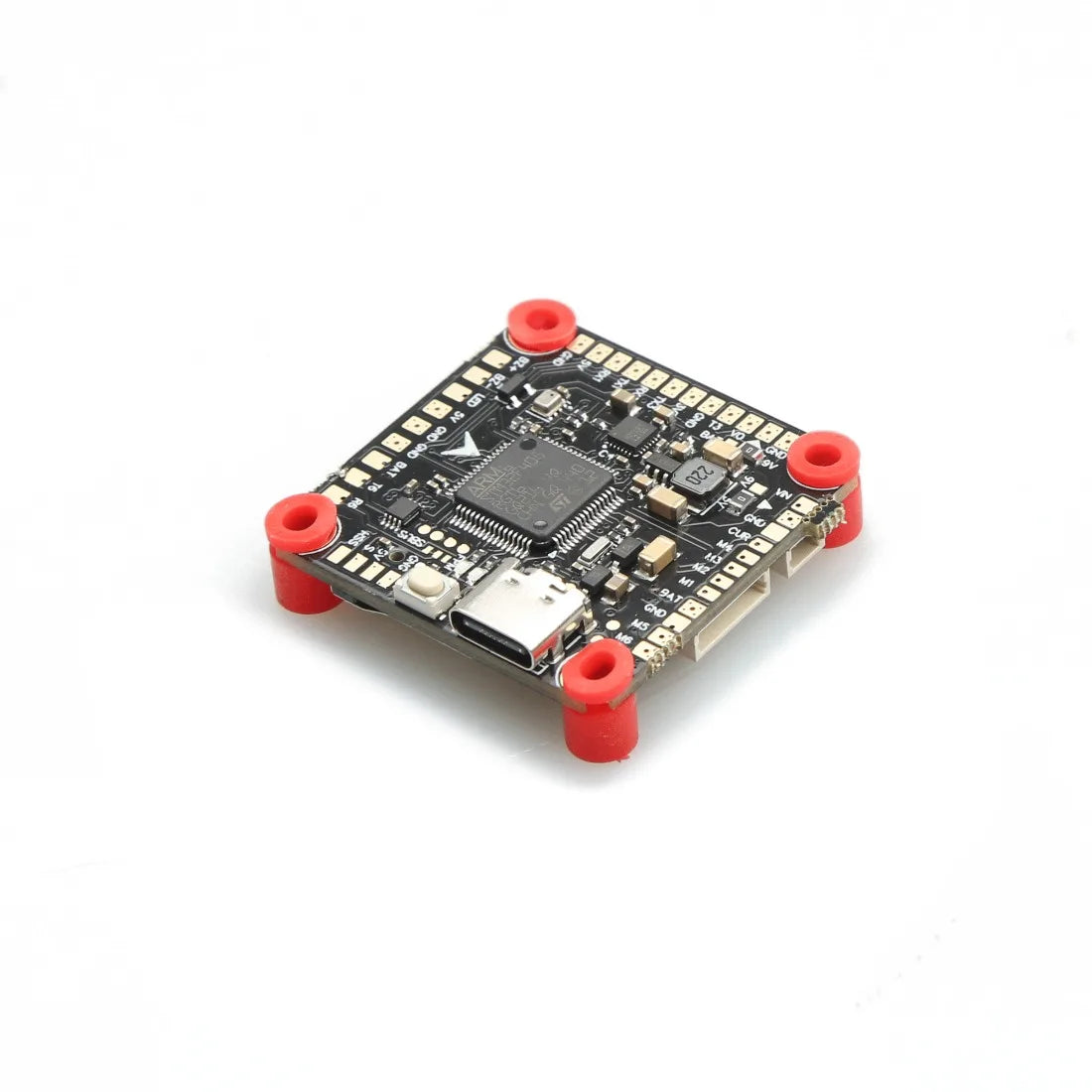

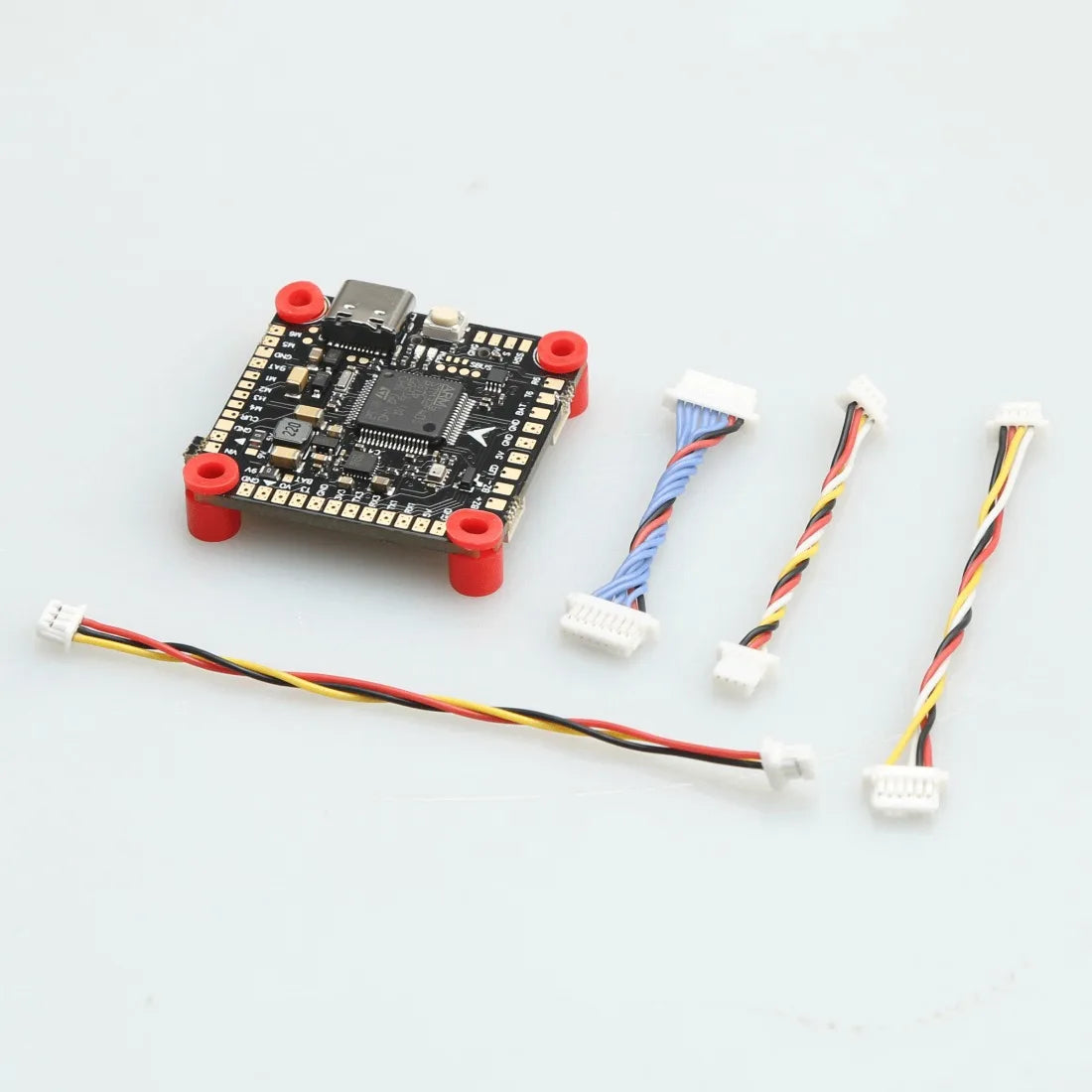

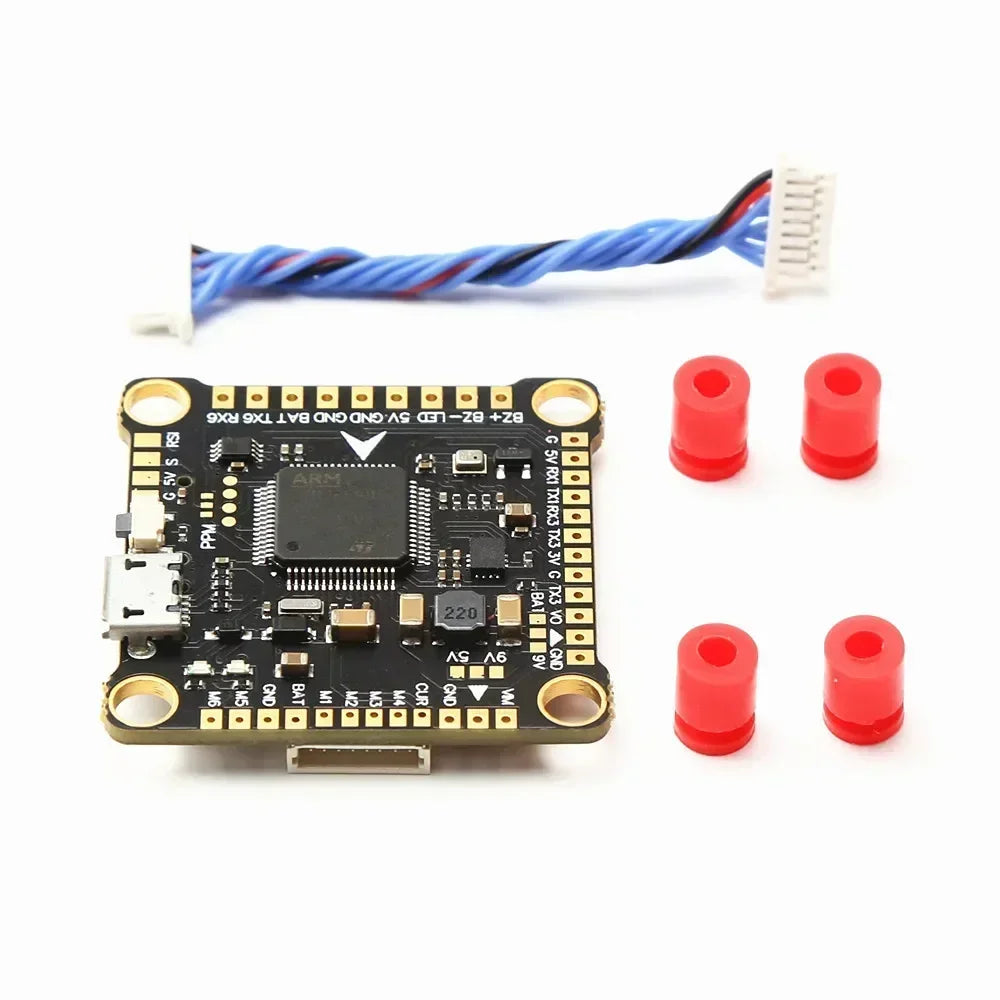

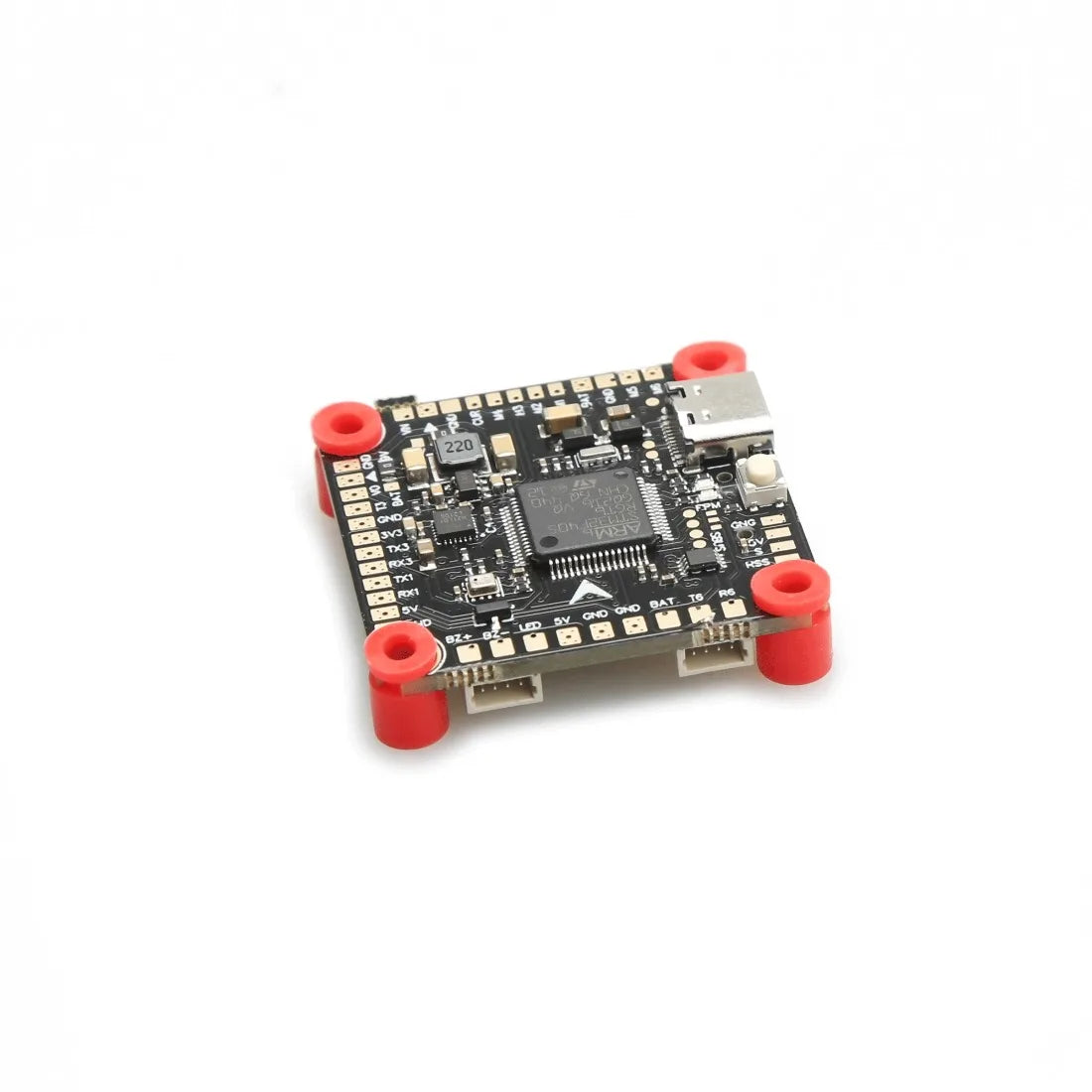

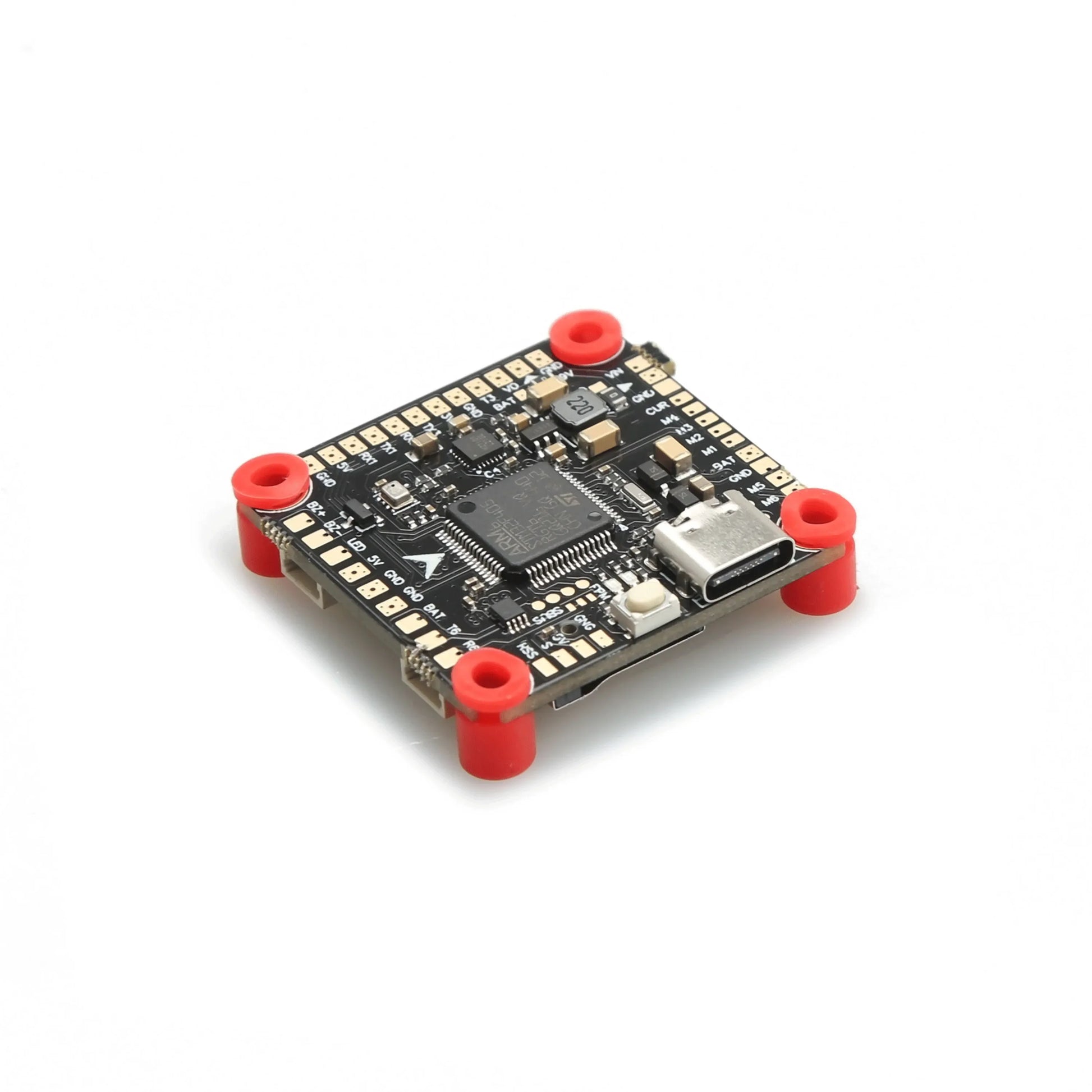

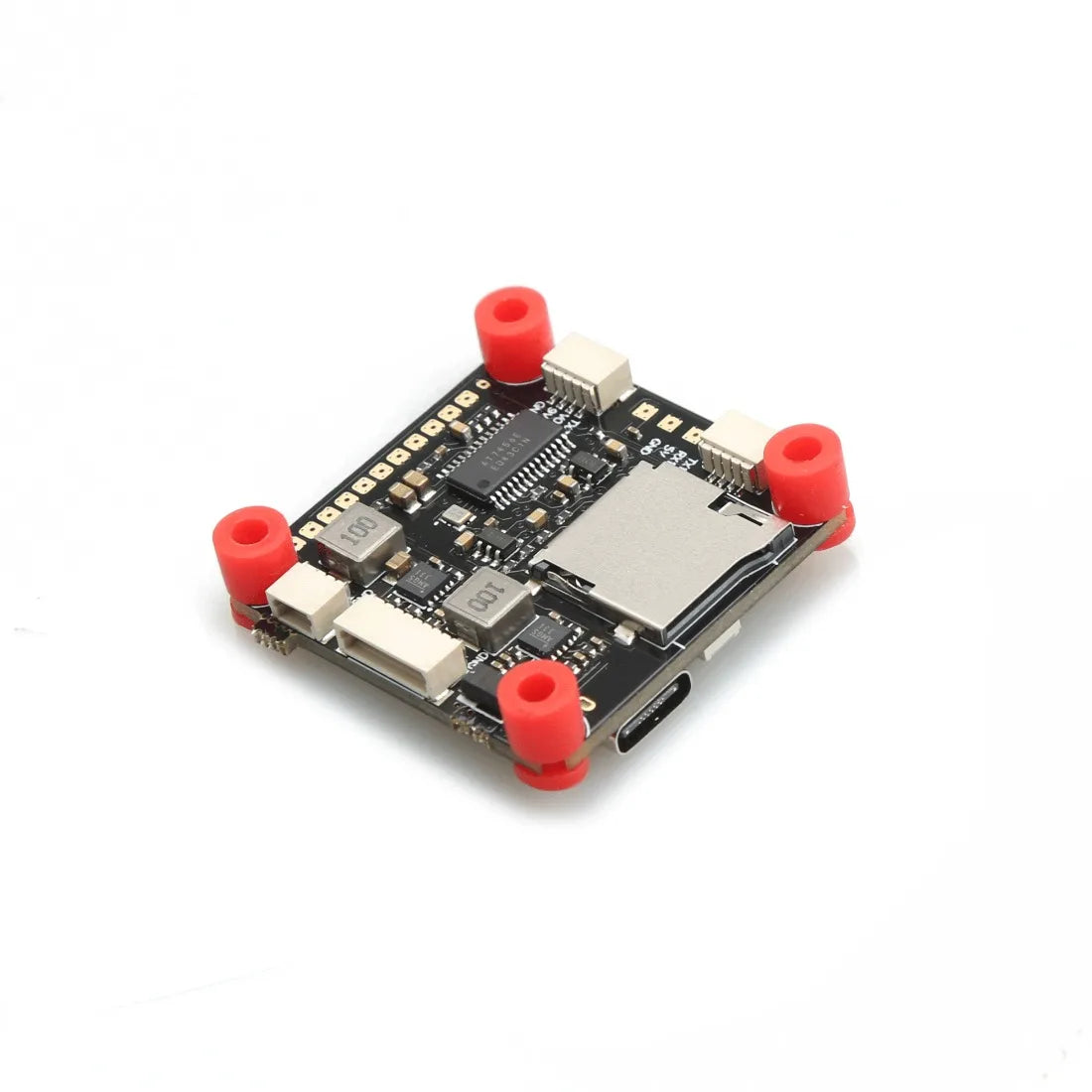

The F4 V3S Plus FC features the STM32 F405 MCU, BMI270 gyro, built-in barometer (BMP280), and drag-and-drop OSD via Betaflight for crystal-clear telemetry and flight data. Onboard 5V and 9V BEC outputs provide stable power for receivers, cameras, and DJI SkyEnd systems, while microSD Blackbox recording keeps all your flight logs safe for later analysis.

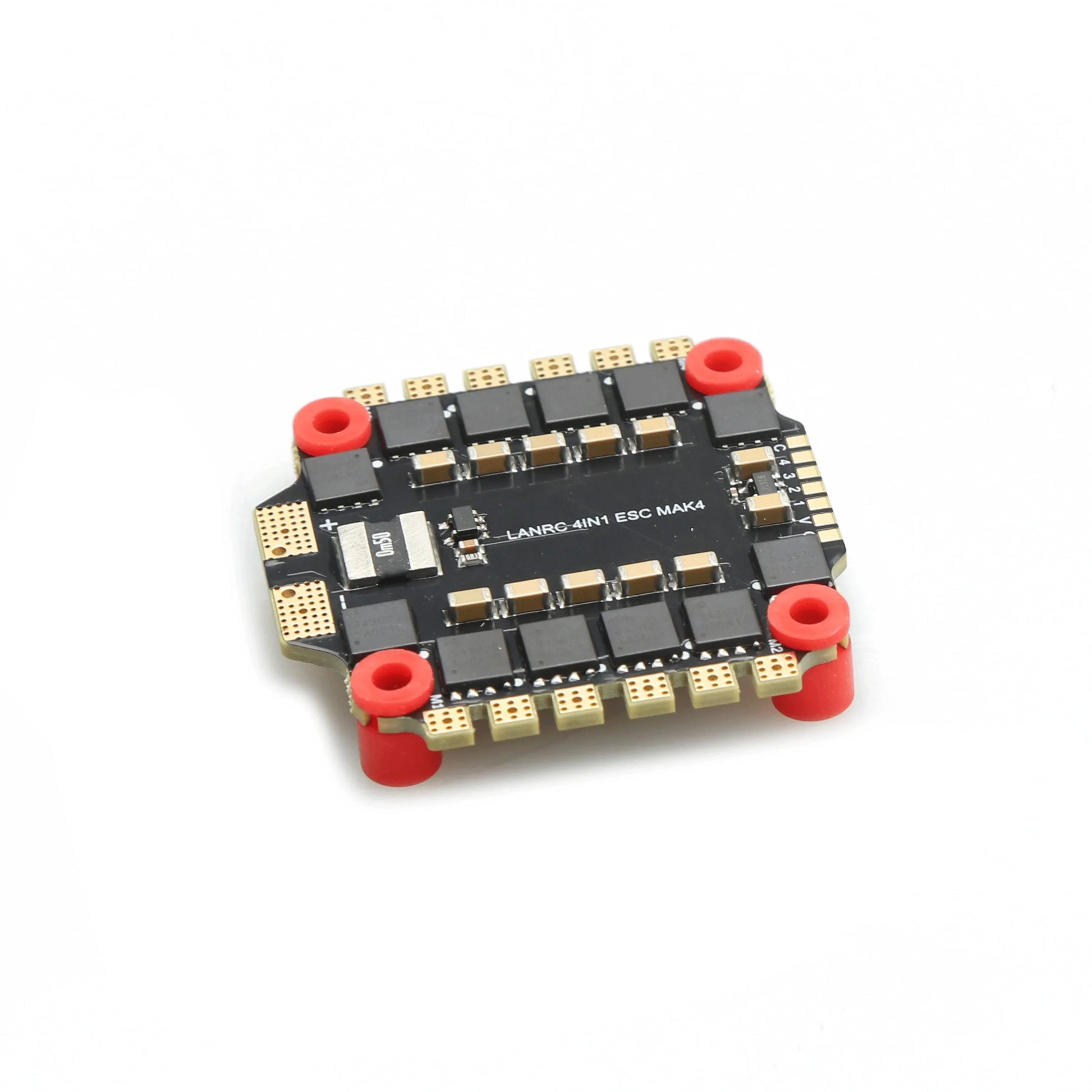

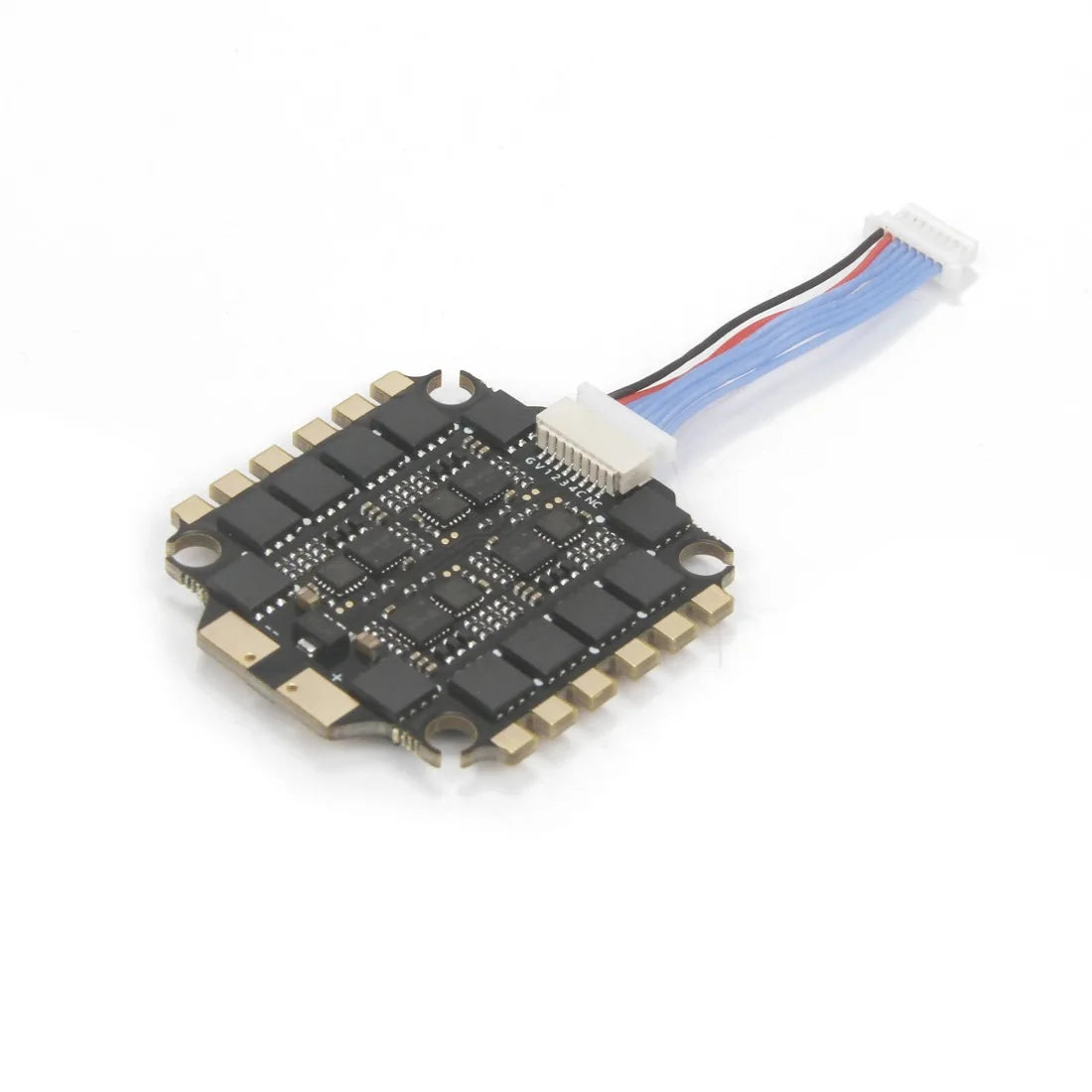

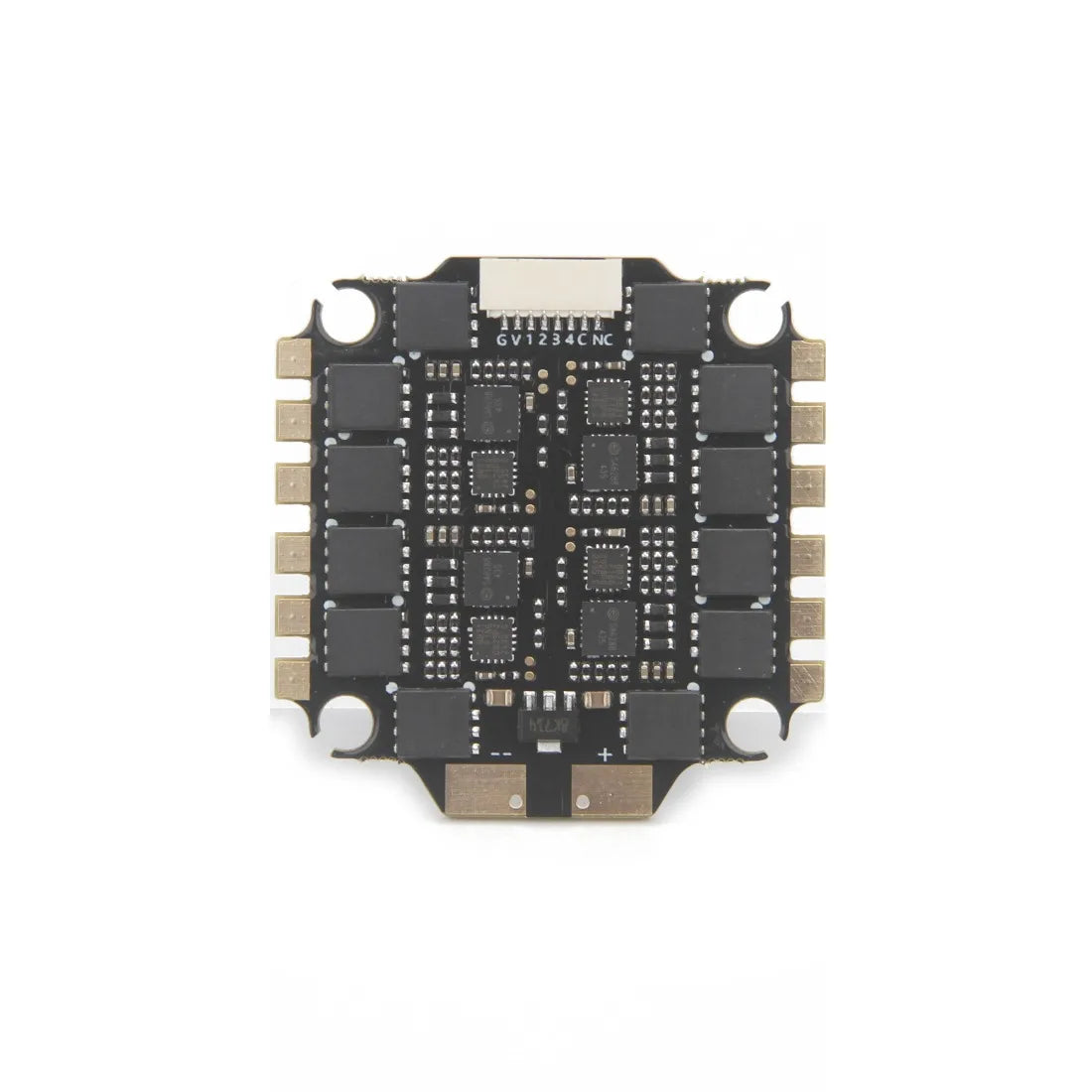

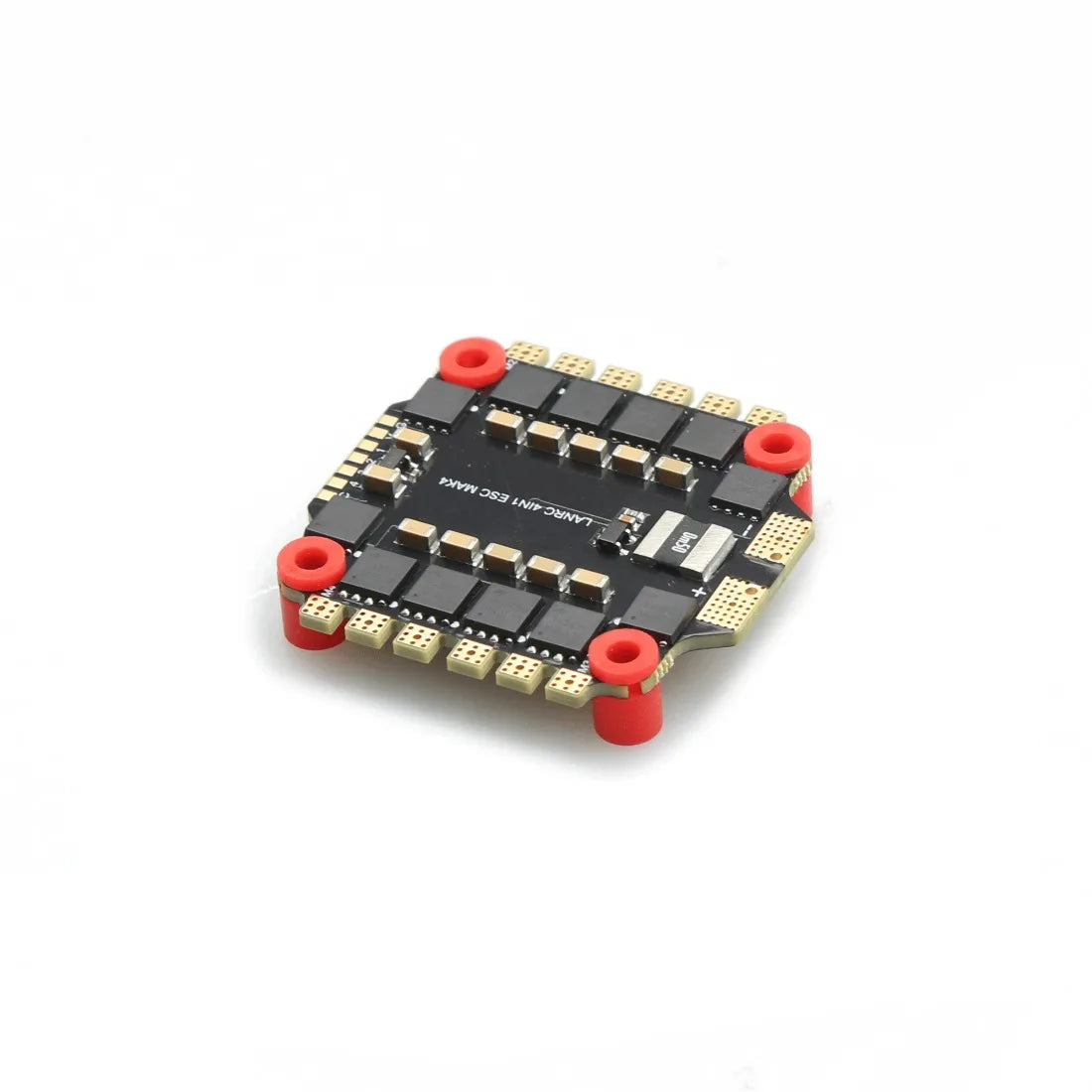

Paired with the BLS 4-in-1 ESC, choose between 45A or 60A continuous current with high burst ratings for maximum thrust and reliability. With support for 2-6S LiPo batteries, DShot300/600, Multishot, Oneshot, and PWM signals, this stack is ideal for FPV racing, freestyle, or DIY quadcopter projects. Onboard filtering reduces voltage spikes and ensures smooth, reliable flight—even under extreme conditions.
BEC Outputs: 5V 3A & 9V 3A for stable power to cameras, receivers, and DJI SkyEnd.

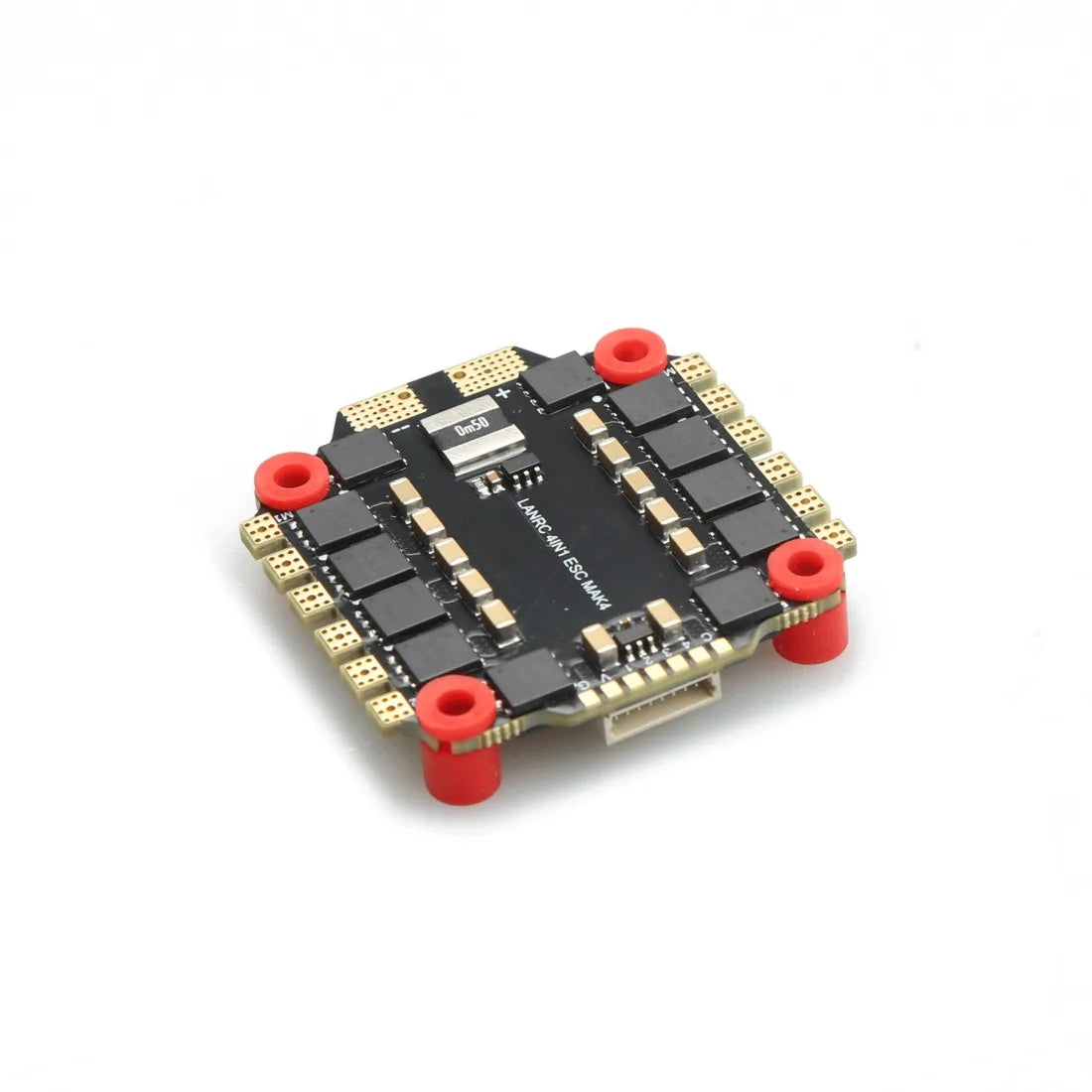

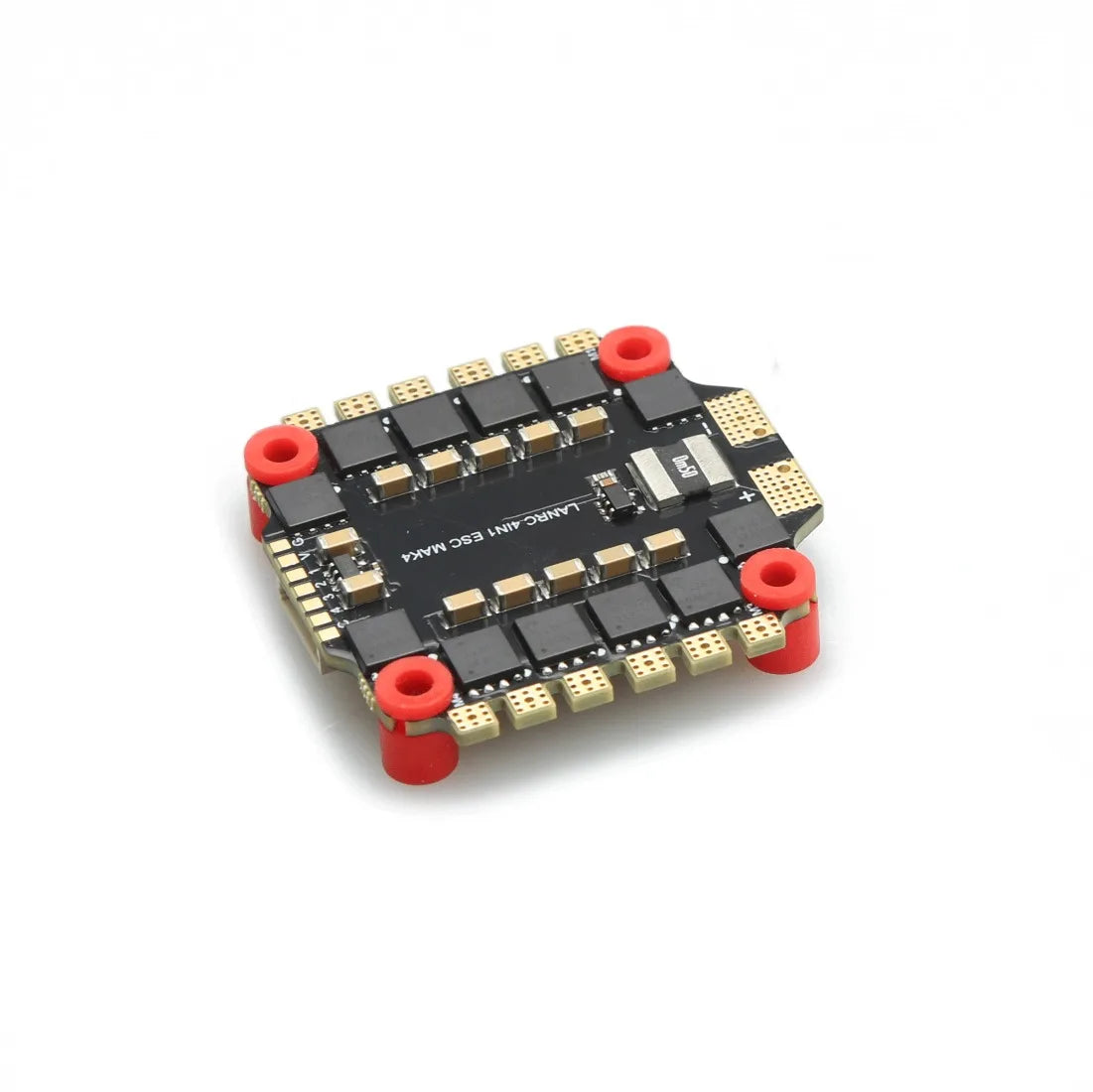

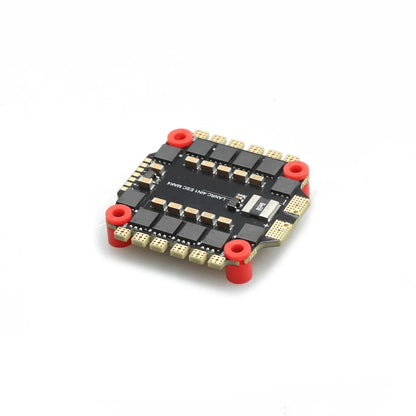

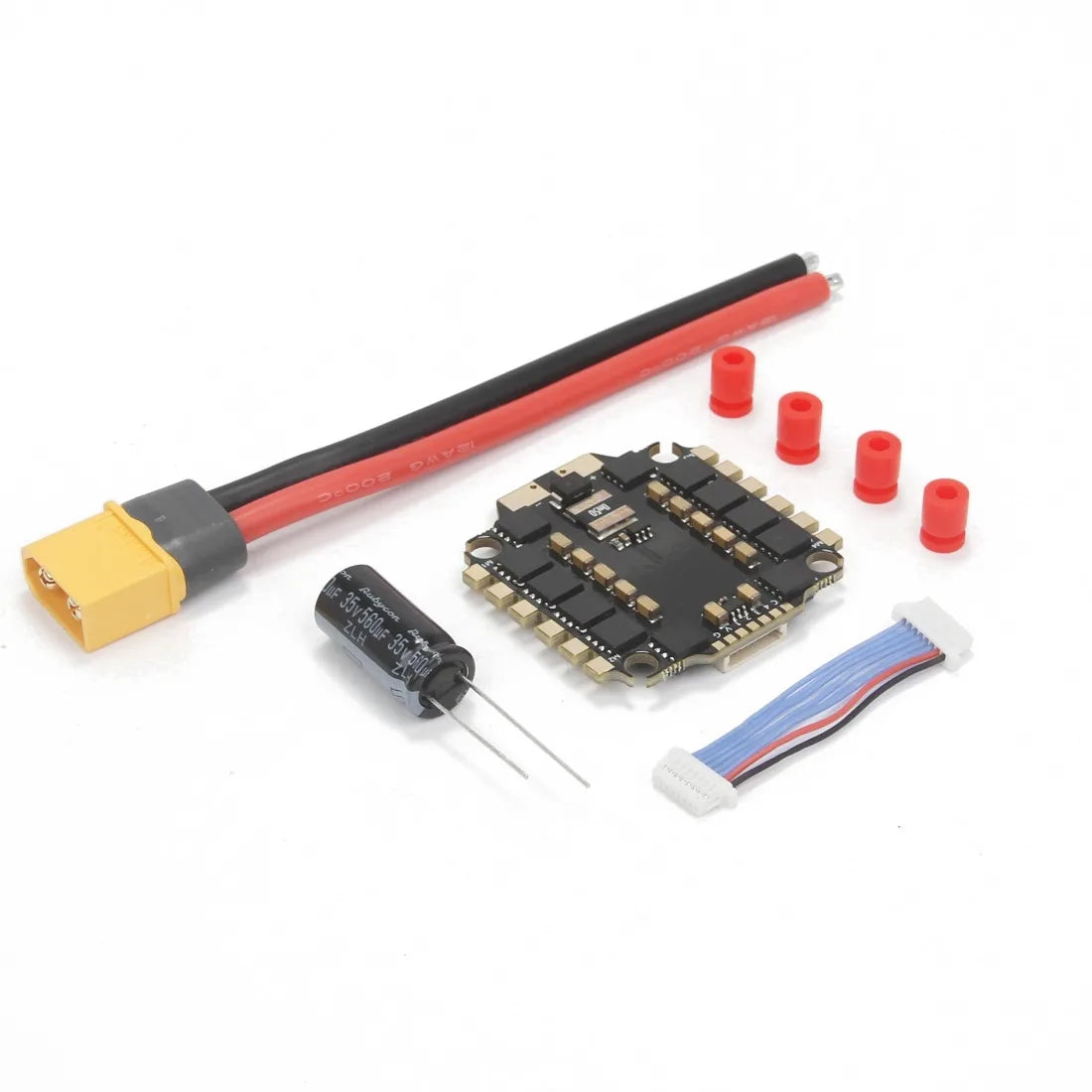

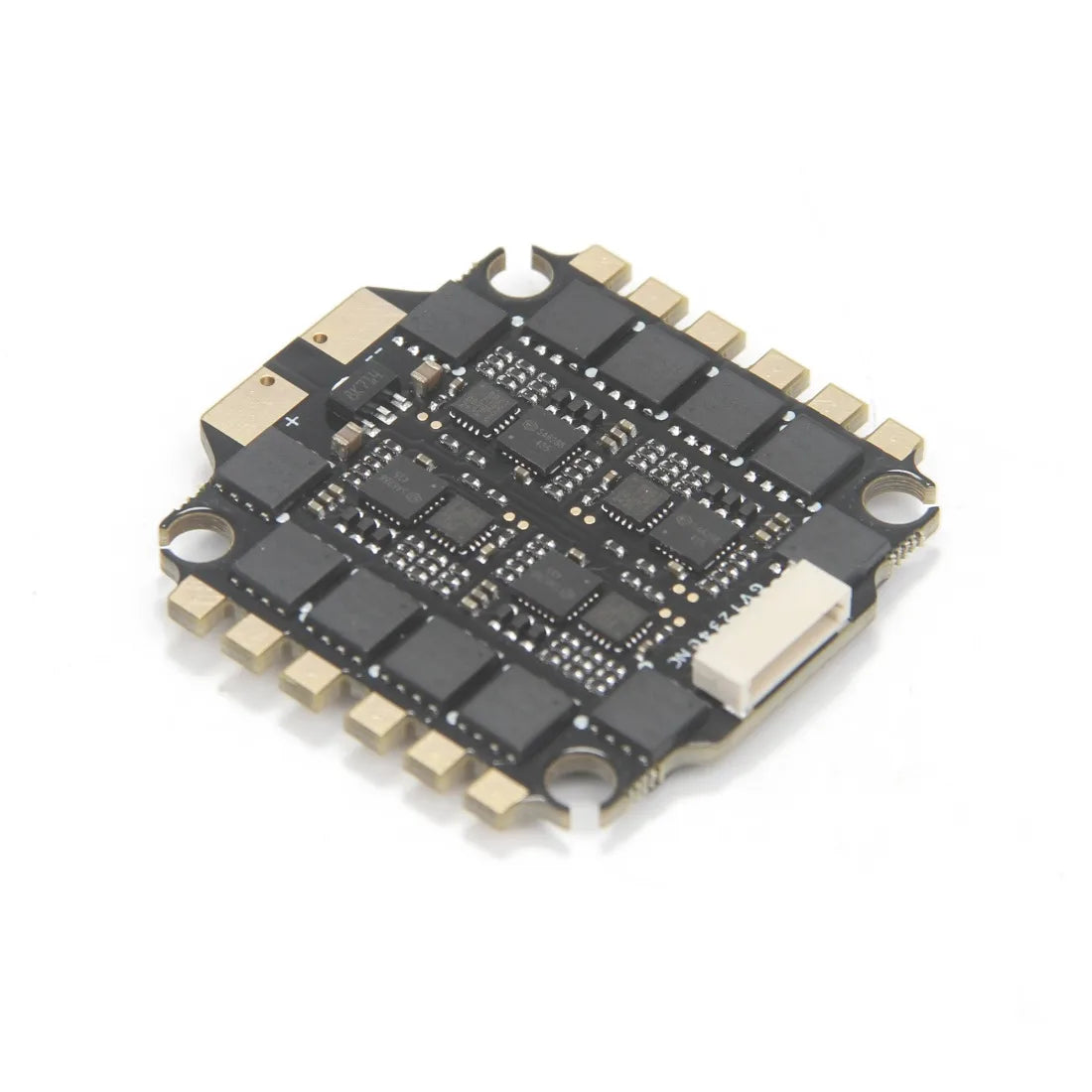

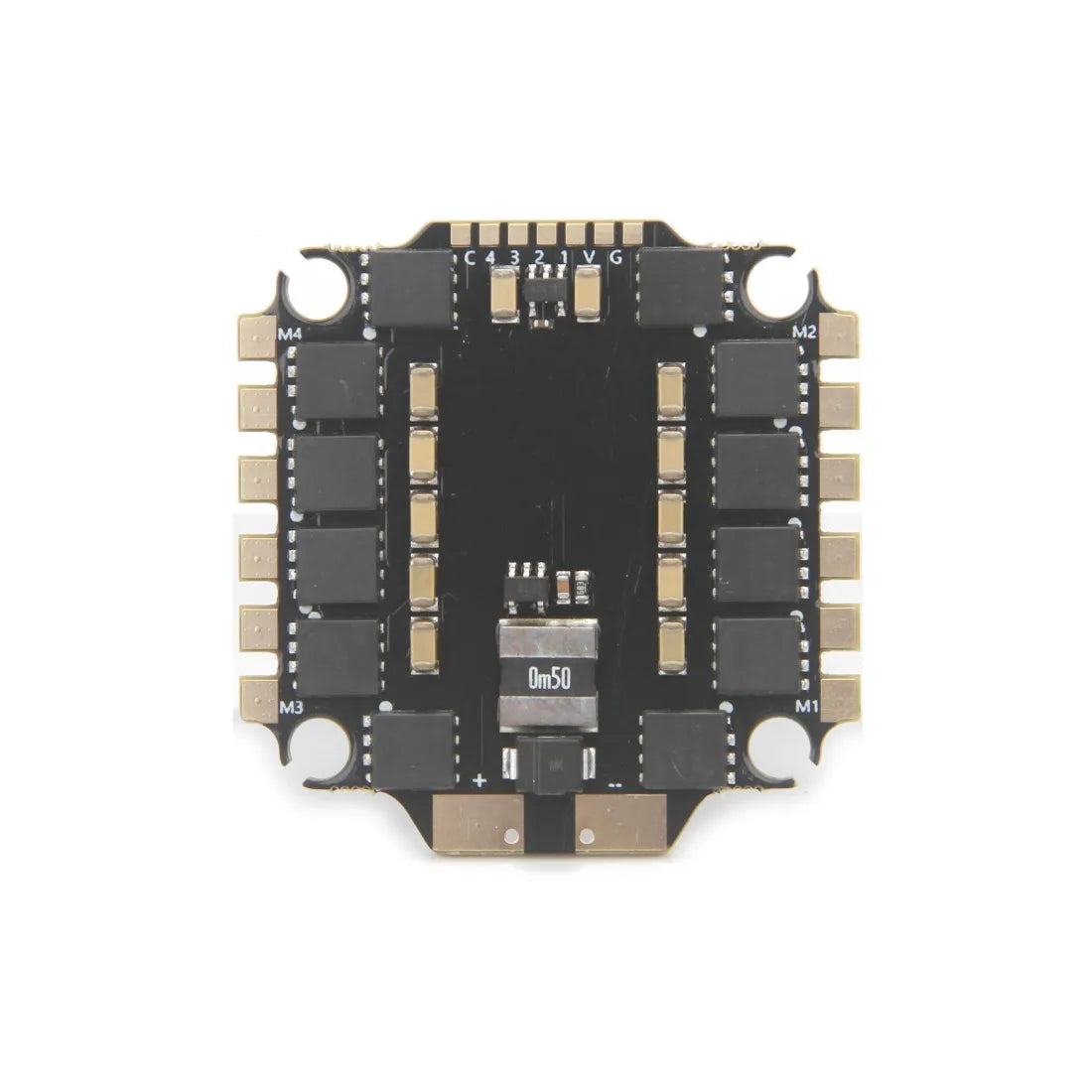

4-in-1 BLS ESC Options: 45A or 60A, supporting DShot, Multishot, Oneshot, PWM, with onboard current sensors.
Voltage & Current Protection: Filtered ESCs stabilize battery voltage and protect flight controller components.

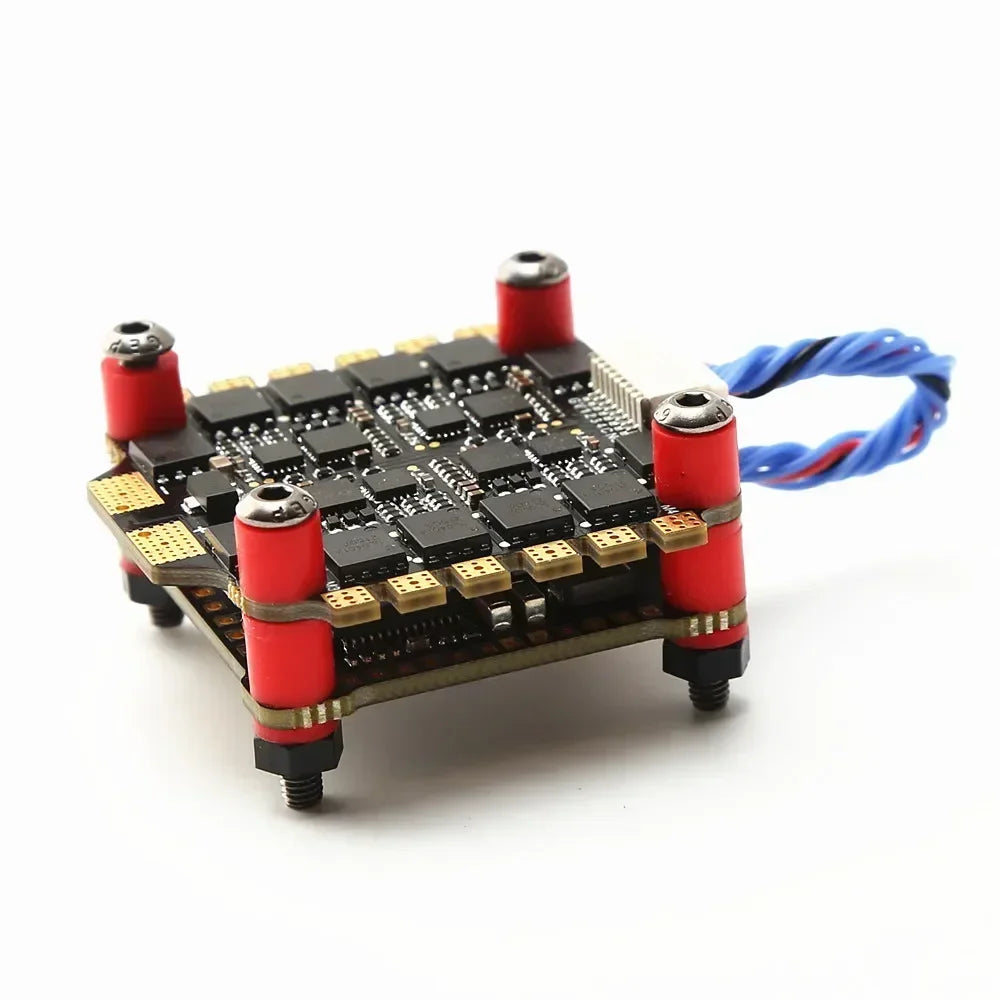

Mounting: 36x36mm FC with 30.5x30.5mm holes; ESC 30.5x30.5mm with M4 shock-absorbing mount support.
Perfect Use: FPV racing drones, freestyle quadcopters, Mark4/APEX builds, and DIY drone enthusiasts looking for reliable, high-performance flight control and ESC integration.

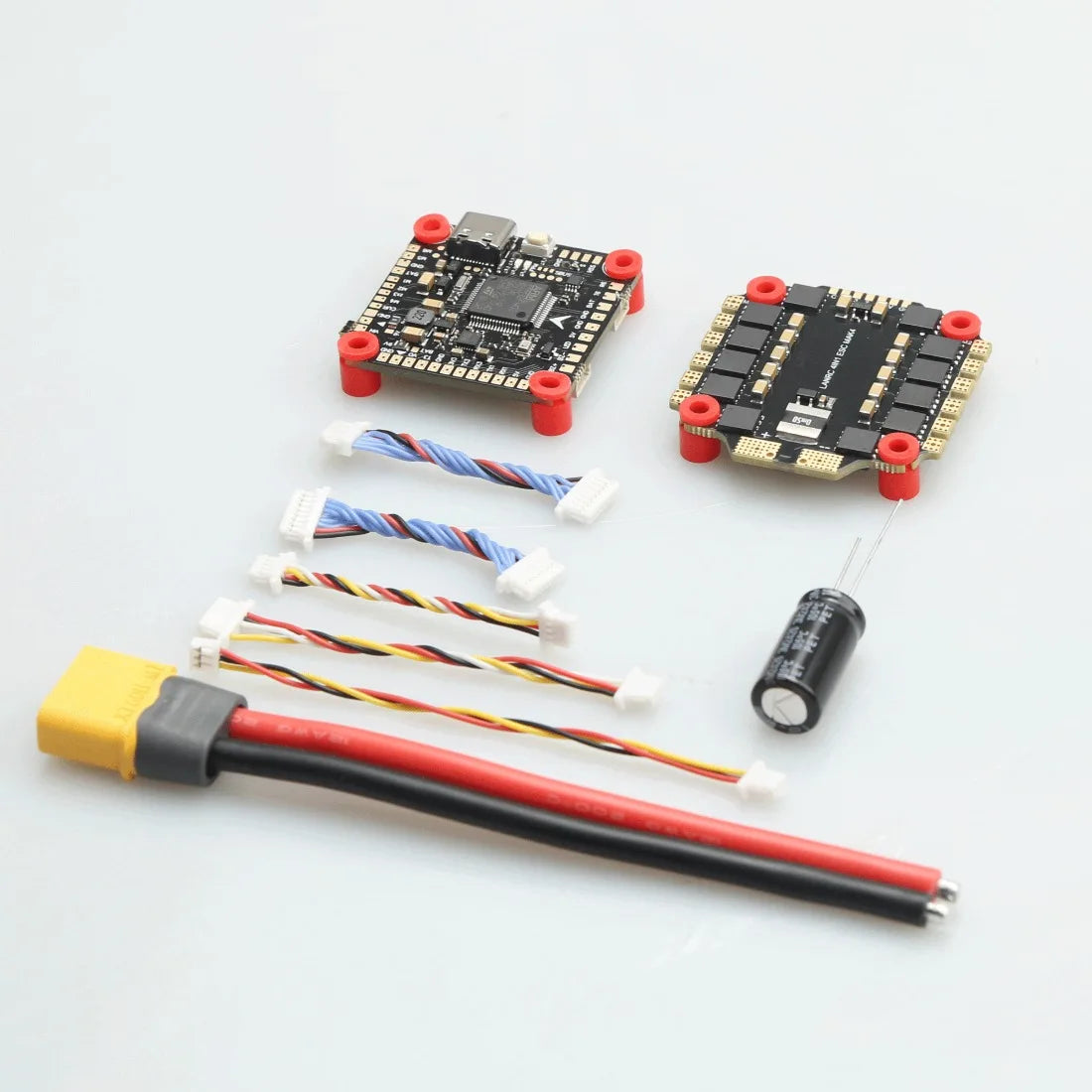

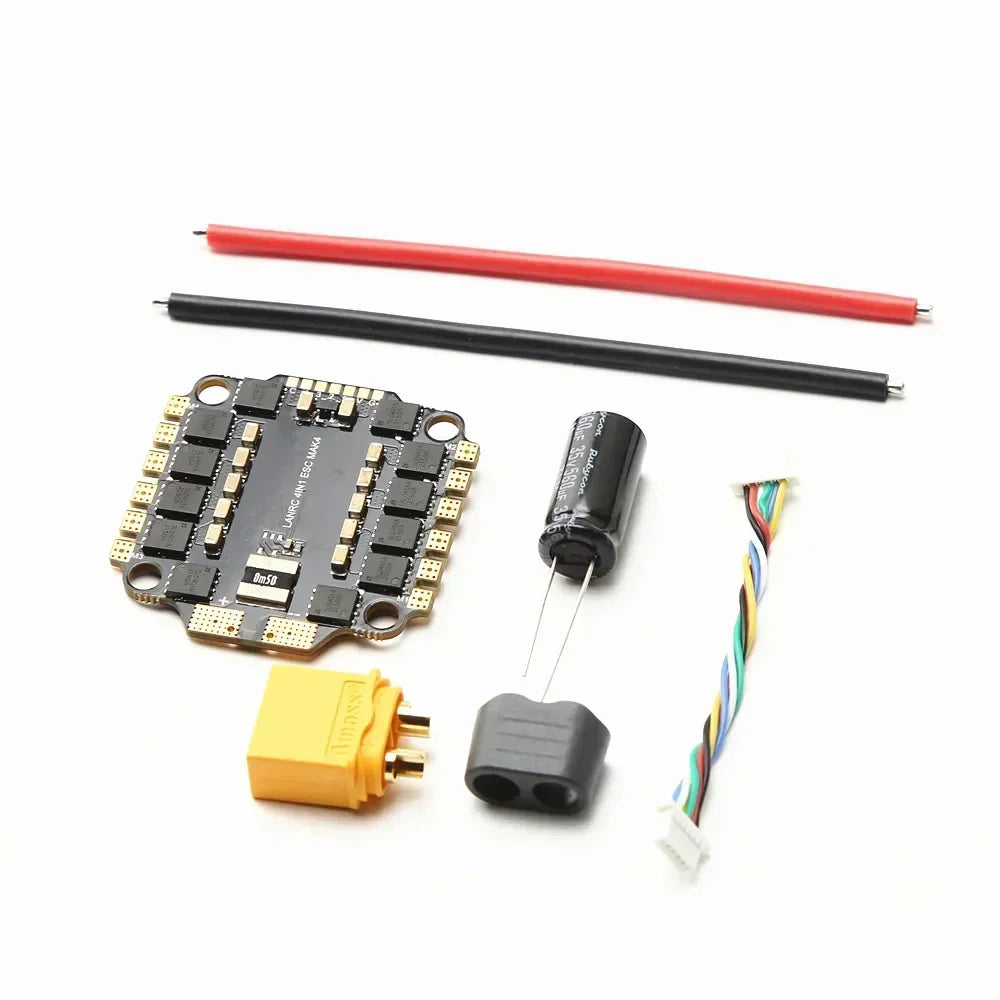

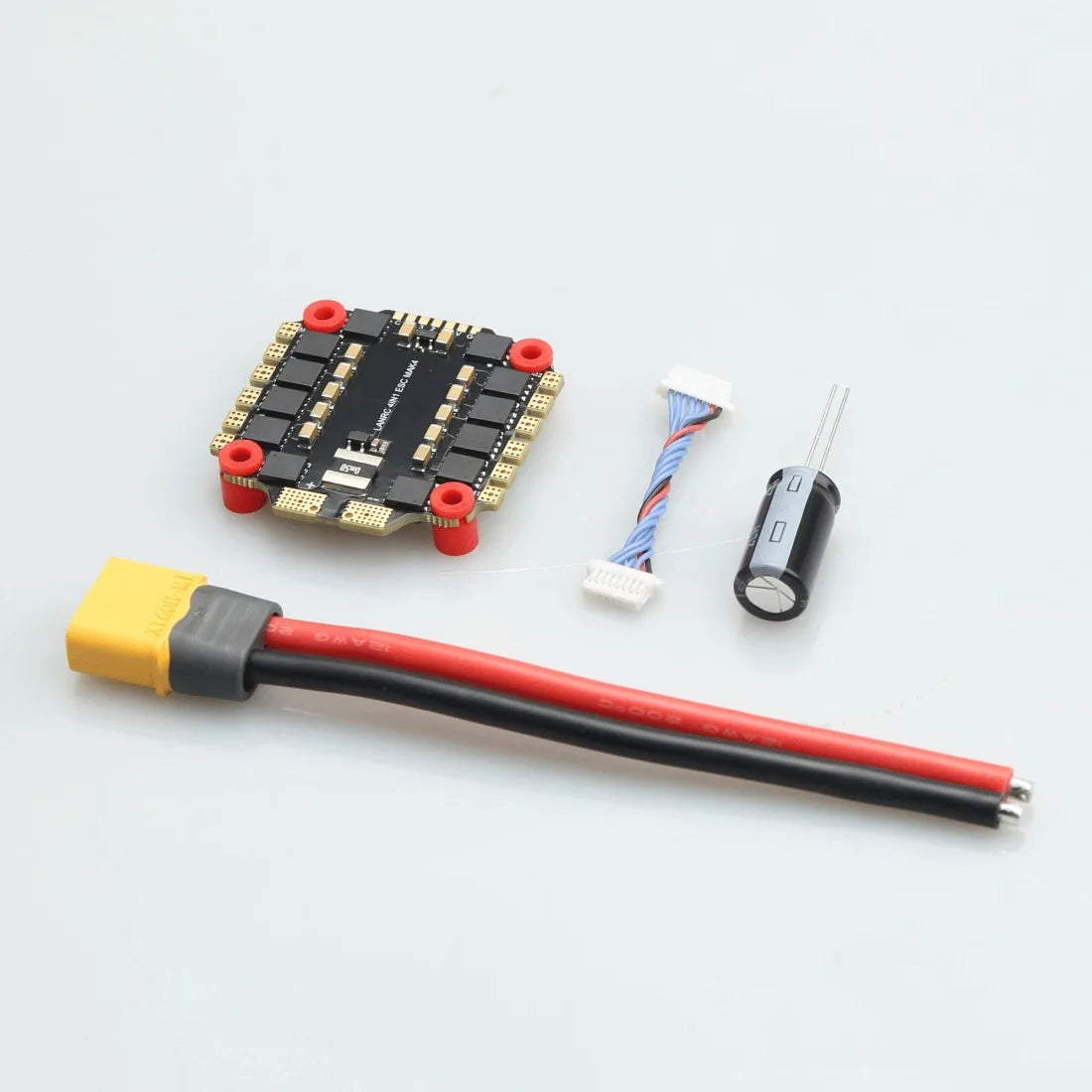

Package Note: Only includes F4 V3S Plus FC stack and 4-in-1 ESC; batteries, frame, motors, and other accessories are not included.
